ferrari 575 superamerica instruments panel parts diagram

128 - Instruments Panel

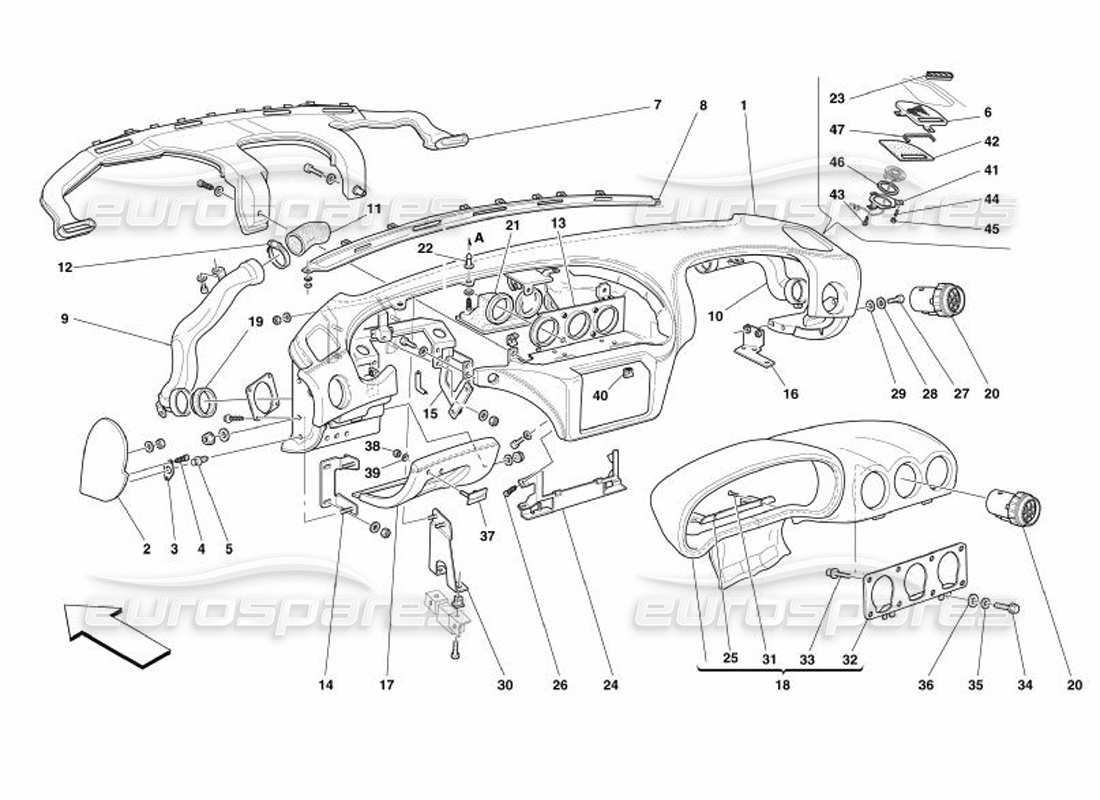

Ferrari 575 Superamerica Instruments Panel Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 690985..
                                                                    COVERED DASHBOARD WITH INSTRUMENTS
                                                                    Not for GD
                                                                    Supersession
                                                                    Supersession
                                                                    # 001
                                                                    MPN: 690986..
                                                                    COVERED DASHBOARD WITH INSTRUMENTS
                                                                    Valid for GD
                                                                    Supersession
                                                                    Supersession
                                                                    # 002
                                                                    MPN: 647665..
                                                                    LH LATERAL COVER
                                                                    Supersession
                                                                    Supersession
                                                                    # 002
                                                                    MPN: 647668..
                                                                    RH LATERAL COVER
                                                                    Supersession
                                                                    Supersession
                                                                    # 002
                                                                    MPN: 660807..
                                                                    RH LATERAL COVER
                                                                    Valid for cars With Passenger air-bagexclusion - Optional - Not for GD
                                                                    Supersession
                                                                    Supersession
                                                                    # 002
                                                                    MPN: 668052..
                                                                    LH LATERAL COVER
                                                                    Valid for cars With Passenger air-bagexclusion- -Optional - Valid for GD
                                                                    Supersession
                                                                    Supersession
                                                                    # 003
                                                                    MPN: 64712800
                                                                    PLATE
                                                                    from £1.19
                                                                    from £1.19
                                                                    # 004
                                                                    MPN: 15914877
                                                                    SCREW
                                                                    from £0.51
                                                                    from £0.51
                                                                    This part replaces part number 15914806 - and 1 more. Click to view details
                                                                    # 005
                                                                    MPN: 14188181
                                                                    RETAINER
                                                                    from £0.48
                                                                    from £0.48
                                                                    This part replaces part number 14188282
                                                                    # 006
                                                                    MPN: 63204200
                                                                    RH TWEETER PLATE
                                                                    from £71.43
                                                                    from £71.43
                                                                    This part replaces part number 64182600
                                                                    # 006
                                                                    MPN: 63204300
                                                                    LH TWEETER PLATE
                                                                    from £30.58
                                                                    from £30.58
                                                                    # 007
                                                                    MPN: 64707400
                                                                    AIR DUCTING
                                                                    Not for GD
                                                                    from £268.44
                                                                    from £268.44
                                                                    # 007
                                                                    MPN: 65024100
                                                                    AIR DUCTING
                                                                    Valid for GD
                                                                    from £488.09
                                                                    from £488.09
                                                                    # 008
                                                                    MPN: 63202100
                                                                    WINDSCREEN LOWER ENCLOSURE
                                                                    from £136.01
                                                                    from £136.01
                                                                    # 009
                                                                    MPN: 64706200
                                                                    LH AIR DUCTING
                                                                    Not for GD
                                                                    from £9.72
                                                                    from £9.72
                                                                    # 009
                                                                    MPN: 65212200
                                                                    LH AIR DUCTING
                                                                    Valid for GD
                                                                    from £13.79
                                                                    from £13.79
                                                                    # 010
                                                                    MPN: 64706300
                                                                    RH AIR DUCTING
                                                                    Not for GD
                                                                    from £9.72
                                                                    from £9.72
                                                                    # 010
                                                                    MPN: 65212100
                                                                    RH AIR DUCTING
                                                                    Valid for GD
                                                                    from £13.79
                                                                    from £13.79
                                                                    # 011
                                                                    MPN: 64758100
                                                                    RH SLEEVE
                                                                    Not for GD
                                                                    from £51.30
                                                                    from £51.30
                                                                    # 011
                                                                    MPN: 64758200
                                                                    LH SLEEVE
                                                                    Not for GD
                                                                    from £53.54
                                                                    from £53.54
                                                                    # 011
                                                                    MPN: 65216600
                                                                    RH SLEEVE
                                                                    Valid for GD
                                                                    from £61.58
                                                                    from £61.58
                                                                    # 011
                                                                    MPN: 65217300
                                                                    LH SLEEVE
                                                                    Valid for GD
                                                                    from £61.83
                                                                    from £61.83
                                                                    # 012
                                                                    MPN: 13000890
                                                                    SCREW COLLAR
                                                                    from £0.63
                                                                    from £0.63
                                                                    This part replaces part number 12173290 - and 2 more. Click to view details
                                                                    # 013
                                                                    MPN: 64719500
                                                                    AIR DUCT CONNECTION
                                                                    from £210.00
                                                                    from £210.00
                                                                    # 014
                                                                    MPN: 64701500
                                                                    DASHBOARD RH LATERAL FIXING BRACKET
                                                                    from £179.50
                                                                    from £179.50
                                                                    # 014
                                                                    MPN: 64701700
                                                                    DASHBOARD LH LATERAL FIXING BRACKET
                                                                    from £179.50
                                                                    from £179.50
                                                                    # 015
                                                                    MPN: 66280600
                                                                    BRACKET
                                                                    Not for GD
                                                                    from £118.67
                                                                    from £118.67
                                                                    # 015
                                                                    MPN: 66638400
                                                                    BRACKET
                                                                    Valid for GD
                                                                    from £63.00
                                                                    from £63.00
                                                                    # 016
                                                                    MPN: 65024700
                                                                    LH BRACKET
                                                                    Valid for GD
                                                                    from £42.45
                                                                    from £42.45
                                                                    # 016
                                                                    MPN: 66839200
                                                                    RH BRACKET
                                                                    Not for GD
                                                                    from £18.81
                                                                    from £18.81
                                                                    # 017
                                                                    MPN: 64759100
                                                                    LH LOWER COVER
                                                                    Not for GD
                                                                    from £162.46
                                                                    from £162.46
                                                                    # 017
                                                                    MPN: 650250..
                                                                    RH LOWER COVER
                                                                    Valid for GD
                                                                    from £309.75
                                                                    from £309.75
                                                                    # 018
                                                                    MPN: 660808..
                                                                    COVERED DASH BOARD
                                                                    valid for LHD
                                                                    from £861.00
                                                                    from £861.00
                                                                    # 018
                                                                    MPN: 666326..
                                                                    COVERED DASH BOARD
                                                                    Valid For RHD
                                                                    from £861.00
                                                                    from £861.00
                                                                    COVERED DASH BOARD Genuine Ferrari Part - New (other) In stock
                                                                    Black with black stitching slight damage as picture
                                                                    # 019
                                                                    MPN: 62188300
                                                                    GASKET
                                                                    from £3.24
                                                                    from £3.24
                                                                    # 020
                                                                    MPN: 66845100
                                                                    AIR OPENING
                                                                    from £146.25
                                                                    from £146.25
                                                                    # 021
                                                                    MPN: 64587400
                                                                    UNION FROM EVAPORATOR UNIT TO AIR OPENING
                                                                    Not for GD
                                                                    from £25.61
                                                                    from £25.61
                                                                    # 021
                                                                    MPN: 65024300
                                                                    UNION FROM EVAPORATOR UNIT TO AIR OPENING
                                                                    Valid for GD
                                                                    from £45.89
                                                                    from £45.89
                                                                    # 022
                                                                    MPN: 65879900
                                                                    PIN
                                                                    from £12.64
                                                                    from £12.64
                                                                    # 023
                                                                    MPN: 63204000
                                                                    RH AIR DIFFUSER
                                                                    from £51.56
                                                                    from £51.56
                                                                    # 023
                                                                    MPN: 63204100
                                                                    LH AIR DIFFUSER
                                                                    from £3.54
                                                                    from £3.54
                                                                    # 024
                                                                    MPN: 66280100
                                                                    CONSOLLE LOWER BRACKET
                                                                    from £71.96
                                                                    from £71.96
                                                                    # 025
                                                                    MPN: 66285900
                                                                    FRONT CENTRAL BRACKET
                                                                    Not for GD
                                                                    from £101.66
                                                                    from £101.66
                                                                    # 025
                                                                    MPN: 66785000
                                                                    FRONT CENTRAL BRACKET
                                                                    Valid for GD
                                                                    from £36.65
                                                                    from £36.65
                                                                    # 026
                                                                    MPN: 15688875
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 15688814
                                                                    # 027
                                                                    MPN: 10902124
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 10902111 - and 1 more. Click to view details
                                                                    # 028
                                                                    MPN: 12644424
                                                                    WASHER
                                                                    from £0.54
                                                                    from £0.54
                                                                    This part replaces part number 12644401 - and 1 more. Click to view details
                                                                    # 029
                                                                    MPN: 12605374
                                                                    WASHER
                                                                    from £0.71
                                                                    from £0.71
                                                                    This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
                                                                    # 030
                                                                    MPN: 168961
                                                                    OBDII CONNECTOR FIXING BRACKET
                                                                    Not for GD
                                                                    from £22.82
                                                                    from £22.82
                                                                    # 030
                                                                    MPN: 193633
                                                                    OBDII CONNECTOR FIXING BRACKET
                                                                    Valid for GD
                                                                    from £78.37
                                                                    from £78.37
                                                                    # 031
                                                                    MPN: 13298917
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 032
                                                                    MPN: 66638000
                                                                    BRACKET FOR AIR OPENINGS FIXING
                                                                    Valid for GD
                                                                    from £115.45
                                                                    from £115.45
                                                                    # 032
                                                                    MPN: 66675800
                                                                    BRACKET FOR AIR OPENINGS FIXING
                                                                    Not for GD
                                                                    from £110.71
                                                                    from £110.71
                                                                    # 033
                                                                    MPN: 15688875
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 15688814
                                                                    # 034
                                                                    MPN: 16286124
                                                                    SCREW
                                                                    from £0.51
                                                                    from £0.51
                                                                    # 035
                                                                    MPN: 12601274
                                                                    WASHER
                                                                    from £0.51
                                                                    from £0.51
                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                    # 036
                                                                    MPN: 12643724
                                                                    WASHER
                                                                    from £0.48
                                                                    from £0.48
                                                                    This part replaces part number 109684 - and 4 more. Click to view details
                                                                    # 037
                                                                    MPN: 69065010
                                                                    CAMPIONI DEL MONDO 2004 MARK
                                                                    from £96.92
                                                                    from £96.92
                                                                    # 038
                                                                    MPN: 16101711
                                                                    NUT
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 16101715
                                                                    # 039
                                                                    MPN: 12544079
                                                                    WASHER
                                                                    from £0.71
                                                                    from £0.71
                                                                    This part replaces part number 12544071 which we have in stock
                                                                    # 040
                                                                    MPN: 62766300
                                                                    CLIP
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 041
                                                                    MPN: 66402100
                                                                    RH BRACKET FOR TWEETER FIXING
                                                                    from £29.53
                                                                    from £29.53
                                                                    # 041
                                                                    MPN: 66402200
                                                                    LH BRACKET FOR TWEETER FIXING
                                                                    from £29.53
                                                                    from £29.53
                                                                    # 042
                                                                    MPN: 66616800
                                                                    TWEETER COVER
                                                                    from £4.52
                                                                    from £4.52
                                                                    # 043
                                                                    MPN: 15783177
                                                                    SCREW
                                                                    from £1.75
                                                                    from £1.75
                                                                    # 044
                                                                    MPN: 63528100
                                                                    THREADED PIN
                                                                    from £11.57
                                                                    from £11.57
                                                                    # 045
                                                                    MPN: 14058311
                                                                    NUT
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 046
                                                                    MPN: 66616900
                                                                    ANTI-VIBRATION GASKET
                                                                    from £4.61
                                                                    from £4.61
                                                                    # 047
                                                                    MPN: 65404300
                                                                    FORK
                                                                    from £1.74
                                                                    from £1.74
