138 - Rear Passengers Compartment Control Stations

Ferrari 575 Superamerica Rear Passengers Compartment Control Stations Parts Diagram

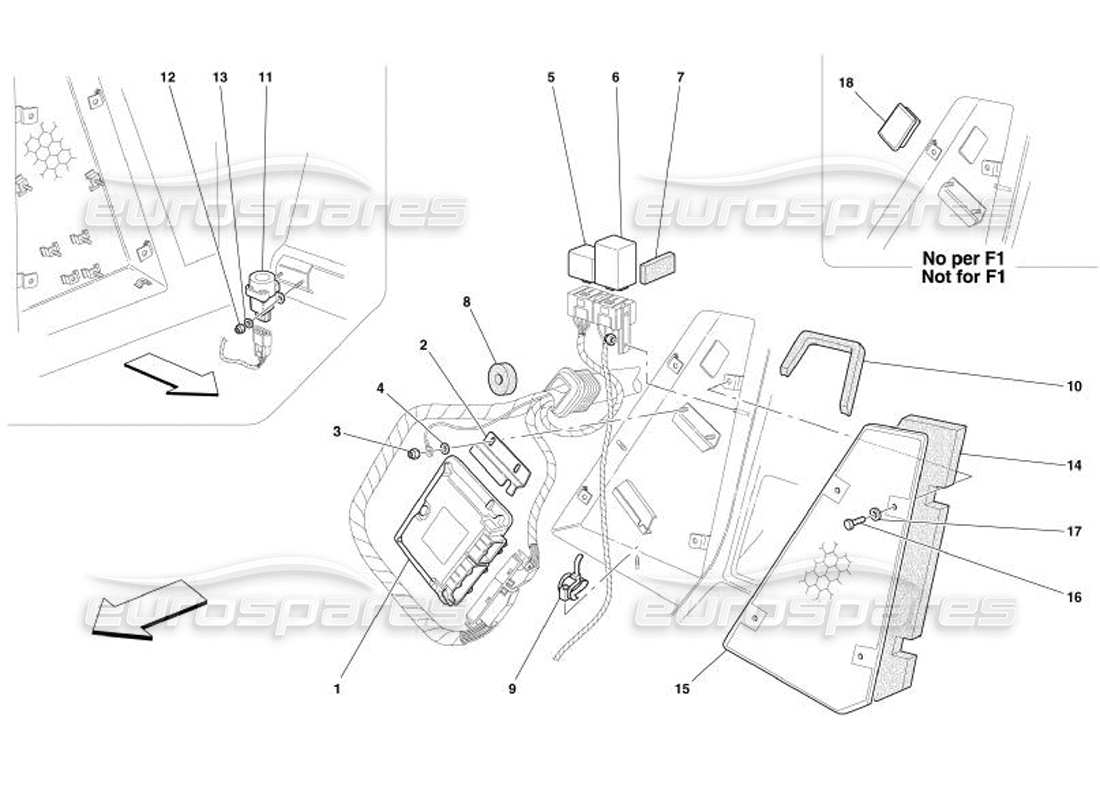

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 218783
F1 GEARBOX ELECTRIC CONTROL S
Valid for F1
from £1,316.36
from £1,316.36
# 002
MPN: 65668900
CONTROL UNIT FIXING BRACKET
Valid for F1
from £190.23
from £190.23
# 003
MPN: 169180
NUT
Valid for F1
from £0.53
from £0.53
This part replaces part number 12574121
# 004
MPN: 12637824
WASHER
Valid for F1
from £0.47
from £0.47
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 005
MPN: 194909
F1 RELAY
- Valid for F1 - not as spare part - use part number: 233100
from £7.60
from £7.60
# 006
MPN: 183209
TRUNK LAMP TIMER
from £20.34
from £20.34
# 007
MPN: 158346
RUBBER THICKNESS
from £0.79
from £0.79
# 008
MPN: 63566000
SEAL RING
from £1.01
from £1.01
# 009
MPN: 177553
CLAMP
from £0.53
from £0.53
# 010
MPN: 65387300
COVER GASKET
from £12.65
from £12.65
# 011
MPN: 179087
INERTIAL SWITCH
from £34.47
from £34.47
This part replaces part number 163675 which we have in stock - and 8 more. Click to view details
# 012
MPN: 169180
NUT
from £0.53
from £0.53
This part replaces part number 12574121
# 013
MPN: 12637824
WASHER
from £0.47
from £0.47
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 014
MPN: 67116900
Insulation
from £18.99
from £18.99
# 015
MPN: 184860
LH COVER
from £18.05
from £18.05
# 016
MPN: 10977624
SCREW
from £0.51
from £0.51
This part replaces part number 10977611 - and 1 more. Click to view details
# 017
MPN: 12637824
WASHER
from £0.47
from £0.47
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 018
MPN: 170180
PLUG
Not for F1
from £3.78
from £3.78
