ferrari 599 gtb fiorano (usa) blow-by system parts diagram

0019 - Blow-by system

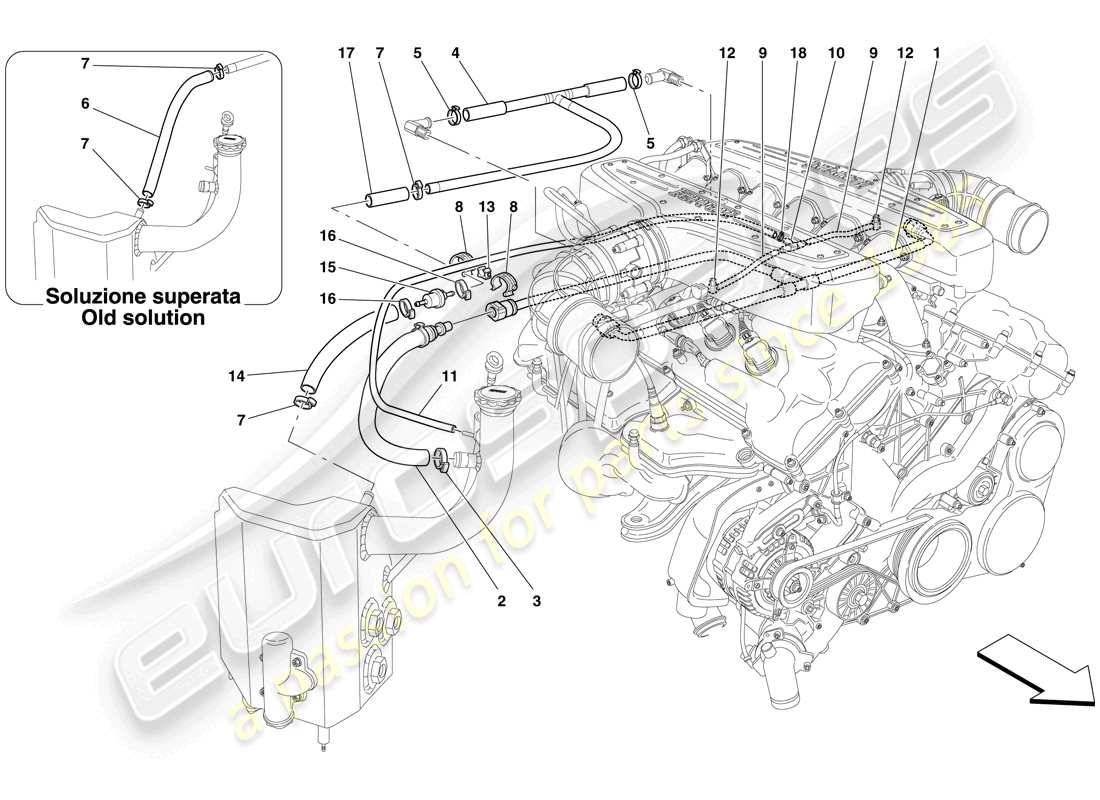

Ferrari 599 GTB Fiorano (USA) BLOW-BY SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 001
                  MPN: 219260
                  BLOW-BY PIPE
                  -Not for USA, CDN, GD-
                  from £57.72
                  from £57.72
                  BLOW-BY PIPE Genuine Ferrari Part - New (to order)
                  # 001
                  MPN: 219476
                  BLOW-BY PIPE
                  -Applicable for USA, CDN-
                  from £121.88
                  from £121.88
                  BLOW-BY PIPE -VALID FOR USA Genuine Ferrari Part - New (to order)
                  # 001
                  MPN: 224994
                  BLOW-BY PIPE
                  -Applicable for GD-
                  from £97.10
                  from £97.10
                  BLOW-BY PIPE Genuine Ferrari Part - New (to order)
                  # 002
                  MPN: 219261
                  VAPOUR ASPIRATION PIPE
                  -Not for GD-
                  from £32.65
                  from £32.65
                  VAPOR SUCTION PIPE Genuine Ferrari Part - New (to order)
                  # 002
                  MPN: 225016
                  VAPOUR ASPIRATION PIPE
                  -Applicable for GD-
                  from £70.79
                  from £70.79
                  VAPOR SUCTION PIPE -VALID FO Genuine Ferrari Part - New (to order)
                  # 003
                  MPN: 13432908
                  COLLAR FOR HOSE UNION
                  -No longer supplied- -Replaced by 13433370-
                  Supersession
                  Supersession
                  Genuine Ferrari Part (no longer available to order)
                  # 003
                  MPN: 13433370
                  COLLAR FOR HOSE UNION
                  from £0.47
                  from £0.47
                  This part replaces part number 247921
                  SCREW COLLAR. Genuine Ferrari Part - New In stock
                  CLAMP (13433370) Genuine Maserati Part - New (to order)
                  # 004
                  MPN: 225404
                  VAPOUR PIPE
                  -Applicable for GD-
                  from £54.52
                  from £54.52
                  VAPOR PIPE -VALID FOR GD- Genuine Ferrari Part - New (to order)
                  # 004
                  MPN: 226045
                  VAPOUR PIPE
                  -Not for GD-
                  from £63.20
                  from £63.20
                  This part replaces part number 209341
                  VAPOR PIPE Genuine Ferrari Part - New (to order)
                  # 005
                  MPN: 13430770
                  COLLAR FOR HOSE UNION
                  from £0.47
                  from £0.47
                  SCREW COLLAR. Genuine Ferrari Part - New In stock
                  SCREW COLLAR (13430770) Genuine Maserati Part - New (to order)
                  # 006
                  MPN: 226064
                  PIPE FROM PCV TO TANK
                  -Not for GD- -No longer supplied-
                  from £15.48
                  from £15.48
                  This part replaces part number 202866
                  PIPE D.16-23X380 Genuine Ferrari Part - New (to order)
                  # 006
                  MPN: 226141
                  PIPE FROM PCV TO TANK
                  -Applicable for GD- -No longer supplied-
                  PIPE FROM PCV TO TANK Genuine Ferrari Part - New (to order)
                  # 007
                  MPN: 178053
                  CLAMP
                  from £0.70
                  from £0.70
                  CLAMP Genuine Ferrari Part - New (to order)
                  CLAMP D.20-2X220.2 (178053) Genuine Maserati Part - New (to order)
                  # 008
                  MPN: 171358
                  FASTENER CLIP
                  from £0.47
                  from £0.47
                  CLIP Genuine Ferrari Part - New (to order)
                  CLIP (171358) Genuine Maserati Part - New (to order)
                  # 009
                  MPN: 118901
                  RUBBER PIPE
                  from £3.25
                  from £3.25
                  TUBE Genuine Ferrari Part - New (to order)
                  # 009
                  MPN: 124790
                  RUBBER PIPE
                  -No longer supplied- -Replaced by 118901-
                  from £3.11
                  from £3.11
                  TUBE Genuine Ferrari Part - New In stock
                  RUBBER HOSE FOR SOLENOID (124790) Genuine Maserati Part - New (to order)
                  # 010
                  MPN: 161816
                  THREE-WAY UNION
                  -No longer supplied- -Replaced by 258855-
                  from £1.06
                  from £1.06
                  UNION Genuine Ferrari Part - New In stock
                  3-WAY UNION (161816) Genuine Maserati Part - New (to order)
                  # 010
                  MPN: 258855
                  THREE-WAY UNION
                  from £23.07
                  from £23.07
                  3-WAY CONNECTOR Genuine Ferrari Part - New (to order)
                  # 011
                  MPN: 206378
                  RUBBER PIPE
                  -Not for USA, CDN- -No longer supplied- -Replaced by 240026-
                  from £31.77
                  from £31.77
                  This part replaces part number 198650
                  RUBBER HOSE Genuine Ferrari Part - New (to order)
                  # 011
                  MPN: 240026
                  RUBBER PIPE
                  -Not for USA, CDN-
                  from £6.12
                  from £6.12
                  RUBBER HOSE Genuine Ferrari Part - New (to order)
                  # 012
                  MPN: 128016
                  CONNECTOR
                  -Zn/white-
                  from £5.52
                  from £5.52
                  UNION Genuine Ferrari Part - New (to order)
                  RACCORDO 90 FILETT/CALZ. M6X (128016) Genuine Maserati Part - New (to order)
                  # 012
                  MPN: 195509
                  CONNECTOR
                  -Zn/Black-
                  from £10.75
                  from £10.75
                  RACCORDO 90° FILETT/CALZ. M Genuine Ferrari Part - New (to order)
                  UNION (195509) Genuine Maserati Part - New (to order)
                  # 013
                  MPN: 140130
                  CLIP
                  from £0.47
                  from £0.47
                  CLAMP Genuine Ferrari Part - New In stock
                  CLIP (140130) Genuine Maserati Part - New (to order)
                  # 014
                  MPN: 170848
                  RUBBER PIPE
                  -Not for GD-
                  from £29.26
                  from £29.26
                  RUBBER HOSE Genuine Ferrari Part - New (to order)
                  # 014
                  MPN: 234803
                  RUBBER PIPE
                  -Applicable for GD-
                  from £27.52
                  from £27.52
                  RUBBER HOSE -VALID FOR GD- Genuine Ferrari Part - New (to order)
                  # 015
                  MPN: 234801
                  CHECK VALVE
                  Supersession
                  Supersession
                  Genuine Ferrari Part (no longer available to order)
                  # 016
                  MPN: 178053
                  CLAMP
                  from £0.70
                  from £0.70
                  CLAMP Genuine Ferrari Part - New (to order)
                  CLAMP D.20-2X220.2 (178053) Genuine Maserati Part - New (to order)
                  # 017
                  MPN: 234802
                  RUBBER PIPE
                  from £20.19
                  from £20.19
                  PIPE Genuine Ferrari Part - New (to order)
                  # 018
                  MPN: 171406
                  COLLAR FOR HOSE UNION
                  from £0.47
                  from £0.47
                  SCREW COLLAR Genuine Ferrari Part - New In stock
                  SLEEVE FASTENING COLLAR D.10 (171406) Genuine Maserati Part - New (to order)
