0107 - FRONT BUMPER

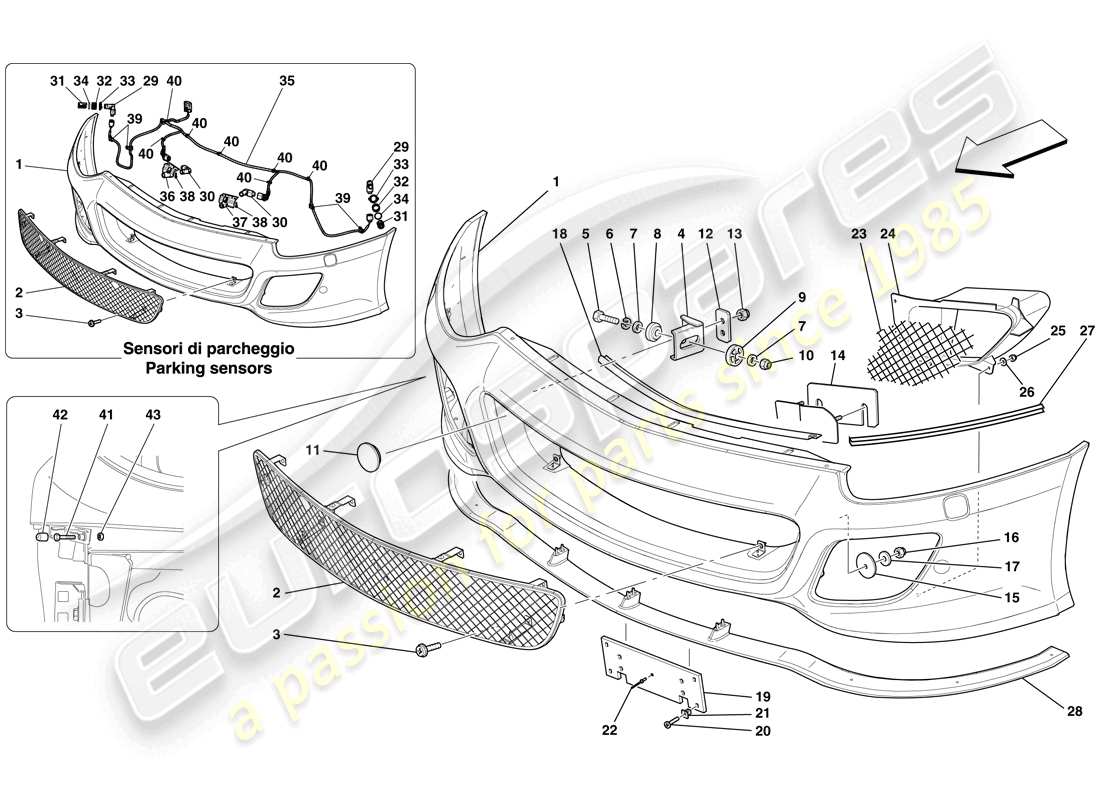

Ferrari 599 GTO (RHD) FRONT BUMPER Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 83549310

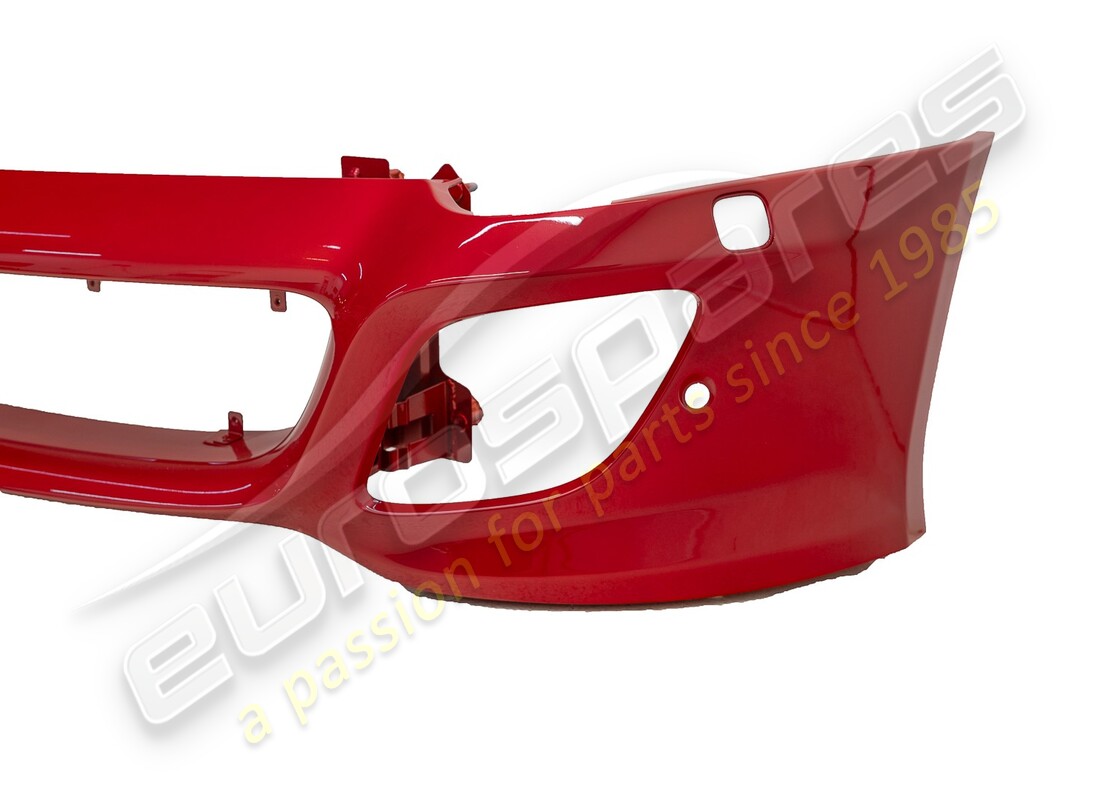

FRONT BUMPER
-Not for parking sensors- -Not for USA, CDN- -Applicable up to Ass. No. 93256-
from £6,865.36
from £6,865.36
# 001
MPN: 83549310
FRONT BUMPER
-Not for parking sensors- -Also order CAP Part No. 14508387 ref. 11- -Not for USA, CDN- -Applicable from Ass. No. 93257-
from £6,865.36
from £6,865.36
# 001
MPN: 83757010
FRONT BUMPER
-Not for parking sensors- -Applicable for USA, CDN- -Applicable up to Ass. No. 93256-
from £6,747.66
from £6,747.66
# 001
MPN: 83757010
FRONT BUMPER
-Not for parking sensors- -Also order CAP Part No. 14508387 ref. 11- -Applicable for USA, CDN- -Applicable from Ass. No. 93257-
from £6,747.66
from £6,747.66
# 001
MPN: 83832010
FRONT BUMPER
-Parking sensors- -Does not contain sensors- -Not for USA, CDN- -Applicable up to Ass. No. 93256-
from £4,891.56
from £4,891.56
# 001
MPN: 83832010
FRONT BUMPER
-Parking sensors- -Does not contain sensors- -Also order CAP Part No. 14508387 ref. 11- -Not for USA, CDN- -Applicable from Ass. No. 93257-
from £4,891.56
from £4,891.56
# 001
MPN: 83832110
FRONT BUMPER
-Parking sensors- -Does not contain sensors- -Applicable for USA, CDN- -Applicable up to Ass. No. 93256-
from £5,304.71
from £5,304.71
# 001
MPN: 83832110
FRONT BUMPER
-Parking sensors- -Does not contain sensors- -Also order CAP Part No. 14508387 ref. 11- -Applicable for USA, CDN- -Applicable from Ass. No. 93257-
from £5,304.71
from £5,304.71
# 002
MPN: 82715700
FRONT GRILLE
-Not for parking sensors-
from £560.31
from £560.31
# 002
MPN: 82939000
FRONT GRILLE
-Parking sensors-
from £597.61
from £597.61
# 003
MPN: 13290077

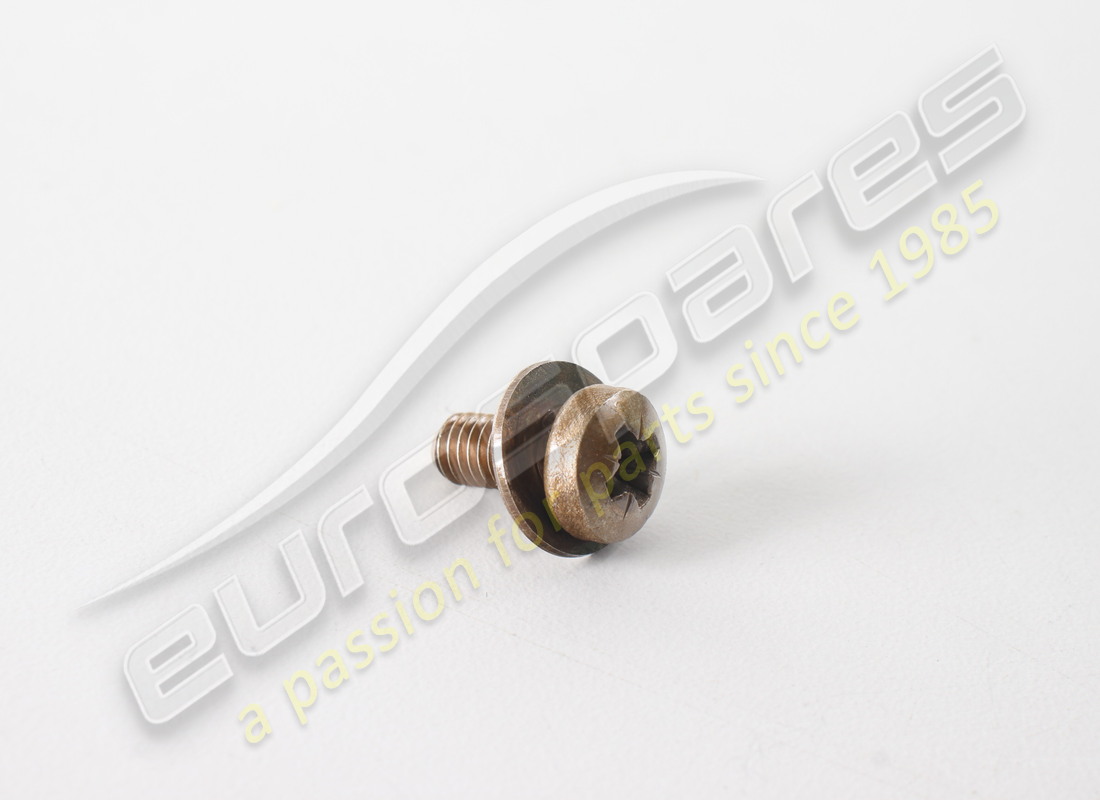

SCREW
-No longer supplied- -Replaced by 62940900-
from £4.09
from £4.09
# 003
MPN: 62940900
SCREW
from £0.73
from £0.73
This part replaces part number 67352400
# 004
MPN: 62126500
LATERAL LH BUMPER MOUNTING BRACKET
from £5.63
from £5.63
# 005
MPN: 11307021
SCREW
from £3.29
from £3.29
# 006
MPN: 127497
WASHER
from £0.54
from £0.54
This part replaces part number 10516871 - and 2 more. Click to view details
# 007
MPN: 12646801
WASHER
from £0.68
from £0.68
This part replaces part number 12644682
# 008
MPN: 62128200
EXTERNAL VIBRATION DAMPER
from £1.03
from £1.03
# 009
MPN: 62128300
INTERNAL VIBRATION DAMPER
from £0.59
from £0.59
This part replaces part number 83203700
# 010
MPN: 12574521
NUT
from £0.57
from £0.57
This part replaces part number 104114 - and 1 more. Click to view details
# 011
MPN: 14508187
CAP
-D. 45- -Applicable up to Ass. No. 93256-
from £4.92
from £4.92
# 011
MPN: 14508387
CAP
-D. 55- -Applicable from Ass. No. 93257-
from £5.35
from £5.35
# 012
MPN: 62126600
PLATE
from £1.59
from £1.59
# 013
MPN: 104030
NUT
from £0.47
from £0.47
This part replaces part number 16104125
# 014
MPN: 69376800
UPPER SPACER
from £3.27
from £3.27
# 014
MPN: 69376900
UPPER SPACER
from £10.30
from £10.30
# 015
MPN: 65921200
SHIM
-Th. 1 mm- -Installed if necessary-
from £1.45
from £1.45
# 015
MPN: 68113100
LOWER SPACER
-Th. 3 mm-
from £1.93
from £1.93
# 015
MPN: 68113200
LOWER SPACER
-Th. 2 mm-
from £7.38
from £7.38
# 016
MPN: 104114
NUT
Supersession
Supersession
This part replaces part number 15503711 - and 1 more. Click to view details
# 017
MPN: 12644301
WASHER
from £0.62
from £0.62
# 018
MPN: 69960200
CENTRE SEAL
from £153.22
from £153.22
This part replaces part number 69255600
# 019
MPN: 82716400
FRONT LICENSE PLATE MOUNT
-Italy-
from £56.26
from £56.26
# 019
MPN: 82716500
FRONT LICENSE PLATE MOUNT
-CEE-
from £59.54
from £59.54
# 019
MPN: 83257500
FRONT NUMBER PLATE HOLDER
-Applicable for USA, CDN-
from £80.04
from £80.04
# 019
MPN: 83295000
FRONT NUMBER PLATE HOLDER
-Applicable for AUS-
from £205.80
from £205.80
# 019
MPN: 83393500
FRONT NUMBER PLATE HOLDER
-Applicable for CINA-
from £123.72
from £123.72
# 019
MPN: 83421300
FRONT NUMBER PLATE HOLDER
-Applicable for J, USA LIGHT-
from £111.35
from £111.35
# 020
MPN: 15687275
SCREW
from £0.47
from £0.47
This part replaces part number 15687206
# 021
MPN: 14215480
BLOCK
from £0.47
from £0.47
This part replaces part number 14211580
# 022
MPN: 14296196
RIVET
from £0.47
from £0.47
# 023
MPN: 82767400
RH AIR INTAKE GRILLE
from £99.23
from £99.23
# 023
MPN: 82767500
LH AIR INTAKE GRILLE
from £99.23
from £99.23
# 024
MPN: 82768200
RH AIR DUCT
from £173.96
from £173.96
# 024
MPN: 82768300
LH AIR DUCT
from £173.96
from £173.96
# 025
MPN: 14058314
NUT
from £0.51
from £0.51
# 026
MPN: 12638101
WASHER
from £0.71
from £0.71
# 027
MPN: 69716800
RUBBER STRIP
-Not for USA, CDN, GOLFO-
from £32.92
from £32.92
# 028
MPN: 82841300
FRONT BUMPER SPOILER
from £5,110.93
from £5,110.93
# 029
MPN: 217832
PARKING SENSOR
-Parking sensors-
from £59.81
from £59.81
# 030
MPN: 214561
PARKING SENSOR
-Parking sensors-
from £108.14
from £108.14
# 031
MPN: 69377400
VERTICAL MOUNTING TUBE
-Parking sensors-
from £41.44
from £41.44
# 032
MPN: 69377600
CYLINDRICAL SPRING
-Parking sensors-
from £7.48
from £7.48
# 033
MPN: 69377500
RETAINER RING FOR SPRING
-Parking sensors-
from £7.48
from £7.48
# 034
MPN: 223516
GASKET
-Parking sensors-
from £4.69
from £4.69
# 035
MPN: 269242
BUMPER CABLE
-Parking sensors-
from £157.13
from £157.13
# 036
MPN: 82939100
RH PARKING SENSOR MOUNTING
-Parking sensors-
from £74.23
from £74.23
# 037
MPN: 82939300
LH PARKING SENSOR MOUNTING
-Parking sensors-
from £74.23
from £74.23
# 038
MPN: 65392800
SCREW
-Parking sensors-
from £2.75
from £2.75
# 039
MPN: 10441190
BRACKET WITH SHEATH
-Parking sensors-
from £0.47
from £0.47
# 040
MPN: 14569480
CLIP
-Parking sensors-
from £0.47
from £0.47
This part replaces part number 81580800
# 041
MPN: 69869700
SCREW
from £0.83
from £0.83
# 042
MPN: 69867400
RUBBER CAP
from £0.53
from £0.53
# 043
MPN: 15896214
NUT
from £0.54
from £0.54
This part replaces part number 15896211
-part-diagram-0108.webp "FERRARI 599 GTO (RHD) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI 599 GTO (RHD) ENGINE COMPARTMENT FIREWALL INSULATION PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI 599 GTO (RHD) PASSENGER COMPARTMENT INSULATION PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI 599 GTO (RHD) LUGGAGE COMPARTMENT INSULATION PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI 599 GTO (RHD) PASSENGER COMPARTMENT TRIM AND MATS PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI 599 GTO (RHD) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI 599 GTO (RHD) LUGGAGE COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI 599 GTO (RHD) ENGINE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI 599 GTO (RHD) LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI 599 GTO (RHD) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI 599 GTO (RHD) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI 599 GTO (RHD) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI 599 GTO (RHD) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI 599 GTO (RHD) COMPLETE FRONT SEAT AND SEAT BELTS PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI 599 GTO (RHD) FRONT SEAT - TRIM AND INTERNAL COMPONENTS PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI 599 GTO (RHD) FRONT SEAT - GUIDES AND ADJUSTMENT MECHANISMS PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI 599 GTO (RHD) FRONT RACING SEAT - RAILS AND MECHANISM PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI 599 GTO (RHD) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI 599 GTO (RHD) INTERIOR TRIM PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI 599 GTO (RHD) DASHBOARD PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI 599 GTO (RHD) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI 599 GTO (RHD) AIRBAG PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI 599 GTO (RHD) INSTRUMENTATION PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI 599 GTO (RHD) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI 599 GTO (RHD) EXTERIOR TRIM PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI 599 GTO (RHD) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI 599 GTO (RHD) MOTION SENSOR PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI 599 GTO (RHD) ENGINE COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI 599 GTO (RHD) PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI 599 GTO (RHD) LUGGAGE COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI 599 GTO (RHD) ANTITHEFT SYSTEM ECUS AND DEVICES PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI 599 GTO (RHD) HI-FI SYSTEM PARTS DIAGRAM")
-part-diagram-0140.webp "FERRARI 599 GTO (RHD) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0141.webp "FERRARI 599 GTO (RHD) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI 599 GTO (RHD) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI 599 GTO (RHD) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI 599 GTO (RHD) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI 599 GTO (RHD) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI 599 GTO (RHD) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI 599 GTO (RHD) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI 599 GTO (RHD) TIMING SYSTEM - TAPPETS AND SHAFTS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI 599 GTO (RHD) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI 599 GTO (RHD) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI 599 GTO (RHD) FUEL PUMP PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI 599 GTO (RHD) FUEL TANK - FILLER NECK AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI 599 GTO (RHD) FUEL TANK - INSULATION AND PROTECTION PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI 599 GTO (RHD) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI 599 GTO (RHD) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI 599 GTO (RHD) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI 599 GTO (RHD) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI 599 GTO (RHD) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI 599 GTO (RHD) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI 599 GTO (RHD) FRONT EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI 599 GTO (RHD) REAR EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI 599 GTO (RHD) BLOW-BY SYSTEM PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI 599 GTO (RHD) LUBRICATION SYSTEM - TANK PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI 599 GTO (RHD) OIL / WATER PUMP PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI 599 GTO (RHD) COOLING SYSTEM - RADIATOR AND HEADER TANK PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI 599 GTO (RHD) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI 599 GTO (RHD) GEARBOX HOUSING PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI 599 GTO (RHD) DIFFERENTIAL CASE AND GEARBOX COOLING RADIATOR PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI 599 GTO (RHD) PRIMARY GEARBOX SHAFT GEARS AND GEARBOX OIL PUMP PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI 599 GTO (RHD) SECONDARY GEARBOX SHAFT GEARS PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI 599 GTO (RHD) INTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI 599 GTO (RHD) ENGINE/GEARBOX CONNECTOR PIPE AND INSULATION PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI 599 GTO (RHD) DIFFERENTIAL AND AXLE SHAFT PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI 599 GTO (RHD) HYDRAULIC BRAKE AND CLUTCH CONTROL PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI 599 GTO (RHD) ELECTRONIC ACCELERATOR PEDAL PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI 599 GTO (RHD) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI 599 GTO (RHD) F1 CLUTCH HYDRAULIC CONTROL PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI 599 GTO (RHD) POWER UNIT AND TANK PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI 599 GTO (RHD) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI 599 GTO (RHD) FRONT BRAKE CALLIPER PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI 599 GTO (RHD) REAR BRAKE CALLIPER PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI 599 GTO (RHD) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI 599 GTO (RHD) HYDRAULIC POWER STEERING BOX PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI 599 GTO (RHD) HYDRAULIC FLUID RESERVOIR, PUMP AND COIL FOR POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI 599 GTO (RHD) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI 599 GTO (RHD) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI 599 GTO (RHD) FRONT SUSPENSION - ARMS AND STABILISER BAR PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI 599 GTO (RHD) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI 599 GTO (RHD) REAR SUSPENSION - ARMS AND STABILISER BAR PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI 599 GTO (RHD) WHEELS PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI 599 GTO (RHD) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI 599 GTO (RHD) BATTERY PARTS DIAGRAM")
-part-diagram-0050.webp "FERRARI 599 GTO (RHD) ALTERNATOR, STARTER MOTOR AND AC COMPRESSOR PARTS DIAGRAM")
-part-diagram-0051.webp "FERRARI 599 GTO (RHD) AC SYSTEM - FREON PIPES PARTS DIAGRAM")
-part-diagram-0052.webp "FERRARI 599 GTO (RHD) AC SYSTEM - WATER PIPES PARTS DIAGRAM")
-part-diagram-0053.webp "FERRARI 599 GTO (RHD) EVAPORATOR UNIT AND CONTROLS PARTS DIAGRAM")
-part-diagram-0054.webp "FERRARI 599 GTO (RHD) TOOLS PROVIDED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0055.webp "FERRARI 599 GTO (RHD) DOCUMENTATION AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI 599 GTO (RHD) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI 599 GTO (RHD) BODYSHELL - ROOF PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI 599 GTO (RHD) ROLLBAR PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI 599 GTO (RHD) STRUCTURES AND ELEMENTS, FRONT OF VEHICLE PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI 599 GTO (RHD) STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI 599 GTO (RHD) STRUCTURES AND ELEMENTS, REAR OF VEHICLE PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI 599 GTO (RHD) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
