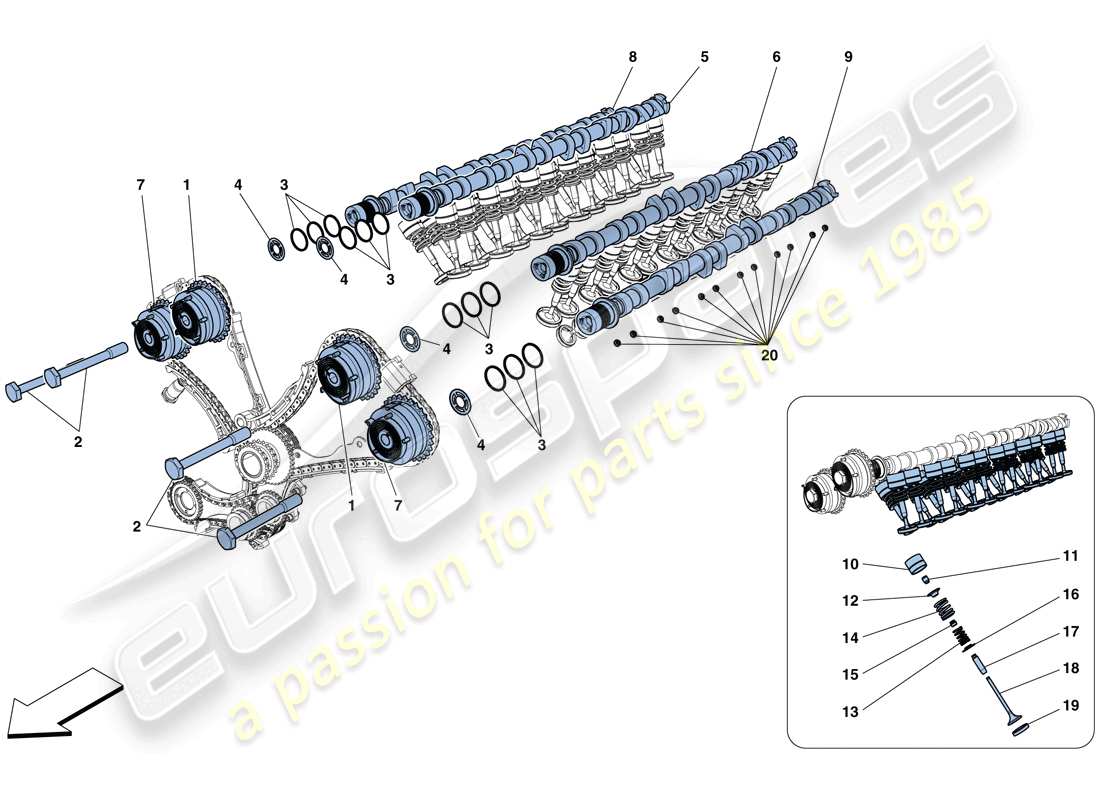

Ferrari 812 Superfast (Europe) TIMING SYSTEM - TAPPETS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 001
                                MPN: 241906
                                VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT
                                from £148.39
                                from £148.39
                                INDUCTION PHASE VARIATOR Genuine Ferrari Part - New In stock
                                INDUCTION PHASE VARIATOR Genuine Ferrari Part - Used In stock
                                INTAKE TIMING VARIATOR (241906) Genuine Maserati Part - New (to order)
                                # 002
                                MPN: 254892
                                VARIABLE TIMING ADJUSTER SCREW
                                -M14 X 1.5 X 109-
                                from £3.90
                                from £3.90
                                This part replaces part number 248022 - and 4 more. Click to view details
                                SCREW Genuine Ferrari Part - New In stock
                                SCREW Genuine Ferrari Part - Used In stock
                                VARIATOR SCREW INA M14X1.5 L.109 (254892) Genuine Maserati Part - New (to order)
                                # 003
                                MPN: 197975
                                SEAL RING
                                -Also comes with engine gasket set-
                                from £3.86
                                from £3.86
                                SEAL RING Genuine Ferrari Part - New (to order)
                                # 004
                                MPN: 240559
                                DIAMOND COATED WASHER
                                from £4.84
                                from £4.84
                                DIAMOND WASHER Genuine Ferrari Part - New In stock
                                WASHER (240559) Genuine Maserati Part - New (to order)
                                # 005
                                MPN: 321295
                                RH INTAKE CAMSHAFT
                                from £321.42
                                from £321.42
                                RH INTAKE CAMSHAFT Genuine Ferrari Part - New (to order)
                                # 006
                                MPN: 321296
                                LH INTAKE CAMSHAFT
                                from £321.42
                                from £321.42
                                LH INTAKE CAMSHAFT Genuine Ferrari Part - New (to order)
                                # 007
                                MPN: 248020
                                VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT
                                from £149.01
                                from £149.01
                                EXHAUST PHASE VARIATOR Genuine Ferrari Part - New (to order)
                                EXHAUST PHASE VARIATOR Genuine Ferrari Part - Used In stock
                                # 008
                                MPN: 321297
                                RH EXHAUST CAMSHAFT
                                from £321.42
                                from £321.42
                                RH EXHAUST CAMSHAFT Genuine Ferrari Part - New (to order)
                                # 009
                                MPN: 321298
                                LH EXHAUST CAMSHAFT
                                from £321.42
                                from £321.42
                                LH EXHAUST CAMSHAFT Genuine Ferrari Part - New (to order)
                                # 010
                                MPN: 255431
                                HYDRAULIC TAPPET
                                from £14.38
                                from £14.38
                                HYDRAULIC TAPPET Genuine Ferrari Part - New In stock
                                HYDRAULIC TAPPET Genuine Ferrari Part - Used In stock
                                # 011
                                MPN: 179763
                                VALVE SPRING SEMI-CONE
                                from £0.27
                                from £0.27
                                COTTER FOR VALVE SPRING CUP. Genuine Ferrari Part - New In stock
                                COTTER FOR VALVE SPRING CUP. Genuine Ferrari Part - Used In stock
                                COTTER FOR SPRING VALVE (179763) Genuine Maserati Part - New (to order)
                                COTTER FOR SPRING VALVE (179763) Genuine Maserati Part - Used In stock
                                Removed from 4200 engine 81090
                                # 012
                                MPN: 320911
                                UPPER VALVE SPRING CAP
                                from £5.39
                                from £5.39
                                UPPER VALVE SPRING CAP Genuine Ferrari Part - New (to order)
                                # 013
                                MPN: 238641
                                INTERNAL VALVE RETURN SPRING
                                -Applicable up to engine No. 446900-
                                Supersession
                                Supersession
                                Genuine Ferrari Part (no longer available to order)
                                # 013
                                MPN: 789304
                                INTERNAL VALVE RETURN SPRING
                                -Applicable from engine No. 446901-
                                from £3.23
                                from £3.23
                                This part replaces part number 238641 - and 4 more. Click to view details
                                INTERNAL VALVE RETURN SPRING Genuine Ferrari Part - New (to order)
                                INTERNAL VALVE RETURN SPRING Genuine Ferrari Part - Used In stock
                                # 014
                                MPN: 238640
                                EXTERNAL VALVE RETURN SPRING
                                -Applicable up to engine No. 446900-
                                Supersession
                                Supersession
                                Genuine Ferrari Part (no longer available to order)
                                # 014
                                MPN: 789285
                                EXTERNAL VALVE RETURN SPRING
                                -Applicable from engine No. 446901-
                                from £4.31
                                from £4.31
                                This part replaces part number 238640 - and 4 more. Click to view details
                                EXTERNAL VALVE RETURN SPRING Genuine Ferrari Part - New (to order)
                                EXTERNAL VALVE RETURN SPRING Genuine Ferrari Part - Used In stock
                                # 015
                                MPN: 221473
                                OIL SEAL
                                -Also comes with engine gasket set-
                                from £0.95
                                from £0.95
                                OIL RING Genuine Ferrari Part - New In stock
                                OIL SEAL FOR VALVES (221473) Genuine Maserati Part - New (to order)
                                # 016
                                MPN: 321017
                                LOWER VALVE SPRING CAP
                                from £4.21
                                from £4.21
                                LOWER VALVE SPRING CAP Genuine Ferrari Part - New (to order)
                                # 017
                                MPN: 6213498
                                VALVE GUIDE
                                from £1.77
                                from £1.77
                                This part replaces part number 213498
                                INTAKE VALVE GUIDE Genuine Ferrari Part - New (to order)
                                INTAKE AND EXHAUST VALVE GUI (6213498) Genuine Maserati Part - New In stock
                                # 018
                                MPN: 319636
                                EXHAUST VALVE
                                from £44.68
                                from £44.68
                                EXHAUST VALVE Genuine Ferrari Part - New (to order)
                                # 018
                                MPN: 319722
                                INTAKE VALVE
                                from £22.35
                                from £22.35
                                INTAKE VALVE Genuine Ferrari Part - New (to order)
                                # 019
                                MPN: 6222847
                                INTAKE VALVE SEAT
                                from £5.11
                                from £5.11
                                This part replaces part number 222847 - and 1 more. Click to view details
                                INTAKE VALVE SEAT Genuine Ferrari Part - New (to order)
                                SEMI-FIN. INTAKE VALVE SEAT (6222847) Genuine Maserati Part - New (to order)
                                # 019
                                MPN: 6222848
                                EXHAUST VALVE SEAT
                                from £5.47
                                from £5.47
                                This part replaces part number 222848 - and 1 more. Click to view details
                                EXHAUST VALVE SEAT Genuine Ferrari Part - New (to order)
                                SEMI-FIN. EXHAUST VALVE SEAT (6222848) Genuine Maserati Part - New (to order)
                                # 020
                                MPN: 149229
                                VALVE CLEARANCE ADJUSTER PAD
                                from £13.21
                                from £13.21
                                VALVE CLEARANCE ADJUSTER PAD Genuine Ferrari Part - New (to order)
