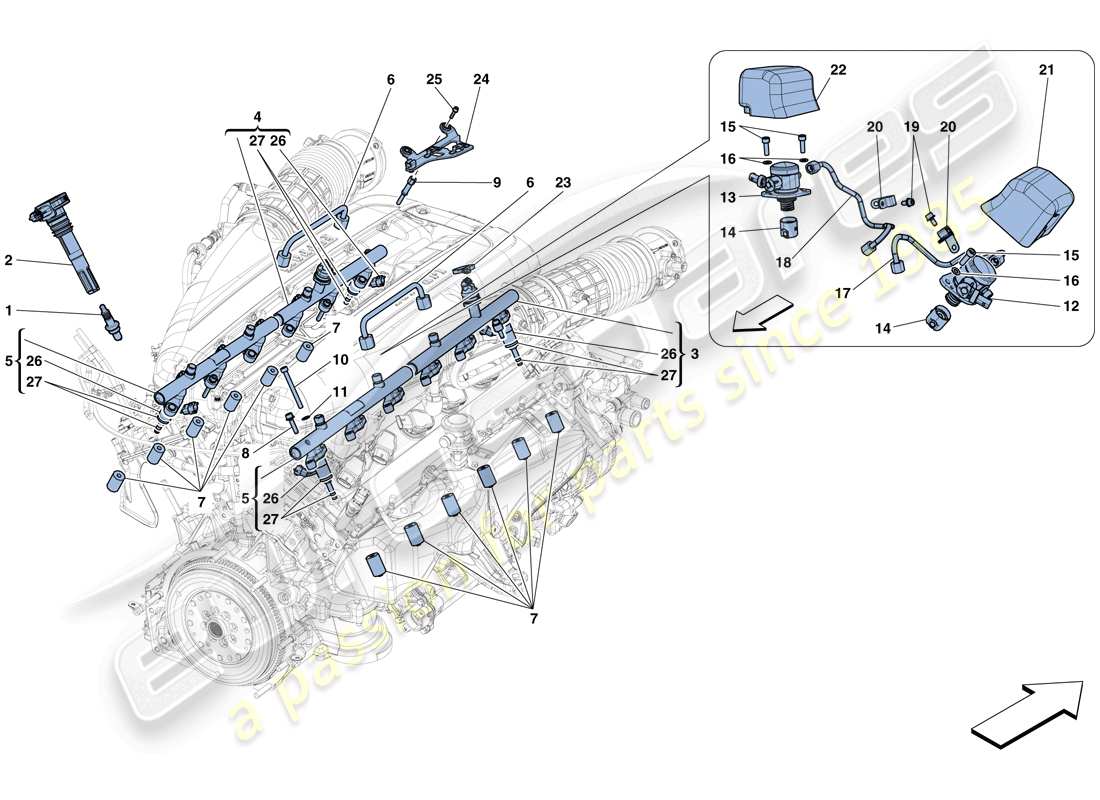

Ferrari 812 Superfast (Europe) INJECTION - IGNITION SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 001
                                    MPN: 297423
                                    IGNITION SPARK PLUG
                                    -NGK-
                                    from £18.20
                                    from £18.20
                                    SPARK PLUG Genuine Ferrari Part - New In stock
                                    # 002
                                    MPN: 337713
                                    IGNITION COIL
                                    Supersession
                                    Supersession
                                    This part replaces part number 290850 which we have in stock
                                    Genuine Ferrari Part (no longer available to order)
                                    # 003
                                    MPN: 330107
                                    COMPL. FRONT RH FUEL PIPE
                                    -Also order pipe ref. 6- -No longer supplied- -Replaced by 794982-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 003
                                    MPN: 794982
                                    COMPL. FRONT RH FUEL PIPE
                                    -Also order pipe ref. 6-
                                    from £1,074.51
                                    from £1,074.51
                                    This part replaces part number 330107
                                    COMPLETE FRONT RH FUEL PIPE Genuine Ferrari Part - New (to order)
                                    # 004
                                    MPN: 321300
                                    COMPL. FRONT LH FUEL PIPE
                                    -Also order pipe ref. 6- -No longer supplied- -Replaced by 794980-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 004
                                    MPN: 794980
                                    COMPL. FRONT LH FUEL PIPE
                                    -Also order pipe ref. 6-
                                    from £1,074.51
                                    from £1,074.51
                                    This part replaces part number 321300
                                    COMPLETE FRONT LH FUEL PIPE Genuine Ferrari Part - New (to order)
                                    # 005
                                    MPN: 329777
                                    COMPL. REAR FUEL PIPE
                                    -Also order pipe ref. 6 and pipe ref. 17 for RH cylinder bank or ref. 18 for LH cylinder bank- -No longer supplied- -Replaced by 794983-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 005
                                    MPN: 794983
                                    COMPL. REAR FUEL PIPE
                                    -Also order pipe ref. 6 and pipe ref. 17 for RH cylinder bank or ref. 18 for LH cylinder bank-
                                    from £895.58
                                    from £895.58
                                    This part replaces part number 329777
                                    COMPLETE REAR FUEL PIPE Genuine Ferrari Part - New (to order)
                                    # 006
                                    MPN: 334140
                                    FUEL PIPE CONNECTING FRONT AND REAR RAILS
                                    from £73.14
                                    from £73.14
                                    FUEL PIPE CONNECTING FRONT A Genuine Ferrari Part - New (to order)
                                    # 007
                                    MPN: 334268
                                    SPACER
                                    from £3.46
                                    from £3.46
                                    SPACER Genuine Ferrari Part - New (to order)
                                    # 008
                                    MPN: 231620
                                    SCREW
                                    -M6 X 25-
                                    from £0.47
                                    from £0.47
                                    SCREW Genuine Ferrari Part - New In stock
                                    SOCKET HEAD SCREW WITH WASHE (231620) Genuine Maserati Part - New (to order)
                                    # 009
                                    MPN: 324524
                                    STUD BOLT
                                    -M6 X 23-
                                    from £5.22
                                    from £5.22
                                    STUD BOLT Genuine Ferrari Part - New (to order)
                                    # 010
                                    MPN: 14306034
                                    SCREW
                                    -M6 X 50-
                                    from £0.47
                                    from £0.47
                                    This part replaces part number 14306031
                                    SCREW Genuine Ferrari Part - New (to order)
                                    SCREW FOR CLUTCH CONTROL (14306034) Genuine Maserati Part - New In stock
                                    # 011
                                    MPN: 11197774
                                    WASHER
                                    from £0.52
                                    from £0.52
                                    This part replaces part number 11197770 - and 3 more. Click to view details
                                    WASHER Genuine Ferrari Part - New In stock
                                    WASHER (11197774) Genuine Maserati Part - New In stock
                                    # 012
                                    MPN: 331302
                                    RH FUEL PUMP
                                    -No longer supplied- -Replaced by 793015-
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 012
                                    MPN: 793015
                                    RH FUEL PUMP
                                    -Applicable until depletion-
                                    Supersession
                                    Supersession
                                    This part replaces part number 331302
                                    Genuine Ferrari Part (no longer available to order)
                                    # 012
                                    MPN: 815913
                                    RH FUEL PUMP
                                    -Applicable after depletion of 793015-
                                    from £340.41
                                    from £340.41
                                    This part replaces part number 793015
                                    RH FUEL PUMP Genuine Ferrari Part - New (to order)
                                    # 013
                                    MPN: 331303
                                    LH FUEL PUMP
                                    -No longer supplied- -Replaced by 793016-
                                    from £392.78
                                    from £392.78
                                    LH FUEL PUMP Genuine Ferrari Part - New In stock
                                    # 013
                                    MPN: 793016
                                    LH FUEL PUMP
                                    -Applicable until depletion-
                                    Supersession
                                    Supersession
                                    This part replaces part number 331303 which we have in stock
                                    Genuine Ferrari Part (no longer available to order)
                                    # 013
                                    MPN: 815914
                                    LH FUEL PUMP
                                    -Applicable after depletion of 793016-
                                    from £340.41
                                    from £340.41
                                    This part replaces part number 793016
                                    LH FUEL PUMP Genuine Ferrari Part - New (to order)
                                    # 014
                                    MPN: 331787
                                    CUP
                                    from £38.03
                                    from £38.03
                                    CUP Genuine Ferrari Part - New (to order)
                                    # 015
                                    MPN: 14306434
                                    SCREW
                                    from £0.47
                                    from £0.47
                                    SCREW Genuine Ferrari Part - New (to order)
                                    VITE TCEI M 8X 25 (14306434) Genuine Maserati Part - New (to order)
                                    # 016
                                    MPN: 12638524
                                    WASHER
                                    from £0.47
                                    from £0.47
                                    This part replaces part number 12638501 - and 2 more. Click to view details
                                    WASHER Genuine Ferrari Part - New In stock
                                    WASHER FOR ABS/ASR HYDRAU (12638524) Genuine Maserati Part - New (to order)
                                    # 017
                                    MPN: 334138
                                    RH FUEL PIPE
                                    from £94.16
                                    from £94.16
                                    RH FUEL PIPE Genuine Ferrari Part - New (to order)
                                    # 018
                                    MPN: 334139
                                    LH FUEL PIPE
                                    from £92.53
                                    from £92.53
                                    LH FUEL PIPE Genuine Ferrari Part - New (to order)
                                    # 019
                                    MPN: 231627
                                    SCREW
                                    from £0.53
                                    from £0.53
                                    SCREW Genuine Ferrari Part - New (to order)
                                    SOCKET HEAD SCREW WITH WASHE (231627) Genuine Maserati Part - New In stock
                                    # 020
                                    MPN: 341730
                                    FUEL PIPE FASTENER BRACKET
                                    from £27.58
                                    from £27.58
                                    FUEL PIPE FASTENER BRACKET Genuine Ferrari Part - New (to order)
                                    # 021
                                    MPN: 746757
                                    RH GDI PUMP SOUNDPROOFING
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 022
                                    MPN: 746759
                                    LH GDI PUMP SOUNDPROOFING
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
                                    # 023
                                    MPN: 206739
                                    RING CLAMP
                                    from £3.75
                                    from £3.75
                                    This part replaces part number 243232
                                    CLAMP Genuine Ferrari Part - New (to order)
                                    COLLAR 4,8 X 186 MM (206739) Genuine Maserati Part - New (to order)
                                    # 024
                                    MPN: 329945
                                    COMPL. BRACKET
                                    from £67.09
                                    from £67.09
                                    COMPLETE BRACKET Genuine Ferrari Part - New (to order)
                                    # 025
                                    MPN: 231618
                                    SCREW
                                    -M6 X 20-
                                    from £0.47
                                    from £0.47
                                    SCREW Genuine Ferrari Part - New In stock
                                    SCREW (231618) Genuine Maserati Part - New (to order)
                                    # 026
                                    MPN: 339179
                                    ELECTROINJECTOR
                                    from £118.27
                                    from £118.27
                                    ELECTROINJECTOR Genuine Ferrari Part - New (to order)
                                    # 027
                                    MPN: 70004990
                                    SEAL KIT
                                    Supersession
                                    Supersession
                                    Genuine Ferrari Part (no longer available to order)
