ferrari 812 superfast (europe) rear lid and opening mechanism parts diagram

0112 - REAR LID AND OPENING MECHANISM

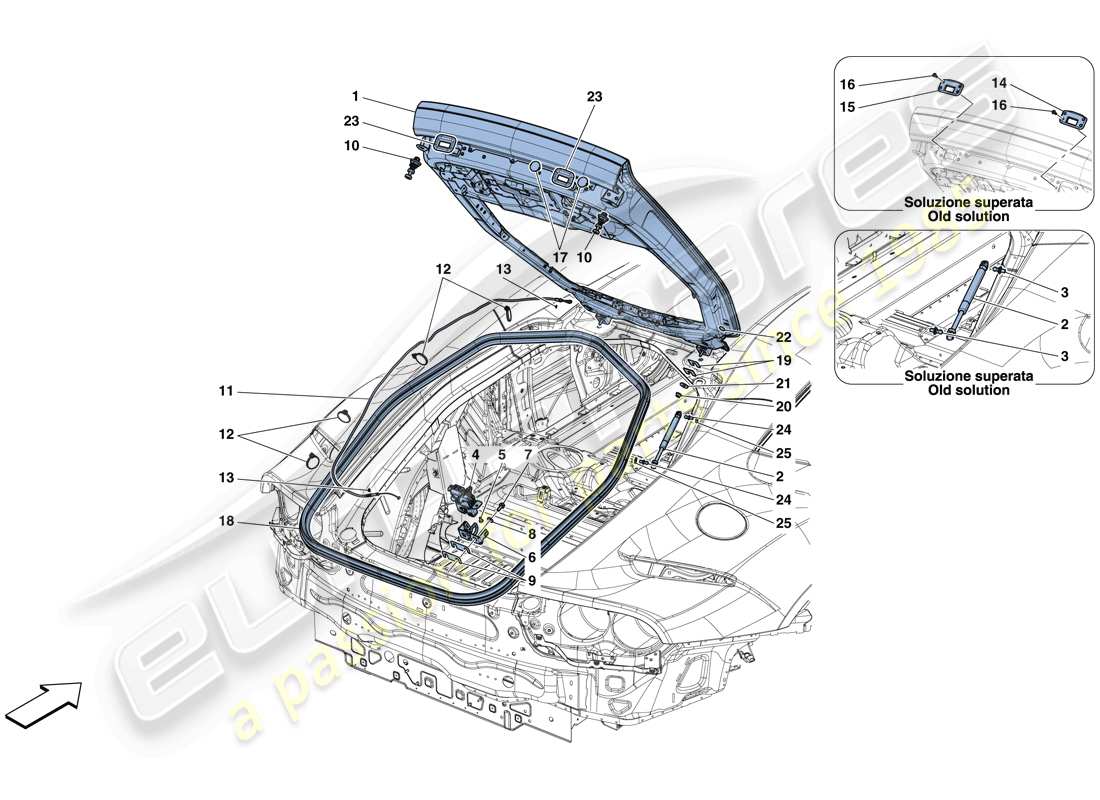

Ferrari 812 Superfast (Europe) REAR LID AND OPENING MECHANISM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 001
                                MPN: 88193611
                                REAR LID
                                from £4,865.72
                                from £4,865.72
                                REAR LID Genuine Ferrari Part - New (to order)
                                # 002
                                MPN: 866195
                                GAS STRUT
                                -Applicable after depletion of 88334000-
                                from £21.48
                                from £21.48
                                This part replaces part number 88334000
                                GAS STRUT Genuine Ferrari Part - New (to order)
                                # 002
                                MPN: 88334000
                                GAS STRUT
                                -Applicable until depletion-
                                Supersession
                                Supersession
                                Genuine Ferrari Part (no longer available to order)
                                # 003
                                MPN: 85216400
                                PIN WITH WASHER
                                -No longer supplied-
                                from £1.37
                                from £1.37
                                PIN Genuine Ferrari Part - New (to order)
                                # 004
                                MPN: 84922700
                                ELECTRIC LOCK WITH LEVER AND MEMORY
                                from £33.32
                                from £33.32
                                ELECTRIC LOCK WITH LEVER AND Genuine Ferrari Part - New (to order)
                                ELECTRIC LOCK WITH LEVER AND Genuine Ferrari Part - Used In stock
                                # 005
                                MPN: 65864100
                                SCREW
                                -M6 X 15-
                                from £0.76
                                from £0.76
                                This part replaces part number 65864200
                                SCREW Genuine Ferrari Part - New In stock
                                # 006
                                MPN: 82209700
                                TAILGATE LOCK STRIKER
                                from £7.50
                                from £7.50
                                LOCK STRIKER Genuine Ferrari Part - New In stock
                                LOCK STRIKER Genuine Ferrari Part - Used In stock
                                # 007
                                MPN: 16287124
                                SCREW
                                -M8 X 20-
                                from £0.59
                                from £0.59
                                SCREW Genuine Ferrari Part - New In stock
                                FLANGED HEX HEAD SCREW M8X20 (16287124) Genuine Maserati Part - New (to order)
                                # 008
                                MPN: 12646724
                                WASHER
                                from £0.47
                                from £0.47
                                This part replaces part number 12601571 - and 3 more. Click to view details
                                WASHER Genuine Ferrari Part - New In stock
                                WASHER (12646724) Genuine Maserati Part - New In stock
                                # 009
                                MPN: 84147200
                                SHIM
                                -Th. 1 mm-
                                from £1.61
                                from £1.61
                                SHIM Genuine Ferrari Part - New (to order)
                                # 009
                                MPN: 84147600
                                SHIM
                                -Th. 0.5 mm-
                                from £1.61
                                from £1.61
                                SHIM Genuine Ferrari Part - New (to order)
                                # 010
                                MPN: 856582
                                SPACER BLOCK
                                from £24.81
                                from £24.81
                                This part replaces part number 85877000 - and 1 more. Click to view details
                                SPACER BLOCK Genuine Ferrari Part - New (to order)
                                SPACER BLOCK Genuine Ferrari Part - Used In stock
                                # 010
                                MPN: 85877000
                                SPACER BLOCK
                                -No longer supplied- -Replaced by 856582-
                                Supersession
                                Supersession
                                Genuine Ferrari Part (no longer available to order)
                                # 011
                                MPN: 88386300
                                EMERGENCY RELEASE BOWDEN CABLE
                                from £23.69
                                from £23.69
                                EMERGENCY RELEASE BOWDEN CAB Genuine Ferrari Part - New (to order)
                                EMERGENCY RELEASE BOWDEN CAB Genuine Ferrari Part - Used In stock
                                # 012
                                MPN: 217854
                                RING CLAMP
                                from £0.53
                                from £0.53
                                CLIP Genuine Ferrari Part - New In stock
                                # 013
                                MPN: 11087676
                                SNAP RING
                                from £0.47
                                from £0.47
                                This part replaces part number 11087675
                                RING Genuine Ferrari Part - New In stock
                                WASHER (11087676) Genuine Maserati Part - New (to order)
                                # 014
                                MPN: 88495400
                                RH SEAL
                                -No longer supplied-
                                from £14.37
                                from £14.37
                                RH SEAL Genuine Ferrari Part - New (to order)
                                # 015
                                MPN: 88495300
                                LH SEAL
                                -No longer supplied-
                                from £14.37
                                from £14.37
                                LH SEAL Genuine Ferrari Part - New (to order)
                                # 016
                                MPN: 88686900
                                SCREW
                                -Applicable up to Ass. No. 152386-
                                from £1.11
                                from £1.11
                                SCREW Genuine Ferrari Part - New (to order)
                                # 017
                                MPN: 89377400
                                LID SURROUND PLUG
                                from £0.99
                                from £0.99
                                LID SURROUND PLUG Genuine Ferrari Part - New (to order)
                                # 018
                                MPN: 88110200
                                TAILGATE STOP SEAL
                                from £83.21
                                from £83.21
                                TAILGATE STOP SEAL Genuine Ferrari Part - New (to order)
                                TAILGATE STOP SEAL Genuine Ferrari Part - Used In stock
                                # 019
                                MPN: 84651000
                                SHIM
                                -Th. 1 mm-
                                from £1.83
                                from £1.83
                                SHIM Genuine Ferrari Part - New (to order)
                                # 019
                                MPN: 84651200
                                SHIM
                                -Th. 2 mm-
                                from £1.83
                                from £1.83
                                SHIM Genuine Ferrari Part - New (to order)
                                # 020
                                MPN: 14059311
                                NUT
                                from £0.26
                                from £0.26
                                NUT Genuine Ferrari Part - New In stock
                                NUT Genuine Ferrari Part - Used In stock
                                NUT (14059311) Genuine Maserati Part - New (to order)
                                # 021
                                MPN: 12647024
                                WASHER
                                Supersession
                                Supersession
                                Genuine Ferrari Part (no longer available to order)
                                Genuine Maserati Part (no longer available to order)
                                # 022
                                MPN: 14506687
                                ORIFICE PLUG
                                from £0.47
                                from £0.47
                                PLUG Genuine Ferrari Part - New (to order)
                                PLUG (14506687) Genuine Maserati Part - New (to order)
                                # 023
                                MPN: 813026
                                WATER DRAIN HOLE BLANKING PLUG
                                from £10.39
                                from £10.39
                                WATER DRAIN HOLE BLANKING PL Genuine Ferrari Part - New (to order)
                                # 024
                                MPN: 69106400
                                PIN
                                from £1.28
                                from £1.28
                                PIN Genuine Ferrari Part - New (to order)
                                # 025
                                MPN: 12646778
                                WASHER
                                from £0.53
                                from £0.53
                                This part replaces part number 156093
                                WASHER Genuine Ferrari Part - New In stock
                                WASHER (12646778) Genuine Maserati Part - New (to order)
