0122 - REAR BUMPER

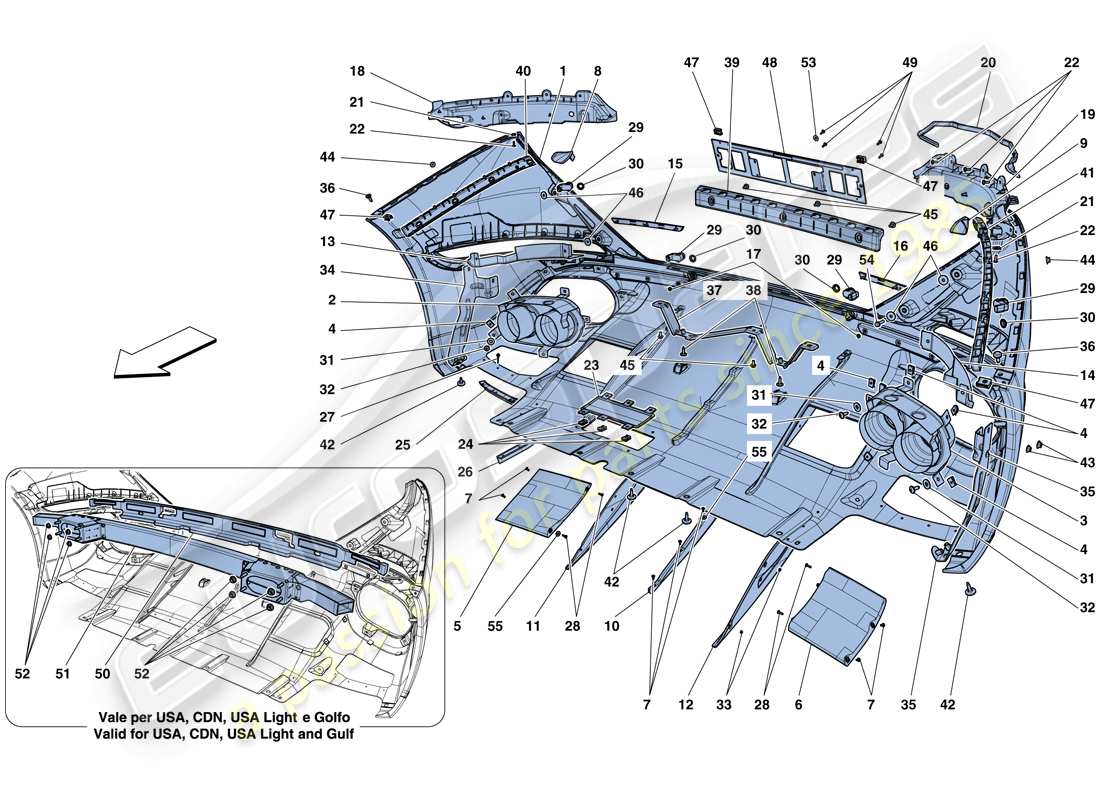

Ferrari California T (Europe) REAR BUMPER Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 86667810
COMPL. REAR BUMPER
from £3,062.31
from £3,062.31
# 002
MPN: 86090400
RH TAILPIPE GRILLE
-Version with sports tailpipes-
from £486.63
from £486.63
# 002
MPN: 86090600
RH TAILPIPE GRILLE
from £353.10
from £353.10
# 002
MPN: 88240000
RH TAILPIPE GRILLE
-Special Handling Pack-
from £861.21
from £861.21
# 003
MPN: 86090300
LH TAILPIPE GRILLE
-Version with sports tailpipes-
from £281.73
from £281.73
# 003
MPN: 86090500
LH TAILPIPE GRILLE
from £371.68
from £371.68
# 003
MPN: 88239900
LH TAILPIPE GRILLE
-Special Handling Pack-
from £473.67
from £473.67
# 004
MPN: 80874300
CLIP
from £0.56
from £0.56
# 005
MPN: 85829900
RH LATERAL REAR SPOILER
from £188.65
from £188.65
# 006
MPN: 85829600
LH LATERAL REAR SPOILER
from £188.65
from £188.65
# 007
MPN: 86574600
SCREW
-No longer supplied- -Replaced by 86876300-
Supersession
Supersession
# 007
MPN: 86876300
SCREW
-M4 X 10-
from £2.07
from £2.07
This part replaces part number 86574600
# 008
MPN: 85830400
COSMETIC SEAL ON RH REAR BUMPER
from £70.91
from £70.91
# 009
MPN: 85830300
COSMETIC SEAL ON LH REAR BUMPER
from £70.91
from £70.91
# 010
MPN: 833931
CENTRAL FIN
-Black- -Special Handling Pack-
from £411.59
from £411.59
# 010
MPN: 85830500
CENTRAL FIN
-Grey-
from £352.64
from £352.64
# 011
MPN: 833932
RH FIN
-Black- -Special Handling Pack-
from £411.59
from £411.59
# 011
MPN: 85830700
RH FIN
-Grey-
from £371.20
from £371.20
# 012
MPN: 833933
LH FIN
-Black- -Special Handling Pack-
from £411.59
from £411.59
# 012
MPN: 85830600
LH FIN
-Grey-
from £204.16
from £204.16
# 013
MPN: 85468100
RH FIXED TAILLIGHT HEAT SHIELD
-No longer supplied-
# 014
MPN: 85468000
LH FIXED TAILLIGHT HEAT SHIELD
-No longer supplied-
# 015
MPN: 84806800
RH REFLECTOR
from £4.61
from £4.61
# 016
MPN: 84806900
LH REFLECTOR
from £8.39
from £8.39
# 017
MPN: 84784600
WASHER FOR PIN
from £12.35
from £12.35
# 018
MPN: 85937500
RH FIXED TAILLIGHT BASE
from £100.45
from £100.45
# 019
MPN: 85937400
LH FIXED TAILLIGHT BASE
from £100.45
from £100.45
# 020
MPN: 86021300
FIXED TAILLIGHT SEAL
-Applicable until depletion-
from £16.55
from £16.55
# 021
MPN: 14370171
BRACKET
from £1.15
from £1.15
# 022
MPN: 86574400
SCREW
-No longer supplied- -Replaced by 86876500-
Supersession
Supersession
# 022
MPN: 86876500
SCREW
from £2.07
from £2.07
This part replaces part number 86574400
# 023
MPN: 86245400
GEARBOX OIL INSPECTION CAP
from £96.51
from £96.51
# 024
MPN: 80874300
CLIP
from £0.59
from £0.59
# 025
MPN: 86574300
LATERAL DAM
from £68.74
from £68.74
# 026
MPN: 86574500
CENTRAL DAM
from £68.74
from £68.74
# 027
MPN: 14295696
RIVET
from £0.51
from £0.51
# 028
MPN: 63343400
SCREW
-No longer supplied- -Replaced by 86876400-
from £1.36
from £1.36
# 028
MPN: 86876400
SCREW
-M4 X 14-
from £4.13
from £4.13
# 029
MPN: 295361
PARKING SENSOR
from £21.37
from £21.37
# 030
MPN: 81544800
CLEAR SILICONE RING
from £4.49
from £4.49
# 031
MPN: 81078500
WASHER
-No longer supplied- -Replaced by 87547900-
from £0.55
from £0.55
# 031
MPN: 87547900
WASHER
from £0.54
from £0.54
# 032
MPN: 82113500
SCREW
-M6 X 18-
from £1.50
from £1.50
# 033
MPN: 14039414
NUT
from £0.47
from £0.47
This part replaces part number 14039411
# 034
MPN: 85467800
RH LATERAL BRACKET
from £13.49
from £13.49
# 035
MPN: 85467600
LH LATERAL BRACKET
from £13.49
from £13.49
# 036
MPN: 80874100
SCREW
from £0.56
from £0.56
This part replaces part number 83443000
# 037
MPN: 86224400
LOWER BRACKET
from £18.88
from £18.88
# 038
MPN: 80874900
SCREW
-No longer supplied- -Replaced by 83442900-
from £0.65
from £0.65
# 038
MPN: 83442900
SCREW
from £0.47
from £0.47
This part replaces part number 80874700
# 039
MPN: 85922700
CENTRE MOUNTING BRACKET
from £10.79
from £10.79
# 040
MPN: 85922900
RH LATERAL MOUNTING BRACKET
from £9.81
from £9.81
# 041
MPN: 85922800
LH LATERAL MOUNTING BRACKET
from £9.81
from £9.81
# 042
MPN: 83442900
SCREW
from £0.47
from £0.47
This part replaces part number 80874700
# 043
MPN: 13046112
NUT
from £0.47
from £0.47
# 044
MPN: 14039511
NUT
from £0.51
from £0.51
# 045
MPN: 11625621
SCREW
from £0.52
from £0.52
# 046
MPN: 12640624
WASHER
from £0.47
from £0.47
This part replaces part number 12640601 - and 1 more. Click to view details
# 046
MPN: 65841100
WASHER
-No longer supplied- -Replaced by 12640624-
from £0.61
from £0.61
# 047
MPN: 62766300
CLIP FOR SCREW
from £0.47
from £0.47
# 048
MPN: 82283100
REAR LICENSE PLATE MOUNTING
-Applicable for UAE and Korea- -Applicable for EU GS, UK-
from £36.76
from £36.76
# 048
MPN: 85980600
REAR LICENSE PLATE MOUNTING
-Applicable for USA, CDN, USA LIGHT-
from £222.95
from £222.95
# 048
MPN: 86291500
REAR LICENSE PLATE MOUNTING
-Applicable for J-
from £142.90
from £142.90
# 048
MPN: 86292200
REAR LICENSE PLATE MOUNTING
-Not for UAE- -Applicable for GOLFO-
from £222.71
from £222.71
# 048
MPN: 86293400
REAR LICENSE PLATE MOUNTING
-Applicable for AUS-
from £185.59
from £185.59
# 048
MPN: 86786300
REAR LICENSE PLATE MOUNTING
-Applicable for CINA-
from £291.54
from £291.54
# 049
MPN: 63343400
SCREW
from £1.36
from £1.36
# 050
MPN: 85999100
REAR BUMPER IMPACT ABSORBER
-Applicable for USA, CDN, GOLFO, USA LIGHT-
from £68.67
from £68.67
# 051
MPN: 85185000
REAR CROSS-MEMBER
-Applicable for USA, CDN, GOLFO, USA LIGHT-
from £831.46
from £831.46
# 052
MPN: 13046214
NUT
-Applicable for USA, CDN, GOLFO, USA LIGHT-
from £0.47
from £0.47
# 053
MPN: 12604274
WASHER
-Applicable for Russia-
from £0.47
from £0.47
This part replaces part number 12604271 - and 1 more. Click to view details
# 054
MPN: 11625824
SCREW
from £0.47
from £0.47
# 055
MPN: 12642878
WASHER
from £0.47
from £0.47
