005 - Timing Tappets and Shafts

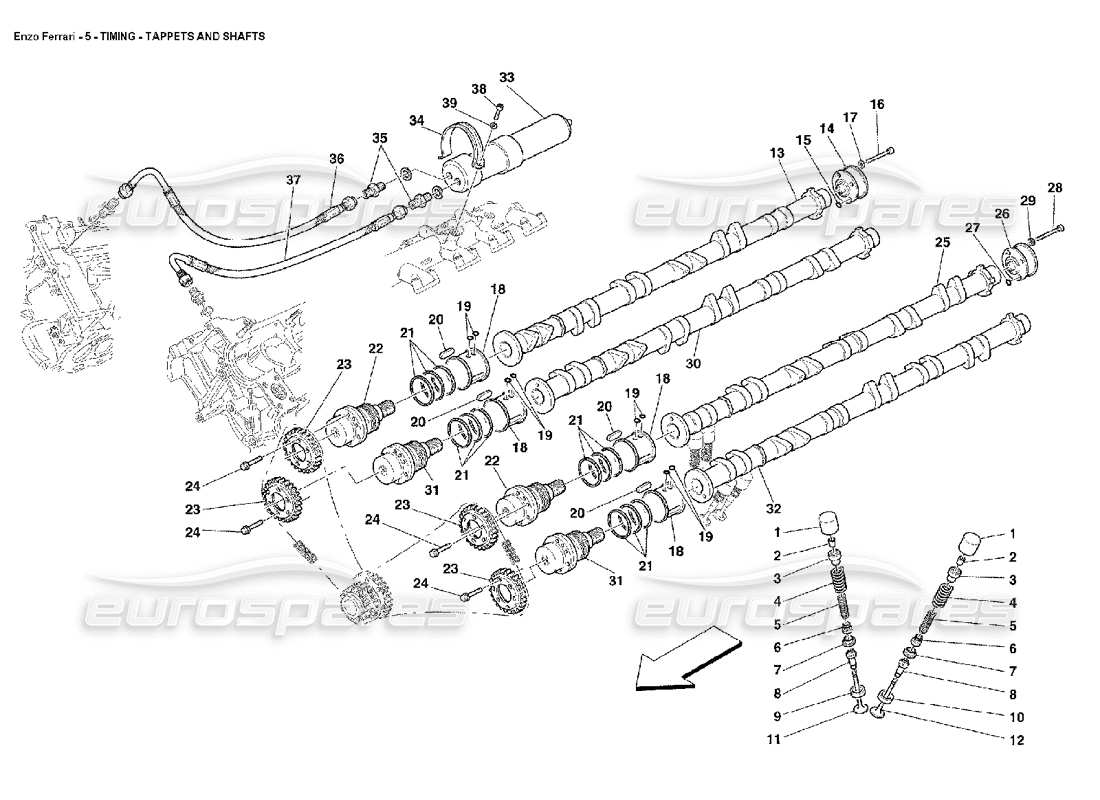

Ferrari Enzo Timing Tappets and Shafts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Price
                                                                          # 001
                                                                          MPN: 193631
                                                                          TAPPET FOR VALVE CONTROL
                                                                          from £12.68
                                                                          from £12.68
                                                                          # 002
                                                                          MPN: 179763
                                                                          COTTER FOR VALVE SPRING CUP
                                                                          from £0.26
                                                                          from £0.26
                                                                          # 003
                                                                          MPN: 187489
                                                                          UPPER CUP
                                                                          from £5.06
                                                                          from £5.06
                                                                          # 004
                                                                          MPN: 188849
                                                                          OUTER SPRING FOR VALVE RETURN
                                                                          from £16.46
                                                                          from £16.46
                                                                          # 005
                                                                          MPN: 184055
                                                                          INNER SPRING FOR VALVE RETURN
                                                                          from £27.64
                                                                          from £27.64
                                                                          # 006
                                                                          MPN: 148153
                                                                          OIL RING FOR VALVE GUIDE
                                                                          from £1.90
                                                                          from £1.90
                                                                          # 007
                                                                          MPN: 190388
                                                                          LOWER CUP
                                                                          - Not as spare part - Replaced by 204178
                                                                          from £4.38
                                                                          from £4.38
                                                                          # 007
                                                                          MPN: 204178
                                                                          LOWER CUP
                                                                          from £5.55
                                                                          from £5.55
                                                                          # 007
                                                                          MPN: 204179
                                                                          LOWER CUP
                                                                          - Oversized
                                                                          from £91.80
                                                                          from £91.80
                                                                          # 008
                                                                          MPN: 172452
                                                                          VALVE GUIDE
                                                                          - Oversized
                                                                          Supersession
                                                                          Supersession
                                                                          # 008
                                                                          MPN: 176437
                                                                          INTAKE VALVE GUIDE
                                                                          from £48.00
                                                                          from £48.00
                                                                          This part replaces part number 149900 - and 1 more. Click to view details
                                                                          # 009
                                                                          MPN: 175381
                                                                          INTAKE VALVE SEAT
                                                                          from £7.84
                                                                          from £7.84
                                                                          # 010
                                                                          MPN: 179959
                                                                          EXHAUST VALVE SEAT
                                                                          Supersession
                                                                          Supersession
                                                                          # 011
                                                                          MPN: 190525
                                                                          INTAKE VALVE
                                                                          from £89.21
                                                                          from £89.21
                                                                          # 012
                                                                          MPN: 189351
                                                                          EXHAUST VALVE
                                                                          from £60.58
                                                                          from £60.58
                                                                          # 013
                                                                          MPN: 187848
                                                                          RH INDUCTION DISTRIBUTION CAM SHAFT
                                                                          from £2,386.55
                                                                          from £2,386.55
                                                                          # 014
                                                                          MPN: 186321
                                                                          RH VARIATOR OIL PUMP
                                                                          from £181.16
                                                                          from £181.16
                                                                          # 015
                                                                          MPN: 134701
                                                                          O.R. GASKET
                                                                          from £0.53
                                                                          from £0.53
                                                                          # 016
                                                                          MPN: 14303474
                                                                          SCREW
                                                                          from £0.53
                                                                          from £0.53
                                                                          # 017
                                                                          MPN: 127492
                                                                          WASHER
                                                                          from £0.85
                                                                          from £0.85
                                                                          This part replaces part number 106848
                                                                          # 018
                                                                          MPN: 206785
                                                                          BUSHING FOR VARIATORS
                                                                          - Valid till stock exhaustion
                                                                          from £869.01
                                                                          from £869.01
                                                                          This part replaces part number 190123
                                                                          # 018
                                                                          MPN: 206785
                                                                          BUSHING FOR VARIATORS
                                                                          from £869.01
                                                                          from £869.01
                                                                          This part replaces part number 190123
                                                                          # 019
                                                                          MPN: 134701
                                                                          GASKET
                                                                          from £0.51
                                                                          from £0.51
                                                                          # 020
                                                                          MPN: 14721120
                                                                          Key
                                                                          from £0.51
                                                                          from £0.51
                                                                          # 021
                                                                          MPN: 185288
                                                                          GASKET
                                                                          from £25.20
                                                                          from £25.20
                                                                          # 022
                                                                          MPN: 187820
                                                                          INDUCTION PHASE VARIATOR
                                                                          from £644.66
                                                                          from £644.66
                                                                          # 023
                                                                          MPN: 193527
                                                                          TOOTHED WHEEL
                                                                          from £688.17
                                                                          from £688.17
                                                                          # 024
                                                                          MPN: 194977
                                                                          SCREW
                                                                          from £5.63
                                                                          from £5.63
                                                                          # 025
                                                                          MPN: 187850
                                                                          LH INDUCTION DISTRIBUTION CAM SHAFT
                                                                          from £2,085.24
                                                                          from £2,085.24
                                                                          # 026
                                                                          MPN: 186322
                                                                          LH VARIATOR OIL PUMP
                                                                          from £122.31
                                                                          from £122.31
                                                                          # 027
                                                                          MPN: 134701
                                                                          O.R. GASKET
                                                                          from £0.53
                                                                          from £0.53
                                                                          # 028
                                                                          MPN: 14303474
                                                                          SCREW
                                                                          from £0.53
                                                                          from £0.53
                                                                          # 029
                                                                          MPN: 127492
                                                                          WASHER
                                                                          from £0.85
                                                                          from £0.85
                                                                          This part replaces part number 106848
                                                                          # 030
                                                                          MPN: 187849
                                                                          RH EXHAUST CAM SHAFT
                                                                          from £2,085.24
                                                                          from £2,085.24
                                                                          # 031
                                                                          MPN: 185422
                                                                          EXHAUST PHASE VARIATOR
                                                                          from £1,162.34
                                                                          from £1,162.34
                                                                          # 032
                                                                          MPN: 187851
                                                                          LH EXHAUST CAM SHAFT
                                                                          from £2,386.55
                                                                          from £2,386.55
                                                                          # 033
                                                                          MPN: 184188
                                                                          OIL ACCUMULATOR
                                                                          from £276.24
                                                                          from £276.24
                                                                          # 034
                                                                          MPN: 184800
                                                                          BRACKET FIXING ACCUMULATOR
                                                                          from £7.73
                                                                          from £7.73
                                                                          # 035
                                                                          MPN: 182426
                                                                          THREADED UNION
                                                                          from £8.95
                                                                          from £8.95
                                                                          # 036
                                                                          MPN: 192823
                                                                          RH OIL PIPE
                                                                          from £293.61
                                                                          from £293.61
                                                                          # 037
                                                                          MPN: 187534
                                                                          LH OIL PIPE
                                                                          from £184.40
                                                                          from £184.40
                                                                          # 038
                                                                          MPN: 14305724
                                                                          SCREW
                                                                          from £0.53
                                                                          from £0.53
                                                                          This part replaces part number 11567624 - and 2 more. Click to view details
                                                                          # 039
                                                                          MPN: 11197774
                                                                          WASHER
                                                                          from £0.53
                                                                          from £0.53
                                                                          This part replaces part number 11197770 - and 3 more. Click to view details
