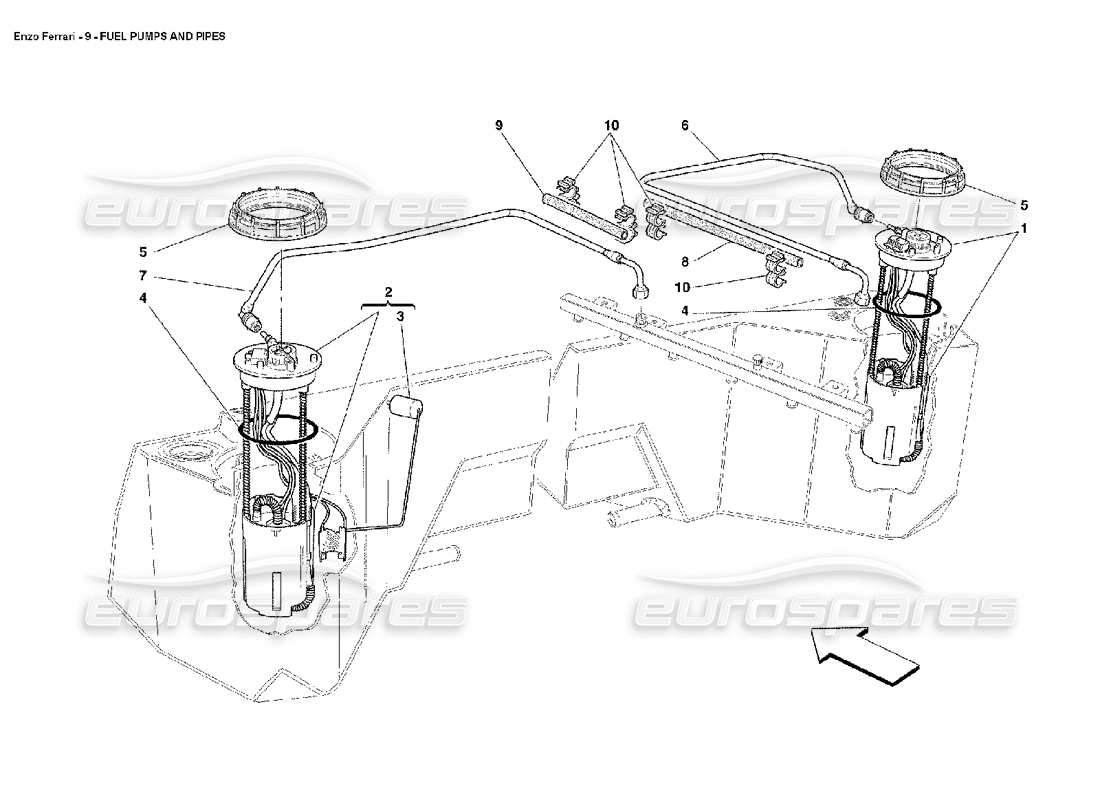

Ferrari Enzo Fuel Pumps and Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 239817

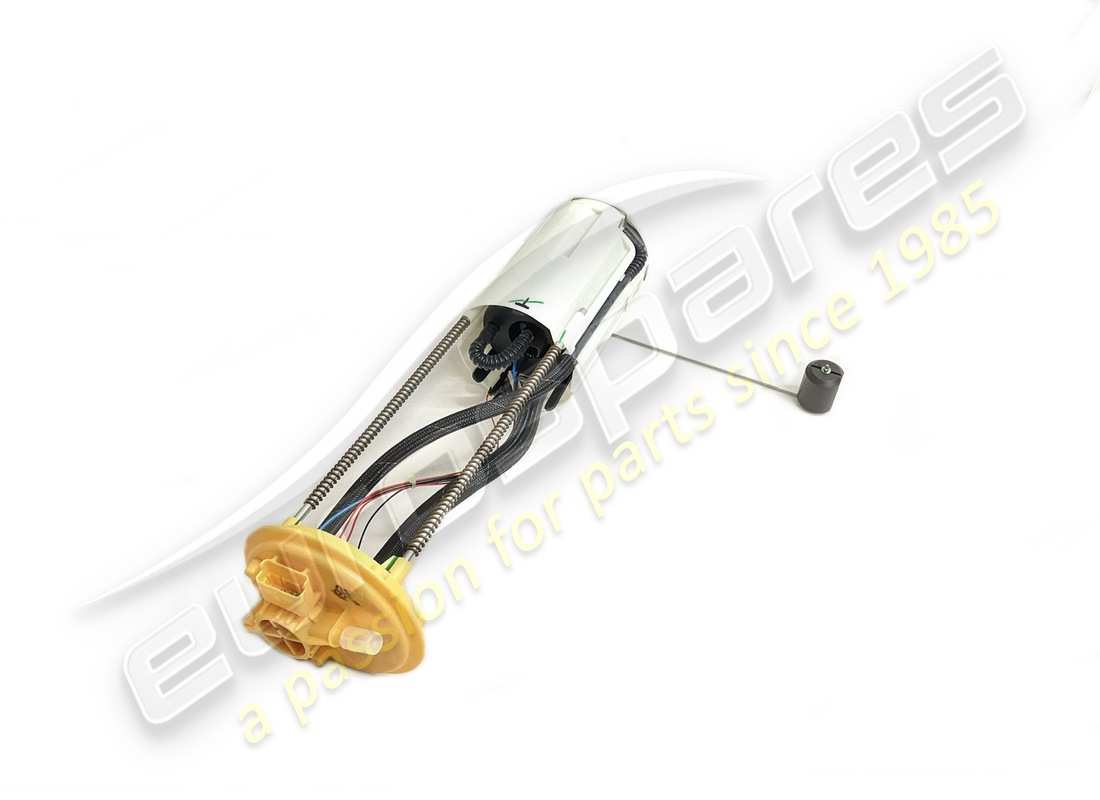

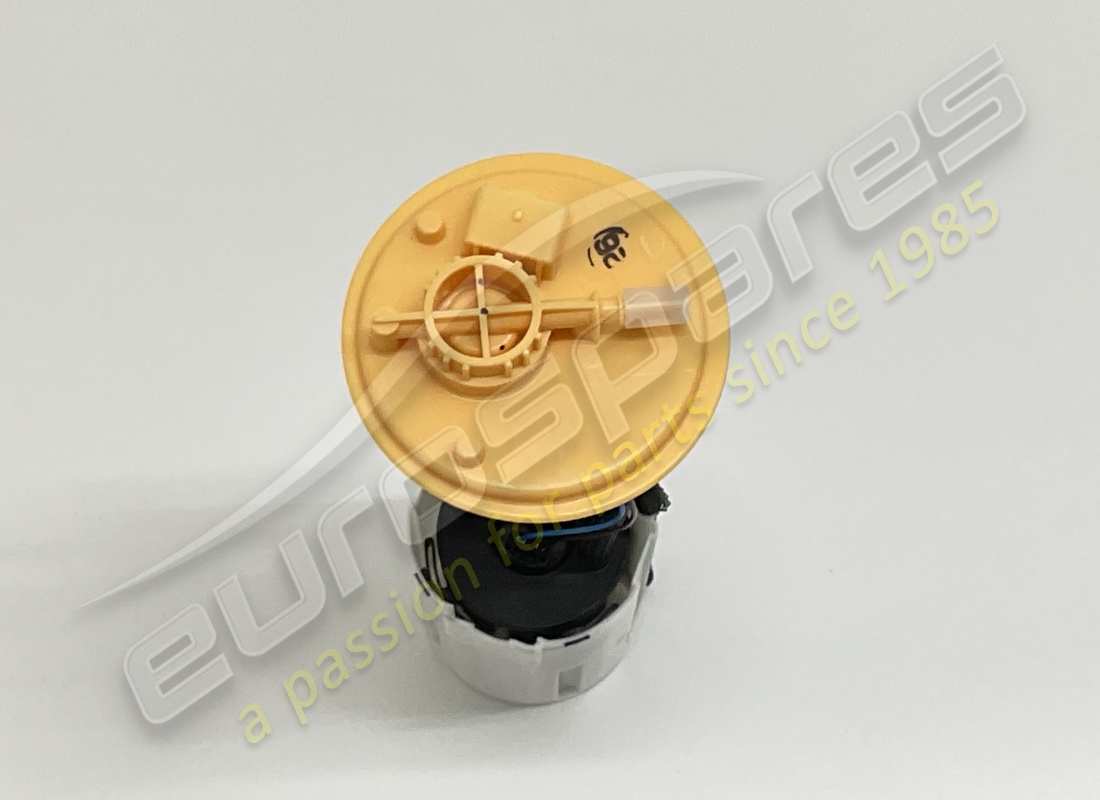

                      RH COMPLETE FUEL PUMP
                      from £184.00
                      from £184.00
                      This part replaces part number 186012
                      # 002
                      MPN: 239816
                      LH COMPLETE FUEL PUMP AND FUEL LEVEL INDICATOR CONTROL
                      from £199.60
                      from £199.60
                      This part replaces part number 186019
                      # 003
                      MPN: 204998
                      FUEL LEVEL INDICATOR CONTROL
                      from £87.10
                      from £87.10
                      This part replaces part number 186021
                      # 003
                      MPN: 204998
                      FUEL LEVEL INDICATOR CONTROL
                      from £87.10
                      from £87.10
                      This part replaces part number 186021
                      # 004
                      MPN: 181681
                      GASKET FOR RING NUT
                      from £11.67
                      from £11.67
                      # 005
                      MPN: 181682
                      RING NUT FIXING PUMP
                      from £7.78
                      from £7.78
                      # 006
                      MPN: 189407
                      RH FUEL DELIVERY TUBE
                      from £276.14
                      from £276.14
                      # 007
                      MPN: 189408
                      LH FUEL DELIVERY TUBE
                      from £276.14
                      from £276.14
                      # 008
                      MPN: 197746
                      RH HEAT SHIELD
                      from £45.53
                      from £45.53
                      # 009
                      MPN: 197750
                      LH HEAT SHIELD
                      from £45.53
                      from £45.53
                      # 010
                      MPN: 140727
                      FIXING CLIP
                      from £0.51
                      from £0.51
