018 - Nourice and Pipes

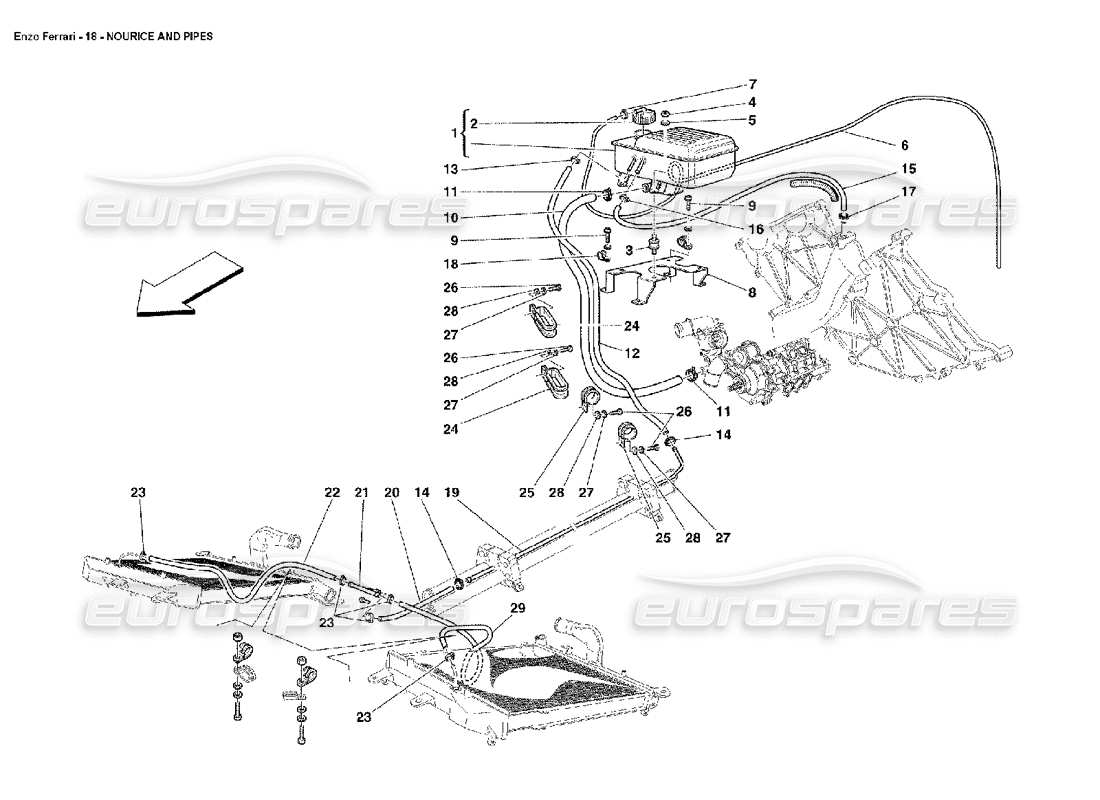

Ferrari Enzo Nourice and Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 191040
                                                      COMPLETE FUEL CANISTER
                                                      from £253.79
                                                      from £253.79
                                                      # 003
                                                      MPN: 142202
                                                      PAD
                                                      from £14.37
                                                      from £14.37
                                                      # 004
                                                      MPN: 15896214
                                                      NUT
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number 15896211
                                                      # 005
                                                      MPN: 12643724
                                                      WASHER
                                                      from £0.51
                                                      from £0.51
                                                      This part replaces part number 109684 - and 4 more. Click to view details
                                                      # 006
                                                      MPN: 195600
                                                      VENT PIPE
                                                      from £38.11
                                                      from £38.11
                                                      # 007
                                                      MPN: 183919
                                                      ELASTIC COLLAR
                                                      from £0.72
                                                      from £0.72
                                                      # 008
                                                      MPN: 191014
                                                      NOURICE SUPPORTING BRACKET
                                                      from £76.28
                                                      from £76.28
                                                      # 009
                                                      MPN: 62940900
                                                      SCREW
                                                      from £0.83
                                                      from £0.83
                                                      This part replaces part number 67352400
                                                      # 010
                                                      MPN: 196098
                                                      RUBBER HOSE FROM PUMP TO NOURICE
                                                      from £73.94
                                                      from £73.94
                                                      # 011
                                                      MPN: 13000490
                                                      SCREW COLLAR
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number 10169090 - and 3 more. Click to view details
                                                      # 012
                                                      MPN: 191838
                                                      RUBBER HOSE FROM NOURICE TO UNDER FLOOR
                                                      - Not as spare part - Replaced by 8191838
                                                      from £20.86
                                                      from £20.86
                                                      # 012
                                                      MPN: 8191838
                                                      RUBBER HOSE FROM NOURICE TO UNDER FLOOR
                                                      from £34.35
                                                      from £34.35
                                                      # 013
                                                      MPN: 177995
                                                      CLAMP
                                                      from £0.66
                                                      from £0.66
                                                      # 014
                                                      MPN: 13000190
                                                      SCREW COLLAR
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number 12178990 - and 1 more. Click to view details
                                                      # 015
                                                      MPN: 191837
                                                      RUBBER HOSE FROM NOURICE TO ENGINE
                                                      from £13.18
                                                      from £13.18
                                                      # 016
                                                      MPN: 177995
                                                      CLAMP
                                                      from £0.66
                                                      from £0.66
                                                      # 017
                                                      MPN: 13000190
                                                      SCREW COLLAR
                                                      from £0.54
                                                      from £0.54
                                                      This part replaces part number 12178990 - and 1 more. Click to view details
                                                      # 018
                                                      MPN: 10442090
                                                      BRACKET WITH SHEATH
                                                      from £0.47
                                                      from £0.47
                                                      # 019
                                                      MPN: 188062
                                                      UNDERFLOOR PIPE
                                                      from £216.48
                                                      from £216.48
                                                      # 020
                                                      MPN: 191856

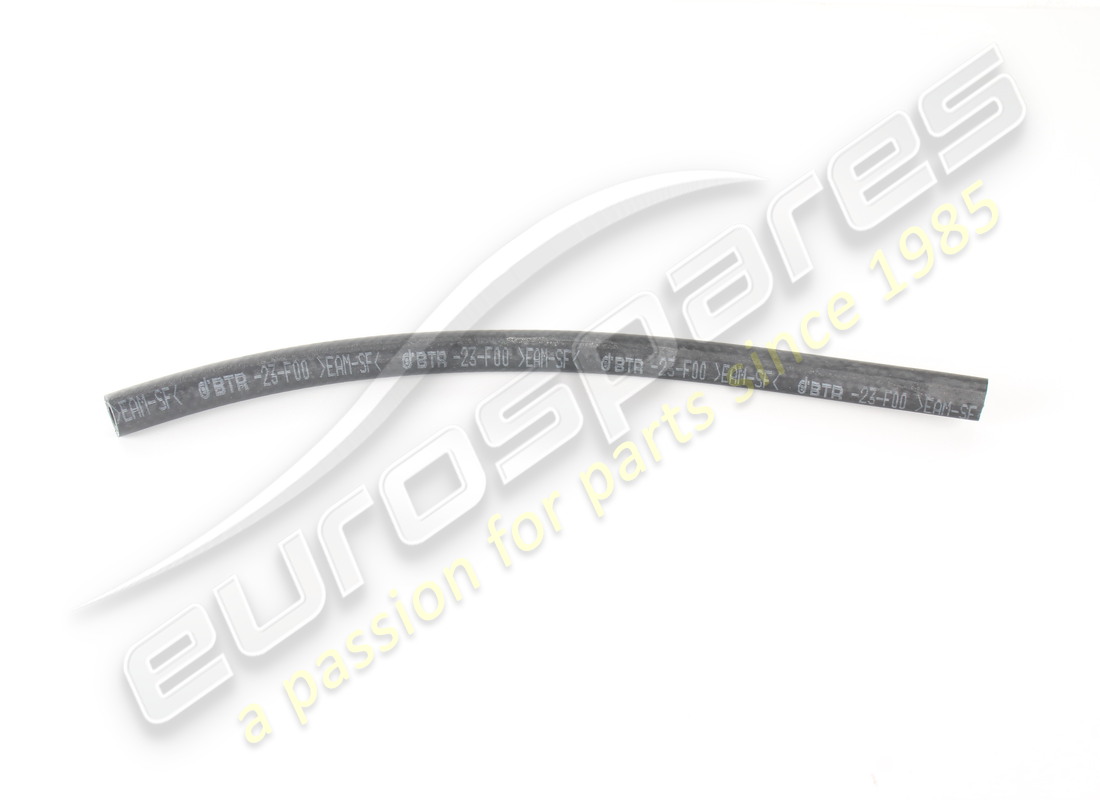

                                                      RUBBER HOSE
                                                      - Not as spare part - Replaced by 8191856
                                                      from £82.51
                                                      from £82.51
                                                      # 020
                                                      MPN: 8191856
                                                      RUBBER HOSE
                                                      from £10.80
                                                      from £10.80
                                                      # 021
                                                      MPN: 194017
                                                      3 WAY UNION
                                                      from £32.42
                                                      from £32.42
                                                      # 022
                                                      MPN: 191854
                                                      RUBBER HOSE
                                                      - Not as spare part - Replaced by 8191854
                                                      from £23.69
                                                      from £23.69
                                                      # 022
                                                      MPN: 198665
                                                      RUBBER HOSE
                                                      - Not as spare part - Replaced by 8198665
                                                      from £17.62
                                                      from £17.62
                                                      # 022
                                                      MPN: 8191854
                                                      RUBBER HOSE
                                                      from £34.35
                                                      from £34.35
                                                      # 022
                                                      MPN: 8198665
                                                      RUBBER HOSE
                                                      from £37.20
                                                      from £37.20
                                                      # 023
                                                      MPN: 13000190
                                                      SCREW COLLAR
                                                      from £0.52
                                                      from £0.52
                                                      This part replaces part number 12178990 - and 1 more. Click to view details
                                                      # 024
                                                      MPN: 138478
                                                      CLAMP
                                                      from £2.75
                                                      from £2.75
                                                      # 025
                                                      MPN: 172995
                                                      BRACKET WITH SHEATH
                                                      from £2.19
                                                      from £2.19
                                                      # 026
                                                      MPN: 10902224
                                                      SCREW
                                                      from £0.51
                                                      from £0.51
                                                      # 027
                                                      MPN: 12644424
                                                      WASHER
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number 12644401 - and 1 more. Click to view details
                                                      # 028
                                                      MPN: 12601274
                                                      WASHER
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                      # 029
                                                      MPN: 198665
                                                      RUBBER HOSE
                                                      from £17.62
                                                      from £17.62
                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
