027 - SECONDARY SHAFT GEARS

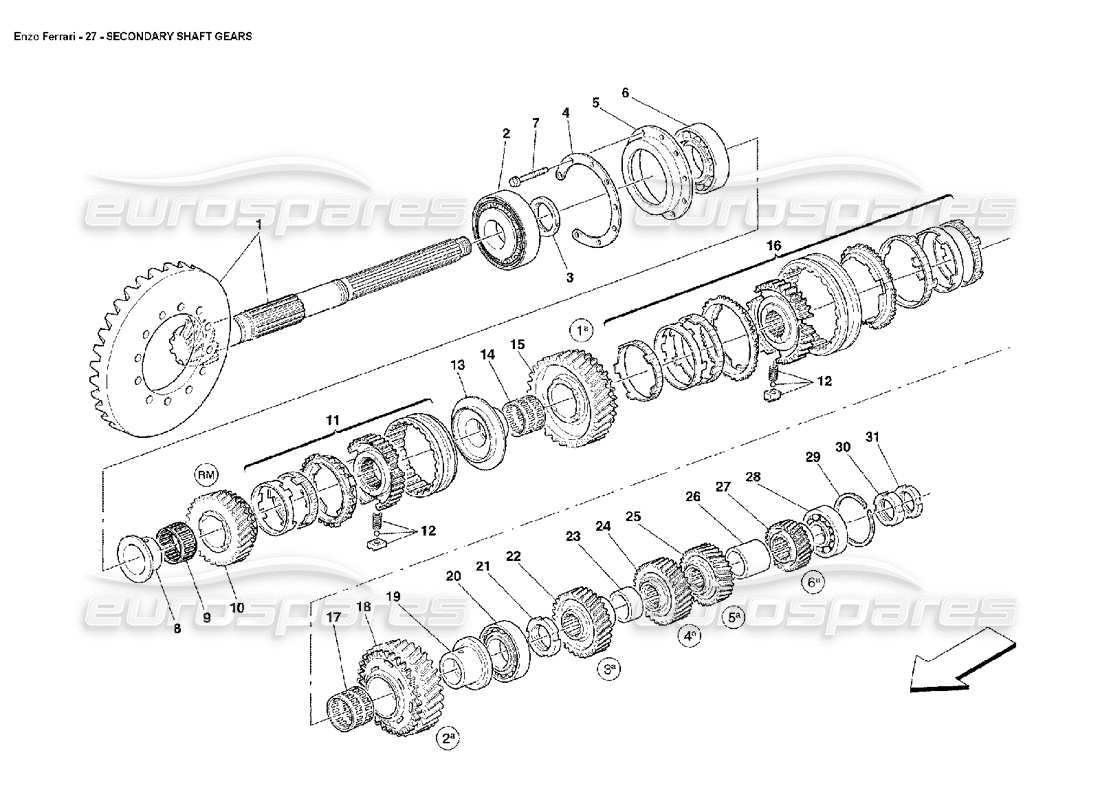

Ferrari Enzo Secondary Shaft Gears Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 190214
BEVEL SET
from £1,194.09
from £1,194.09
# 002
MPN: 185022
ROLLER BEARING
from £84.27
from £84.27
# 003
MPN: 190206
SPACER
from £19.98
from £19.98
# 004
MPN: 185042
REGISTER RING
- Th. 2,8mm
from £5.57
from £5.57
# 005
MPN: 190205
BEARING SUPPORT
from £93.44
from £93.44
# 006
MPN: 190207
ROLLER BEARING
from £46.56
from £46.56
# 007
MPN: 16287624
SCREW
from £1.36
from £1.36
This part replaces part number 16287421
# 008
MPN: 190193
BUSHING
from £107.36
from £107.36
# 009
MPN: 150004
ROLLER CAGE
from £5.83
from £5.83
# 010
MPN: 189524
REVERSE GEAR
from £402.55
from £402.55
# 011
MPN: 189522
REVERSE GEAR COMPLETE SYNCHRONIZER
from £272.31
from £272.31
# 012
MPN: 194029
PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT
from £11.64
from £11.64
This part replaces part number 189523
# 013
MPN: 189579
BUSHING
from £252.34
from £252.34
# 014
MPN: 189580
ROLLER CAGE
from £14.13
from £14.13
# 015
MPN: 190186
PINION FOR 1ST GEAR
from £372.61
from £372.61
# 016
MPN: 189587
1TH AND 2TH GEAR COMPLETE SYNCHRONIZER
from £801.06
from £801.06
# 017
MPN: 189580
ROLLER CAGE
from £14.13
from £14.13
# 018
MPN: 190187
PINION FOR 2ND GEAR
from £372.61
from £372.61
# 019
MPN: 189590
BUSHING
from £121.38
from £121.38
# 020
MPN: 228055
ROLLER BEARING
from £45.28
from £45.28
This part replaces part number 131056 - and 1 more. Click to view details
# 021
MPN: 189747
RING NUT
from £23.44
from £23.44
# 022
MPN: 190195
PINION FOR 3RD GEAR
from £330.46
from £330.46
# 023
MPN: 189701
SPACER
from £24.89
from £24.89
# 024
MPN: 190197
PINION FOR 4TH GEAR
from £322.09
from £322.09
# 025
MPN: 190198
PINION FOR 5TH GEAR
from £322.09
from £322.09
# 026
MPN: 189702
SPACER
from £24.89
from £24.89
# 027
MPN: 190199
PINION FOR 6TH GEAR
from £308.65
from £308.65
# 028
MPN: 103030
ROLLER BEARING
from £122.59
from £122.59
This part replaces part number 101605 - and 2 more. Click to view details
# 029
MPN: 144511
STOP RING
from £1.61
from £1.61
# 030
MPN: 163670
RING NUT
from £20.70
from £20.70
# 031
MPN: 163684
RING NUT
from £9.73
from £9.73
