032 - Brakes Hydraulic Controls and Brake Booster System

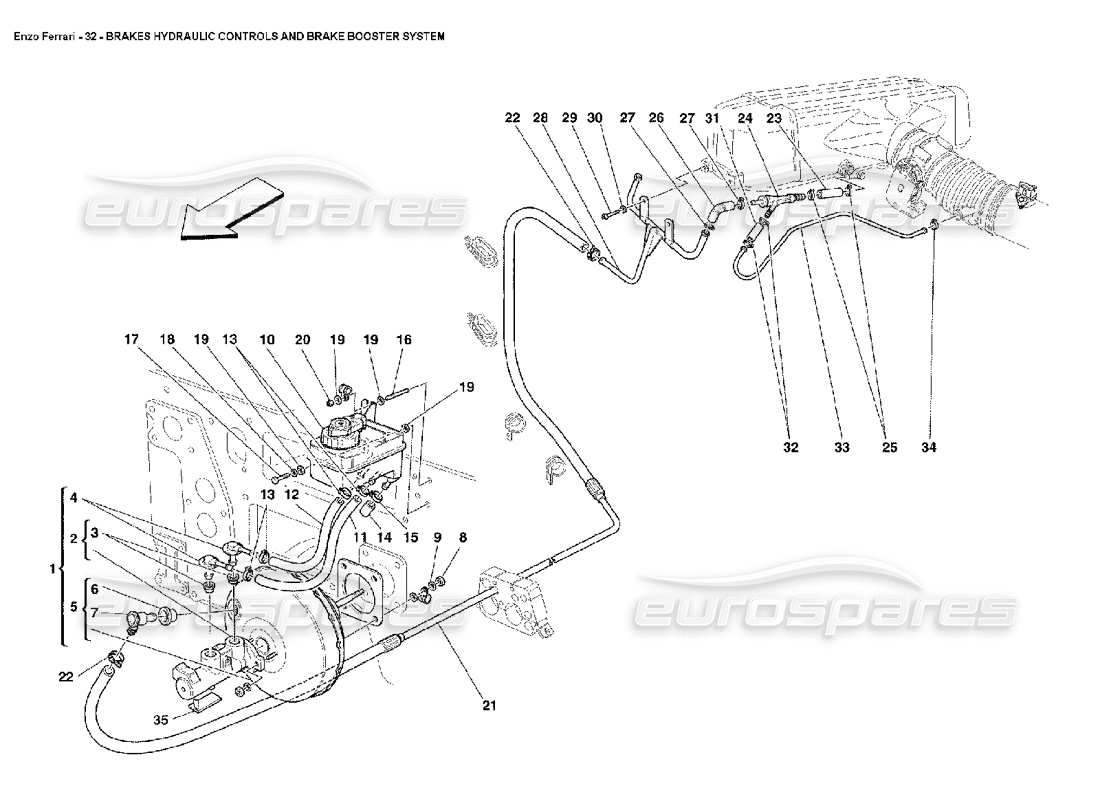

Ferrari Enzo Brakes Hydraulic Controls and Brake Booster System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 186051
COMPLETE BRAKE BOOSTER
from £375.77
from £375.77
This part replaces part number 180848
# 002
MPN: 186052
BRAKE PUMP
from £429.54
from £429.54
# 003
MPN: 171784
CONNECTION FOR BRAKE PUMP
from £5.09
from £5.09
# 004
MPN: 183477
UNION
from £10.85
from £10.85
# 005
MPN: 180848
BOOSTER
Supersession
Supersession
# 006
MPN: 151475
CABLE GROMMET
from £5.99
from £5.99
# 007
MPN: 144552
UNION
from £1.76
from £1.76
# 008
MPN: 147985
NUT
from £0.53
from £0.53
# 009
MPN: 12625224
WASHER
from £0.53
from £0.53
This part replaces part number 12625201 - and 2 more. Click to view details
# 010
MPN: 191008
PAN FOR BRAKE LIQUID
from £14.38
from £14.38
# 011
MPN: 182244
PIPE FROM PAN TO FRONT UNION
from £3.67
from £3.67
This part replaces part number 168950 which we have in stock
# 012
MPN: 191007
PIPE FROM PAN TO REAR UNION
from £1.33
from £1.33
# 013
MPN: 13432070
COLLAR FOR SLEEVE
from £0.48
from £0.48
This part replaces part number 13125570
# 014
MPN: 136379
PLUG
Supersession
Supersession
# 015
MPN: 177995
CLAMP
from £0.66
from £0.66
# 016
MPN: 13541224
STUD
from £34.93
from £34.93
This part replaces part number 13541221
# 017
MPN: 10902324
SCREW
from £0.54
from £0.54
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 018
MPN: 12601274
WASHER
from £0.54
from £0.54
This part replaces part number 12601221 - and 5 more. Click to view details
# 019
MPN: 12644424
WASHER
from £0.53
from £0.53
This part replaces part number 12644401 - and 1 more. Click to view details
# 020
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 021
MPN: 188361
UNDERFLOOR TUBE FOR BRAKE BOOSTER
from £227.17
from £227.17
# 022
MPN: 13000690
SCREW COLLAR
from £0.47
from £0.47
This part replaces part number 12174090 - and 2 more. Click to view details
# 023
MPN: 196326
RUBBER HOSE
- Not as spare part - Replaced by 8196326
from £11.63
from £11.63
# 023
MPN: 8196326
RUBBER HOSE
from £6.42
from £6.42
# 024
MPN: 293058
DEPRESSURE VALVE
from £42.34
from £42.34
This part replaces part number 178529
# 025
MPN: 178052
CLAMP
from £0.92
from £0.92
This part replaces part number 296778
# 026
MPN: 179394
RUBBER HOSE CURVED
from £8.47
from £8.47
# 027
MPN: 178052
CLAMP
from £0.92
from £0.92
This part replaces part number 296778
# 028
MPN: 193473
THREE WAY RIGID PIPE
from £122.59
from £122.59
# 029
MPN: 14305724
SCREW
from £0.53
from £0.53
This part replaces part number 11567624 - and 2 more. Click to view details
# 030
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 031
MPN: 146969
RUBBER HOSE
from £2.39
from £2.39
# 032
MPN: 178051
CLAMP
from £1.93
from £1.93
# 033
MPN: 193474
RH PIPE FROM SLEEVE TO VALVE
from £33.12
from £33.12
# 033
MPN: 193475
LH PIPE FROM SLEEVE TO VALVE
from £34.66
from £34.66
# 034
MPN: 178051
CLAMP
from £1.93
from £1.93
# 035
MPN: 205938
GASKET
from £0.47
from £0.47
