037 - Steering Column

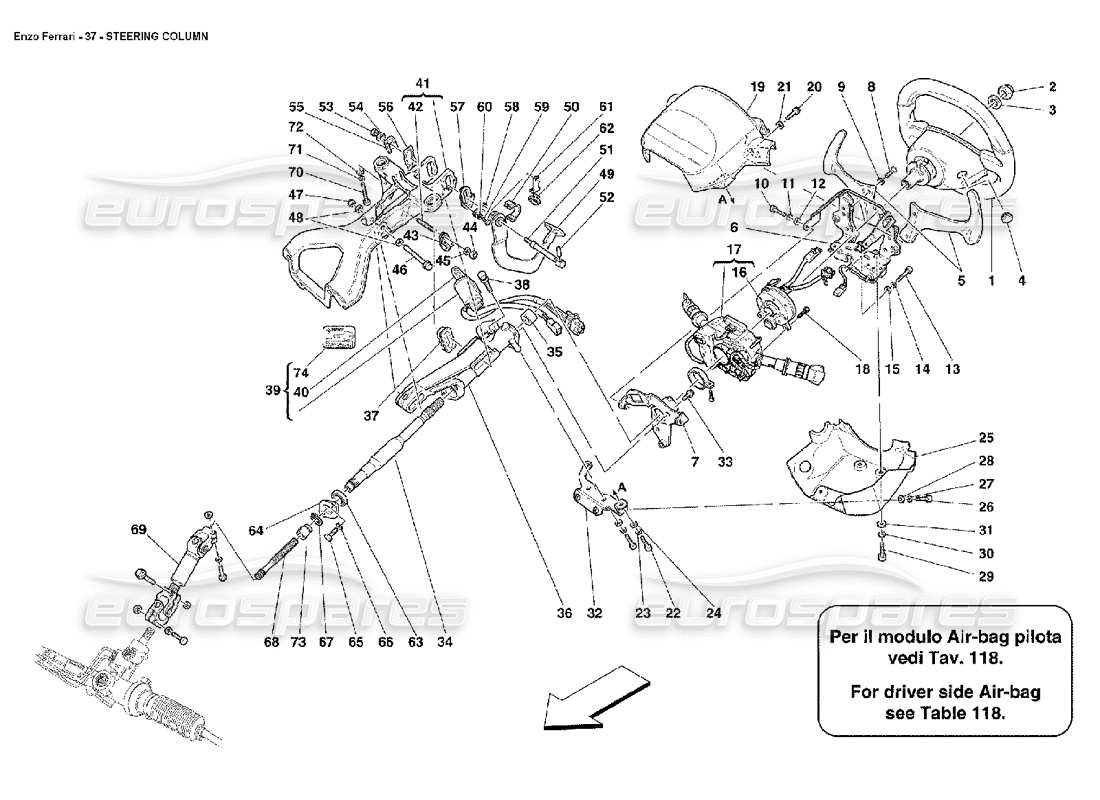

Ferrari Enzo Steering Column Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 675560..
COMPLETE AIR BAG STEERING WHEEL
Supersession
Supersession
# 002
MPN: 101648
NUT
from £2.33
from £2.33
This part replaces part number 106082
# 003
MPN: 10730921
WASHER
from £0.54
from £0.54
# 004
MPN: 185486
PLUG
from £1.54
from £1.54
# 005
MPN: 197873
COUPLE LEVERS
from £2,191.46
from £2,191.46
# 006
MPN: 190534
GEAR BOX CONTROL BRACKET
Supersession
Supersession
# 007
MPN: 190533
BRACKET
from £92.78
from £92.78
# 008
MPN: 13308977
SCREW
from £1.43
from £1.43
# 009
MPN: 12606673
WASHER
from £0.71
from £0.71
# 010
MPN: 14304187
SCREW
from £0.53
from £0.53
This part replaces part number 87658800
# 011
MPN: 12637878
WASHER
from £0.54
from £0.54
This part replaces part number 12637806
# 012
MPN: 12620377
WASHER
from £0.51
from £0.51
# 013
MPN: 14304521
SCREW
from £2.67
from £2.67
# 014
MPN: 12637878
WASHER
from £0.54
from £0.54
This part replaces part number 12637806
# 015
MPN: 12638124
WASHER
from £0.54
from £0.54
This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
# 016
MPN: 194665
SPIRAL CONTACT
from £366.78
from £366.78
# 017
MPN: 185462
UNHOOK DEVIATION ASSEMBLY
from £1,671.55
from £1,671.55
# 018
MPN: 13271914
SCREW
from £0.53
from £0.53
This part replaces part number 13271911 - and 1 more. Click to view details
# 019
MPN: 66576700
UPPER COLUMN COVER
from £1,090.15
from £1,090.15
# 020
MPN: 62940900
SCREW
from £0.85
from £0.85
This part replaces part number 67352400
# 021
MPN: 12644478
WASHER
from £0.47
from £0.47
# 022
MPN: 14304187
SCREW
from £0.53
from £0.53
This part replaces part number 87658800
# 023
MPN: 12637878
WASHER
from £0.54
from £0.54
This part replaces part number 12637806
# 024
MPN: 12620377
WASHER
from £0.51
from £0.51
# 025
MPN: 66576800
LOWER COLUMN COVER
from £1,090.15
from £1,090.15
# 026
MPN: 14304187
SCREW
from £0.53
from £0.53
This part replaces part number 87658800
# 027
MPN: 12637878
WASHER
from £0.54
from £0.54
This part replaces part number 12637806
# 028
MPN: 12620377
WASHER
from £0.51
from £0.51
# 029
MPN: 14305234
SCREW
from £0.53
from £0.53
This part replaces part number 14305287
# 030
MPN: 12644477
WASHER
from £0.71
from £0.71
This part replaces part number 12644406
# 031
MPN: 12620477
WASHER
from £0.47
from £0.47
This part replaces part number 12648207
# 032
MPN: 67041000
COLUMN COVER FIXING BRACKET
from £76.18
from £76.18
# 033
MPN: 14440634
SCREW
from £0.53
from £0.53
This part replaces part number 13274014 - and 1 more. Click to view details
# 034
MPN: 183994
UPPER SHAFT FOR STEERING CONTROL
from £254.00
from £254.00
# 035
MPN: 171539
ROLLER BEARING
from £71.25
from £71.25
# 036
MPN: 171516
COLUMN SUPPORT
from £75.72
from £75.72
# 037
MPN: 171501
FIXED TENSION SLIDE
from £88.11
from £88.11
# 038
MPN: 172563
ANTITHEFT FIXING SCREW
from £1.75
from £1.75
# 039
MPN: 70000972
LOCKS SET COMPLETED WITH STEERING LOCK AND KEY
from £818.72
from £818.72
This part replaces part number 192484
# 040
MPN: 198026
BLANK KEY
from £305.14
from £305.14
# 041
MPN: 171505
STEERING COLUMN SUPPORT BRACKET
from £680.65
from £680.65
# 042
MPN: 11001024
STUD
(minimum order quantity = 5)
from £1.46
from £1.46
This part replaces part number 11001011 - and 1 more. Click to view details
# 043
MPN: 10441490
BRACKET WITH SHEATH
from £0.53
from £0.53
# 044
MPN: 113647
NUT
from £0.54
from £0.54
# 045
MPN: 13577707
WASHER
from £0.71
from £0.71
# 046
MPN: 180632
SCREW
from £7.90
from £7.90
# 047
MPN: 104030
NUT
from £0.54
from £0.54
This part replaces part number 16104125
# 048
MPN: 12625224
WASHER
from £0.54
from £0.54
This part replaces part number 12625201 - and 2 more. Click to view details
# 049
MPN: 675568..
COVERED LEVER
Supersession
Supersession
# 050
MPN: 171531
PIN RETAINING SPRING
from £28.70
from £28.70
# 051
MPN: 171503
LEVER PIN
from £22.38
from £22.38
# 052
MPN: 10336630
PIN
from £63.37
from £63.37
# 053
MPN: 147985
NUT
from £0.54
from £0.54
# 054
MPN: 171542
NUT
from £4.36
from £4.36
# 055
MPN: 171529
MOBILE GUIDE SHOE
from £37.66
from £37.66
# 056
MPN: 171502
SPRING FOR GUIDE SHOE
from £18.83
from £18.83
# 057
MPN: 171544
LEVER SIDE GUIDE SHOE
from £60.14
from £60.14
# 058
MPN: 171523
PLATE
from £24.60
from £24.60
# 059
MPN: 10977724
SCREW
from £0.53
from £0.53
This part replaces part number 10977711
# 060
MPN: 11181574
WASHER
from £0.54
from £0.54
# 061
MPN: 177977
SMALL PLATE
from £12.46
from £12.46
# 062
MPN: 178430
FIXING CLIP
from £0.54
from £0.54
# 063
MPN: 171540
BALL BEARING
from £8.73
from £8.73
# 064
MPN: 177645
PLATE
from £44.59
from £44.59
# 065
MPN: 10902224
SCREW
from £0.53
from £0.53
# 066
MPN: 11181874
WASHER
from £0.51
from £0.51
# 067
MPN: 11067376
SEEGER RING
from £1.07
from £1.07
This part replaces part number 11067375
# 068
MPN: 186930
COLUMN LOWER SHAFT
from £365.81
from £365.81
# 069
MPN: 186916
STEERING CARDANIC TRASMISSION
from £1,412.68
from £1,412.68
# 070
MPN: 16132721
SCREW
from £0.53
from £0.53
# 071
MPN: 11193274
WASHER
from £0.54
from £0.54
This part replaces part number 11193279 which we have in stock
# 072
MPN: 12646601
WASHER
from £0.71
from £0.71
# 073
MPN: 183995
RING NUT
from £35.34
from £35.34
# 074
MPN: 153603
CODE CARD
from £33.75
from £33.75
This part replaces part number 194003
