041 - Front Suspension Wishbones

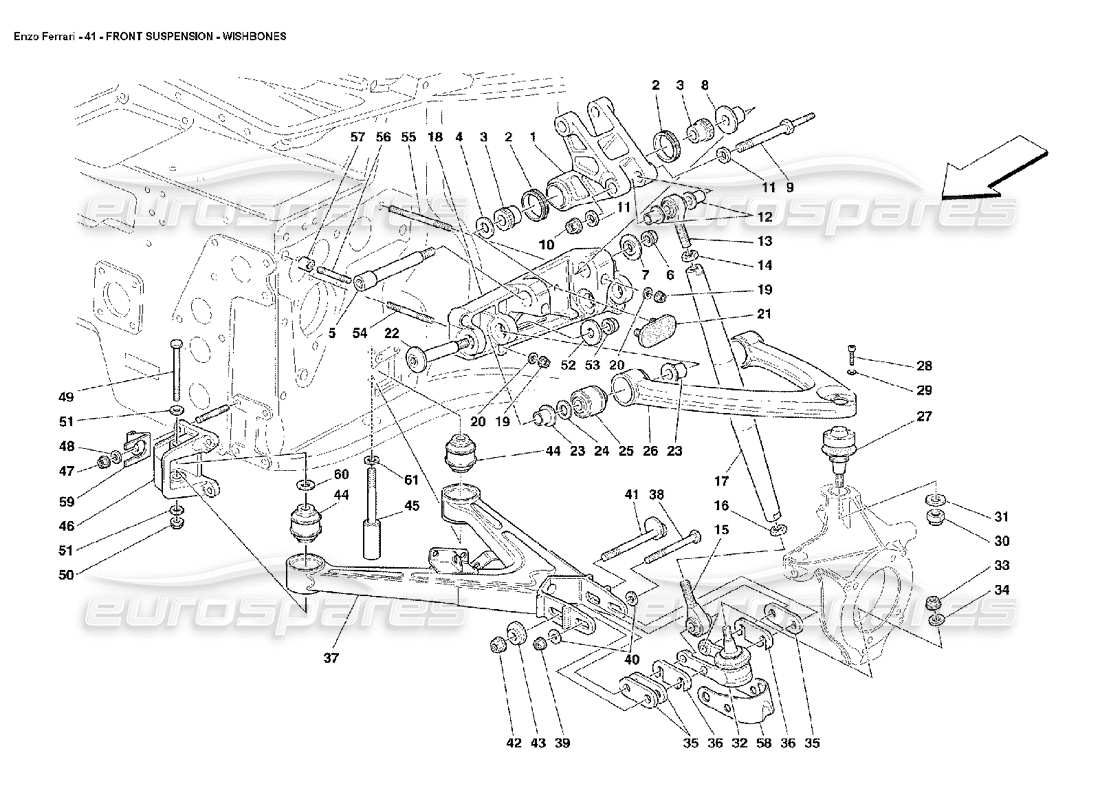

Ferrari Enzo Front Suspension Wishbones Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 183695
LH FRONT ROCKER
from £590.61
from £590.61
# 001
MPN: 188392
RH FRONT ROCKER
from £590.61
from £590.61
# 001
MPN: 188392/A
R.H AND L.H FRONT ROCKER (PAIR)
# 002
MPN: 150153
SEAL RING
from £2.30
from £2.30
# 003
MPN: 150152
ROLLER BEARING
from £97.86
from £97.86
# 004
MPN: 152022
SPACER
from £14.95
from £14.95
# 005
MPN: 151983
FULCRUM PIN
from £198.61
from £198.61
# 006
MPN: 102742
NUT
from £0.53
from £0.53
This part replaces part number 12557621 - and 2 more. Click to view details
# 007
MPN: 152021
WASHER
from £6.75
from £6.75
# 008
MPN: 151982
BUSHING
from £15.24
from £15.24
# 009
MPN: 153322
PIN
from £31.44
from £31.44
# 010
MPN: 132876
NUT
from £20.27
from £20.27
This part replaces part number 169183
# 011
MPN: 10732531
WASHER
from £0.53
from £0.53
# 012
MPN: 150082
BUSHING
from £322.46
from £322.46
# 013
MPN: 149125
BALL JOINT
from £325.56
from £325.56
# 014
MPN: 10717477
NUT
from £2.14
from £2.14
This part replaces part number 10717478
# 015
MPN: 149126
BALL JOINT
from £325.56
from £325.56
# 016
MPN: 149124
NUT
from £2.68
from £2.68
# 017
MPN: 165660
SHOCK ABSORBER CONTROL ROD
from £282.89
from £282.89
# 018
MPN: 151811
LH LEVER SUPPORT SUPPORT
from £3,749.99
from £3,749.99
# 018
MPN: 151812
RH LEVER SUPPORT SUPPORT
from £785.18
from £785.18
# 019
MPN: 177778
NUT
from £0.92
from £0.92
This part replaces part number 133215 which we have in stock - and 1 more. Click to view details
# 020
MPN: 12638524
WASHER
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 021
MPN: 152615
END OF STROKE PAD
from £6.28
from £6.28
# 022
MPN: 152023
UPPER LEVER PIN
from £60.75
from £60.75
# 023
MPN: 152020
BUSHING
from £201.26
from £201.26
# 024
MPN: 152032
WASHER
- Th. mm. 0,2
from £4.09
from £4.09
# 024
MPN: 152033
WASHER
- Th. mm. 0,3
from £4.09
from £4.09
# 024
MPN: 152034
WASHER
- Th. mm. 0,5
from £3.83
from £3.83
# 024
MPN: 152035
WASHER
- Th. mm. 0,6
from £3.97
from £3.97
# 024
MPN: 152036
WASHER
- Th. mm. 0,7
from £3.97
from £3.97
# 024
MPN: 152037
WASHER
- Th. mm. 0,8
from £3.97
from £3.97
# 024
MPN: 152038
WASHER
- Th. mm. 1,0
from £3.97
from £3.97
# 025
MPN: 163918
LOWER SHOCK ABSORBER BUSH
from £77.62
from £77.62
# 026
MPN: 151290
RH UPPER LEVER
from £722.59
from £722.59
# 026
MPN: 171114
LH UPPER LEVER
from £1,806.48
from £1,806.48
# 027
MPN: 130202
BALL JOINT FOR UPPER LEVER
from £512.15
from £512.15
# 028
MPN: 14305124
SCREW
from £0.48
from £0.48
This part replaces part number 14305121
# 029
MPN: 10569279
WASHER
from £0.71
from £0.71
# 030
MPN: 169193
NUT
from £0.84
from £0.84
# 031
MPN: 150143
WASHER
from £12.40
from £12.40
# 032
MPN: 146999
BALL JOINT FOR LOWER LEVER
from £315.94
from £315.94
# 033
MPN: 149807
NUT
from £0.63
from £0.63
# 034
MPN: 122237
WASHER
from £2.75
from £2.75
# 035
MPN: 192576
PLATE
- Th. 4mm
from £8.56
from £8.56
# 036
MPN: 192577
PLATE
- Th. 1mm - Possible fitting
from £14.67
from £14.67
# 036
MPN: 192578
PLATE
- Th. 1,5mm - Possible fitting
from £8.56
from £8.56
# 036
MPN: 192579
PLATE
- Th. 2mm - Possible fitting
from £8.79
from £8.79
# 036
MPN: 192580
PLATE
- Th. 3mm - Possible fitting
from £8.79
from £8.79
# 037
MPN: 192516
LH LOWER LEVER
from £1,106.65
from £1,106.65
# 037
MPN: 195299
RH LOWER LEVER
from £1,106.65
from £1,106.65
# 038
MPN: 192585
SCREW
from £39.30
from £39.30
# 039
MPN: 133216
NUT
from £4.80
from £4.80
# 040
MPN: 166448
WASHER
from £3.54
from £3.54
# 041
MPN: 192572
ECCENTRIC SCREW
from £213.58
from £213.58
# 042
MPN: 132876
NUT
from £20.27
from £20.27
This part replaces part number 169183
# 043
MPN: 152818
ECCENTRIC WASHER
from £23.45
from £23.45
# 044
MPN: 203633
UPPER BALL JOINT OEM
includes seals -
from £141.99
from £141.99
# 045
MPN: 189157
SPECIAL SCREW
from £37.39
from £37.39
# 046
MPN: 189142
SUPPORT
from £316.55
from £316.55
# 047
MPN: 177778
NUT
from £0.95
from £0.95
This part replaces part number 133215 which we have in stock - and 1 more. Click to view details
# 048
MPN: 12638524
WASHER
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 049
MPN: 15971624
SCREW
- Not as spare part - Replaced by 15971634
from £0.54
from £0.54
# 049
MPN: 15971634
SCREW
from £0.85
from £0.85
# 050
MPN: 104114
NUT
Supersession
Supersession
This part replaces part number 15503711 - and 1 more. Click to view details
# 051
MPN: 14496624
WASHER
from £0.53
from £0.53
This part replaces part number 14496601 - and 2 more. Click to view details
# 052
MPN: 152031
WASHER
from £30.81
from £30.81
# 053
MPN: 132876
NUT
from £20.27
from £20.27
This part replaces part number 169183
# 054
MPN: 12429524
STUD
from £1.13
from £1.13
# 055
MPN: 13544334
STUD
from £1.70
from £1.70
# 056
MPN: 13543734
STUD
from £0.96
from £0.96
# 057
MPN: 150961
CENTERING DOWEL
from £23.53
from £23.53
# 058
MPN: 195081
BALL JOINT PROTECTION
from £125.12
from £125.12
# 059
MPN: 193444
ABS SENSOR FIXING LH BRACKET
from £29.15
from £29.15
# 059
MPN: 193486
ABS SENSOR FIXING RH BRACKET
from £53.04
from £53.04
# 060
MPN: 189155
SPACER
- Th. 0,3 mm.
from £2.83
from £2.83
# 060
MPN: 189158
SPACER
- Th. 0,4 mm.
from £1.68
from £1.68
# 060
MPN: 189159
SPACER
- Th. 0,5 mm.
from £1.68
from £1.68
# 060
MPN: 189160
SPACER
- Th. 0,6 mm.
from £4.32
from £4.32
# 060
MPN: 189161
SPACER
- Th. 0,7 mm.
from £1.68
from £1.68
# 061
MPN: 12541970
WASHER
from £0.54
from £0.54
