047 - Battery

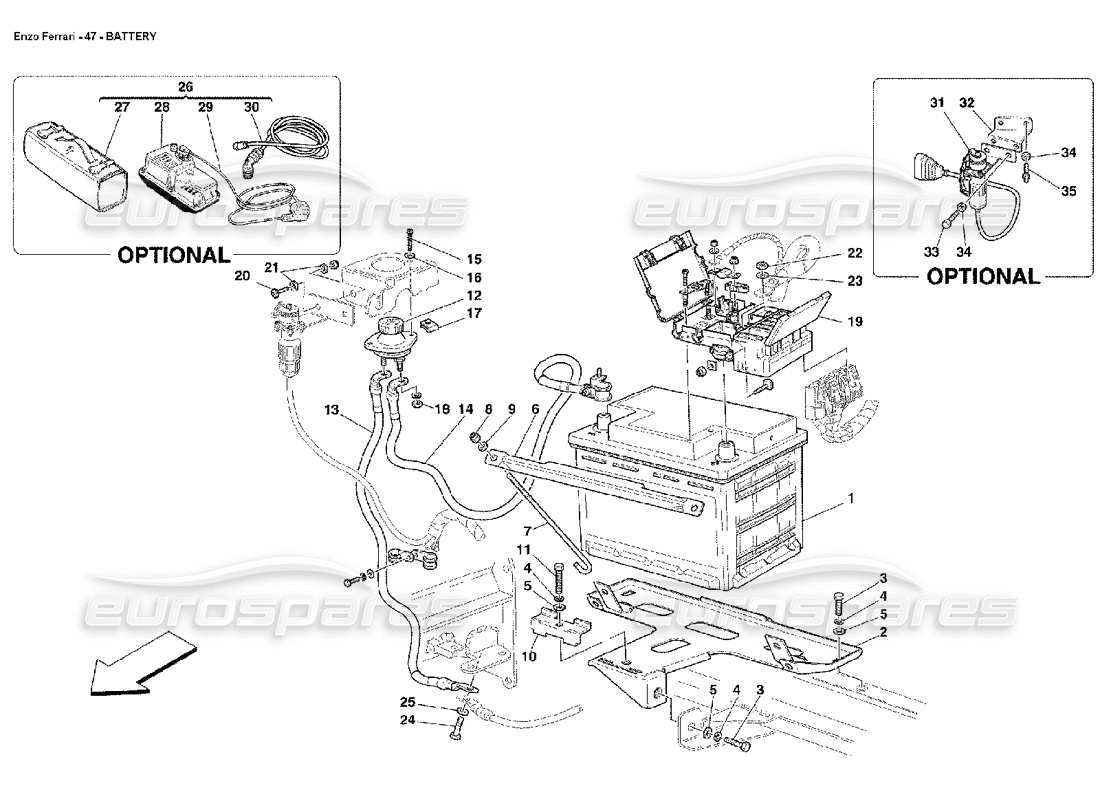

Ferrari Enzo Battery Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 168524
60AH 400A HERMETIC VR 68 BATTERY
from £210.62
from £210.62
# 002
MPN: 67119400
PLATE FOR BATTERY SUPPORT
from £139.81
from £139.81
# 003
MPN: 16043434
SCREW
from £0.52
from £0.52
This part replaces part number 13825824 - and 1 more. Click to view details
# 004
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 005
MPN: 14496524
WASHER
from £0.53
from £0.53
This part replaces part number 14496525 - and 1 more. Click to view details
# 006
MPN: 67119300
ANGLE PIECE
from £61.12
from £61.12
# 007
MPN: 67119200
TIE ROD
from £15.08
from £15.08
# 008
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 009
MPN: 14496424
WASHER
Supersession
Supersession
This part replaces part number 14496401 - and 3 more. Click to view details
# 010
MPN: 154324
MOBILE BRACKET
from £15.93
from £15.93
# 011
MPN: 16043724
SCREW
from £0.71
from £0.71
This part replaces part number 16043721
# 012
MPN: 139607
CUT OUT SWITCH
Supersession
Supersession
# 013
MPN: 190222
GROUND CABLE FOR CUT OUT SWITCH
from £165.66
from £165.66
# 014
MPN: 190223
BATTERY CONNECTION CABLE TO CUT OUT SWITCH
from £132.54
from £132.54
# 015
MPN: 15688275
SCREW
from £1.31
from £1.31
This part replaces part number 15688208 which we have in stock - and 1 more. Click to view details
# 016
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
# 017
MPN: 61067800
BRACKET
from £1.08
from £1.08
# 018
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 019
MPN: 189561
FUSES BOX
from £72.93
from £72.93
# 020
MPN: 10902224
SCREW
from £0.53
from £0.53
# 021
MPN: 10519424
WASHER
from £0.53
from £0.53
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 022
MPN: 16102314
NUT
from £0.47
from £0.47
This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
# 023
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 024
MPN: 16043524
SCREW
from £0.47
from £0.47
# 025
MPN: 10519624
WASHER
from £0.54
from £0.54
This part replaces part number 10519601 - and 3 more. Click to view details
# 026
MPN: 178682
BATTERY CHARGER KIT
- Not for USA, CDN, J, GB, Hong Kong and AUS - Optional
from £1,359.75
from £1,359.75
This part replaces part number 70000941
# 026
MPN: 178684
BATTERY CHARGER KIT
- Valid for AUS - Optional
from £534.99
from £534.99
This part replaces part number 70000943
# 026
MPN: 178685
BATTERY CHARGER KIT
- Valid for GB and Hong Kong - Optional
from £612.29
from £612.29
This part replaces part number 70000944
# 026
MPN: 70002821
BATTERY CHARGER KIT
- Valid for USA, CDN and J - Optional
from £204.78
from £204.78
This part replaces part number 70001701
# 027
MPN: 65699200
BATTERY BAG CASE
- optional
from £414.21
from £414.21
# 028
MPN: 177791
battery charger
- 230V - Not for USA, CDN and J - Optional
from £476.88
from £476.88
# 028
MPN: 177792
battery charger
- 110V - Not for USA, CDN and J - Optional
from £1,222.13
from £1,222.13
# 029
MPN: 177794
POWER SUPPLY CABLE
- Not for USA, CDN, J, GB, Hong Kong and AUS - Optional
from £16.99
from £16.99
# 029
MPN: 177795
POWER SUPPLY CABLE
- Valid for USA, CDN and J - Optional
from £12.74
from £12.74
# 029
MPN: 177796
POWER SUPPLY CABLE
- Valid for AUS - Optional
from £23.94
from £23.94
# 029
MPN: 178294
POWER SUPPLY CABLE
- Valid for GB and Hong Kong - Optional
from £40.79
from £40.79
# 030
MPN: 178676
CABLE WITH CONNECTOR
- optional
from £258.50
from £258.50
# 031
MPN: 200857
BATTERY CHARGING CONNECTION CABLE
- optional
from £94.34
from £94.34
This part replaces part number 184585
# 032
MPN: 185565
BRACKET
- optional
from £20.38
from £20.38
# 033
MPN: 10902224
SCREW
- optional
from £0.53
from £0.53
# 034
MPN: 10519424
WASHER
- optional
from £0.53
from £0.53
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 035
MPN: 62738200
RIVET
- optional
from £0.54
from £0.54
