108 - Front Hood and Opening Device

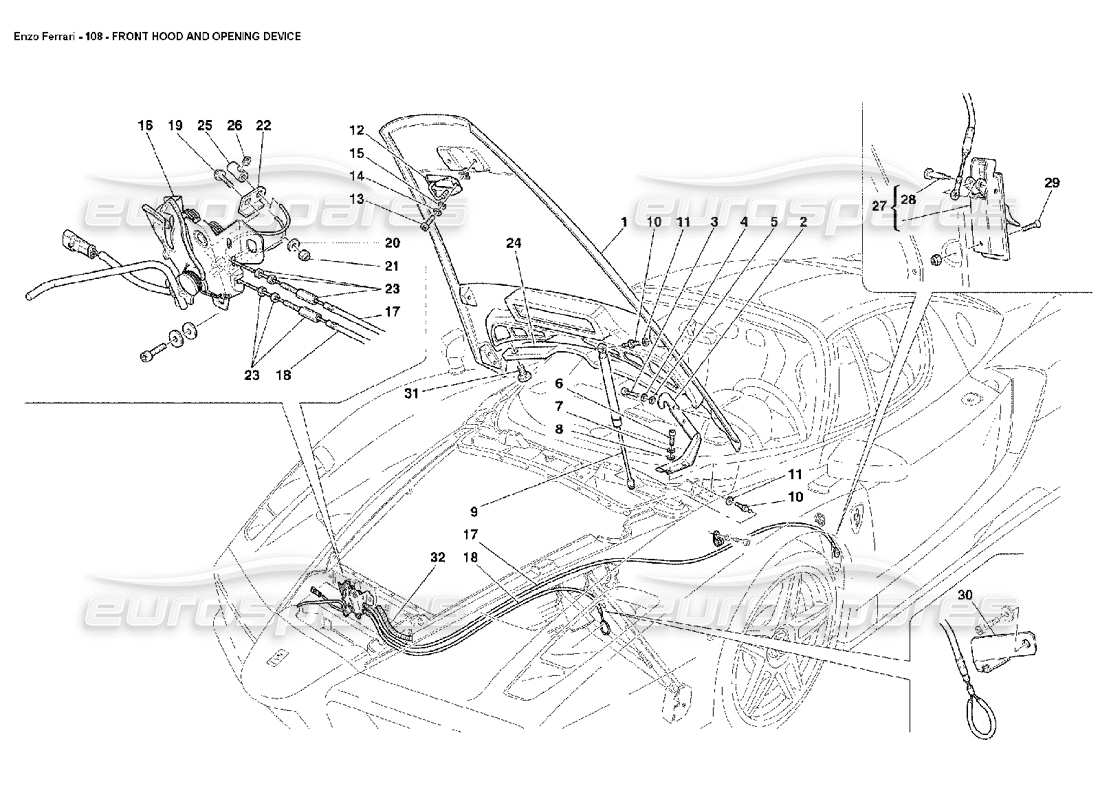

Ferrari Enzo Front Hood and Opening Device Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 66486600
SHEETED COMPLETE FRONT HOOD BONNET
from £10,826.67
from £10,826.67
This part replaces part number 66574300
# 002
MPN: 66575500
COMPLETE LH HINGE
from £320.88
from £320.88
# 002
MPN: 66575600
COMPLETE RH HINGE
from £320.88
from £320.88
# 003
MPN: 14305787
SCREW
from £0.51
from £0.51
# 004
MPN: 12644477
WASHER
from £0.71
from £0.71
This part replaces part number 12644406
# 005
MPN: 12620477
WASHER
from £0.53
from £0.53
This part replaces part number 12648207
# 006
MPN: 14433124
SCREW
from £0.51
from £0.51
This part replaces part number 14433121
# 007
MPN: 14498804
WASHER
from £0.71
from £0.71
# 008
MPN: 12620474
WASHER
from £0.53
from £0.53
This part replaces part number 12620479 - and 1 more. Click to view details
# 009
MPN: 67251300

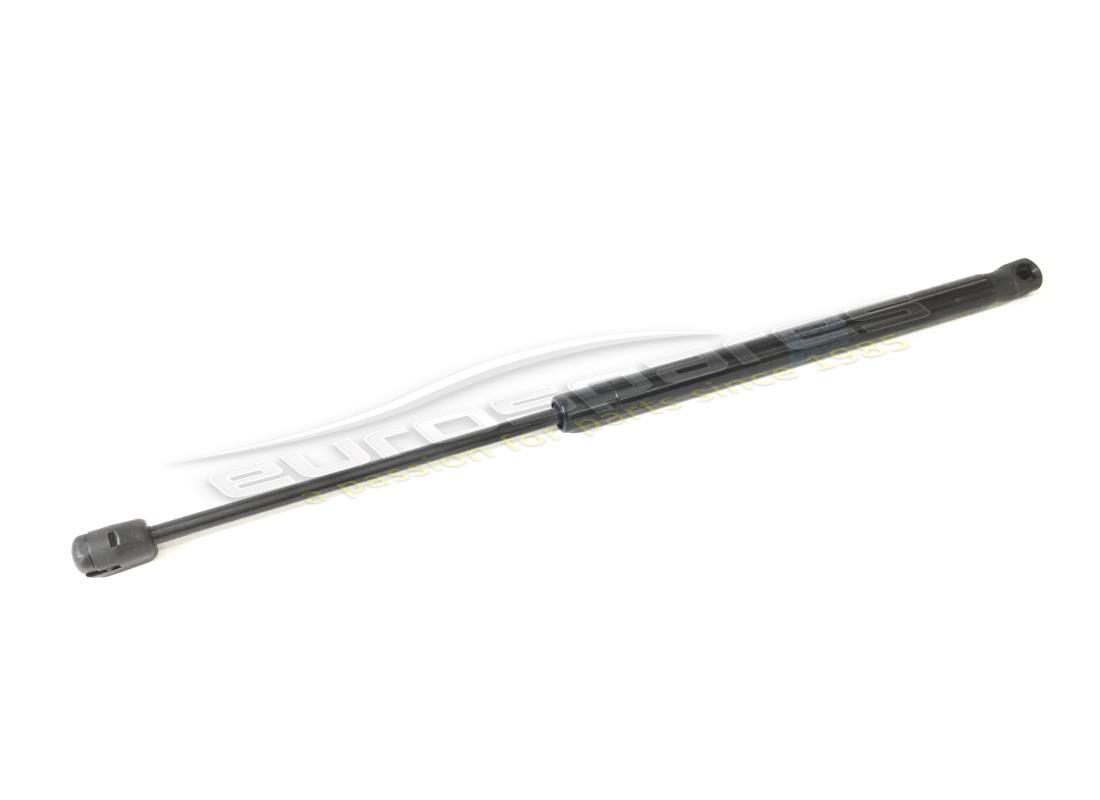

FRONT HOOD STRUT
from £19.05
from £19.05
# 010
MPN: 67251200
PIN
from £0.72
from £0.72
# 011
MPN: 12601377
WASHER
from £0.88
from £0.88
# 012
MPN: 66574400
HOOD CLOSING STRIKER
from £77.86
from £77.86
# 013
MPN: 14305787
SCREW
from £0.53
from £0.53
# 014
MPN: 12644477
WASHER
from £0.71
from £0.71
This part replaces part number 12644406
# 015
MPN: 12620477
WASHER
from £0.53
from £0.53
This part replaces part number 12648207
# 016
MPN: 66575000
BONNET LOCK
from £169.87
from £169.87
# 017
MPN: 66575200
CABLE FOR FRONT HOOD OPENING
from £21.70
from £21.70
# 018
MPN: 67369100
HOOD SAFETY CABLE
from £11.31
from £11.31
# 019
MPN: 65366700
SCREW
from £0.58
from £0.58
# 020
MPN: 12637878
WASHER
from £0.54
from £0.54
This part replaces part number 12637806
# 021
MPN: 62790300
NUT
from £0.54
from £0.54
This part replaces part number 12574011 - and 1 more. Click to view details
# 022
MPN: 67427000
BRACKET
from £24.53
from £24.53
# 023
MPN: 67502400
COMPLETE REGULATOR
from £8.46
from £8.46
# 024
MPN: 67596200
GASKET
from £60.97
from £60.97
# 025
MPN: 60276607
CONNECTION
from £12.41
from £12.41
This part replaces part number 60276707 - and 5 more. Click to view details
# 026
MPN: 60276805
DOWEL
from £0.71
from £0.71
# 027
MPN: 67016800
HANDLE FOR BONNET OPENING
from £782.78
from £782.78
# 028
MPN: 62552200
PIN
from £13.20
from £13.20
# 029
MPN: 13299477
SCREW
from £0.53
from £0.53
This part replaces part number 15937618
# 030
MPN: 65506500
BRACKET FOR CABLE FIXING
from £3.19
from £3.19
# 031
MPN: 14592587
FIXING BUTTON
from £0.80
from £0.80
# 032
MPN: 67632600
CORRUGATED HOSE
from £2.69
from £2.69
