110 - Opening Devices for Engine Bonnet and Gas Door

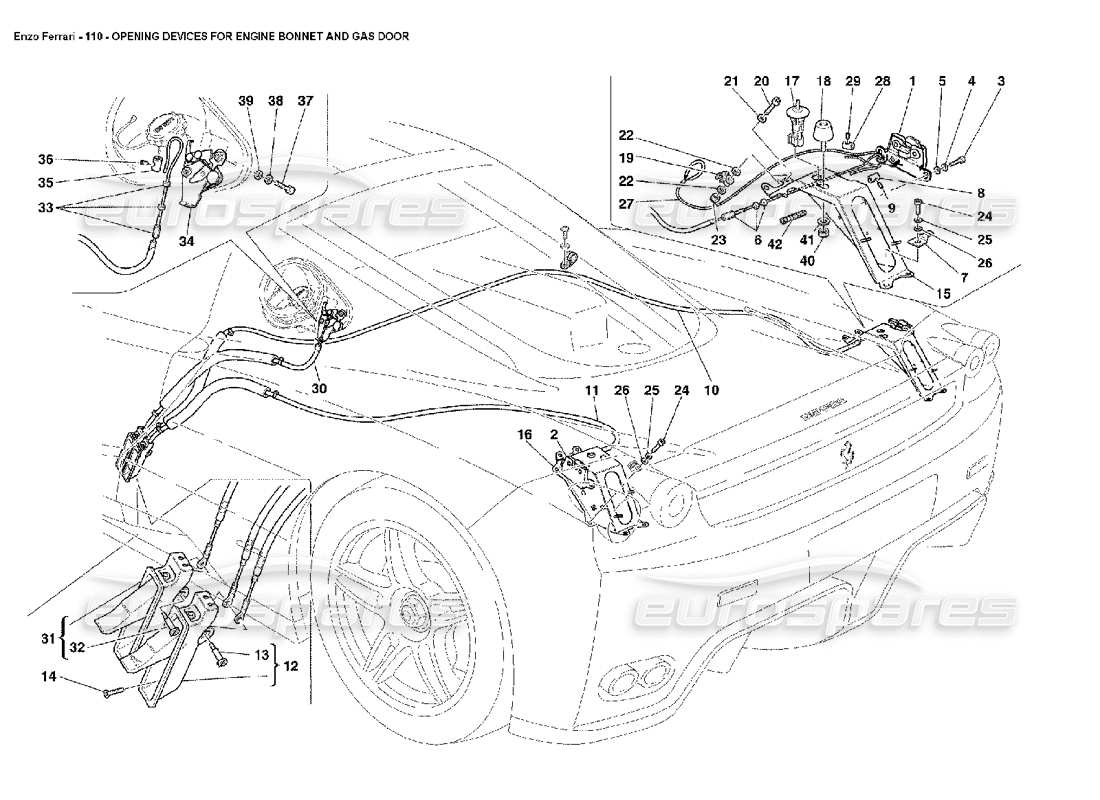

Ferrari Enzo Opening Devices for Engine Bonnet and Gas Door Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 66573700
RH ENGINE BONNET LOCK
from £9.89
from £9.89
# 002
MPN: 66573900
LH ENGINE BONNET LOCK
from £51.20
from £51.20
# 003
MPN: 14433126
SCREW
from £0.53
from £0.53
# 004
MPN: 14498804
WASHER
from £0.71
from £0.71
# 005
MPN: 12620477
WASHER
from £0.47
from £0.47
This part replaces part number 12648207
# 006
MPN: 67502400
COMPLETE REGULATOR
from £8.20
from £8.20
# 007
MPN: 170925
BRACKET
from £2.23
from £2.23
# 008
MPN: 60276607
CONNECTION
from £11.72
from £11.72
This part replaces part number 60276707 - and 4 more. Click to view details
# 009
MPN: 60276805
DOWEL
from £0.71
from £0.71
# 010
MPN: 66573100
RH CABLE FOR MOTOR BONNET OPENING
from £52.96
from £52.96
# 011
MPN: 67369200
LH CABLE FOR MOTOR BONNET OPENING
from £33.52
from £33.52
# 012

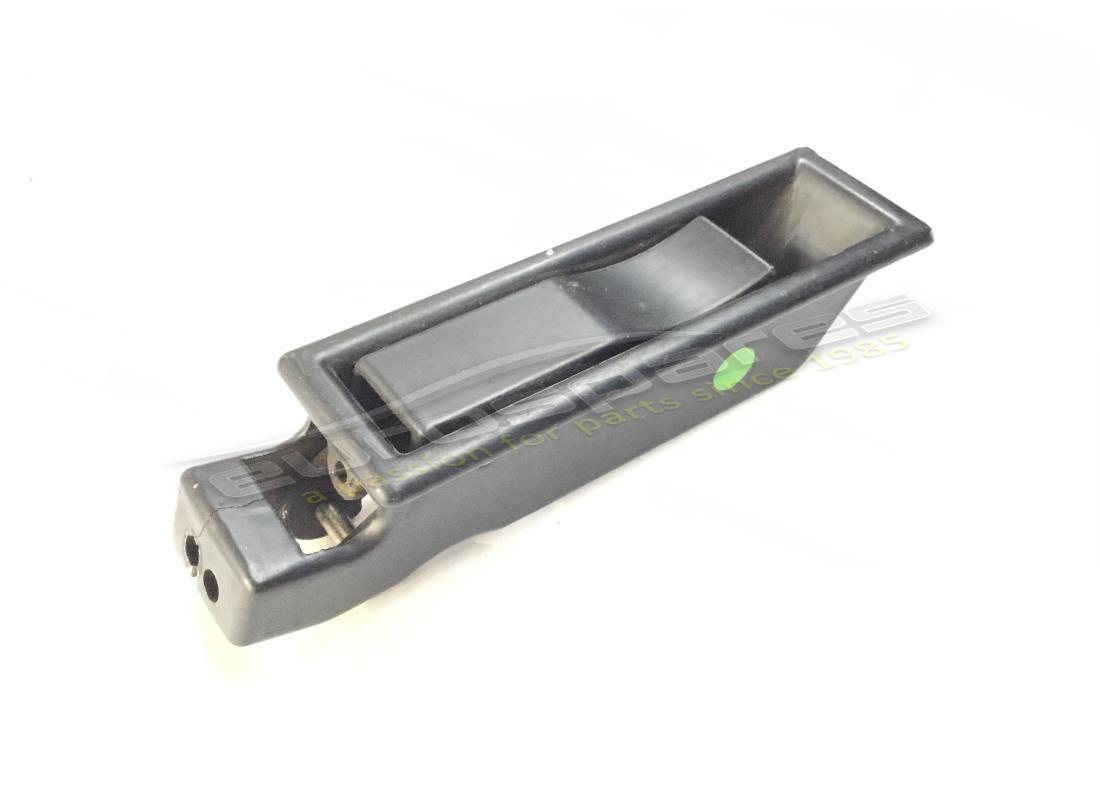

MPN: 66572700
HANDLE FOR MOTOR BONNET OPENING
from £1,633.47
from £1,633.47
# 013
MPN: 62552200
PIN
from £12.97
from £12.97
# 014
MPN: 13299477
SCREW
from £0.53
from £0.53
This part replaces part number 15937618
# 015
MPN: 66625200
RH SUPPORT BRACKET
from £162.55
from £162.55
# 016
MPN: 66625300
LH SUPPORT BRACKET
from £168.59
from £168.59
# 017
MPN: 179697
SWITCH
from £33.95
from £33.95
# 018
MPN: 64577100
ANTIVIBRATION PAD
from £4.25
from £4.25
This part replaces part number 66847800
# 019
MPN: 65897700
CLIP
from £0.53
from £0.53
# 020
MPN: 14305587
SCREW
from £0.53
from £0.53
# 021
MPN: 12646624
WASHER
from £0.53
from £0.53
# 022
MPN: 12643778
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 12643777 - and 1 more. Click to view details
# 023
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 024
MPN: 14305234
SCREW
from £0.51
from £0.51
This part replaces part number 14305287
# 025
MPN: 12644477
WASHER
from £0.71
from £0.71
This part replaces part number 12644406
# 026
MPN: 12620477
WASHER
from £0.47
from £0.47
This part replaces part number 12648207
# 027
MPN: 66573400
HOOD SAFETY CABLE
from £10.93
from £10.93
# 028
MPN: 60276607
CONNECTION
from £11.72
from £11.72
This part replaces part number 60276707 - and 4 more. Click to view details
# 029
MPN: 60276805
DOWEL
from £0.71
from £0.71
# 030
MPN: 66578200
CABLE FOR FUEL INLET LID
from £25.70
from £25.70
# 031
MPN: 67016800
HANDLE FOR FUEL INLET LID
from £784.44
from £784.44
# 032
MPN: 62552200
PIN
from £12.97
from £12.97
# 033
MPN: 67502400
COMPLETE REGULATOR
from £8.20
from £8.20
# 034
MPN: 66956600
ROCKER
from £473.45
from £473.45
# 035
MPN: 60276607
CONNECTION
from £11.72
from £11.72
This part replaces part number 60276707 - and 4 more. Click to view details
# 036
MPN: 60276805
DOWEL
from £0.71
from £0.71
# 037
MPN: 10902224
SCREW
from £0.53
from £0.53
# 038
MPN: 14498804
WASHER
from £0.71
from £0.71
# 039
MPN: 12620474
WASHER
from £0.47
from £0.47
This part replaces part number 12620479 - and 1 more. Click to view details
# 040
MPN: 15896377
NUT
from £1.28
from £1.28
# 041
MPN: 14496678
WASHER
from £0.53
from £0.53
This part replaces part number 14496677
# 042
MPN: 63895000
RUBBER BOOT
from £20.95
from £20.95
This part replaces part number 63708200
