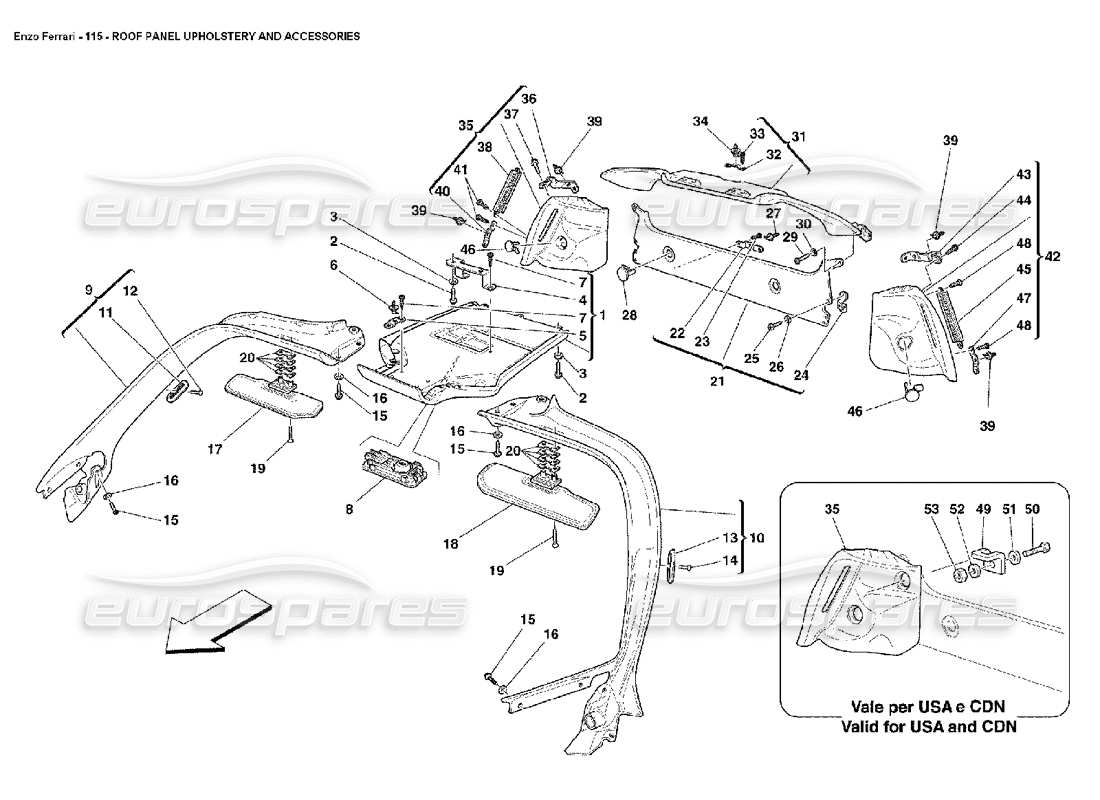

Ferrari Enzo Roof Panel Upholstery and Accessories Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 66757900
UPHOLSTERY
from £1,023.94
from £1,023.94
# 001
MPN: 66759900
LINING
# 002
MPN: 65377400
SCREW
from £1.26
from £1.26
This part replaces part number 156814 - and 3 more. Click to view details
# 003
MPN: 12643778
WASHER
(minimum order quantity = 20)
from £0.52
from £0.52
This part replaces part number 12643777 - and 1 more. Click to view details
# 004
MPN: 67291900
BRACKET
from £21.46
from £21.46
# 005
MPN: 66092200
PLATE
from £12.06
from £12.06
# 006
MPN: 66092400
PLUG
from £0.53
from £0.53
# 007
MPN: 16082977
SCREW
from £4.06
from £4.06
# 008
MPN: 184098
DOME LAMP
from £110.25
from £110.25
This part replaces part number 66617000
# 009
MPN: 66757500
RH MOLDING
from £726.33
from £726.33
# 009
MPN: 66758700
LINING
from £258.00
from £258.00
# 010
MPN: 66757600
LH MOLDING
from £684.53
from £684.53
# 010
MPN: 66758800
LINING
# 011
MPN: 66759100
RH PLATE
from £220.70
from £220.70
# 012
MPN: 15914707
SCREW
from £0.54
from £0.54
# 013
MPN: 66759200
LH PLATE
from £220.70
from £220.70
# 014
MPN: 15914707
SCREW
from £0.54
from £0.54
# 015
MPN: 64830600
SCREW
from £1.10
from £1.10
This part replaces part number 64882800 - and 1 more. Click to view details
# 016
MPN: 12643778
WASHER
(minimum order quantity = 20)
from £0.51
from £0.51
This part replaces part number 12643777 - and 1 more. Click to view details
# 017
MPN: 66758100
RH SUN SCREEN
from £257.13
from £257.13
# 018
MPN: 66758200
LH SUN SCREEN
from £257.13
from £257.13
# 019
MPN: 10385477
SCREW
from £0.53
from £0.53
# 020
MPN: 67366200
THICKNESS
from £21.21
from £21.21
# 021
MPN: 66792100
REAR LOWER SEAT BACK COVER
from £700.45
from £700.45
# 021
MPN: 66793000
LINING
from £159.89
from £159.89
# 022
MPN: 66092200
PLATE
from £12.06
from £12.06
# 023
MPN: 16082977
SCREW
from £4.17
from £4.17
# 024
MPN: 66925900
RH BRACKET
from £13.02
from £13.02
# 024
MPN: 66926000
LH BRACKET
from £13.02
from £13.02
# 025
MPN: 10856826
SCREW
from £0.51
from £0.51
# 026
MPN: 67555500
WASHER
from £1.08
from £1.08
# 027
MPN: 66092400
PLUG
from £0.53
from £0.53
# 028
MPN: 66952100
LINING
from £41.01
from £41.01
# 028
MPN: 67207200
COVER PLUG
- Not for 4 points safety belts version
from £77.43
from £77.43
# 029
MPN: 64830600
SCREW
from £1.17
from £1.17
This part replaces part number 64882800 - and 1 more. Click to view details
# 030
MPN: 12643778
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 12643777 - and 1 more. Click to view details
# 031
MPN: 66764200
REAR UPPER CROSS ARM MOLDING
from £1,045.50
from £1,045.50
# 031
MPN: 66764400
LINING
from £184.41
from £184.41
# 032
MPN: 66092200
PLATE
from £12.06
from £12.06
# 033
MPN: 16082977
SCREW
from £4.06
from £4.06
# 034
MPN: 66092400
PLUG
from £0.52
from £0.52
# 035
MPN: 66792200
RH REAR MOLDING
- Not for USA and CDN
from £571.43
from £571.43
# 035
MPN: 66792400
LINING
- Not for USA and CDN
from £133.86
from £133.86
# 035
MPN: 67089000
RH REAR MOLDING
- Valid for USA and CDN
from £1,159.32
from £1,159.32
# 035
MPN: 67089100
LINING
- Valid for USA and CDN
from £129.96
from £129.96
# 036
MPN: 66928000
RH BRACKET
from £78.17
from £78.17
# 037
MPN: 16082777
SCREW
from £0.80
from £0.80
# 038
MPN: 67596300
COMPLETE BRUSH
from £189.66
from £189.66
# 039
MPN: 66092400
PLUG
from £0.51
from £0.51
# 040
MPN: 66092200
PLATE
from £12.06
from £12.06
# 041
MPN: 15689675
SCREW
from £0.71
from £0.71
# 042
MPN: 66792300
LH REAR MOLDING
from £571.43
from £571.43
# 042
MPN: 66792500
LINING
from £133.86
from £133.86
# 043
MPN: 66928100
LH BRACKET
from £78.17
from £78.17
# 044
MPN: 16082777
SCREW
from £0.80
from £0.80
# 045
MPN: 67596300
COMPLETE BRUSH
from £189.66
from £189.66
# 046
MPN: 66952000
COVER PLUG
- Not for 4 points safety belts version
from £68.39
from £68.39
# 046
MPN: 66952100
LINING
from £41.01
from £41.01
# 047
MPN: 66092200
PLATE
from £12.06
from £12.06
# 048
MPN: 15689675
SCREW
from £0.71
from £0.71
# 049
MPN: 66959500
BRACKET FOR BELT COUPLER
- Valid for USA and CDN
from £144.25
from £144.25
# 050
MPN: 67599700
SCREW
- Valid for USA and CDN
from £0.78
from £0.78
# 051
MPN: 140603
WASHER
- Valid for USA and CDN
from £4.40
from £4.40
# 052
MPN: 12601579
WASHER
- Valid for USA and CDN
from £14.77
from £14.77
# 053
MPN: 65408700
NUT
- Valid for USA and CDN
from £0.53
from £0.53
