122 - Windshield, Glass Washer and Horns

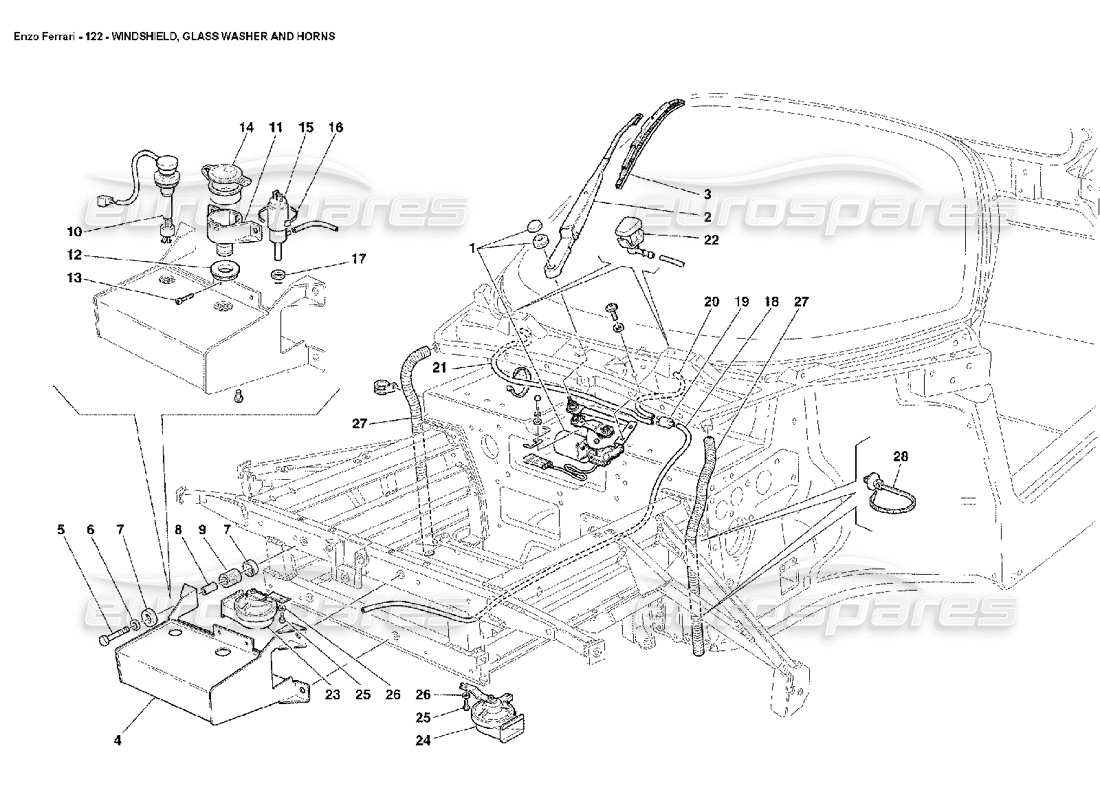

Ferrari Enzo Windshield, Glass Washer and Horns Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 66581900
WINDSHIELD WIPER MOTOR
from £719.31
from £719.31
# 002
MPN: 67419800
WINDSHIELD WIPER ARM
from £473.01
from £473.01
# 003
MPN: 66581400
WIPER BRUSH
from £52.80
from £52.80
# 004
MPN: 66581800
WINDSHIELD WIPER CONTAINER
from £283.49
from £283.49
# 005
MPN: 16043934
SCREW
from £0.51
from £0.51
This part replaces part number 16043921 - and 1 more. Click to view details
# 006
MPN: 11193974
WASHER
from £0.26
from £0.26
# 007
MPN: 107979
CUP
from £1.08
from £1.08
# 008
MPN: 107980
SPACER
from £1.55
from £1.55
# 009
MPN: 107978
PAD
from £1.07
from £1.07
# 010
MPN: 67288200
LIQUID SENSOR
from £22.59
from £22.59
# 011
MPN: 67362600
FILL OPENING
from £3.50
from £3.50
# 012
MPN: 63954700
SEAL RING
from £10.42
from £10.42
# 013
MPN: 13271914
SCREW
from £0.53
from £0.53
This part replaces part number 13271911 - and 1 more. Click to view details
# 014
MPN: 63118500
TANK PLUG
from £2.33
from £2.33
# 015
MPN: 65358700
WIPER PUMP
from £20.25
from £20.25
# 016
MPN: 145855
CLAMP
from £0.54
from £0.54
This part replaces part number 14560287 - and 1 more. Click to view details
# 017
MPN: 65775100
GASKET
from £3.19
from £3.19
# 018
MPN: 67405400
PIPE FROM PUMP TO VALVE
from £13.09
from £13.09
# 019
MPN: 61648100
NONRETURN VALVE
from £16.32
from £16.32
# 020
MPN: 67405600
PIPE FROM VALVE TO LH JET
from £13.26
from £13.26
# 021
MPN: 67405500
PIPE FROM VALVE TO RH JET
from £17.07
from £17.07
# 022
MPN: 65191000
JET FOR WINDOW WASHING
from £1.03
from £1.03
This part replaces part number 80131500 - and 3 more. Click to view details
# 023
MPN: 191072
COMPLETE RH HORN
from £27.75
from £27.75
# 024
MPN: 191073
COMPLETE LH HORN
from £35.43
from £35.43
# 025
MPN: 10902324
SCREW
from £0.53
from £0.53
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 026
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 027
MPN: 186653
WATER EXHAUST TUBE
- Not as spare parts now - Replaced by 65992600
from £12.74
from £12.74
# 027
MPN: 65992600
WATER EXHAUST TUBE
from £2.56
from £2.56
# 028
MPN: 13386970
ELASTIC COLLAR
from £0.76
from £0.76
