001 - crankcase

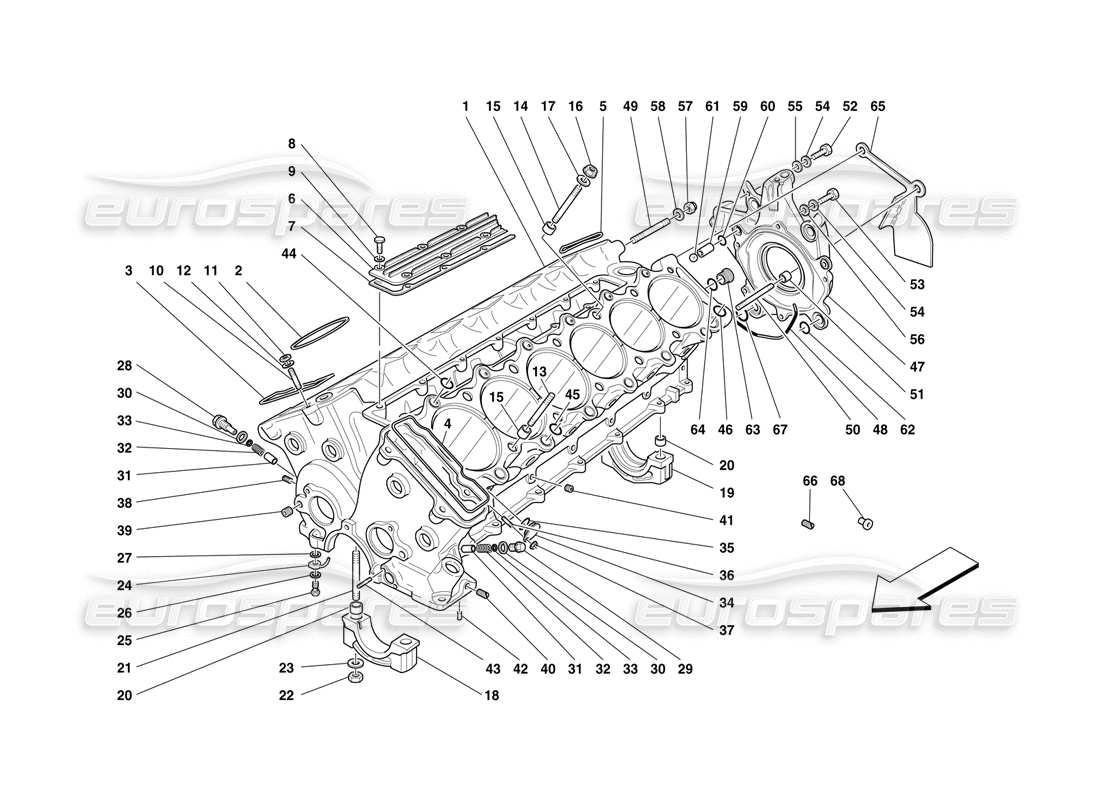

Ferrari F50 Crankcase Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 169538
COMPLETE CRANKCASE
from £30,366.96
from £30,366.96
This part replaces part number 159126 - and 2 more. Click to view details
# 001
MPN: 164552
Engine Crankcase
- Not as spare part - With complete crankcase
Supersession
Supersession
# 002
MPN: 159144
COOPERS SEAL RING
from £263.55
from £263.55
# 003
MPN: 154035
RH GASKET
Supersession
Supersession
# 004
MPN: 154030
LH GASKET
from £10.95
from £10.95
# 005
MPN: 150110
GASKET
from £6.20
from £6.20
# 006
MPN: 158073
WATER DUCT COVER
from £345.64
from £345.64
# 007
MPN: 158079
GASKET
from £12.56
from £12.56
# 008
MPN: 10902424
SCREW
from £0.49
from £0.49
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 009
MPN: 11197774
WASHER
from £0.52
from £0.52
This part replaces part number 11197770 - and 3 more. Click to view details
# 010
MPN: 13516824
STUD
from £0.48
from £0.48
This part replaces part number 13516821
# 011
MPN: 133215
NUT
from £3.05
from £3.05
This part replaces part number 64342800
# 012
MPN: 12604474
WASHER
from £0.53
from £0.53
This part replaces part number 12604479 which we have in stock
# 013
MPN: 154072
STUD
- Exhaust side
from £10.51
from £10.51
# 014
MPN: 154073
STUD
- Suction side
from £7.07
from £7.07
# 015
MPN: 149995
DOWEL
from £59.55
from £59.55
# 016
MPN: 148093
NUT
from £30.18
from £30.18
# 017
MPN: 151117
WASHER
from £0.31
from £0.31
# 018
MPN: 159126
FRONT AND INTERMEDIATE CAP
- Not as spare part - With complete crankcase
Supersession
Supersession
# 019
MPN: 159127
REAR CAP
- Not as spare part - With complete crankcase
Supersession
Supersession
# 020
MPN: 159196
DOWEL
from £10.29
from £10.29
# 021
MPN: 159198
STUD
from £29.20
from £29.20
# 022
MPN: 103841
NUT
Supersession
Supersession
This part replaces part number 4146542
# 023
MPN: 159197
WASHER
from £2.90
from £2.90
# 024
MPN: 149454
NOZZLE
from £54.05
from £54.05
# 025
MPN: 149453
SCREW FOR NOZZLE
from £7.89
from £7.89
# 026
MPN: 11197774
WASHER
from £0.52
from £0.52
This part replaces part number 11197770 - and 3 more. Click to view details
# 027
MPN: 10297760
GASKET
from £0.50
from £0.50
# 028
MPN: 154176
RH PLUG
from £42.80
from £42.80
# 029
MPN: 152569
LH PLUG
from £35.39
from £35.39
# 030
MPN: 10257060
GASKET
from £0.47
from £0.47
This part replaces part number 10253060 - and 2 more. Click to view details
# 031
MPN: 149520
SHUTTER PISTON
from £12.67
from £12.67
# 032
MPN: 149519
SPRING
from £3.62
from £3.62
# 033
MPN: 152570
SPACER
from £3.61
from £3.61
# 034
MPN: 149105
PLUG
from £13.63
from £13.63
# 035
MPN: 134233
O.R. GASKET
from £0.48
from £0.48
# 036
MPN: 149106
STUD
from £8.10
from £8.10
# 037
MPN: 132877
NUT
from £1.66
from £1.66
This part replaces part number 67190100
# 038
MPN: 161439
THREADED PLUG
from £6.68
from £6.68
# 039
MPN: 14324811
THREADED PLUG
from £3.88
from £3.88
# 040
MPN: 65928500
THREADED PLUG
from £23.78
from £23.78
This part replaces part number 10267550
# 041
MPN: 14326050
THREADED PLUG
from £0.93
from £0.93
# 042
MPN: 10334520
PIN
from £1.71
from £1.71
# 043
MPN: 152270
STUD
from £7.64
from £7.64
# 044
MPN: 123475
O.R. GASKET
from £2.32
from £2.32
# 045
MPN: 134232
O.R. GASKET
from £0.65
from £0.65
This part replaces part number 153718 which we have in stock
# 046
MPN: 134233
O.R. GASKET
from £0.51
from £0.51
# 047
MPN: 159192
REAR COVER
from £905.21
from £905.21
# 048
MPN: 171948
GASKET
from £7.84
from £7.84
This part replaces part number 162402
# 049
MPN: 13547034
STUD
from £1.77
from £1.77
# 050
MPN: 13450234
STUD
from £8.56
from £8.56
# 051
MPN: 125537
DOWEL
from £2.94
from £2.94
# 052
MPN: 10902224
SCREW
from £0.53
from £0.53
# 053
MPN: 10902621
SCREW
Supersession
Supersession
This part replaces part number 10902611 which we have in stock
# 054
MPN: 11197774
WASHER
from £0.53
from £0.53
This part replaces part number 11197770 - and 3 more. Click to view details
# 055
MPN: 103044
WASHER
from £5.19
from £5.19
# 056
MPN: 10519424
WASHER
from £0.53
from £0.53
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 057
MPN: 133216
NUT
from £4.80
from £4.80
# 058
MPN: 12642424
WASHER
from £0.53
from £0.53
# 059
MPN: 149112
DOWEL
from £3.90
from £3.90
# 060
MPN: 123475
O.R. GASKET
from £2.49
from £2.49
# 061
MPN: 150557
BALL
from £0.71
from £0.71
# 062
MPN: 132248
O.R. GASKET
from £0.47
from £0.47
# 063
MPN: 149113
PLUG
- Not as spare part now
from £11.79
from £11.79
# 064
MPN: 134233
O.R. GASKET
- Not as spare part now
from £0.51
from £0.51
# 065
MPN: 164280
RH PLATE
from £17.94
from £17.94
# 065
MPN: 164281
LH PLATE
from £17.94
from £17.94
# 066
MPN: 10269150
THREADED PLUG
from £0.47
from £0.47
# 067
MPN: 148225
O.R. GASKET
from £0.54
from £0.54
# 068
MPN: 165962
PLUG
from £11.08
from £11.08
