ferrari f50 driving shaft - connecting rods and pistons parts diagram

002 - driving shaft - connecting rods and pistons

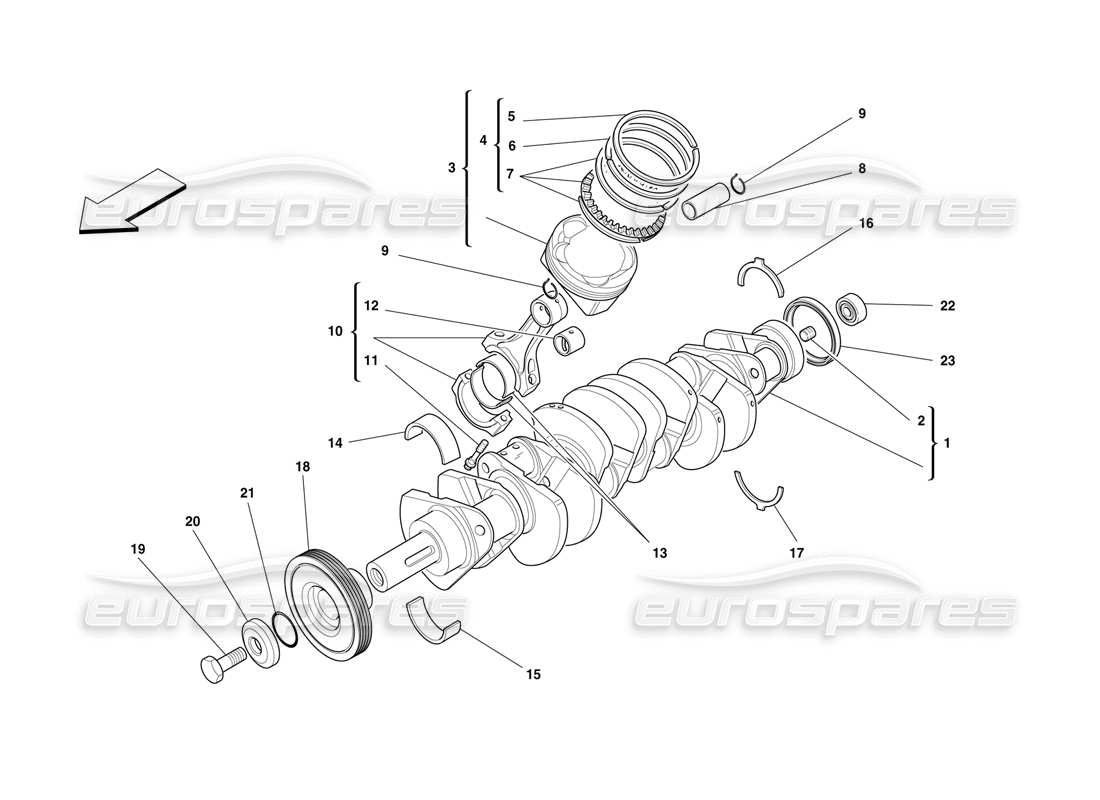

Ferrari F50 Driving Shaft - Connecting Rods and Pistons Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 000
                              MPN: 1000798
                              HALF BEARINGS COMPLETE SERIES
                              - Nominal - Valid till stock exhaustion
                              Supersession
                              Supersession
                              # 000
                              MPN: 1000888
                              HALF BEARINGS COMPLETE SERIES
                              - Nominal - Valid after stock exhaustion of 1000798
                              This part replaces part number 1000798
                              # 000
                              MPN: 169576
                              HALF BEARINGS COMPLETE SERIES
                              - 1st UNDERSIZE mm. 0,254
                              # 000
                              MPN: 169577
                              HALF BEARINGS COMPLETE SERIES
                              - 2nd UNDERSIZE mm. 0,508
                              # 001
                              MPN: 168234

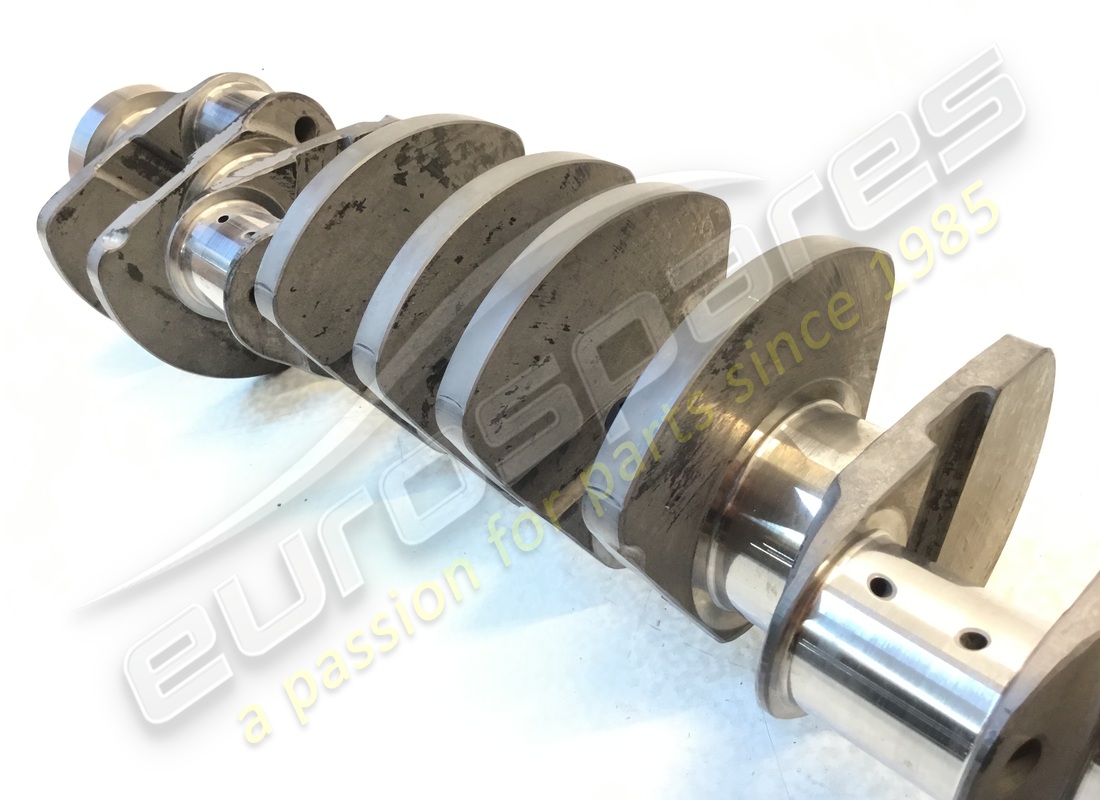

                              crankshaft
                              from £4,462.50
                              from £4,462.50
                              This part replaces part number 158163
                              # 002
                              MPN: 10269750
                              THREADED PLUG
                              - Not as spare part now - Replaced by 127635
                              from £0.91
                              from £0.91
                              This part replaces part number 95184
                              # 002
                              MPN: 127635
                              THREADED PLUG
                              from £1.47
                              from £1.47
                              This part replaces part number 183447
                              # 003
                              MPN: 168775
                              COMPLETE PISTON WITH RINGS
                              from £259.11
                              from £259.11
                              # 004
                              MPN: 162671
                              PISTONS RINGS SET
                              from £148.50
                              from £148.50
                              This part replaces part number 159837
                              # 005
                              MPN: 160813
                              SEAL RING
                              - Not as spare part - With the complete pistons rings set
                              # 006
                              MPN: 159900
                              SEAL RING
                              - Not as spare part - With the complete pistons rings set
                              # 007
                              MPN: 159837
                              OIL SCRAPING RING
                              - Not as spare part - With the complete pistons rings set
                              Supersession
                              Supersession
                              # 008
                              MPN: 154717
                              PIN
                              from £11.46
                              from £11.46
                              # 009
                              MPN: 152993
                              STOP RING
                              from £2.37
                              from £2.37
                              # 010
                              MPN: 156334
                              COMPLETE CONNECTING ROD AND CAP
                              from £260.53
                              from £260.53
                              # 011
                              MPN: 158186
                              CONNECTING ROD TIGHTENING SCREW
                              from £118.17
                              from £118.17
                              # 012
                              MPN: 155097
                              BUSHING
                              from £27.76
                              from £27.76
                              # 013
                              MPN: 159683
                              CONNECTING ROD HALF BEARING
                              - NOMINAL
                              from £49.73
                              from £49.73
                              # 013
                              MPN: 159684
                              CONNECTING ROD HALF BEARING
                              - 1st UNDERSIZE mm. 0,254
                              # 013
                              MPN: 159685
                              CONNECTING ROD HALF BEARING
                              - 2nd UNDERSIZE mm. 0,508
                              from £74.42
                              from £74.42
                              # 014
                              -
                              UPPER HALF BEARING
                              # 015
                              -
                              LOWER HALF BEARING
                              # 016
                              -
                              UPPER REAR SPACER
                              # 017
                              -
                              LOWER REAR SPACER
                              # 018
                              MPN: 159359
                              torsion damper
                              from £1,810.87
                              from £1,810.87
                              # 019
                              MPN: 138793
                              SCREW
                              from £44.61
                              from £44.61
                              This part replaces part number 100476 - and 5 more. Click to view details
                              SCREW Genuine Ferrari Part - Used In stock
                              removed from 355 5.2 Engine Number 48537
                              # 020
                              MPN: 159857
                              WASHER
                              from £41.60
                              from £41.60
                              # 021
                              MPN: 154778
                              O.R. GASKET
                              from £0.54
                              from £0.54
                              # 022
                              MPN: 103877
                              PILOT BEARING
                              from £15.20
                              from £15.20
                              This part replaces part number 24940440
                              # 023
                              MPN: 149998
                              GASKET
                              from £90.12
                              from £90.12
