ferrari f50 rh cylinder head parts diagram

003 - RH cylinder head

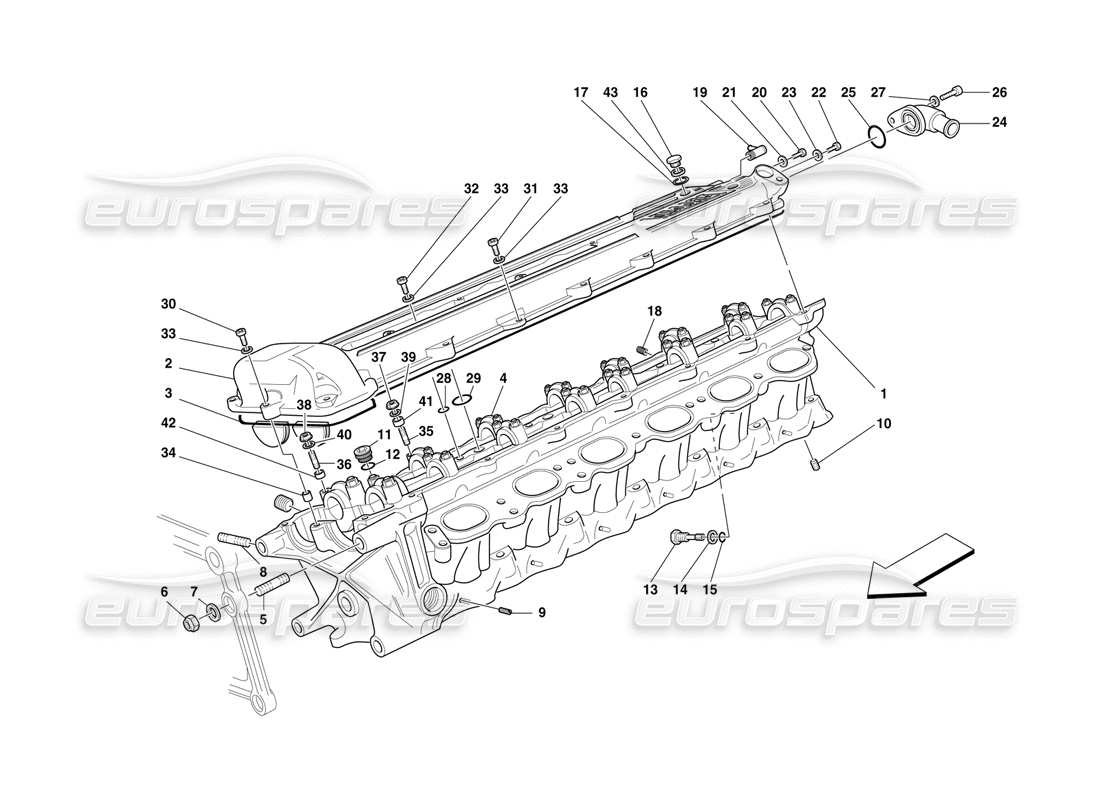

Ferrari F50 R.H. Cylinder Head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Price
                                                                                  # 000
                                                                                  MPN: 169540
                                                                                  COMPLETE RH CYLINDERS HEAD
                                                                                  from £7,741.93
                                                                                  from £7,741.93
                                                                                  This part replaces part number 159175 - and 1 more. Click to view details
                                                                                  # 001
                                                                                  MPN: 159175
                                                                                  RH HEAD
                                                                                  - Not as spare part - With the complete cylinders head
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 002
                                                                                  MPN: 169540
                                                                                  RH CYLINDERS HEAD COVER
                                                                                  - Not as spare part - With the complete cylinders head
                                                                                  from £7,741.93
                                                                                  from £7,741.93
                                                                                  This part replaces part number 159175 - and 1 more. Click to view details
                                                                                  # 003
                                                                                  MPN: 159295
                                                                                  GASKET
                                                                                  from £139.34
                                                                                  from £139.34
                                                                                  # 004
                                                                                  -
                                                                                  CAP
                                                                                  - Not as spare part - With the complete cylinders head
                                                                                  # 005
                                                                                  MPN: 13453724
                                                                                  STUD
                                                                                  from £7.87
                                                                                  from £7.87
                                                                                  # 006
                                                                                  MPN: 133216
                                                                                  NUT
                                                                                  from £4.80
                                                                                  from £4.80
                                                                                  # 007
                                                                                  MPN: 14489121
                                                                                  WASHER
                                                                                  from £1.08
                                                                                  from £1.08
                                                                                  # 008
                                                                                  MPN: 13516924
                                                                                  STUD
                                                                                  from £1.27
                                                                                  from £1.27
                                                                                  This part replaces part number 13516921
                                                                                  # 009
                                                                                  MPN: 161439
                                                                                  THREADED PLUG
                                                                                  from £6.68
                                                                                  from £6.68
                                                                                  # 010
                                                                                  MPN: 65928500
                                                                                  THREADED PLUG
                                                                                  from £23.78
                                                                                  from £23.78
                                                                                  This part replaces part number 10267550
                                                                                  # 011
                                                                                  MPN: 151476
                                                                                  PLUG
                                                                                  from £11.56
                                                                                  from £11.56
                                                                                  # 012
                                                                                  MPN: 109478
                                                                                  O.R. GASKET
                                                                                  from £3.95
                                                                                  from £3.95
                                                                                  # 013
                                                                                  MPN: 152439
                                                                                  PLUG
                                                                                  from £34.24
                                                                                  from £34.24
                                                                                  # 014
                                                                                  MPN: 10260060
                                                                                  GASKET
                                                                                  from £0.79
                                                                                  from £0.79
                                                                                  # 015
                                                                                  MPN: 154215
                                                                                  GASKET
                                                                                  from £0.78
                                                                                  from £0.78
                                                                                  # 016
                                                                                  MPN: 144860
                                                                                  PLUG
                                                                                  from £12.00
                                                                                  from £12.00
                                                                                  # 017
                                                                                  MPN: 10282660
                                                                                  GASKET
                                                                                  from £0.71
                                                                                  from £0.71
                                                                                  # 017
                                                                                  MPN: 10298460
                                                                                  GASKET
                                                                                  - Not as spare part now for F50 - Replaced by 10282660
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 93353
                                                                                  # 018
                                                                                  MPN: 13522070
                                                                                  THREADED INSERT
                                                                                  from £0.52
                                                                                  from £0.52
                                                                                  # 019
                                                                                  MPN: 166684
                                                                                  UNION
                                                                                  from £2.98
                                                                                  from £2.98
                                                                                  # 020
                                                                                  MPN: 10979414
                                                                                  SCREW
                                                                                  from £0.51
                                                                                  from £0.51
                                                                                  # 021
                                                                                  MPN: 11181874
                                                                                  WASHER
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 022
                                                                                  MPN: 10977524
                                                                                  SCREW
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 023
                                                                                  MPN: 11199274
                                                                                  WASHER
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  # 024
                                                                                  MPN: 159863
                                                                                  UNION
                                                                                  from £212.31
                                                                                  from £212.31
                                                                                  # 025
                                                                                  MPN: 159871
                                                                                  SEAL RING
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  # 026
                                                                                  MPN: 14305224
                                                                                  SCREW
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 027
                                                                                  MPN: 12601274
                                                                                  WASHER
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                  # 028
                                                                                  MPN: 134704
                                                                                  O.R. GASKET
                                                                                  from £0.98
                                                                                  from £0.98
                                                                                  # 029
                                                                                  MPN: 104984
                                                                                  O.R. GASKET
                                                                                  from £1.37
                                                                                  from £1.37
                                                                                  # 030
                                                                                  MPN: 14305424
                                                                                  SCREW
                                                                                  from £0.48
                                                                                  from £0.48
                                                                                  This part replaces part number 14305421 - and 2 more. Click to view details
                                                                                  # 031
                                                                                  MPN: 14305324
                                                                                  SCREW
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  This part replaces part number 14305321
                                                                                  # 032
                                                                                  MPN: 13027024
                                                                                  SCREW
                                                                                  from £0.50
                                                                                  from £0.50
                                                                                  # 033
                                                                                  MPN: 12604274
                                                                                  WASHER
                                                                                  from £0.51
                                                                                  from £0.51
                                                                                  This part replaces part number 12604271 - and 1 more. Click to view details
                                                                                  # 034
                                                                                  MPN: 149107
                                                                                  DOWEL
                                                                                  from £2.51
                                                                                  from £2.51
                                                                                  # 035
                                                                                  MPN: 13541524
                                                                                  STUD
                                                                                  from £0.48
                                                                                  from £0.48
                                                                                  This part replaces part number 13541521
                                                                                  # 036
                                                                                  MPN: 167917
                                                                                  STUD
                                                                                  from £8.04
                                                                                  from £8.04
                                                                                  # 037
                                                                                  MPN: 132877
                                                                                  NUT
                                                                                  from £1.64
                                                                                  from £1.64
                                                                                  This part replaces part number 67190100
                                                                                  # 038
                                                                                  MPN: 133215
                                                                                  NUT
                                                                                  from £3.05
                                                                                  from £3.05
                                                                                  This part replaces part number 64342800
                                                                                  # 039
                                                                                  MPN: 12648224
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 040
                                                                                  MPN: 12638524
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 12638501 - and 2 more. Click to view details
                                                                                  # 041
                                                                                  MPN: 102725
                                                                                  DOWEL
                                                                                  from £0.59
                                                                                  from £0.59
                                                                                  # 042
                                                                                  MPN: 149216
                                                                                  DOWEL
                                                                                  from £9.02
                                                                                  from £9.02
                                                                                  # 043
                                                                                  MPN: 169237
                                                                                  WASHER
                                                                                  from £6.92
                                                                                  from £6.92
