ferrari f50 air injection device parts diagram

009 - air injection device

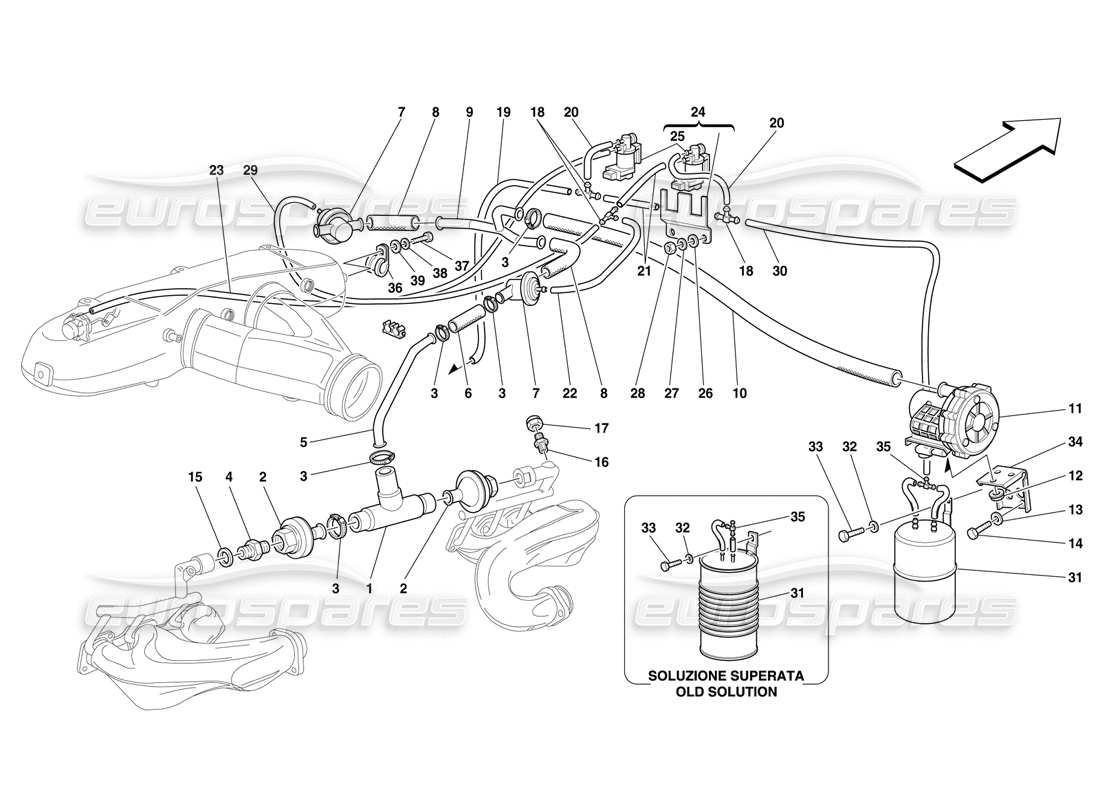

Ferrari F50 Air Injection Device Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 165644
                                                                            THREE WAY PIPE
                                                                            from £323.51
                                                                            from £323.51
                                                                            # 002
                                                                            MPN: 148494
                                                                            SECONDARY AIR VALVE
                                                                            from £402.05
                                                                            from £402.05
                                                                            This part replaces part number 121769 - and 9 more. Click to view details
                                                                            # 003
                                                                            MPN: 13000490
                                                                            SCREW COLLAR
                                                                            from £0.48
                                                                            from £0.48
                                                                            This part replaces part number 10169090 - and 3 more. Click to view details
                                                                            # 004
                                                                            MPN: 152631
                                                                            THREADED UNION
                                                                            from £13.75
                                                                            from £13.75
                                                                            # 005
                                                                            MPN: 165643
                                                                            RIGID PIPE
                                                                            from £260.55
                                                                            from £260.55
                                                                            # 006
                                                                            MPN: 165446
                                                                            RUBBER HOSE
                                                                            from £9.36
                                                                            from £9.36
                                                                            This part replaces part number 155107 which we have in stock - and 5 more. Click to view details
                                                                            # 007
                                                                            MPN: 147390
                                                                            CUT OFF VALVE
                                                                            from £176.28
                                                                            from £176.28
                                                                            This part replaces part number 121751 - and 3 more. Click to view details
                                                                            # 008
                                                                            MPN: 165641
                                                                            SHAPED PIPE
                                                                            from £131.16
                                                                            from £131.16
                                                                            # 009
                                                                            MPN: 165640
                                                                            3 WAY RIGID PIPE
                                                                            from £51.38
                                                                            from £51.38
                                                                            # 010
                                                                            MPN: 165639
                                                                            PIPE FROM AIR PUMP TO 3 WAY UNION
                                                                            from £62.56
                                                                            from £62.56
                                                                            # 011
                                                                            MPN: 165903

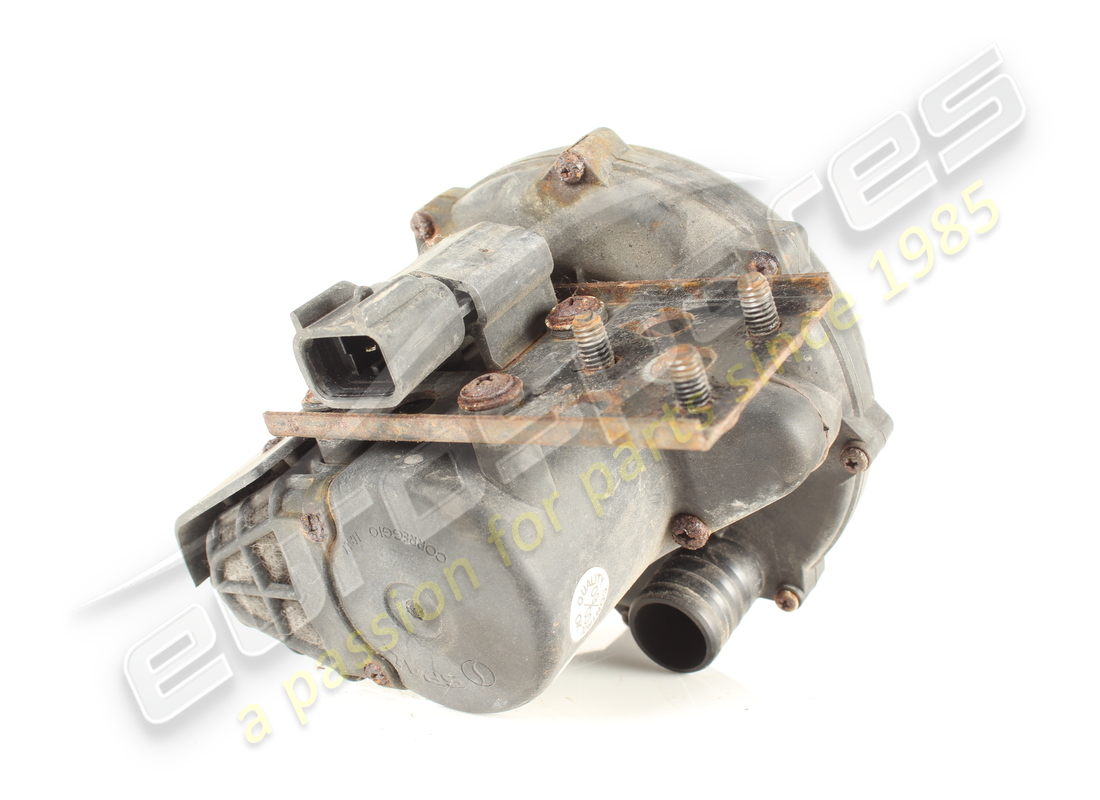

                                                                            ELECTRIC AIR PUMP
                                                                            from £521.48
                                                                            from £521.48
                                                                            # 012
                                                                            MPN: 14058411
                                                                            NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 013
                                                                            MPN: 12601274
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 12601221 - and 5 more. Click to view details
                                                                            # 014
                                                                            MPN: 10902424
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
                                                                            # 015
                                                                            MPN: 10257460
                                                                            GASKET
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 94702
                                                                            # 016
                                                                            MPN: 152630
                                                                            THREADED UNION
                                                                            from £44.20
                                                                            from £44.20
                                                                            # 017
                                                                            MPN: 150595
                                                                            CAP NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 16109642
                                                                            # 018
                                                                            MPN: 146972
                                                                            3 WAY UNION
                                                                            from £2.77
                                                                            from £2.77
                                                                            # 019
                                                                            MPN: 115149
                                                                            RUBBER HOSE
                                                                            from £20.52
                                                                            from £20.52
                                                                            # 021
                                                                            MPN: 115666
                                                                            RUBBER HOSE
                                                                            - Not as spare part now - Replaced by 141235
                                                                            from £0.63
                                                                            from £0.63
                                                                            # 021
                                                                            MPN: 141235
                                                                            RUBBER HOSE
                                                                            from £2.11
                                                                            from £2.11
                                                                            This part replaces part number 253376
                                                                            # 022
                                                                            MPN: 165608
                                                                            RUBBER HOSE
                                                                            from £1.48
                                                                            from £1.48
                                                                            # 023
                                                                            MPN: 124791
                                                                            RUBBER HOSE
                                                                            from £9.17
                                                                            from £9.17
                                                                            # 024
                                                                            MPN: 159176
                                                                            PLATE WITH SOLENOID VALVE
                                                                            from £40.51
                                                                            from £40.51
                                                                            # 025
                                                                            MPN: 159177
                                                                            SOLENOID VALVE
                                                                            from £103.88
                                                                            from £103.88
                                                                            This part replaces part number 154384 which we have in stock
                                                                            # 026
                                                                            MPN: 13579224
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 027
                                                                            MPN: 10615474
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 10615470 - and 3 more. Click to view details
                                                                            # 028
                                                                            MPN: 15896225
                                                                            NUT
                                                                            Supersession
                                                                            Supersession
                                                                            # 029
                                                                            MPN: 122126
                                                                            RUBBER HOSE
                                                                            from £4.91
                                                                            from £4.91
                                                                            This part replaces part number 258946
                                                                            # 030
                                                                            MPN: 117170
                                                                            RUBBER HOSE
                                                                            from £8.24
                                                                            from £8.24
                                                                            # 031
                                                                            MPN: 168038
                                                                            VACUUM TANK
                                                                            n
                                                                            from £118.13
                                                                            from £118.13
                                                                            This part replaces part number 175374 which we have in stock - and 3 more. Click to view details
                                                                            # 031
                                                                            MPN: 168038
                                                                            VACUUM TANK
                                                                            - Valid after stock exhaustion of 63397700
                                                                            from £118.13
                                                                            from £118.13
                                                                            This part replaces part number 175374 which we have in stock - and 3 more. Click to view details
                                                                            # 032
                                                                            MPN: 12601274
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 12601221 - and 5 more. Click to view details
                                                                            # 033
                                                                            MPN: 10902424
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
                                                                            # 034
                                                                            MPN: 64165400
                                                                            BRACKET FOR AIR PUMP
                                                                            # 035
                                                                            MPN: 146972
                                                                            UNION
                                                                            from £2.77
                                                                            from £2.77
                                                                            # 036
                                                                            MPN: 10442190
                                                                            BRACKET WITH SHEATH
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 037
                                                                            MPN: 10902124
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 10902111 - and 1 more. Click to view details
                                                                            # 038
                                                                            MPN: 10519424
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                                                            # 039
                                                                            MPN: 11197774
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
