012 - Fuel Tank and Pump

Ferrari F50 Fuel Tank and Pump Parts Diagram

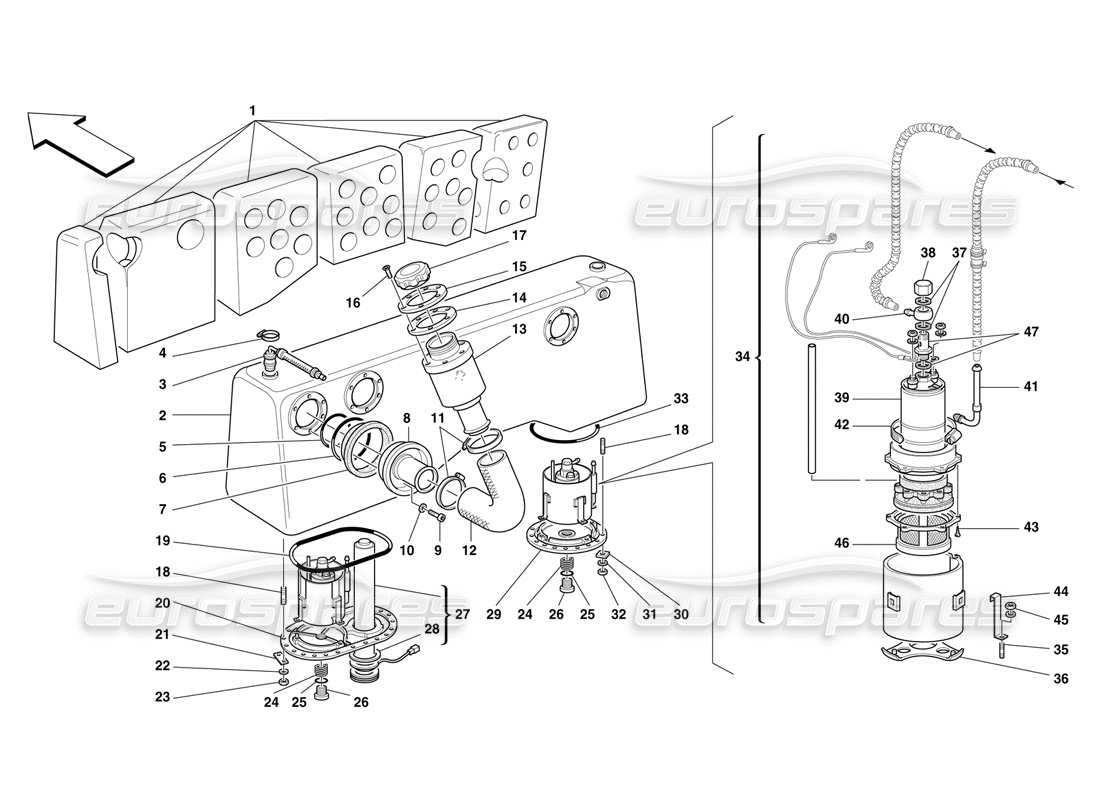

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 001
                                                                                              MPN: 160854
                                                                                              INNER TANK PROTECTION
                                                                                              from £1,845.27
                                                                                              from £1,845.27
                                                                                              # 002
                                                                                              MPN: 164240
                                                                                              FUEL TANK
                                                                                              from £9,785.75
                                                                                              from £9,785.75
                                                                                              # 003
                                                                                              MPN: 166607
                                                                                              FLOATING VALVE
                                                                                              from £100.44
                                                                                              from £100.44
                                                                                              # 004
                                                                                              MPN: 13000590

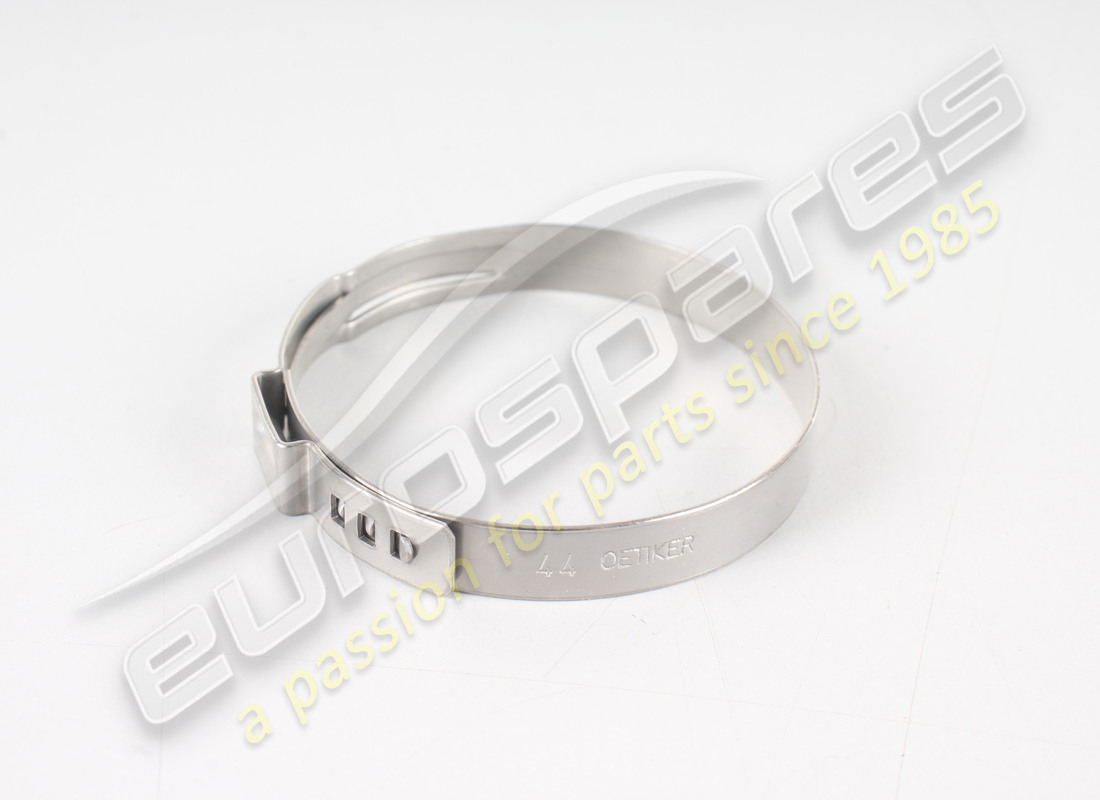

                                                                                              SCREW COLLAR
                                                                                              - Not as spare part now - Replaced by 168220
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 105622 - and 2 more. Click to view details
                                                                                              # 004
                                                                                              MPN: 168220
                                                                                              SCREW COLLAR
                                                                                              from £0.85
                                                                                              from £0.85
                                                                                              # 004
                                                                                              MPN: 168221
                                                                                              SCREW COLLAR
                                                                                              - As an alternative
                                                                                              from £2.20
                                                                                              from £2.20
                                                                                              # 005
                                                                                              MPN: 164330
                                                                                              GASKET
                                                                                              from £1.65
                                                                                              from £1.65
                                                                                              # 006
                                                                                              MPN: 154102
                                                                                              GASKET
                                                                                              from £3.75
                                                                                              from £3.75
                                                                                              # 007
                                                                                              MPN: 152371
                                                                                              GASKET
                                                                                              from £58.41
                                                                                              from £58.41
                                                                                              # 008
                                                                                              MPN: 164499
                                                                                              UNION FLANGE
                                                                                              from £146.63
                                                                                              from £146.63
                                                                                              # 009
                                                                                              MPN: 164329
                                                                                              SCREW
                                                                                              from £0.72
                                                                                              from £0.72
                                                                                              # 010
                                                                                              MPN: 12601274
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                              # 011
                                                                                              MPN: 13000890
                                                                                              SCREW COLLAR
                                                                                              from £0.63
                                                                                              from £0.63
                                                                                              This part replaces part number 12173290 - and 2 more. Click to view details
                                                                                              # 012
                                                                                              MPN: 153139
                                                                                              RUBBER PIPE
                                                                                              from £96.38
                                                                                              from £96.38
                                                                                              # 013
                                                                                              MPN: 165751
                                                                                              FILLER
                                                                                              from £460.21
                                                                                              from £460.21
                                                                                              # 014
                                                                                              MPN: 152840
                                                                                              GASKET
                                                                                              from £14.02
                                                                                              from £14.02
                                                                                              # 015
                                                                                              MPN: 152839
                                                                                              FRAME FOR UNION
                                                                                              from £26.83
                                                                                              from £26.83
                                                                                              # 016
                                                                                              MPN: 155998
                                                                                              SCREW
                                                                                              # 017
                                                                                              MPN: 180320
                                                                                              FUEL CAP
                                                                                              from £95.00
                                                                                              from £95.00
                                                                                              # 018
                                                                                              MPN: 165918
                                                                                              STUD
                                                                                              from £14.28
                                                                                              from £14.28
                                                                                              # 019
                                                                                              MPN: 151768
                                                                                              GASKET
                                                                                              from £10.18
                                                                                              from £10.18
                                                                                              # 020
                                                                                              MPN: 149626
                                                                                              LH PUMP COVER
                                                                                              from £352.63
                                                                                              from £352.63
                                                                                              # 021
                                                                                              MPN: 148736
                                                                                              BRACKET FOR PUMP
                                                                                              from £2.61
                                                                                              from £2.61
                                                                                              # 022
                                                                                              MPN: 12644424
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 12644401 - and 1 more. Click to view details
                                                                                              # 023
                                                                                              MPN: 132877
                                                                                              NUT
                                                                                              from £1.54
                                                                                              from £1.54
                                                                                              This part replaces part number 67190100
                                                                                              # 024
                                                                                              MPN: 103388
                                                                                              THREADED INSERT
                                                                                              from £6.82
                                                                                              from £6.82
                                                                                              # 025
                                                                                              MPN: 134233
                                                                                              GASKET
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 026
                                                                                              MPN: 134713
                                                                                              PLUG
                                                                                              from £6.47
                                                                                              from £6.47
                                                                                              This part replaces part number 154970
                                                                                              # 027
                                                                                              MPN: 160861

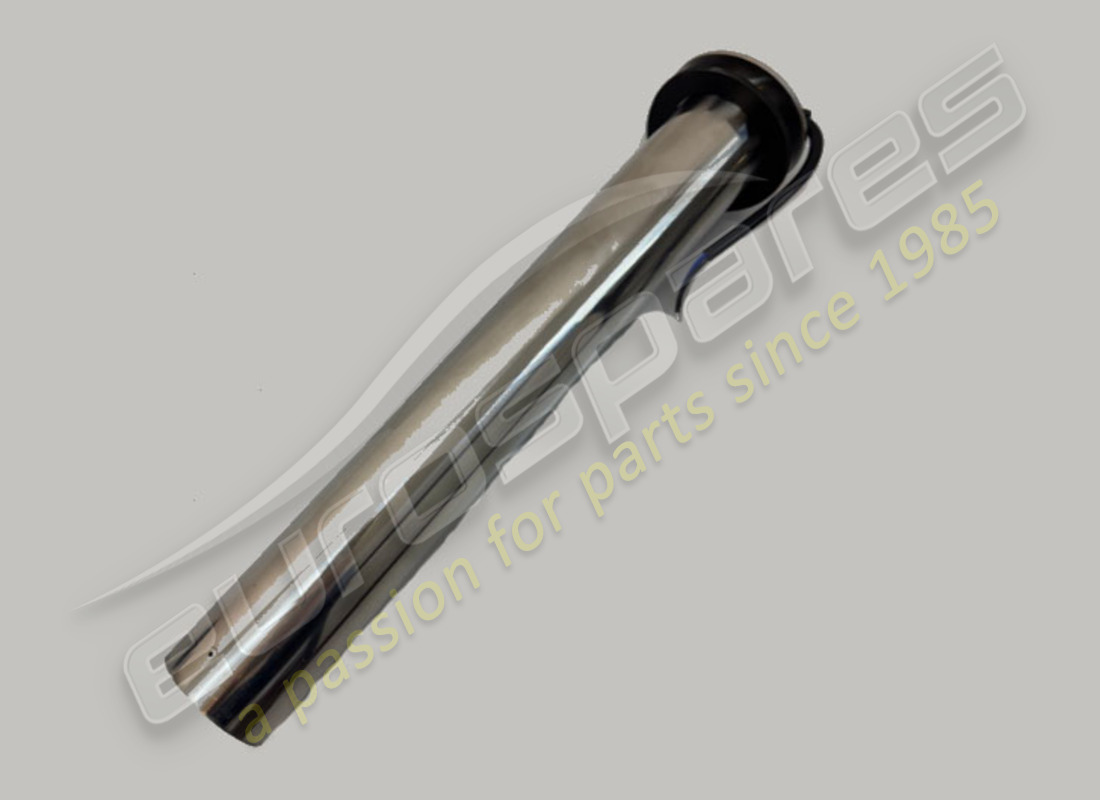

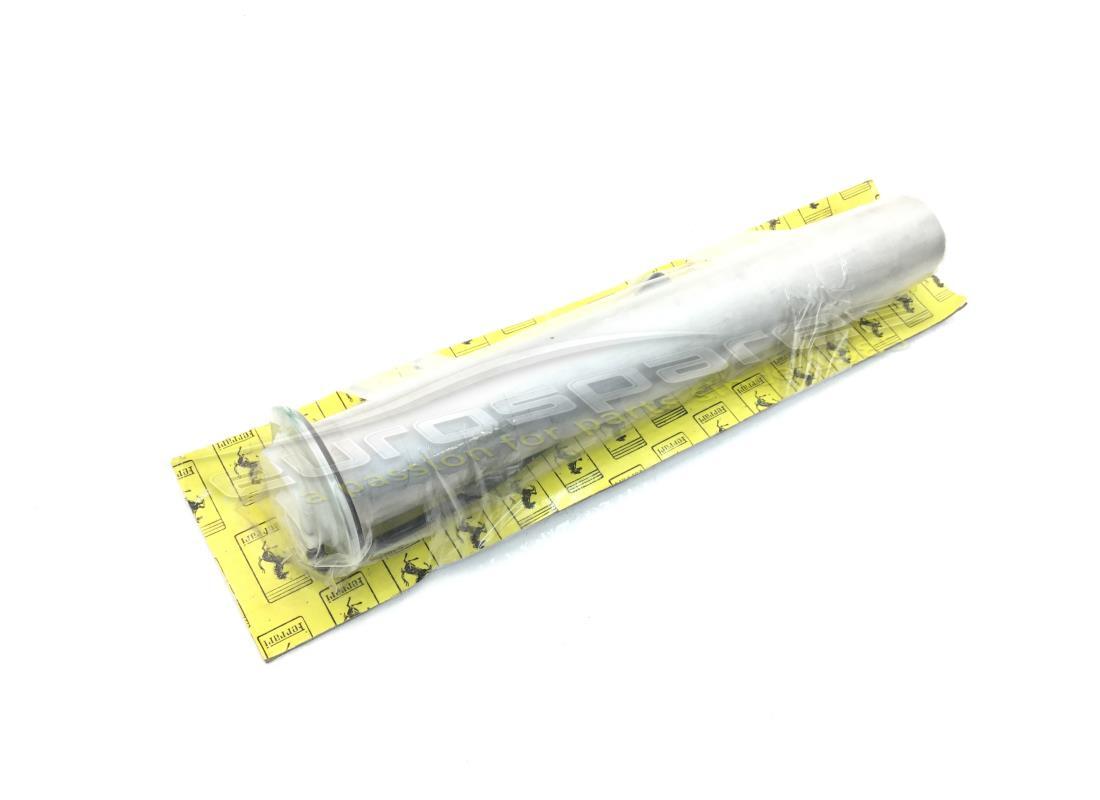

                                                                                              FUEL LEVEL INDICATOR CONTROL
                                                                                              from £805.00
                                                                                              from £805.00
                                                                                              # 028
                                                                                              MPN: 154802

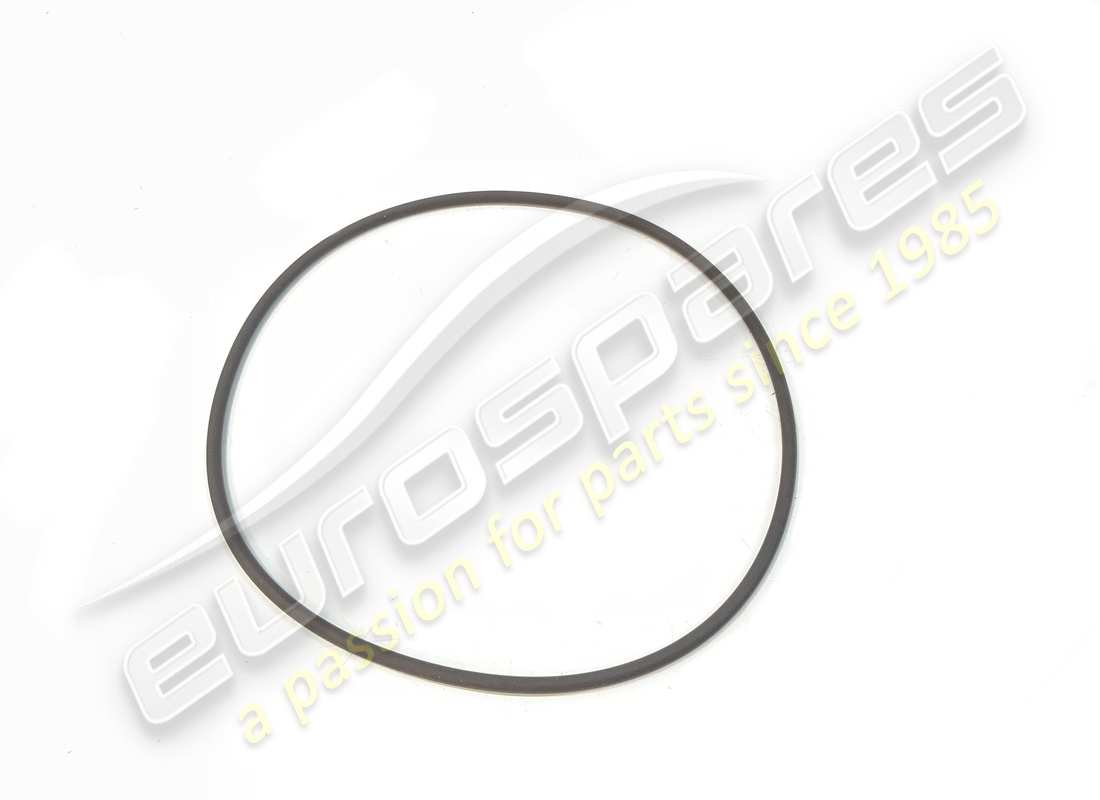

                                                                                              GASKET
                                                                                              from £17.11
                                                                                              from £17.11
                                                                                              This part replaces part number 116792 - and 2 more. Click to view details
                                                                                              # 029
                                                                                              MPN: 149624
                                                                                              RH PUMP COVER
                                                                                              from £188.30
                                                                                              from £188.30
                                                                                              # 030
                                                                                              MPN: 148738
                                                                                              BRACKET FOR PUMP
                                                                                              from £3.08
                                                                                              from £3.08
                                                                                              # 031
                                                                                              MPN: 12644424
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 12644401 - and 1 more. Click to view details
                                                                                              # 032
                                                                                              MPN: 132877
                                                                                              NUT
                                                                                              from £1.54
                                                                                              from £1.54
                                                                                              This part replaces part number 67190100
                                                                                              # 033
                                                                                              MPN: 151779
                                                                                              GASKET
                                                                                              from £3.15
                                                                                              from £3.15
                                                                                              # 034
                                                                                              MPN: 160862
                                                                                              COMPLETE FUEL PUMP
                                                                                              from £1,590.98
                                                                                              from £1,590.98
                                                                                              # 035
                                                                                              MPN: 11000924
                                                                                              STUD
                                                                                              from £0.78
                                                                                              from £0.78
                                                                                              This part replaces part number 11000921 which we have in stock
                                                                                              # 036
                                                                                              MPN: 126807
                                                                                              ANTI VIBRATION PAD
                                                                                              from £21.44
                                                                                              from £21.44
                                                                                              # 037
                                                                                              MPN: 11270160
                                                                                              GASKET
                                                                                              from £0.88
                                                                                              from £0.88
                                                                                              # 038
                                                                                              MPN: 10183217
                                                                                              PLUG
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 039
                                                                                              MPN: 155592
                                                                                              fuel pump
                                                                                              from £212.40
                                                                                              from £212.40
                                                                                              # 040
                                                                                              MPN: 170058
                                                                                              UNION
                                                                                              from £75.80
                                                                                              from £75.80
                                                                                              # 041
                                                                                              MPN: 170068
                                                                                              PIPE
                                                                                              from £82.05
                                                                                              from £82.05
                                                                                              # 042
                                                                                              MPN: 13000890
                                                                                              SCREW COLLAR
                                                                                              from £0.63
                                                                                              from £0.63
                                                                                              This part replaces part number 12173290 - and 2 more. Click to view details
                                                                                              # 043
                                                                                              MPN: 15671101
                                                                                              SCREW
                                                                                              from £1.37
                                                                                              from £1.37
                                                                                              # 044
                                                                                              MPN: 170059
                                                                                              BRACKET
                                                                                              from £17.00
                                                                                              from £17.00
                                                                                              # 045
                                                                                              MPN: 13677911
                                                                                              NUT
                                                                                              from £0.71
                                                                                              from £0.71
                                                                                              # 046
                                                                                              MPN: 142741
                                                                                              PAN FUEL FILTER
                                                                                              from £25.26
                                                                                              from £25.26
                                                                                              # 047
                                                                                              MPN: 169591
                                                                                              NONRETURN VALVE
                                                                                              from £59.05
                                                                                              from £59.05
