ferrari f50 throttle holders parts diagram

016 - Throttle Holders

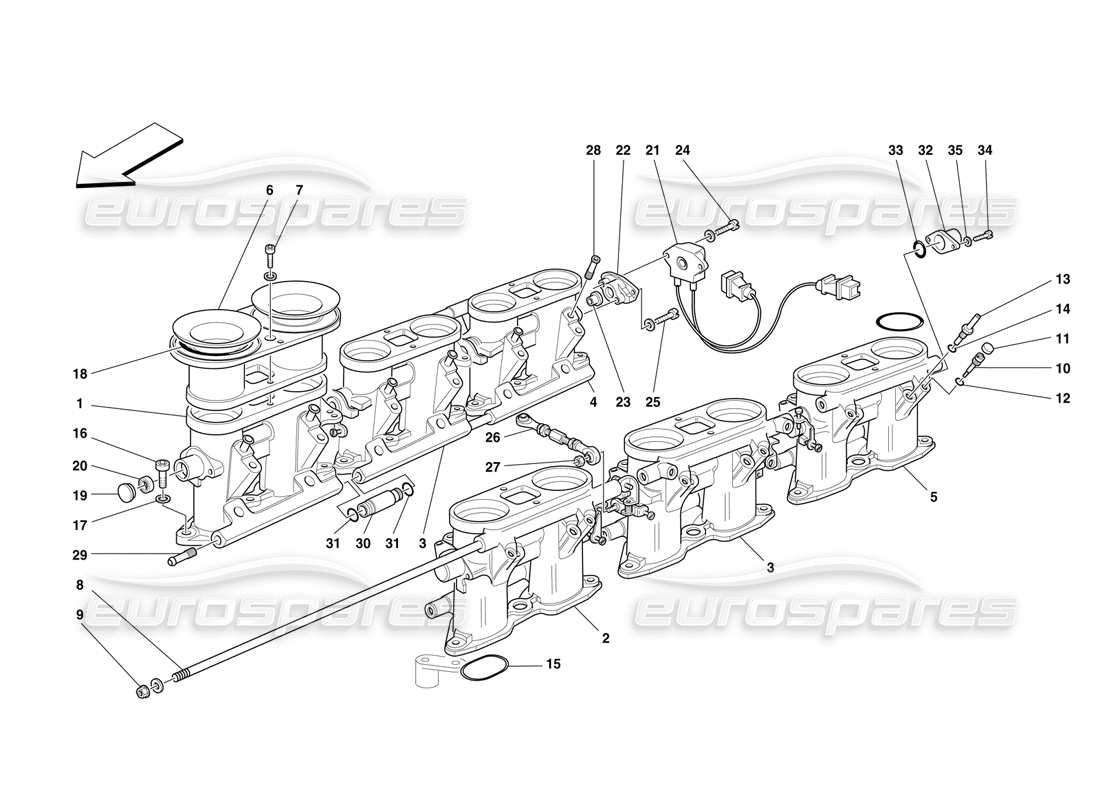

Ferrari F50 Throttle Holders Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price
                                                                        # 001
                                                                        MPN: 160691
                                                                        RH FRONT THROTTLE HOLDER
                                                                        # 002
                                                                        MPN: 160690
                                                                        LH FRONT THROTTLE HOLDER
                                                                        # 003
                                                                        MPN: 160692
                                                                        INTERMEDIATE THROTTLE HOLDER
                                                                        # 004
                                                                        MPN: 160690
                                                                        RH REAR THROTTLE HOLDER
                                                                        # 005
                                                                        MPN: 160691
                                                                        LH REAR THROTTLE HOLDER
                                                                        # 006
                                                                        MPN: 162704
                                                                        COMPLETE FLANGE
                                                                        from £136.95
                                                                        from £136.95
                                                                        # 007
                                                                        MPN: 162742
                                                                        SCREW
                                                                        from £1.07
                                                                        from £1.07
                                                                        # 008
                                                                        MPN: 162719
                                                                        THREADED TIE ROD
                                                                        from £53.06
                                                                        from £53.06
                                                                        # 009
                                                                        MPN: 162720
                                                                        NUT
                                                                        from £0.47
                                                                        from £0.47
                                                                        # 010
                                                                        MPN: 162700
                                                                        ADJUSTMENT SCREW
                                                                        from £2.24
                                                                        from £2.24
                                                                        This part replaces part number 166484
                                                                        # 011
                                                                        MPN: 162701
                                                                        PLUG
                                                                        Supersession
                                                                        Supersession
                                                                        This part replaces part number 166486 which we have in stock
                                                                        # 012
                                                                        MPN: 162738
                                                                        OR RING
                                                                        Supersession
                                                                        Supersession
                                                                        # 013
                                                                        MPN: 162694
                                                                        SYNCHRONIZER CONNECTION
                                                                        from £4.41
                                                                        from £4.41
                                                                        # 014
                                                                        MPN: 162737
                                                                        OR RING
                                                                        Supersession
                                                                        Supersession
                                                                        # 015
                                                                        MPN: 157785
                                                                        OR RING
                                                                        Supersession
                                                                        Supersession
                                                                        # 016
                                                                        MPN: 14306424
                                                                        SCREW
                                                                        from £0.47
                                                                        from £0.47
                                                                        This part replaces part number 14306324 - and 2 more. Click to view details
                                                                        # 017
                                                                        MPN: 12601374
                                                                        WASHER
                                                                        from £0.47
                                                                        from £0.47
                                                                        This part replaces part number 10615474 - and 6 more. Click to view details
                                                                        # 018
                                                                        MPN: 149666
                                                                        O.R. GASKET
                                                                        from £4.52
                                                                        from £4.52
                                                                        # 019
                                                                        MPN: 162708
                                                                        PLUG
                                                                        from £46.21
                                                                        from £46.21
                                                                        # 020
                                                                        MPN: 162709
                                                                        BEARING
                                                                        from £11.23
                                                                        from £11.23
                                                                        # 021
                                                                        MPN: 167278
                                                                        POTENTIOMETER
                                                                        from £179.37
                                                                        from £179.37
                                                                        # 022
                                                                        MPN: 162721
                                                                        FLANGE
                                                                        from £106.14
                                                                        from £106.14
                                                                        # 023
                                                                        MPN: 162725
                                                                        BUSHING
                                                                        from £26.24
                                                                        from £26.24
                                                                        # 024
                                                                        MPN: 162722
                                                                        SCREW
                                                                        Supersession
                                                                        Supersession
                                                                        This part replaces part number 166507
                                                                        # 025
                                                                        MPN: 162723
                                                                        SCREW
                                                                        from £0.47
                                                                        from £0.47
                                                                        # 026
                                                                        MPN: 162716
                                                                        THREADED TIE ROD
                                                                        from £359.49
                                                                        from £359.49
                                                                        # 027
                                                                        MPN: 162731
                                                                        NUT
                                                                        from £0.65
                                                                        from £0.65
                                                                        This part replaces part number 166506
                                                                        # 028
                                                                        MPN: 162741
                                                                        PIPE CONNECTION
                                                                        from £0.76
                                                                        from £0.76
                                                                        # 029
                                                                        MPN: 162707
                                                                        CONNECTION
                                                                        from £1.20
                                                                        from £1.20
                                                                        # 030
                                                                        MPN: 162718
                                                                        SPECIAL CONNECTION
                                                                        from £29.95
                                                                        from £29.95
                                                                        # 031
                                                                        MPN: 162717
                                                                        OR RING
                                                                        from £0.79
                                                                        from £0.79
                                                                        # 032
                                                                        MPN: 168070
                                                                        PROTECTION
                                                                        from £43.55
                                                                        from £43.55
                                                                        # 033
                                                                        MPN: 142599
                                                                        GASKET
                                                                        from £0.58
                                                                        from £0.58
                                                                        # 034
                                                                        MPN: 14303024
                                                                        SCREW
                                                                        from £0.53
                                                                        from £0.53
                                                                        This part replaces part number 14303021 - and 1 more. Click to view details
                                                                        # 035
                                                                        MPN: 12604079
                                                                        WASHER
                                                                        from £0.85
                                                                        from £0.85
