018 - Exhaust System

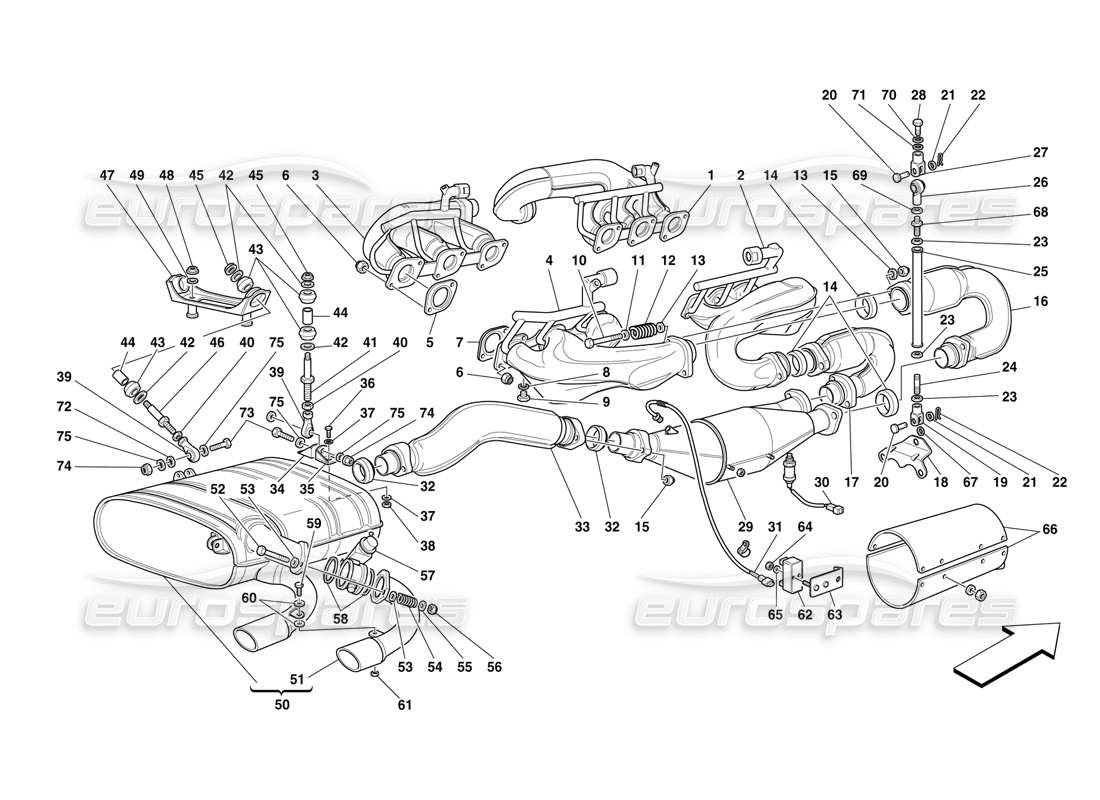

Ferrari F50 Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                #
                                                                                                                                                Part number
                                                                                                                                                Description
                                                                                                                                                Price
                                                                                                                                                # 001
                                                                                                                                                MPN: 162953
                                                                                                                                                LH FRONT EXHAUST MANIFOLD
                                                                                                                                                from £4,686.51
                                                                                                                                                from £4,686.51
                                                                                                                                                # 002
                                                                                                                                                MPN: 162854
                                                                                                                                                RH FRONT EXHAUST MANIFOLD
                                                                                                                                                from £4,686.51
                                                                                                                                                from £4,686.51
                                                                                                                                                # 003
                                                                                                                                                MPN: 163083
                                                                                                                                                LH REAR EXHAUST MANIFOLD
                                                                                                                                                from £4,534.51
                                                                                                                                                from £4,534.51
                                                                                                                                                # 004
                                                                                                                                                MPN: 163080
                                                                                                                                                RH REAR EXHAUST MANIFOLD
                                                                                                                                                from £4,534.51
                                                                                                                                                from £4,534.51
                                                                                                                                                # 005
                                                                                                                                                MPN: 159243
                                                                                                                                                LH GASKET
                                                                                                                                                from £24.08
                                                                                                                                                from £24.08
                                                                                                                                                # 006
                                                                                                                                                MPN: 138392
                                                                                                                                                NUT
                                                                                                                                                (minimum order quantity = 25)
                                                                                                                                                from £0.58
                                                                                                                                                from £0.58
                                                                                                                                                # 007
                                                                                                                                                MPN: 159242
                                                                                                                                                RH GASKET
                                                                                                                                                from £27.09
                                                                                                                                                from £27.09
                                                                                                                                                # 008
                                                                                                                                                MPN: 10298460
                                                                                                                                                GASKET
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 93353
                                                                                                                                                # 009
                                                                                                                                                MPN: 110860
                                                                                                                                                THREADED PLUG
                                                                                                                                                from £8.11
                                                                                                                                                from £8.11
                                                                                                                                                This part replaces part number 11903240
                                                                                                                                                # 010
                                                                                                                                                MPN: 137431
                                                                                                                                                SCREW
                                                                                                                                                from £28.30
                                                                                                                                                from £28.30
                                                                                                                                                # 011
                                                                                                                                                MPN: 114749
                                                                                                                                                SPACER
                                                                                                                                                from £1.23
                                                                                                                                                from £1.23
                                                                                                                                                # 012
                                                                                                                                                MPN: 111743
                                                                                                                                                SPRING
                                                                                                                                                from £6.87
                                                                                                                                                from £6.87
                                                                                                                                                # 013
                                                                                                                                                MPN: 128010
                                                                                                                                                WASHER
                                                                                                                                                from £2.16
                                                                                                                                                from £2.16

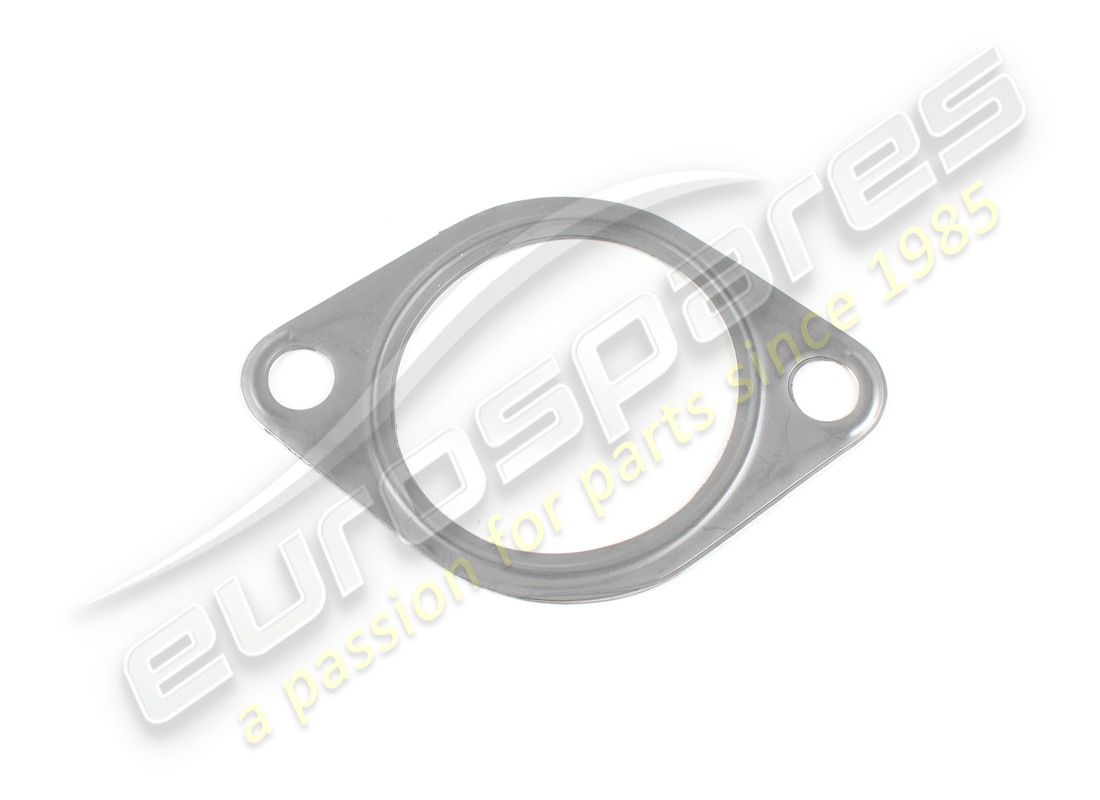

                                                                                                                                                # 014
                                                                                                                                                MPN: 154984
                                                                                                                                                GASKET
                                                                                                                                                from £9.95
                                                                                                                                                from £9.95
                                                                                                                                                This part replaces part number 118338 - and 2 more. Click to view details
                                                                                                                                                # 015
                                                                                                                                                MPN: 118251
                                                                                                                                                NUT
                                                                                                                                                from £10.44
                                                                                                                                                from £10.44
                                                                                                                                                # 016
                                                                                                                                                MPN: 165812
                                                                                                                                                HOSE FROM RH REAR EXHAUST MANIFOLD TO RH CATALYST
                                                                                                                                                - Not for USA
                                                                                                                                                from £1,692.97
                                                                                                                                                from £1,692.97
                                                                                                                                                # 016
                                                                                                                                                MPN: 165814
                                                                                                                                                HOSE FROM LH REAR EXHAUST MANIFOLD TO LH CATALYST
                                                                                                                                                - Not for USA
                                                                                                                                                from £1,692.97
                                                                                                                                                from £1,692.97
                                                                                                                                                # 016
                                                                                                                                                MPN: 166826
                                                                                                                                                HOSE FROM RH REAR EXHAUST MANIFOLD TO RH CATALYST
                                                                                                                                                - Valid for USA
                                                                                                                                                from £1,835.73
                                                                                                                                                from £1,835.73
                                                                                                                                                # 016
                                                                                                                                                MPN: 166828
                                                                                                                                                HOSE FROM LH REAR EXHAUST MANIFOLD TO LH CATALYST
                                                                                                                                                - Valid for USA
                                                                                                                                                from £2,266.88
                                                                                                                                                from £2,266.88
                                                                                                                                                # 017
                                                                                                                                                MPN: 165811
                                                                                                                                                HOSE FROM RH FRONT EXHAUST MANIFOLD TO RH CATALYST
                                                                                                                                                - Not for USA
                                                                                                                                                from £1,795.57
                                                                                                                                                from £1,795.57
                                                                                                                                                # 017
                                                                                                                                                MPN: 165813
                                                                                                                                                HOSE FROM LH FRONT EXHAUST MANIFOLD TO LH CATALYST
                                                                                                                                                - Not for USA
                                                                                                                                                from £1,795.57
                                                                                                                                                from £1,795.57
                                                                                                                                                # 017
                                                                                                                                                MPN: 166825
                                                                                                                                                HOSE FROM RH FRONT EXHAUST MANIFOLD TO RH CATALYST
                                                                                                                                                - Valid for USA
                                                                                                                                                from £1,375.93
                                                                                                                                                from £1,375.93
                                                                                                                                                # 017
                                                                                                                                                MPN: 166827
                                                                                                                                                HOSE FROM LH FRONT EXHAUST MANIFOLD TO LH CATALYST
                                                                                                                                                - Valid for USA
                                                                                                                                                from £1,375.93
                                                                                                                                                from £1,375.93
                                                                                                                                                # 018
                                                                                                                                                MPN: 166442
                                                                                                                                                SUPPORT PLATE
                                                                                                                                                from £16.27
                                                                                                                                                from £16.27
                                                                                                                                                # 019
                                                                                                                                                MPN: 10007871
                                                                                                                                                FORK
                                                                                                                                                from £5.83
                                                                                                                                                from £5.83
                                                                                                                                                # 020
                                                                                                                                                MPN: 10050814
                                                                                                                                                PIN
                                                                                                                                                from £1.29
                                                                                                                                                from £1.29
                                                                                                                                                This part replaces part number 10050811
                                                                                                                                                # 021
                                                                                                                                                MPN: 10732214
                                                                                                                                                WASHER
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                # 022
                                                                                                                                                MPN: 10734301
                                                                                                                                                SPLIT PIN
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                # 023
                                                                                                                                                MPN: 16102314
                                                                                                                                                NUT
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
                                                                                                                                                # 024
                                                                                                                                                MPN: 13543724
                                                                                                                                                STUD
                                                                                                                                                from £0.87
                                                                                                                                                from £0.87
                                                                                                                                                This part replaces part number 13543721
                                                                                                                                                # 025
                                                                                                                                                MPN: 166464
                                                                                                                                                SUPPORT ROD
                                                                                                                                                from £119.56
                                                                                                                                                from £119.56
                                                                                                                                                # 026
                                                                                                                                                MPN: 140755
                                                                                                                                                BALL JOINT
                                                                                                                                                from £83.91
                                                                                                                                                from £83.91
                                                                                                                                                # 027
                                                                                                                                                MPN: 166451
                                                                                                                                                FORK
                                                                                                                                                from £14.63
                                                                                                                                                from £14.63
                                                                                                                                                # 028
                                                                                                                                                MPN: 168691
                                                                                                                                                SCREW
                                                                                                                                                Supersession
                                                                                                                                                Supersession
                                                                                                                                                # 029
                                                                                                                                                MPN: 163026
                                                                                                                                                catalyst
                                                                                                                                                from £5,772.24
                                                                                                                                                from £5,772.24
                                                                                                                                                # 030
                                                                                                                                                MPN: 158730
                                                                                                                                                LAMBDA FEELER
                                                                                                                                                from £87.85
                                                                                                                                                from £87.85
                                                                                                                                                This part replaces part number 155010 - and 3 more. Click to view details
                                                                                                                                                # 031
                                                                                                                                                MPN: 157501
                                                                                                                                                THERMOCOUPLE
                                                                                                                                                from £79.60
                                                                                                                                                from £79.60

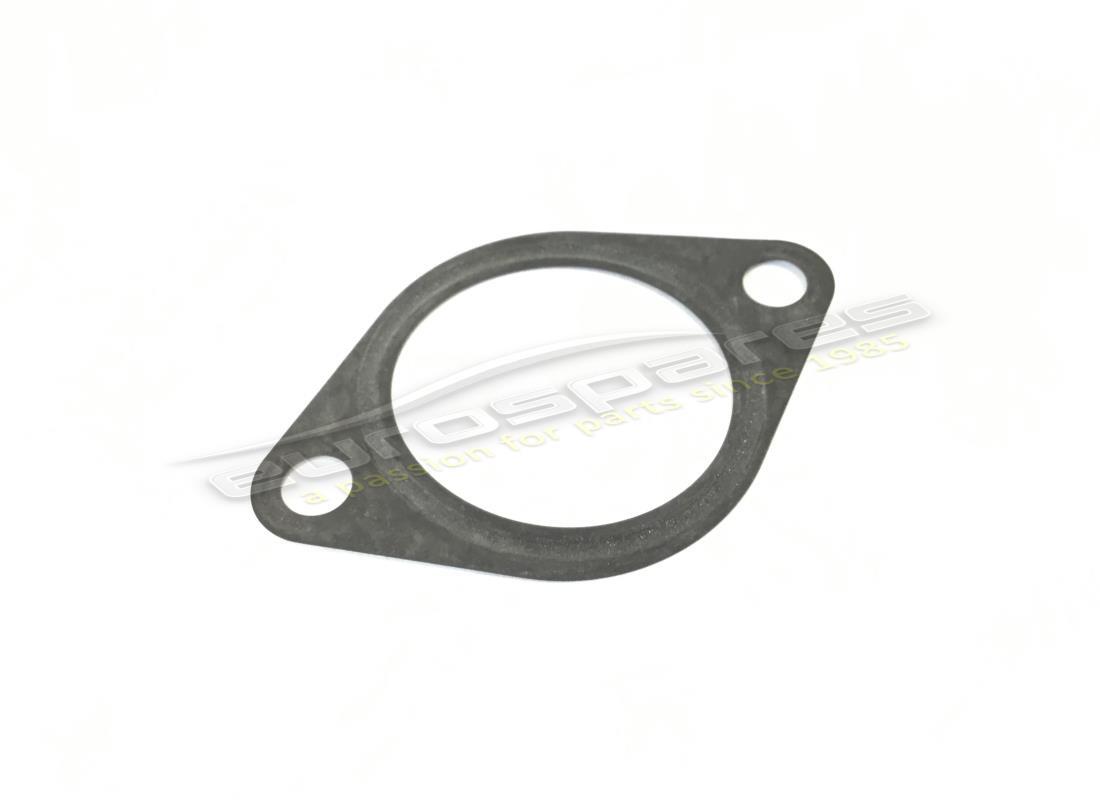

                                                                                                                                                # 032
                                                                                                                                                MPN: 159906
                                                                                                                                                GASKET
                                                                                                                                                from £11.92
                                                                                                                                                from £11.92
                                                                                                                                                # 033
                                                                                                                                                MPN: 162950
                                                                                                                                                RH EXHAUST EXTENSION
                                                                                                                                                from £1,539.05
                                                                                                                                                from £1,539.05
                                                                                                                                                # 033
                                                                                                                                                MPN: 162954
                                                                                                                                                LH EXHAUST EXTENSION
                                                                                                                                                from £1,539.05
                                                                                                                                                from £1,539.05

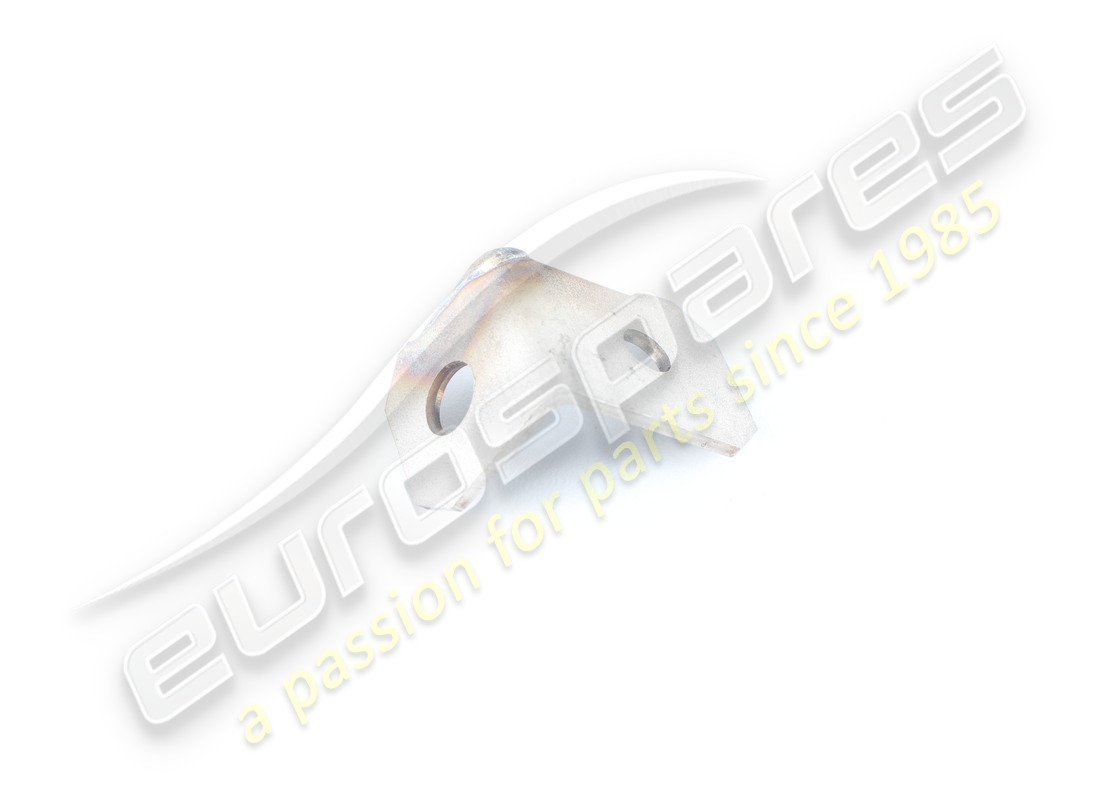

                                                                                                                                                # 034
                                                                                                                                                MPN: 167006
                                                                                                                                                LH BRACKET FOR SILENCER FIXING
                                                                                                                                                from £20.84
                                                                                                                                                from £20.84
                                                                                                                                                # 035
                                                                                                                                                MPN: 149247
                                                                                                                                                RH BRACKET FOR SILENCER FIXING
                                                                                                                                                from £4.39
                                                                                                                                                from £4.39
                                                                                                                                                # 036
                                                                                                                                                MPN: 10902224
                                                                                                                                                SCREW
                                                                                                                                                from £0.51
                                                                                                                                                from £0.51
                                                                                                                                                # 037
                                                                                                                                                MPN: 14488624
                                                                                                                                                WASHER
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                # 038
                                                                                                                                                MPN: 14048115
                                                                                                                                                NUT
                                                                                                                                                from £1.07
                                                                                                                                                from £1.07
                                                                                                                                                This part replaces part number 14048611 - and 1 more. Click to view details
                                                                                                                                                # 039
                                                                                                                                                MPN: 140754
                                                                                                                                                BALL JOINT
                                                                                                                                                from £81.99
                                                                                                                                                from £81.99
                                                                                                                                                # 040
                                                                                                                                                MPN: 16102314
                                                                                                                                                NUT
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
                                                                                                                                                # 041
                                                                                                                                                MPN: 159369
                                                                                                                                                SILENCER SUPPORT PIN
                                                                                                                                                from £12.72
                                                                                                                                                from £12.72
                                                                                                                                                # 042
                                                                                                                                                MPN: 167178
                                                                                                                                                WASHER
                                                                                                                                                from £1.18
                                                                                                                                                from £1.18

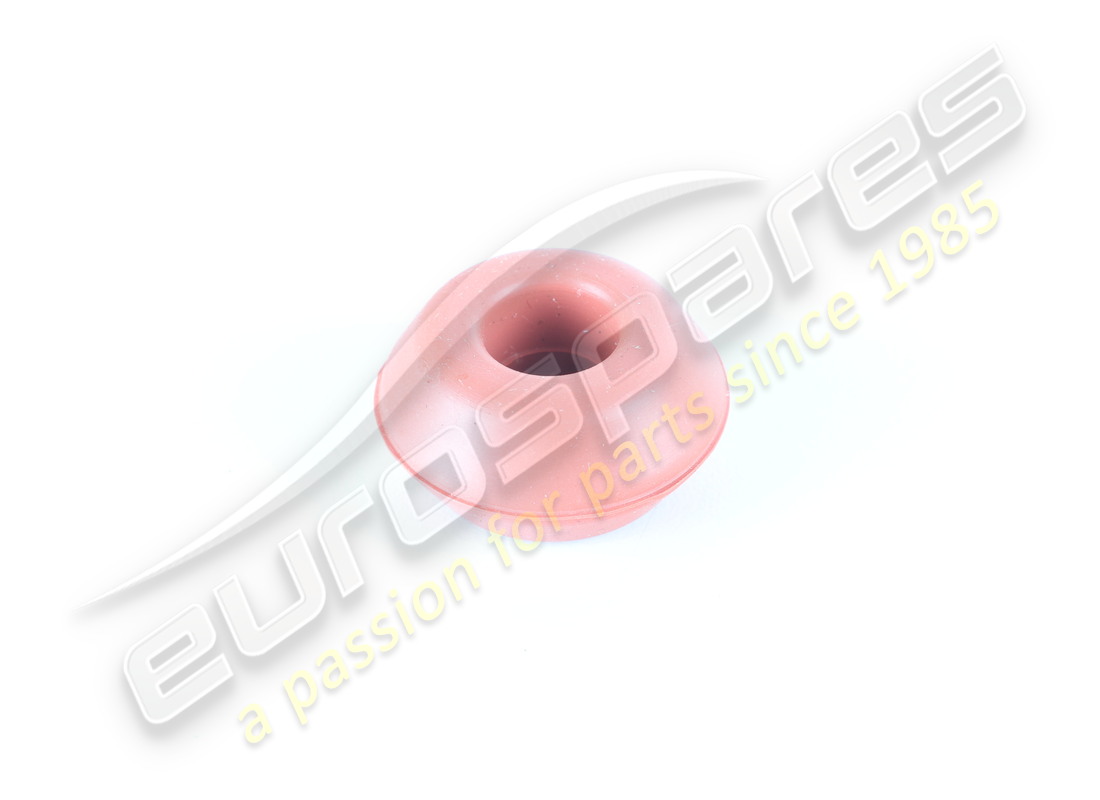

                                                                                                                                                # 043
                                                                                                                                                MPN: 154084
                                                                                                                                                ANTIVIBRATION PAD
                                                                                                                                                from £5.49
                                                                                                                                                from £5.49
                                                                                                                                                # 044
                                                                                                                                                MPN: 108294
                                                                                                                                                SPACER
                                                                                                                                                from £45.53
                                                                                                                                                from £45.53
                                                                                                                                                This part replaces part number 107336 - and 1 more. Click to view details
                                                                                                                                                # 044
                                                                                                                                                MPN: 154085
                                                                                                                                                SPACER
                                                                                                                                                - Not as spare part now - Replaced by 108294
                                                                                                                                                Supersession
                                                                                                                                                Supersession
                                                                                                                                                # 045
                                                                                                                                                MPN: 133215
                                                                                                                                                NUT
                                                                                                                                                Supersession
                                                                                                                                                Supersession
                                                                                                                                                This part replaces part number 64342800
                                                                                                                                                # 046
                                                                                                                                                MPN: 159369
                                                                                                                                                PIN
                                                                                                                                                from £12.72
                                                                                                                                                from £12.72
                                                                                                                                                # 047
                                                                                                                                                MPN: 159233
                                                                                                                                                BRACKET
                                                                                                                                                from £154.07
                                                                                                                                                from £154.07
                                                                                                                                                # 048
                                                                                                                                                MPN: 16100825
                                                                                                                                                NUT
                                                                                                                                                from £0.76
                                                                                                                                                from £0.76
                                                                                                                                                # 049
                                                                                                                                                MPN: 14496524
                                                                                                                                                WASHER
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 14496525 - and 1 more. Click to view details
                                                                                                                                                # 050
                                                                                                                                                MPN: 163023
                                                                                                                                                RH REAR SILENCER
                                                                                                                                                from £9,854.00
                                                                                                                                                from £9,854.00
                                                                                                                                                # 050
                                                                                                                                                MPN: 163024
                                                                                                                                                LH REAR SILENCER
                                                                                                                                                from £9,854.00
                                                                                                                                                from £9,854.00
                                                                                                                                                # 051
                                                                                                                                                MPN: 162952
                                                                                                                                                RH EXHAUST TERMINAL
                                                                                                                                                from £223.25
                                                                                                                                                from £223.25
                                                                                                                                                # 051
                                                                                                                                                MPN: 162956
                                                                                                                                                LH EXHAUST TERMINAL
                                                                                                                                                from £223.25
                                                                                                                                                from £223.25
                                                                                                                                                # 052
                                                                                                                                                MPN: 145181
                                                                                                                                                SCREW
                                                                                                                                                from £16.48
                                                                                                                                                from £16.48
                                                                                                                                                # 053
                                                                                                                                                MPN: 12646778
                                                                                                                                                WASHER
                                                                                                                                                from £0.52
                                                                                                                                                from £0.52
                                                                                                                                                This part replaces part number 156093
                                                                                                                                                # 054
                                                                                                                                                MPN: 111743
                                                                                                                                                SPRING
                                                                                                                                                from £6.87
                                                                                                                                                from £6.87
                                                                                                                                                # 055
                                                                                                                                                MPN: 114749
                                                                                                                                                SPACER
                                                                                                                                                from £1.23
                                                                                                                                                from £1.23
                                                                                                                                                # 056
                                                                                                                                                MPN: 118251
                                                                                                                                                NUT
                                                                                                                                                from £10.44
                                                                                                                                                from £10.44
                                                                                                                                                # 057
                                                                                                                                                MPN: 155006
                                                                                                                                                BY PASS VALVE
                                                                                                                                                from £695.00
                                                                                                                                                from £695.00
                                                                                                                                                This part replaces part number 155006/A - and 5 more. Click to view details
                                                                                                                                                # 058
                                                                                                                                                MPN: 119368
                                                                                                                                                GASKET
                                                                                                                                                from £158.50
                                                                                                                                                from £158.50
                                                                                                                                                # 059
                                                                                                                                                MPN: 16043221
                                                                                                                                                SCREW
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 13842414 - and 1 more. Click to view details
                                                                                                                                                # 060
                                                                                                                                                MPN: 14496524
                                                                                                                                                WASHER
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 14496525 - and 1 more. Click to view details
                                                                                                                                                # 061
                                                                                                                                                MPN: 118251
                                                                                                                                                NUT
                                                                                                                                                from £10.44
                                                                                                                                                from £10.44
                                                                                                                                                # 062
                                                                                                                                                MPN: 179278
                                                                                                                                                CATALYST TEMPERATURE CONTROL STATION
                                                                                                                                                from £315.15
                                                                                                                                                from £315.15
                                                                                                                                                This part replaces part number 173533
                                                                                                                                                # 063
                                                                                                                                                MPN: 168108
                                                                                                                                                CONTROL UNIT FIXING BRACKET
                                                                                                                                                from £51.30
                                                                                                                                                from £51.30
                                                                                                                                                # 064
                                                                                                                                                MPN: 62790300
                                                                                                                                                NUT
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 12574011 - and 1 more. Click to view details
                                                                                                                                                # 065
                                                                                                                                                MPN: 10519224
                                                                                                                                                WASHER
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 10519201
                                                                                                                                                # 066
                                                                                                                                                MPN: 162732
                                                                                                                                                SHIELD FOR HEAT PROTECTION
                                                                                                                                                from £85.60
                                                                                                                                                from £85.60
                                                                                                                                                # 067
                                                                                                                                                MPN: 128010
                                                                                                                                                WASHER
                                                                                                                                                from £2.16
                                                                                                                                                from £2.16
                                                                                                                                                # 068
                                                                                                                                                MPN: 168043
                                                                                                                                                PIN
                                                                                                                                                from £11.76
                                                                                                                                                from £11.76
                                                                                                                                                # 069
                                                                                                                                                MPN: 16102924
                                                                                                                                                NUT
                                                                                                                                                from £5.15
                                                                                                                                                from £5.15
                                                                                                                                                # 070
                                                                                                                                                MPN: 127496
                                                                                                                                                WASHER
                                                                                                                                                from £0.54
                                                                                                                                                from £0.54
                                                                                                                                                This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                                                # 071
                                                                                                                                                MPN: 12646778
                                                                                                                                                WASHER
                                                                                                                                                from £0.54
                                                                                                                                                from £0.54
                                                                                                                                                This part replaces part number 156093
                                                                                                                                                # 072
                                                                                                                                                MPN: 12625224
                                                                                                                                                SPACER WASHER
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 12625201 which we have in stock - and 2 more. Click to view details
                                                                                                                                                # 073
                                                                                                                                                MPN: 16043824
                                                                                                                                                SCREW
                                                                                                                                                Supersession
                                                                                                                                                Supersession
                                                                                                                                                This part replaces part number 16043821
                                                                                                                                                # 074
                                                                                                                                                MPN: 133215
                                                                                                                                                NUT
                                                                                                                                                Supersession
                                                                                                                                                Supersession
                                                                                                                                                This part replaces part number 64342800
                                                                                                                                                # 075
                                                                                                                                                MPN: 14496524
                                                                                                                                                WASHER
                                                                                                                                                from £0.47
                                                                                                                                                from £0.47
                                                                                                                                                This part replaces part number 14496525 - and 1 more. Click to view details
