019 - Oil Sump and Cover

Ferrari F50 Oil Sump and Cover Parts Diagram

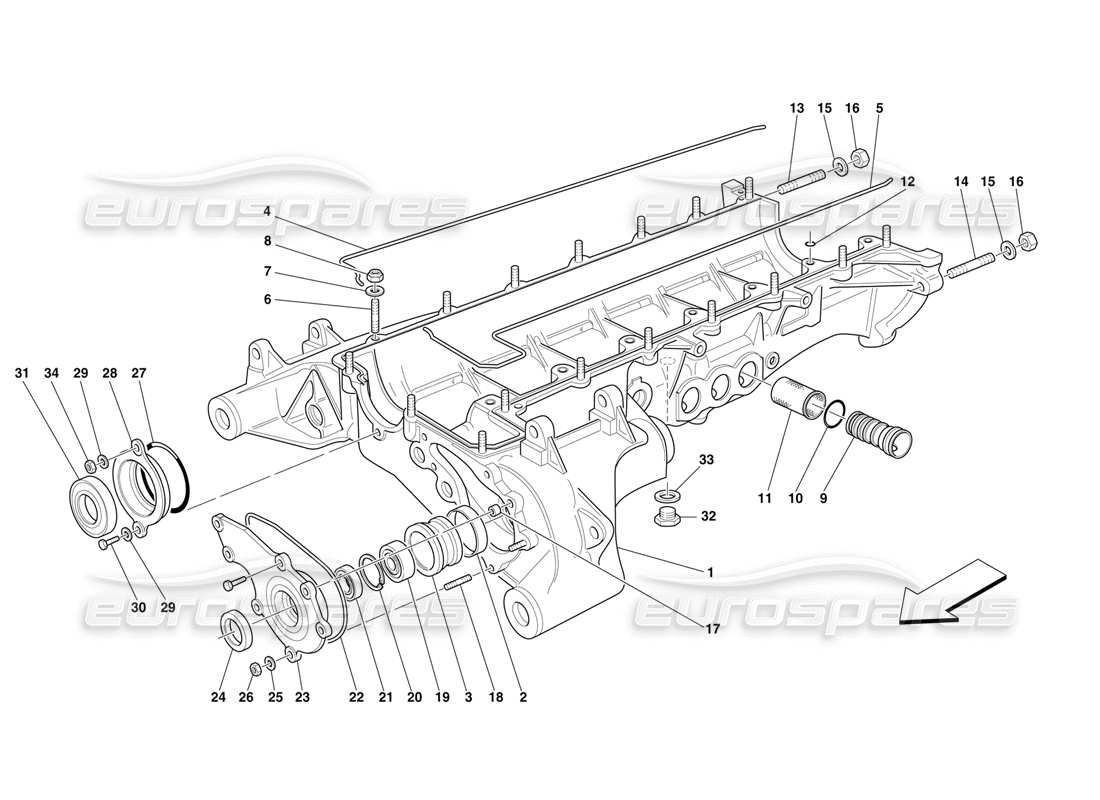

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 169542
                                                                      COMPLETE OIL SUMP
                                                                      from £2,004.75
                                                                      from £2,004.75
                                                                      This part replaces part number 161389
                                                                      # 002
                                                                      MPN: 154597

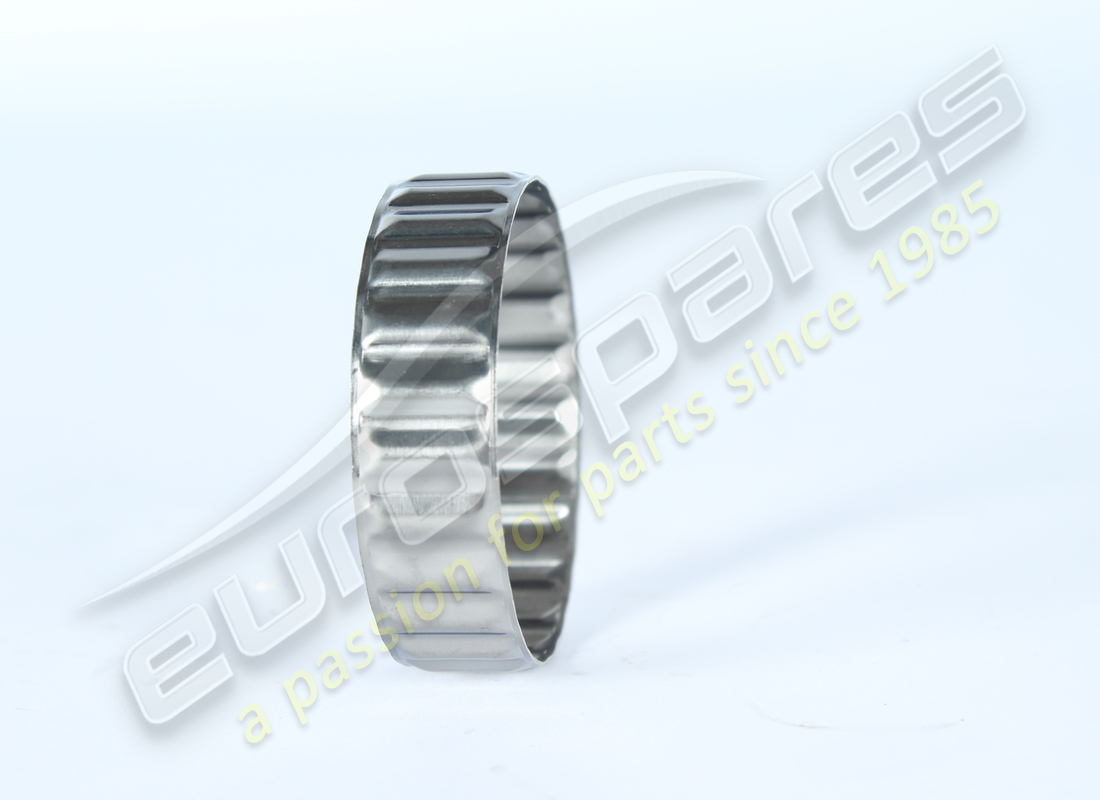

                                                                      COMPENSATOR RING
                                                                      from £3.29
                                                                      from £3.29
                                                                      # 003
                                                                      MPN: 154535
                                                                      BUSHING
                                                                      from £188.30
                                                                      from £188.30
                                                                      # 004
                                                                      MPN: 154037
                                                                      GASKET
                                                                      from £16.61
                                                                      from £16.61
                                                                      # 005
                                                                      MPN: 154719
                                                                      GASKET
                                                                      from £20.91
                                                                      from £20.91
                                                                      # 006
                                                                      MPN: 13516824
                                                                      STUD
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 13516821
                                                                      # 007
                                                                      MPN: 12604479
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      # 008
                                                                      MPN: 133215
                                                                      NUT
                                                                      Supersession
                                                                      Supersession
                                                                      This part replaces part number 64342800
                                                                      # 009
                                                                      MPN: 149649
                                                                      RECOVERY SUCTION PIPE
                                                                      from £137.84
                                                                      from £137.84
                                                                      # 010
                                                                      MPN: 133938
                                                                      GASKET
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 011
                                                                      MPN: 149650
                                                                      OIL SUCTION FILTER
                                                                      from £34.53
                                                                      from £34.53
                                                                      # 012
                                                                      MPN: 123475
                                                                      GASKET
                                                                      from £1.90
                                                                      from £1.90
                                                                      # 013
                                                                      MPN: 13454034
                                                                      STUD
                                                                      from £7.83
                                                                      from £7.83
                                                                      # 014
                                                                      MPN: 13454234
                                                                      STUD
                                                                      from £7.83
                                                                      from £7.83
                                                                      # 015
                                                                      MPN: 12642424
                                                                      WASHER
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 016
                                                                      MPN: 104114
                                                                      NUT
                                                                      Supersession
                                                                      Supersession
                                                                      This part replaces part number 15503711 - and 1 more. Click to view details
                                                                      # 017
                                                                      MPN: 161139
                                                                      CENTERING DOWEL
                                                                      from £2.38
                                                                      from £2.38
                                                                      # 018
                                                                      MPN: 13540724
                                                                      STUD
                                                                      from £0.48
                                                                      from £0.48
                                                                      This part replaces part number 13540721
                                                                      # 019
                                                                      MPN: 149513

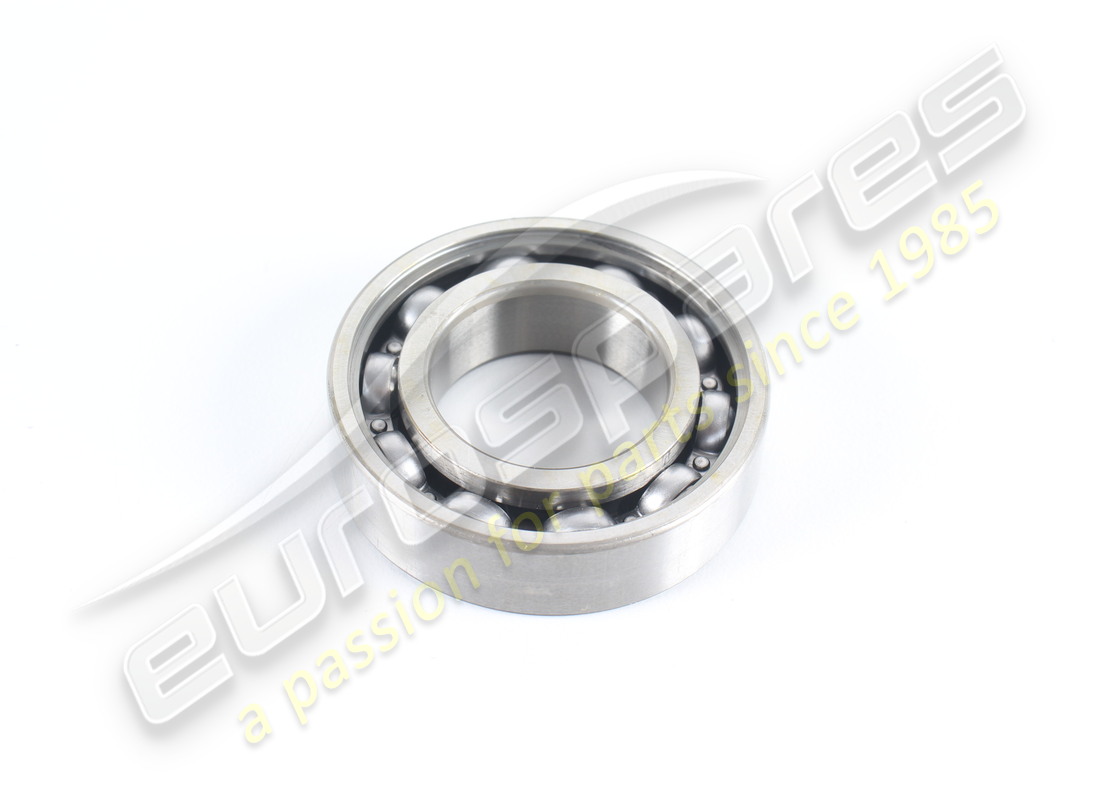

                                                                      BEARING
                                                                      from £5.99
                                                                      from £5.99
                                                                      # 020
                                                                      MPN: 11060276
                                                                      SEEGER RING
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 021
                                                                      MPN: 154390
                                                                      BEARING
                                                                      from £5.09
                                                                      from £5.09
                                                                      # 022
                                                                      MPN: 154393
                                                                      GASKET
                                                                      from £7.43
                                                                      from £7.43
                                                                      # 023
                                                                      MPN: 154391
                                                                      FRONT SUMP COVER
                                                                      from £298.54
                                                                      from £298.54
                                                                      # 024
                                                                      MPN: 154750
                                                                      GASKET
                                                                      from £11.71
                                                                      from £11.71
                                                                      # 025
                                                                      MPN: 12601274
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                      # 026
                                                                      MPN: 10725914
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 10725911 - and 1 more. Click to view details
                                                                      # 027
                                                                      MPN: 154757
                                                                      GASKET
                                                                      from £0.74
                                                                      from £0.74
                                                                      # 028
                                                                      MPN: 156924
                                                                      COVER
                                                                      from £137.64
                                                                      from £137.64
                                                                      # 029
                                                                      MPN: 11181874
                                                                      WASHER
                                                                      from £0.51
                                                                      from £0.51
                                                                      # 030
                                                                      MPN: 10977524
                                                                      SCREW
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 031
                                                                      MPN: 163995
                                                                      GASKET
                                                                      Supersession
                                                                      Supersession
                                                                      # 032
                                                                      MPN: 10275011
                                                                      PLUG
                                                                      from £1.05
                                                                      from £1.05
                                                                      This part replaces part number 10275001 - and 3 more. Click to view details
                                                                      # 033
                                                                      MPN: 10261860
                                                                      GASKET
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 10279550 - and 1 more. Click to view details
                                                                      # 034
                                                                      MPN: 134041
                                                                      NUT
                                                                      from £0.57
                                                                      from £0.57
                                                                      This part replaces part number 15896221
                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
