020 - Oil-Water Pump - Body and Accessories

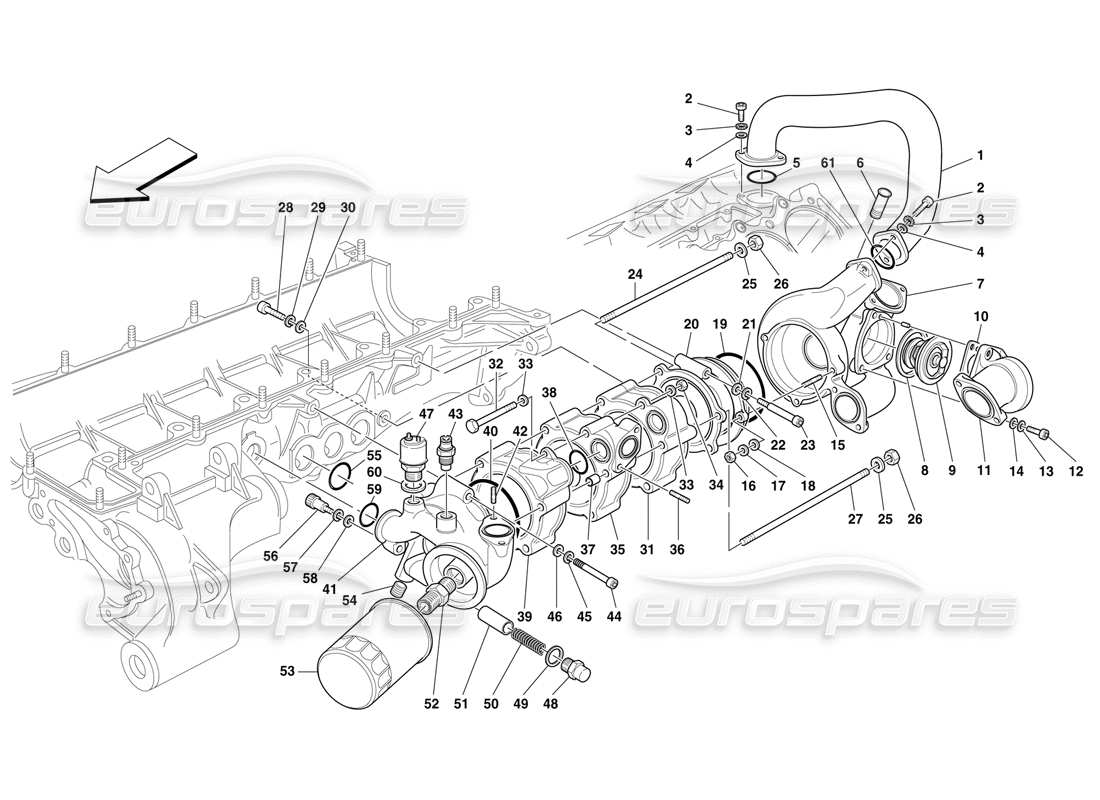

Ferrari F50 Oil-Water Pump - Body and Accessories Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 162829
WATER DELIVERY TUBE TO CRANKCASE
from £287.60
from £287.60
# 002
MPN: 14305224
SCREW
from £0.47
from £0.47
# 003
MPN: 12605374
WASHER
from £0.71
from £0.71
This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
# 004
MPN: 12639724
WASHER
from £0.47
from £0.47
This part replaces part number 12639725 - and 1 more. Click to view details
# 005
MPN: 154191
GASKET
from £0.77
from £0.77
# 006
MPN: 141068
UNION
from £120.06
from £120.06
# 007
MPN: 164339
WATER PUMP BODY
from £1,176.30
from £1,176.30
# 008
MPN: 137873
GASKET
from £2.86
from £2.86
# 009
MPN: 168200

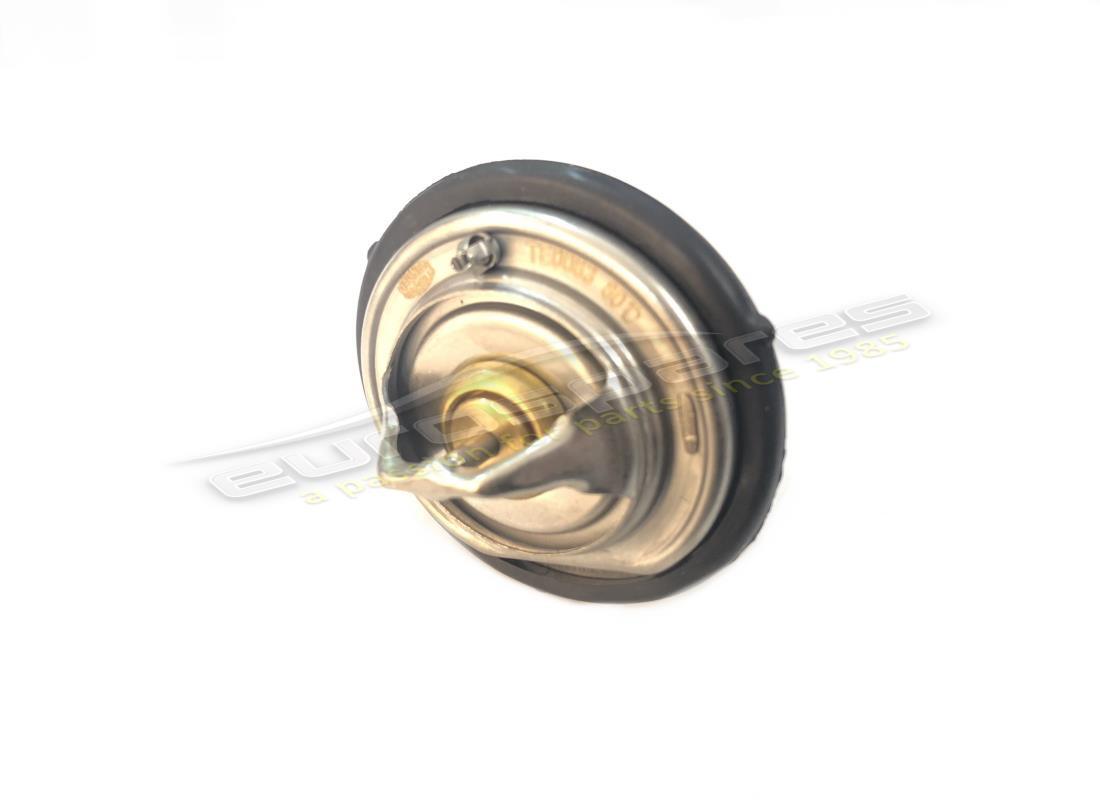

THERMOSTAT
from £153.09
from £153.09
This part replaces part number 137889
# 010
MPN: 164493
GASKET
from £16.62
from £16.62
# 011
MPN: 164424
THERMOSTATIC VALVE COVER
from £401.28
from £401.28
# 012
MPN: 14432224
SCREW
from £0.47
from £0.47
This part replaces part number 14432221
# 013
MPN: 12605374
WASHER
from £0.71
from £0.71
This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
# 014
MPN: 12639724
WASHER
from £0.47
from £0.47
This part replaces part number 12639725 - and 1 more. Click to view details
# 015
MPN: 13540924
STUD
from £0.70
from £0.70
This part replaces part number 13540921
# 016
MPN: 10720121
NUT
- As an alternative
from £0.93
from £0.93
# 016
MPN: 132877
NUT
from £1.54
from £1.54
This part replaces part number 67190100
# 017
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 018
MPN: 12604274
WASHER
from £0.47
from £0.47
This part replaces part number 12604271 - and 1 more. Click to view details
# 019
MPN: 161619
GASKET
from £7.88
from £7.88
# 020
MPN: 164360
PUMPS INTERMEDIATE BODY
from £595.97
from £595.97
# 021
MPN: 106352
WASHER
from £0.47
from £0.47
# 022
MPN: 10569474
WASHER
from £0.47
from £0.47
# 023
MPN: 149537
SCREW
from £3.75
from £3.75
# 024
MPN: 149769
STUD
from £51.36
from £51.36
# 025
MPN: 12604474
WASHER
from £0.47
from £0.47
This part replaces part number 12604479 which we have in stock
# 026
MPN: 133215
NUT
from £3.05
from £3.05
This part replaces part number 64342800
# 027
MPN: 149768
STUD
from £51.36
from £51.36
# 028
MPN: 14306624
SCREW
from £0.47
from £0.47
This part replaces part number 14306621
# 029
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 030
MPN: 12604474
WASHER
from £0.47
from £0.47
This part replaces part number 12604479 which we have in stock
# 031
MPN: 155048
RH RECOVERY OIL PUMP BODY
from £950.42
from £950.42
# 032
MPN: 10901924
SCREW
Supersession
Supersession
# 033
MPN: 12604274
WASHER
from £0.47
from £0.47
This part replaces part number 12604271 - and 1 more. Click to view details
# 034
MPN: 132877
NUT
from £1.54
from £1.54
This part replaces part number 67190100
# 035
MPN: 155083
CENTRAL RECOVERY OIL PUMP BODY
from £1,028.58
from £1,028.58
# 036
MPN: 11500224
STUD
from £0.51
from £0.51
This part replaces part number 11500221 - and 1 more. Click to view details
# 037
MPN: 102032
CENTERING DOWEL
from £2.05
from £2.05
This part replaces part number 4146789
# 038
MPN: 167135
GASKET
from £1.08
from £1.08
# 039
MPN: 155049
LH RECOVERY OIL PUMP BODY
from £960.51
from £960.51
# 040
MPN: 150302
GASKET
from £1.21
from £1.21
# 041
MPN: 160566
DELIVERY OIL PUMP BODY
from £1,475.74
from £1,475.74
# 042
MPN: 11500224
STUD
from £0.51
from £0.51
This part replaces part number 11500221 - and 1 more. Click to view details
# 043
MPN: 104628
TEMPERATURE SENDER UNIT
from £31.50
from £31.50
This part replaces part number 4108672 - and 3 more. Click to view details
# 044
MPN: 14359324
SCREW
from £0.53
from £0.53
# 045
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 046
MPN: 12604474
WASHER
from £0.47
from £0.47
This part replaces part number 12604479 which we have in stock
# 048
MPN: 129322
PLUG
from £2.70
from £2.70
# 049
MPN: 10257460
GASKET
from £0.47
from £0.47
This part replaces part number 94702
# 050
MPN: 137614
SPRING
from £30.56
from £30.56
# 051
MPN: 160705
REGISTER
from £47.24
from £47.24
# 052
MPN: 160505
UNION
from £45.69
from £45.69
# 053
MPN: 197654
OIL FILTER
from £26.64
from £26.64
This part replaces part number 191462
# 054
MPN: 10269650
PLUG
from £1.25
from £1.25
# 055
MPN: 111000
GASKET
from £0.61
from £0.61
# 056
MPN: 149538
SCREW
from £2.75
from £2.75
# 057
MPN: 10569474
WASHER
from £0.47
from £0.47
# 058
MPN: 106352
WASHER
from £0.47
from £0.47
# 059
MPN: 162517
GASKET
from £2.90
from £2.90
# 060
MPN: 10259960
GASKET
from £0.47
from £0.47
This part replaces part number 95017
# 061
MPN: 152054
GASKET
from £1.52
from £1.52
