023 - Lubrication System - Radiator, Blow-By System and Pipes

Ferrari F50 Lubrication System - Radiator, Blow-By System and Pipes Parts Diagram

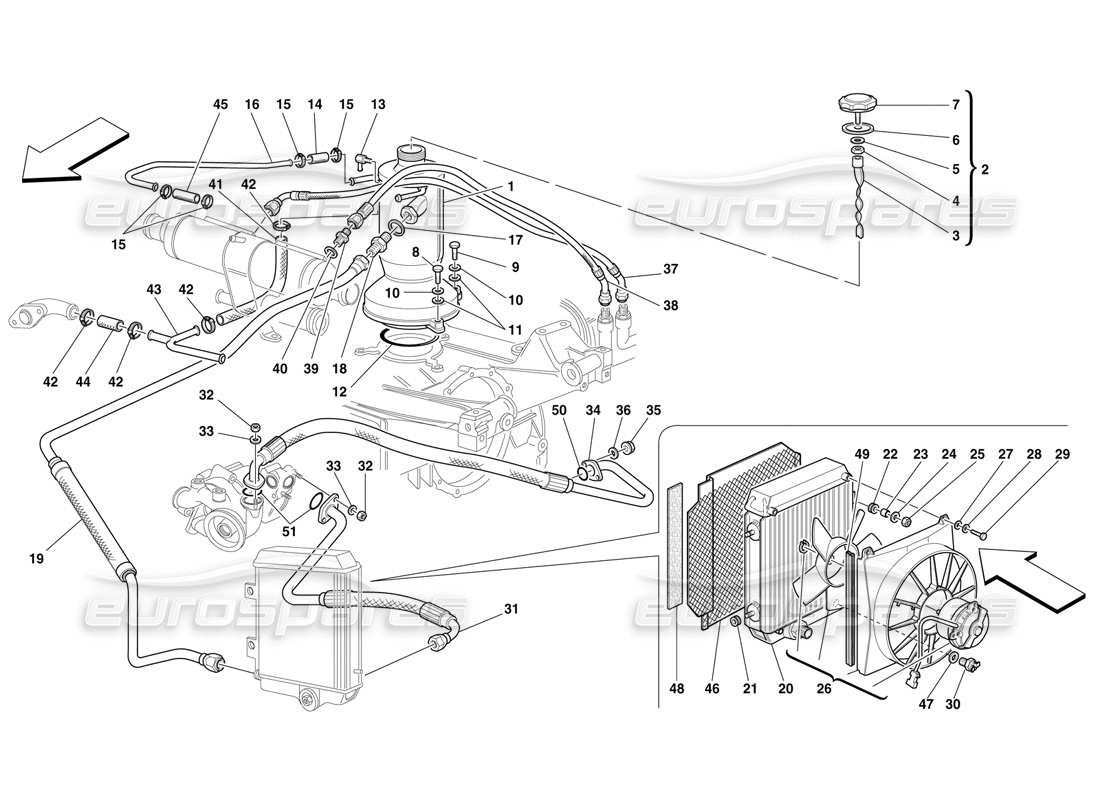

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                        #
                                                                                                        Part number
                                                                                                        Description
                                                                                                        Price
                                                                                                        # 001
                                                                                                        MPN: 167898

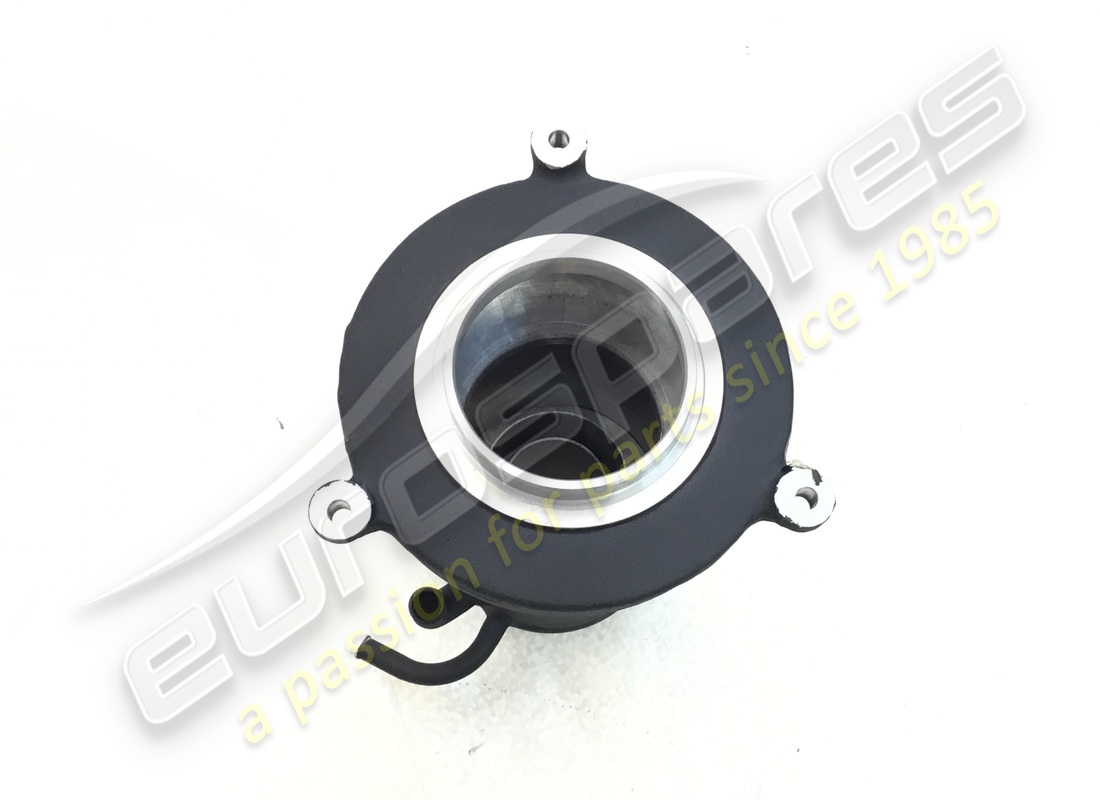

                                                                                                        AIR OIL DISAREATOR
                                                                                                        from £1,946.30
                                                                                                        from £1,946.30
                                                                                                        # 002
                                                                                                        MPN: 165171
                                                                                                        COMPLETE OIL LEVEL ROD
                                                                                                        from £191.22
                                                                                                        from £191.22
                                                                                                        # 003
                                                                                                        MPN: 167052
                                                                                                        OIL LEVEL ROD
                                                                                                        from £171.19
                                                                                                        from £171.19
                                                                                                        # 004
                                                                                                        MPN: 100861
                                                                                                        NUT
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        This part replaces part number 100862 which we have in stock
                                                                                                        # 005
                                                                                                        MPN: 12603874
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        # 006
                                                                                                        MPN: 145625
                                                                                                        GASKET
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 007
                                                                                                        MPN: 153928
                                                                                                        OIL PLUG
                                                                                                        from £85.60
                                                                                                        from £85.60
                                                                                                        # 008
                                                                                                        MPN: 16043824
                                                                                                        SCREW
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        This part replaces part number 16043821
                                                                                                        # 009
                                                                                                        MPN: 167171
                                                                                                        SCREW
                                                                                                        from £15.00
                                                                                                        from £15.00
                                                                                                        # 010
                                                                                                        MPN: 12034574
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        # 011
                                                                                                        MPN: 12638504
                                                                                                        WASHER
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 012
                                                                                                        MPN: 161619
                                                                                                        GASKET
                                                                                                        from £7.88
                                                                                                        from £7.88
                                                                                                        # 013
                                                                                                        MPN: 128016
                                                                                                        UNION
                                                                                                        from £5.52
                                                                                                        from £5.52
                                                                                                        # 014
                                                                                                        MPN: 165557
                                                                                                        RUBBER HOSE
                                                                                                        from £30.00
                                                                                                        from £30.00
                                                                                                        This part replaces part number 163899
                                                                                                        # 015
                                                                                                        MPN: 13000390
                                                                                                        SCREW COLLAR
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                                        # 016
                                                                                                        MPN: 145471
                                                                                                        PIPE FROM LH AIRCHAMBERS
                                                                                                        from £192.26
                                                                                                        from £192.26
                                                                                                        # 016
                                                                                                        MPN: 163067
                                                                                                        PIPE FROM RH AIRCHAMBERS
                                                                                                        from £203.28
                                                                                                        from £203.28
                                                                                                        # 018
                                                                                                        MPN: 162767
                                                                                                        UNION
                                                                                                        from £21.80
                                                                                                        from £21.80
                                                                                                        # 019
                                                                                                        MPN: 162799
                                                                                                        HOSE FROM RADIATOR TO SEPARETOR
                                                                                                        from £1,606.17
                                                                                                        from £1,606.17
                                                                                                        # 020
                                                                                                        MPN: 159976
                                                                                                        OIL RADIATOR
                                                                                                        from £1,069.83
                                                                                                        from £1,069.83
                                                                                                        # 021
                                                                                                        MPN: 103549
                                                                                                        CABLE GROMMET
                                                                                                        from £0.70
                                                                                                        from £0.70
                                                                                                        # 022
                                                                                                        MPN: 64164400
                                                                                                        SMALL BLOCK
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        # 023
                                                                                                        MPN: 64164500
                                                                                                        SPACER
                                                                                                        from £0.71
                                                                                                        from £0.71
                                                                                                        # 024
                                                                                                        MPN: 12640624
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 12640601 - and 1 more. Click to view details
                                                                                                        # 025
                                                                                                        MPN: 102948
                                                                                                        NUT
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                                        # 026
                                                                                                        MPN: 161726

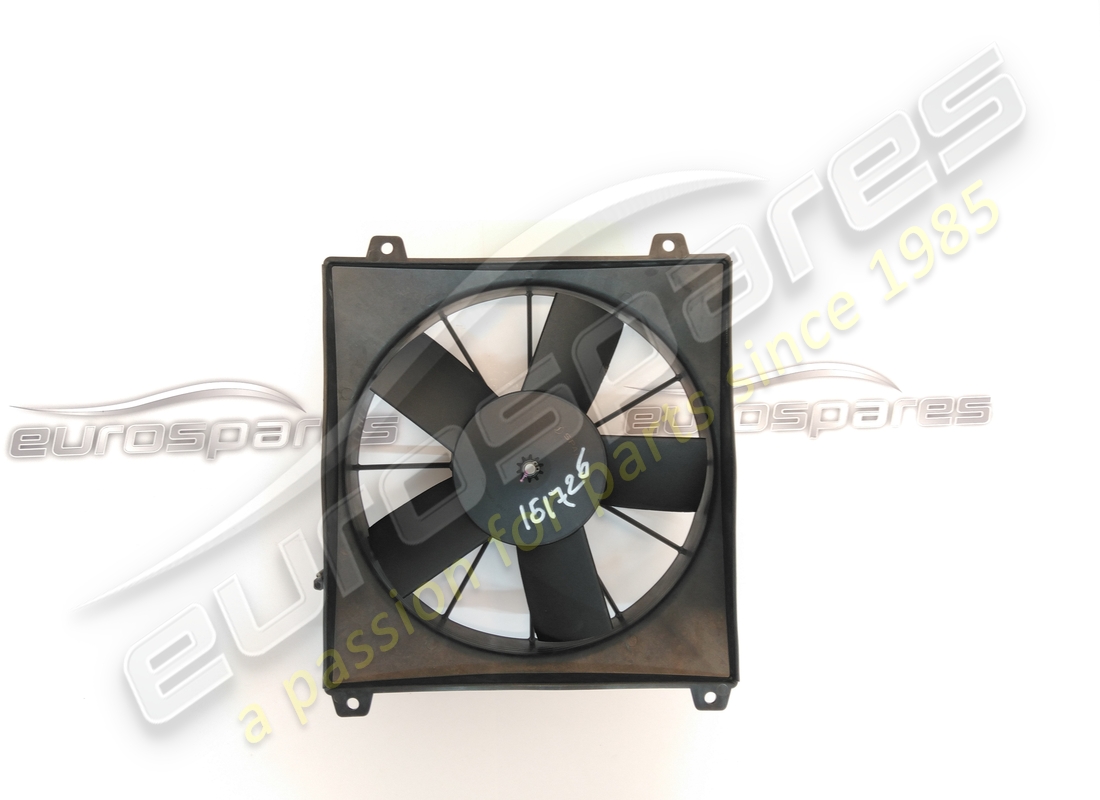

                                                                                                        COMPLETE ELECTROFAN
                                                                                                        from £236.25
                                                                                                        from £236.25
                                                                                                        # 027
                                                                                                        MPN: 12639724
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 12639725 - and 1 more. Click to view details
                                                                                                        # 028
                                                                                                        MPN: 10615474
                                                                                                        WASHER
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        This part replaces part number 10615470 - and 3 more. Click to view details
                                                                                                        # 029
                                                                                                        MPN: 11635721
                                                                                                        SCREW
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        # 030
                                                                                                        MPN: 167475
                                                                                                        TEMPERATURE SWITCH
                                                                                                        from £11.07
                                                                                                        from £11.07
                                                                                                        # 031
                                                                                                        MPN: 162824
                                                                                                        TUBE TO RIADIATOR
                                                                                                        from £1,614.47
                                                                                                        from £1,614.47
                                                                                                        # 032
                                                                                                        MPN: 132877
                                                                                                        NUT
                                                                                                        from £1.54
                                                                                                        from £1.54
                                                                                                        This part replaces part number 67190100
                                                                                                        # 033
                                                                                                        MPN: 12639704
                                                                                                        WASHER
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 034
                                                                                                        MPN: 162827
                                                                                                        PIPE FROM TANK TO PUMP
                                                                                                        from £1,115.08
                                                                                                        from £1,115.08
                                                                                                        # 035
                                                                                                        MPN: 16100921
                                                                                                        NUT
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        # 036
                                                                                                        MPN: 12604479
                                                                                                        WASHER
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 037
                                                                                                        MPN: 163631
                                                                                                        OIL RETURN TUBE
                                                                                                        from £553.41
                                                                                                        from £553.41
                                                                                                        # 038
                                                                                                        MPN: 163630
                                                                                                        OIL DELIVERY TUBE
                                                                                                        from £568.54
                                                                                                        from £568.54
                                                                                                        # 039
                                                                                                        MPN: 134988
                                                                                                        UNION
                                                                                                        from £18.89
                                                                                                        from £18.89
                                                                                                        # 040
                                                                                                        MPN: 10257060
                                                                                                        GASKET
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                                        # 041
                                                                                                        MPN: 166939
                                                                                                        PIPE
                                                                                                        from £39.48
                                                                                                        from £39.48
                                                                                                        # 042
                                                                                                        MPN: 13000490
                                                                                                        SCREW COLLAR
                                                                                                        from £0.50
                                                                                                        from £0.50
                                                                                                        This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                                        # 043
                                                                                                        MPN: 163069
                                                                                                        3 WAY VENT PIPE
                                                                                                        from £83.10
                                                                                                        from £83.10
                                                                                                        # 044
                                                                                                        MPN: 166940
                                                                                                        SLEEVE
                                                                                                        from £62.43
                                                                                                        from £62.43
                                                                                                        # 045
                                                                                                        MPN: 168456
                                                                                                        RUBBER HOSE
                                                                                                        from £2.93
                                                                                                        from £2.93
                                                                                                        # 046
                                                                                                        MPN: 64690300
                                                                                                        RADIATOR PROTECTION NET
                                                                                                        from £101.92
                                                                                                        from £101.92
                                                                                                        # 047
                                                                                                        MPN: 10280060
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 100501 - and 3 more. Click to view details
                                                                                                        # 048
                                                                                                        MPN: 62765800
                                                                                                        ANTI VIBRATIONS
                                                                                                        from £0.69
                                                                                                        from £0.69
                                                                                                        # 049
                                                                                                        MPN: 167405
                                                                                                        GASKET
                                                                                                        from £1.51
                                                                                                        from £1.51
                                                                                                        # 050
                                                                                                        MPN: 153628
                                                                                                        GASKET
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        # 051
                                                                                                        MPN: 148225
                                                                                                        GASKET
                                                                                                        from £0.53
                                                                                                        from £0.53
