024 - Cooling - Nourice, Heat Exchanger and Pipes

Ferrari F50 Cooling - Nourice, Heat Exchanger and Pipes Parts Diagram

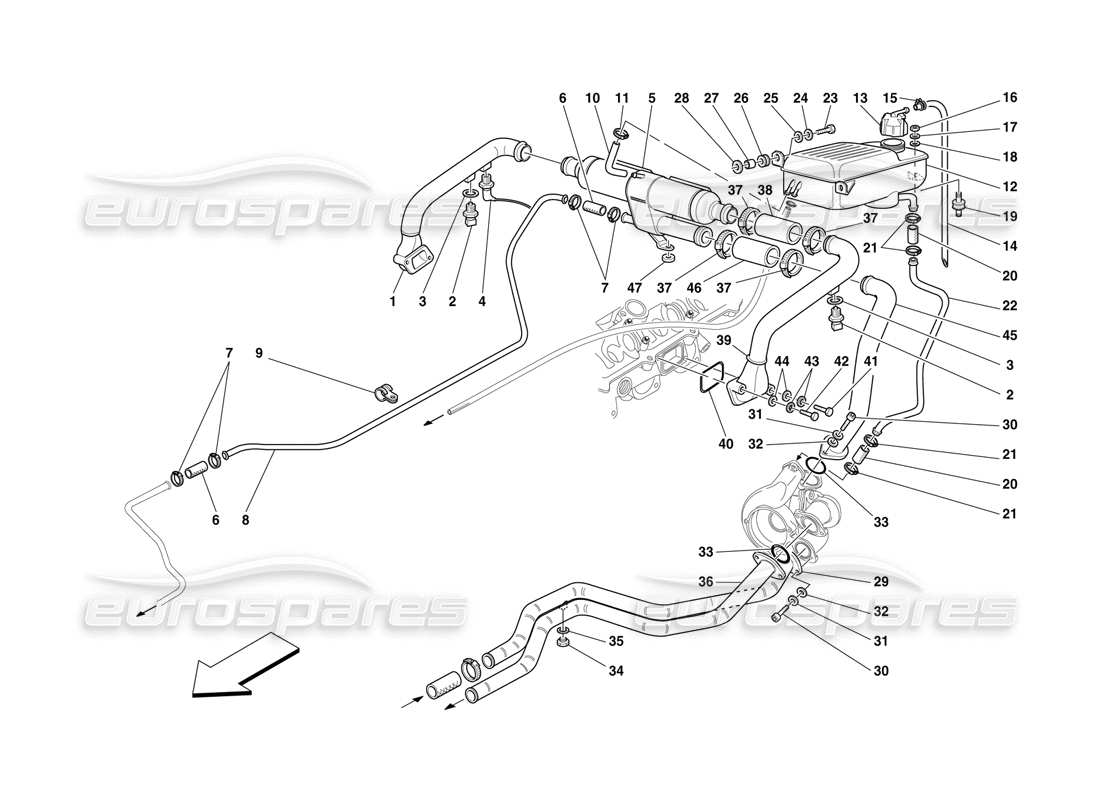

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 001
                                                                                          MPN: 160978

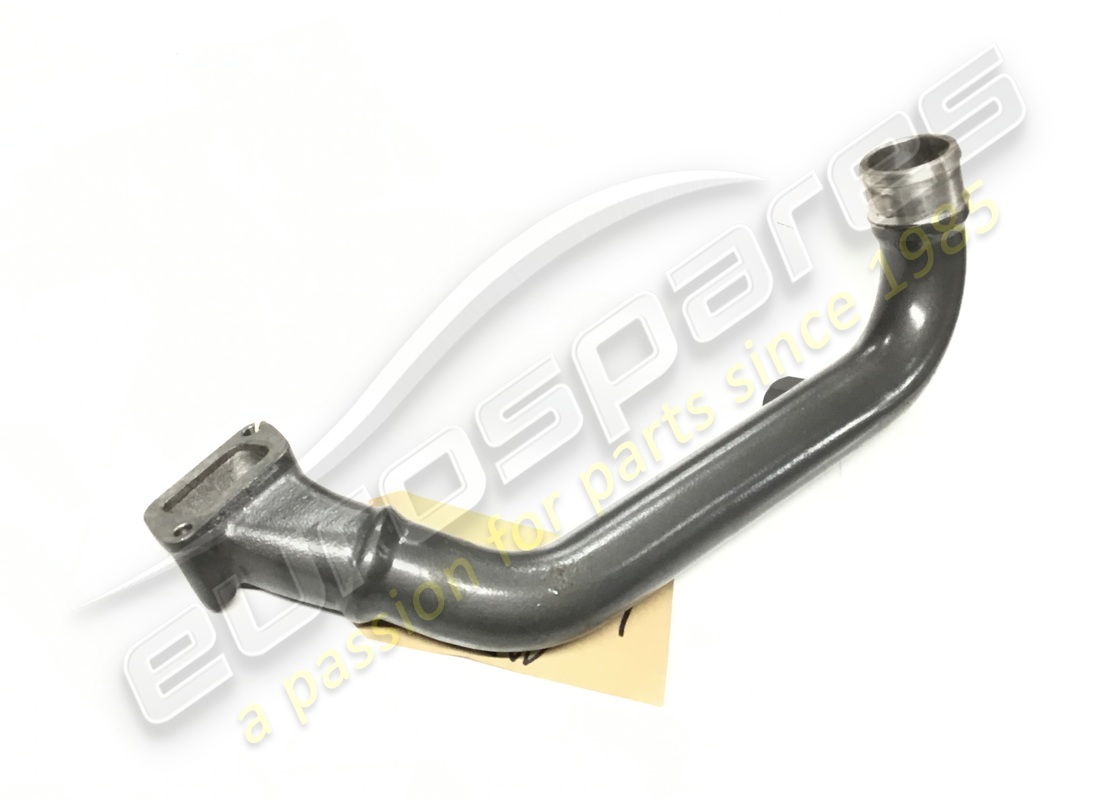

                                                                                          RH WATER OUTLET PIPE
                                                                                          from £407.43
                                                                                          from £407.43
                                                                                          # 002
                                                                                          MPN: 125769
                                                                                          WATER TEMPERATURE SENSOR
                                                                                          from £17.50
                                                                                          from £17.50
                                                                                          # 003
                                                                                          MPN: 10296160

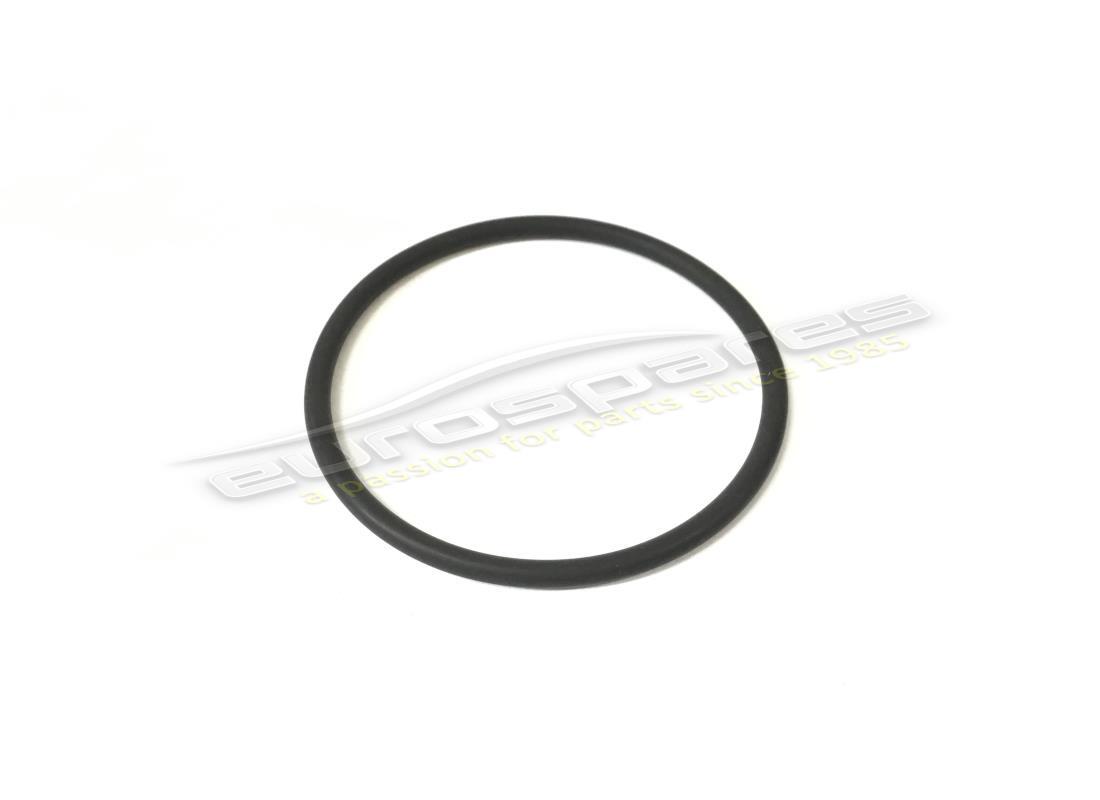

                                                                                          GASKET
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 004
                                                                                          MPN: 104628
                                                                                          TEMPERATURE SENDER UNIT
                                                                                          from £31.50
                                                                                          from £31.50
                                                                                          This part replaces part number 4108672 - and 3 more. Click to view details
                                                                                          # 005
                                                                                          MPN: 165957
                                                                                          HEAT EXCHANGER
                                                                                          from £3,714.59
                                                                                          from £3,714.59
                                                                                          # 006
                                                                                          MPN: 64774300
                                                                                          SHORT SLEEVE
                                                                                          from £26.36
                                                                                          from £26.36
                                                                                          # 007
                                                                                          MPN: 13000390
                                                                                          SCREW COLLAR
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                          # 008
                                                                                          MPN: 153778
                                                                                          PIPE FROM HEAT EXCHANGER
                                                                                          from £160.88
                                                                                          from £160.88
                                                                                          # 009
                                                                                          MPN: 10441690
                                                                                          BRACKET WITH SHEATH
                                                                                          - Not as spare part now for F50 now - Replaced by 10450490
                                                                                          from £1.08
                                                                                          from £1.08
                                                                                          This part replaces part number 1044690
                                                                                          # 009
                                                                                          MPN: 10450490
                                                                                          BRACKET WITH SHEATH
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 010
                                                                                          MPN: 160898
                                                                                          PIPE FROM HEAT EXCHANGER TO TANK
                                                                                          from £203.63
                                                                                          from £203.63
                                                                                          # 011
                                                                                          MPN: 13000190
                                                                                          SCREW COLLAR
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          This part replaces part number 12178990 - and 1 more. Click to view details
                                                                                          # 012
                                                                                          MPN: 166699
                                                                                          TANK FOR WATER RADIATOR
                                                                                          from £287.60
                                                                                          from £287.60
                                                                                          # 014
                                                                                          MPN: 156082
                                                                                          RUBBER PIPE
                                                                                          from £97.45
                                                                                          from £97.45
                                                                                          # 015
                                                                                          MPN: 13423171
                                                                                          ELASTIC COLLAR
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          # 016
                                                                                          MPN: 15896414
                                                                                          NUT
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          This part replaces part number 15896411
                                                                                          # 017
                                                                                          MPN: 12605274
                                                                                          WASHER
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          This part replaces part number 12605270 - and 1 more. Click to view details
                                                                                          # 018
                                                                                          MPN: 14496377
                                                                                          WASHER
                                                                                          from £1.07
                                                                                          from £1.07
                                                                                          This part replaces part number 14496309
                                                                                          # 019
                                                                                          MPN: 148835
                                                                                          PAD
                                                                                          from £7.76
                                                                                          from £7.76
                                                                                          # 020
                                                                                          MPN: 167347
                                                                                          RUBBER PIPE
                                                                                          from £10.67
                                                                                          from £10.67
                                                                                          # 021
                                                                                          MPN: 13000490
                                                                                          SCREW COLLAR
                                                                                          from £0.51
                                                                                          from £0.51
                                                                                          This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                          # 022
                                                                                          MPN: 155434
                                                                                          PIPE FROM TANK TO WATER PUMP
                                                                                          from £59.91
                                                                                          from £59.91
                                                                                          # 023
                                                                                          MPN: 10902424
                                                                                          SCREW
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          This part replaces part number 10902324 - and 3 more. Click to view details
                                                                                          # 024
                                                                                          MPN: 12605374
                                                                                          WASHER
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
                                                                                          # 025
                                                                                          MPN: 12639724
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12639725 - and 1 more. Click to view details
                                                                                          # 026
                                                                                          MPN: 103549
                                                                                          CABLE GROMMET
                                                                                          from £0.70
                                                                                          from £0.70
                                                                                          # 027
                                                                                          MPN: 103550
                                                                                          SPACER
                                                                                          from £1.94
                                                                                          from £1.94
                                                                                          This part replaces part number 4130913
                                                                                          # 028
                                                                                          MPN: 12643724
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 109684 - and 4 more. Click to view details
                                                                                          # 029
                                                                                          MPN: 154841
                                                                                          HOSE FROM RADIATOR TO WATER PUMP
                                                                                          from £233.35
                                                                                          from £233.35
                                                                                          # 030
                                                                                          MPN: 14305224
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 031
                                                                                          MPN: 12605374
                                                                                          WASHER
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
                                                                                          # 032
                                                                                          MPN: 12639724
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12639725 - and 1 more. Click to view details
                                                                                          # 033
                                                                                          MPN: 152054
                                                                                          GASKET
                                                                                          from £1.52
                                                                                          from £1.52
                                                                                          # 034
                                                                                          MPN: 139603
                                                                                          PLUG
                                                                                          from £7.79
                                                                                          from £7.79
                                                                                          # 035
                                                                                          MPN: 100317
                                                                                          GASKET
                                                                                          (minimum order quantity = 10)
                                                                                          from £0.61
                                                                                          from £0.61
                                                                                          # 036
                                                                                          MPN: 154846
                                                                                          TUBE TO RIADIATOR
                                                                                          from £137.07
                                                                                          from £137.07
                                                                                          # 037
                                                                                          MPN: 296782
                                                                                          SCREW COLLAR
                                                                                          from £4.99
                                                                                          from £4.99
                                                                                          This part replaces part number 12174090
                                                                                          # 038
                                                                                          MPN: 164498
                                                                                          RUBBER PIPE
                                                                                          - Not as spare part now - Replaced by 168231
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 038
                                                                                          MPN: 168231
                                                                                          RUBBER PIPE
                                                                                          from £258.92
                                                                                          from £258.92
                                                                                          This part replaces part number 164498
                                                                                          # 039
                                                                                          MPN: 160981
                                                                                          LH WATER OUTLET PIPE
                                                                                          from £380.28
                                                                                          from £380.28
                                                                                          # 040
                                                                                          MPN: 154140
                                                                                          GASKET
                                                                                          from £59.79
                                                                                          from £59.79
                                                                                          This part replaces part number 157785
                                                                                          # 041
                                                                                          MPN: 10902524
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 042
                                                                                          MPN: 10903224
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 10903221
                                                                                          # 043
                                                                                          MPN: 10615474
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 10615470 - and 3 more. Click to view details
                                                                                          # 044
                                                                                          MPN: 12639724
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12639725 - and 1 more. Click to view details
                                                                                          # 045
                                                                                          MPN: 162831
                                                                                          PIPE FROM HEAT EXCHANGER TO WATER PUMP
                                                                                          from £305.27
                                                                                          from £305.27
                                                                                          # 046
                                                                                          MPN: 168232
                                                                                          RUBBER PIPE
                                                                                          from £50.03
                                                                                          from £50.03
                                                                                          # 046
                                                                                          MPN: 168232
                                                                                          RUBBER PIPE
                                                                                          from £50.03
                                                                                          from £50.03
                                                                                          # 047
                                                                                          MPN: 169216
                                                                                          BUSHING
                                                                                          from £4.04
                                                                                          from £4.04
