029 - Rear Part Gearboxes Housing - Covers and Lubrication

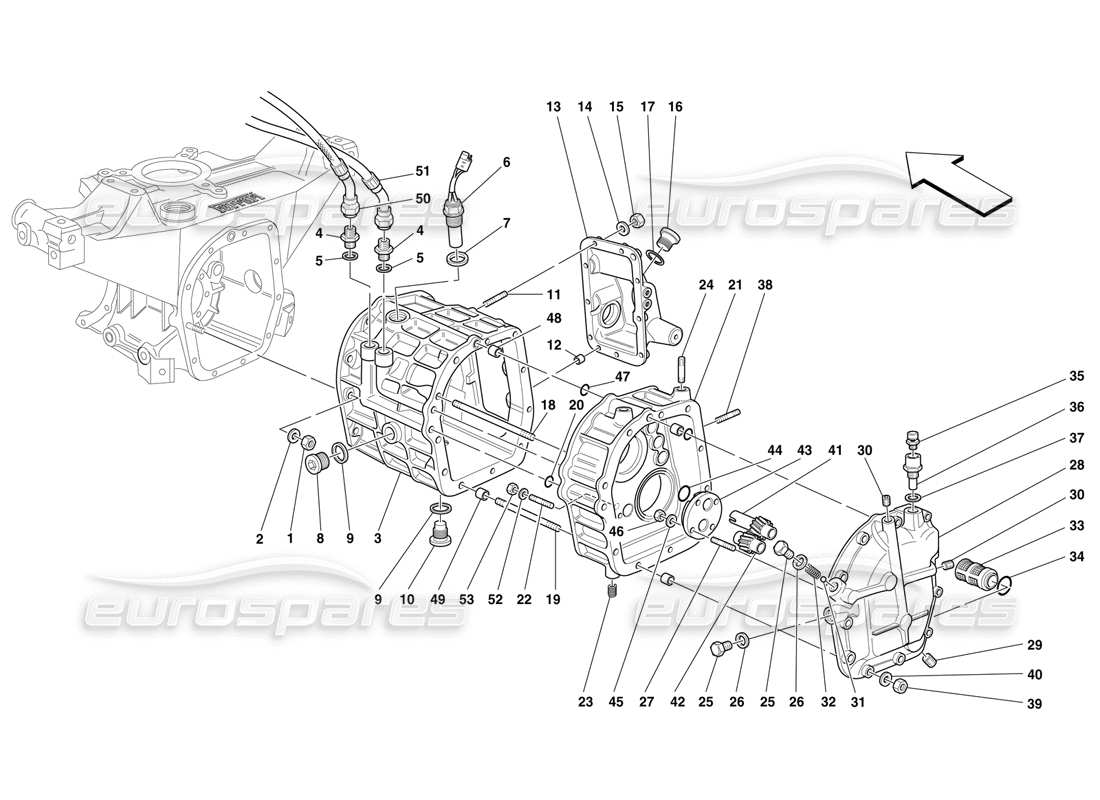

Ferrari F50 Rear Part Gearboxes Housing - Covers and Lubrication Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 156787
GEARBOXES ASSEMBLY
from £14,916.93
from £14,916.93
This part replaces part number 155098 - and 2 more. Click to view details
# 001
MPN: 16100824
NUT
from £0.50
from £0.50
This part replaces part number 16100814 - and 1 more. Click to view details
# 002
MPN: 12601374
WASHER
from £0.52
from £0.52
This part replaces part number 10615474 - and 6 more. Click to view details
# 003
MPN: 155397
GEARBOX
- Not as spare part - With the assembly 156787
Supersession
Supersession
# 004
MPN: 134988
UNION
from £18.81
from £18.81
# 005
MPN: 145192
GASKET
from £9.95
from £9.95
This part replaces part number 143311
# 006
MPN: 150830

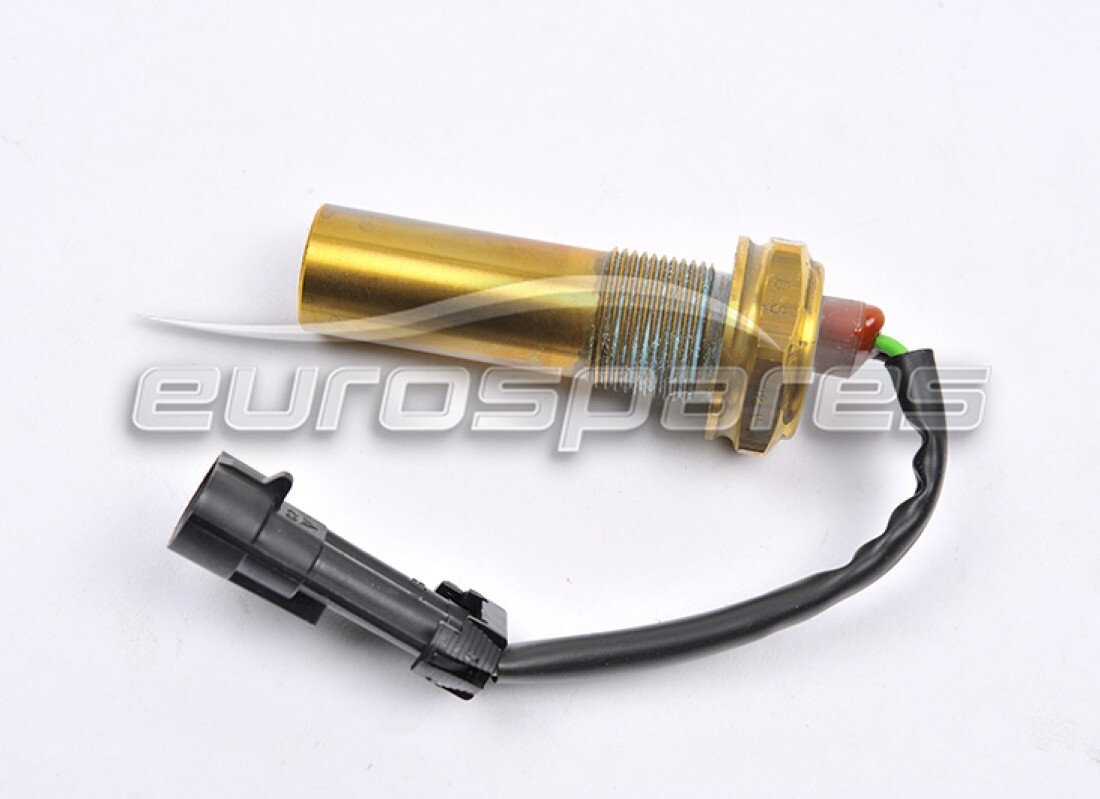

PULSE SENSOR
from £323.61
from £323.61
# 007
MPN: 144810
GASKET
from £13.16
from £13.16
# 008
MPN: 10275011
PLUG
from £1.08
from £1.08
This part replaces part number 10275001 - and 3 more. Click to view details
# 009
MPN: 144810
GASKET
from £13.16
from £13.16
# 010
MPN: 104280
MAGNETIC PLUG
from £4.95
from £4.95
This part replaces part number 523977
# 011
MPN: 11500424
STUD
from £0.48
from £0.48
This part replaces part number 11500421
# 012
MPN: 125717
CENTERING DOWEL
from £1.55
from £1.55
# 013
MPN: 155620
COVER FOR GEARBOX CONTROL ROD INLET
from £405.86
from £405.86
# 014
MPN: 12601274
WASHER
from £0.51
from £0.51
This part replaces part number 12601221 - and 5 more. Click to view details
# 015
MPN: 15896214
NUT
from £0.53
from £0.53
This part replaces part number 15896211
# 016
MPN: 10275011
PLUG
from £1.08
from £1.08
This part replaces part number 10275001 - and 3 more. Click to view details
# 017
MPN: 144810
GASKET
from £13.34
from £13.34
# 018
MPN: 13970624
STUD
from £1.47
from £1.47
# 019
MPN: 13970724
STUD
from £8.10
from £8.10
# 020
MPN: 134232
GASKET
from £0.65
from £0.65
This part replaces part number 153718 which we have in stock
# 021
MPN: 155283
REVERSE GEARBOX HOUSING
- Not as spare part - With the assembly 156787
Supersession
Supersession
# 022
MPN: 11500124
STUD
from £0.69
from £0.69
This part replaces part number 11500121
# 023
MPN: 13582171
THREADED INSERT
from £0.84
from £0.84
# 024
MPN: 13543824
STUD
from £2.20
from £2.20
This part replaces part number 13543821
# 025
MPN: 145148
PLUG
from £3.53
from £3.53
This part replaces part number 156984
# 026
MPN: 145192
GASKET
from £9.95
from £9.95
This part replaces part number 143311
# 027
MPN: 11500124
STUD
from £0.69
from £0.69
This part replaces part number 11500121
# 028
MPN: 154642
REAR GEARBOX COVER
from £616.72
from £616.72
# 029
MPN: 10269450
THREADED PLUG
from £16.22
from £16.22
# 030
MPN: 14326050
THREADED PLUG
from £0.97
from £0.97
# 031
MPN: 135770
BALL
from £0.54
from £0.54
# 032
MPN: 135771
SPRING
from £2.26
from £2.26
# 033
MPN: 115538
FILTER FOR GEAR BOX OIL PUMP
from £86.85
from £86.85
# 034
MPN: 101034
GASKET
from £1.00
from £1.00
# 035
MPN: 13411990
OIL BREATHER
from £2.39
from £2.39
# 036
MPN: 150954
UNION
from £14.36
from £14.36
# 037
MPN: 145192
GASKET
from £9.95
from £9.95
This part replaces part number 143311
# 038
MPN: 11500124
STUD
from £0.69
from £0.69
This part replaces part number 11500121
# 039
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 040
MPN: 12601374
WASHER
from £0.52
from £0.52
This part replaces part number 10615474 - and 6 more. Click to view details
# 041
MPN: 109722
GEARBOX OIL PUMP DRIVING GEAR
from £1,360.03
from £1,360.03
# 042
MPN: 109723
GEARBOX OIL PUMP DRIVEN GEAR
from £29.76
from £29.76
# 043
MPN: 121962
SMALL COVER
from £107.47
from £107.47
# 044
MPN: 109724
GASKET
from £0.76
from £0.76
# 045
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 046
MPN: 15896214
NUT
from £0.53
from £0.53
This part replaces part number 15896211
# 047
MPN: 132536
GASKET
from £0.80
from £0.80
# 048
MPN: 150957
BUSHING
from £5.39
from £5.39
# 049
MPN: 150961
CENTERING DOWEL
from £23.53
from £23.53
# 050
-
OIL DELIVRY TUBE
- See Table 23 Pos. 38
# 051
-
OIL RETURN TUBE
- See Table 23 Pos. 37
# 052
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 053
MPN: 15896214
NUT
from £0.54
from £0.54
This part replaces part number 15896211
