036 - Front and Rear Brakes Calipers

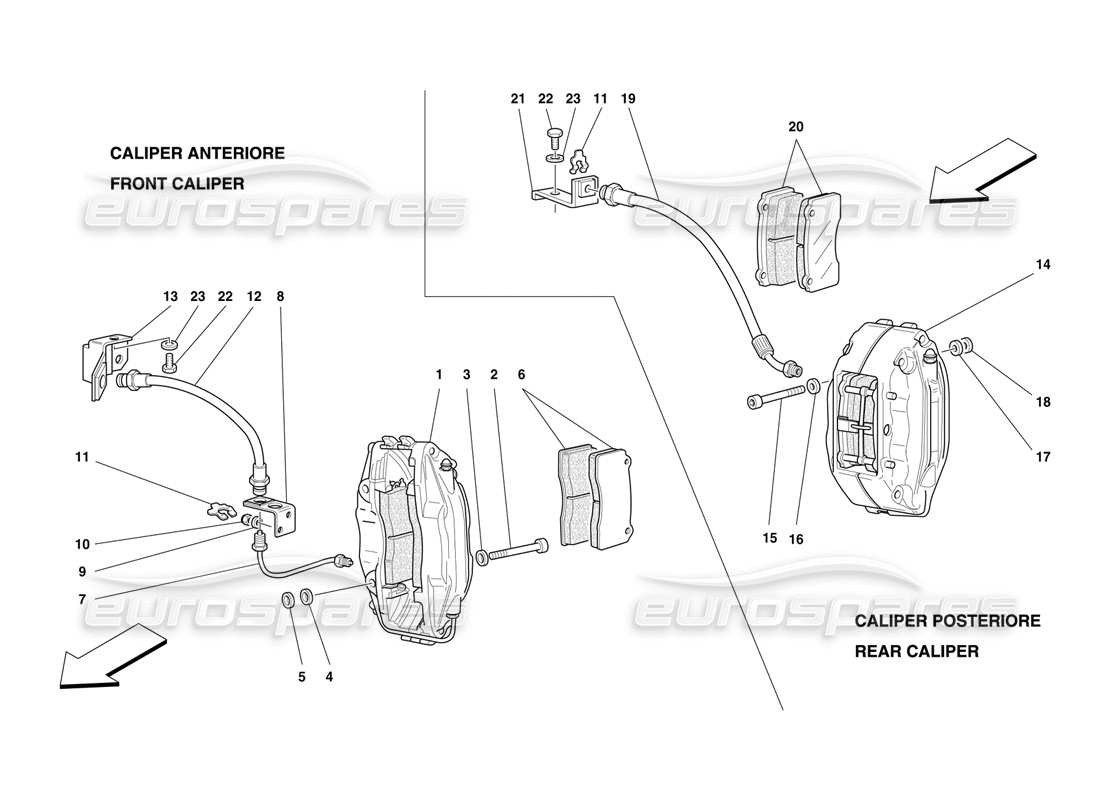

Ferrari F50 Front and Rear Brakes Calipers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 165879
                                          LH FRONT CALIPER UNIT WITH PADS
                                          from £1,163.55
                                          from £1,163.55
                                          # 001
                                          MPN: 165880
                                          RH FRONT CALIPER UNIT WITH PADS
                                          from £1,163.55
                                          from £1,163.55
                                          # 002
                                          MPN: 14332174
                                          SCREW
                                          from £1.97
                                          from £1.97
                                          # 003
                                          MPN: 10569574
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 10569573
                                          # 004
                                          MPN: 146901
                                          WASHER
                                          from £0.54
                                          from £0.54
                                          # 005
                                          MPN: 156260
                                          WASHER TH. MM. 0,2
                                          - As an alternative
                                          from £0.64
                                          from £0.64
                                          This part replaces part number 108918
                                          # 005
                                          MPN: 156261
                                          WASHER TH. MM. 0,3
                                          - As an alternative
                                          from £2.97
                                          from £2.97
                                          This part replaces part number 108919
                                          # 005
                                          MPN: 156262
                                          WASHER TH. MM. 0,5
                                          - As an alternative
                                          from £0.64
                                          from £0.64
                                          This part replaces part number 108920
                                          # 005
                                          MPN: 156263
                                          WASHER TH. MM. 0,6
                                          - As an alternative
                                          from £0.65
                                          from £0.65
                                          This part replaces part number 108921
                                          # 005
                                          MPN: 156264
                                          WASHER TH. MM. 0,7
                                          - As an alternative
                                          from £0.67
                                          from £0.67
                                          This part replaces part number 108922
                                          # 005
                                          MPN: 156265
                                          WASHER TH. MM. 0,8
                                          - As an alternative
                                          from £1.56
                                          from £1.56
                                          This part replaces part number 108923
                                          # 005
                                          MPN: 156266
                                          WASHER TH. MM. 1,0
                                          from £0.64
                                          from £0.64
                                          This part replaces part number 108924
                                          # 006
                                          MPN: 148983/A

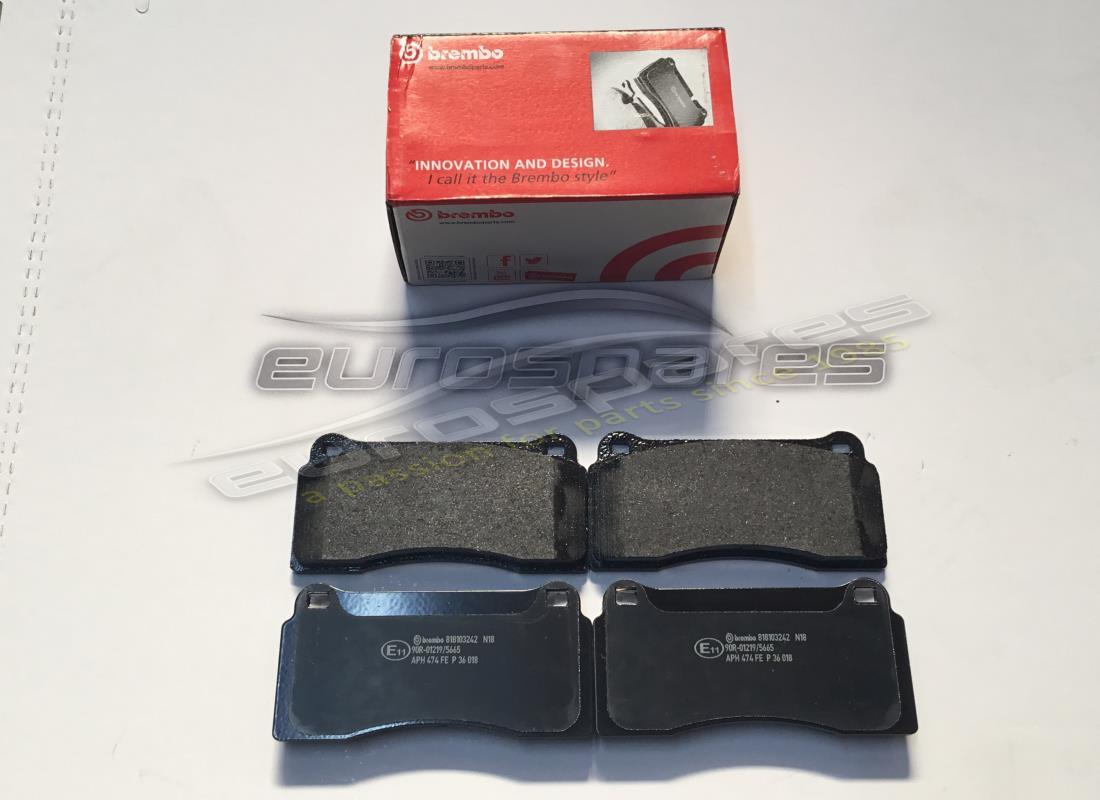

                                          FRONT BRAKE PADS SET
                                          (Brembo)
                                          from £263.52
                                          from £263.52
                                          # 007
                                          MPN: 163001
                                          PIPE TO RH FRONT CALIPER
                                          from £70.50
                                          from £70.50
                                          # 007
                                          MPN: 163003
                                          PIPE TO LH FRONT CALIPER
                                          from £92.86
                                          from £92.86
                                          # 008
                                          MPN: 165177
                                          BRACKET
                                          from £4.63
                                          from £4.63
                                          # 009
                                          MPN: 139721
                                          WASHER
                                          from £5.38
                                          from £5.38
                                          # 010
                                          MPN: 12574115
                                          NUT
                                          from £1.08
                                          from £1.08
                                          # 011
                                          MPN: 116374
                                          CLIP
                                          from £1.16
                                          from £1.16
                                          # 012
                                          MPN: 137313
                                          FRONT FLEX HOSE
                                          from £45.00
                                          from £45.00
                                          # 013
                                          MPN: 164269
                                          LH BRACKET
                                          from £51.15
                                          from £51.15
                                          # 013
                                          MPN: 164270
                                          RH BRACKET
                                          from £47.92
                                          from £47.92
                                          # 014
                                          MPN: 165885
                                          LH REAR CALIPER UNIT WITH PADS
                                          from £650.85
                                          from £650.85
                                          # 014
                                          MPN: 165887
                                          RH REAR CALIPER UNIT WITH PADS
                                          from £650.85
                                          from £650.85
                                          # 015
                                          MPN: 14332174
                                          SCREW
                                          from £1.97
                                          from £1.97
                                          # 016
                                          MPN: 10569574
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 10569573
                                          # 017
                                          MPN: 146901
                                          WASHER
                                          from £0.54
                                          from £0.54
                                          # 018
                                          MPN: 156260
                                          WASHER TH. MM. 0,2
                                          - As an alternative
                                          from £0.64
                                          from £0.64
                                          This part replaces part number 108918
                                          # 018
                                          MPN: 156261
                                          WASHER TH. MM. 0,3
                                          - As an alternative
                                          from £2.97
                                          from £2.97
                                          This part replaces part number 108919
                                          # 018
                                          MPN: 156262
                                          WASHER TH. MM. 0,5
                                          - As an alternative
                                          from £0.64
                                          from £0.64
                                          This part replaces part number 108920
                                          # 018
                                          MPN: 156263
                                          WASHER TH. MM. 0,6
                                          - As an alternative
                                          from £0.65
                                          from £0.65
                                          This part replaces part number 108921
                                          # 018
                                          MPN: 156264
                                          WASHER TH. MM. 0,7
                                          - As an alternative
                                          from £0.67
                                          from £0.67
                                          This part replaces part number 108922
                                          # 018
                                          MPN: 156265
                                          WASHER TH. MM. 0,8
                                          - As an alternative
                                          from £1.56
                                          from £1.56
                                          This part replaces part number 108923
                                          # 018
                                          MPN: 156266
                                          WASHER TH. MM. 1,0
                                          from £0.64
                                          from £0.64
                                          This part replaces part number 108924
                                          # 019
                                          MPN: 118101
                                          FRONT BRAKE HOSE
                                          from £135.00
                                          from £135.00
                                          # 020
                                          MPN: 148984/A

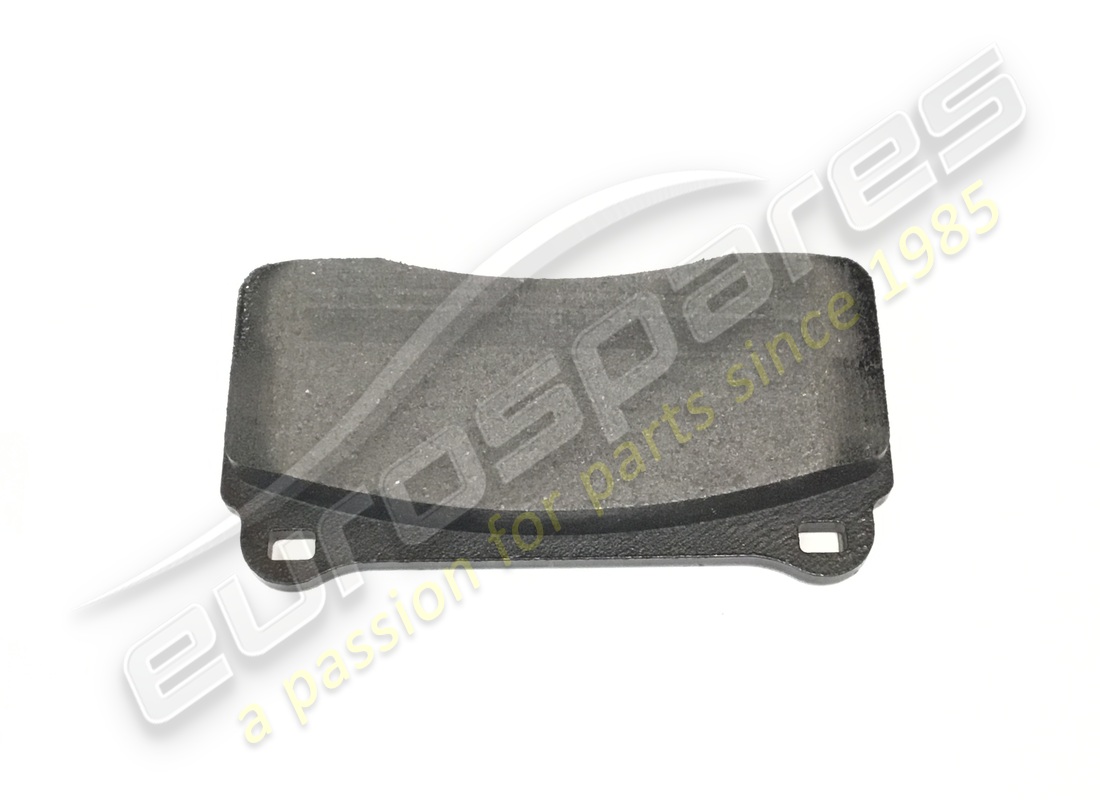

                                          SET OF REAR PADS
                                          from £313.46
                                          from £313.46
                                          # 021
                                          MPN: 168441
                                          SUPPORT
                                          from £9.55
                                          from £9.55
                                          # 022
                                          MPN: 10977524
                                          SCREW
                                          from £0.51
                                          from £0.51
                                          # 023
                                          MPN: 11181874
                                          WASHER
                                          from £0.48
                                          from £0.48
