038 - Steering Box and Cardanic Transmission

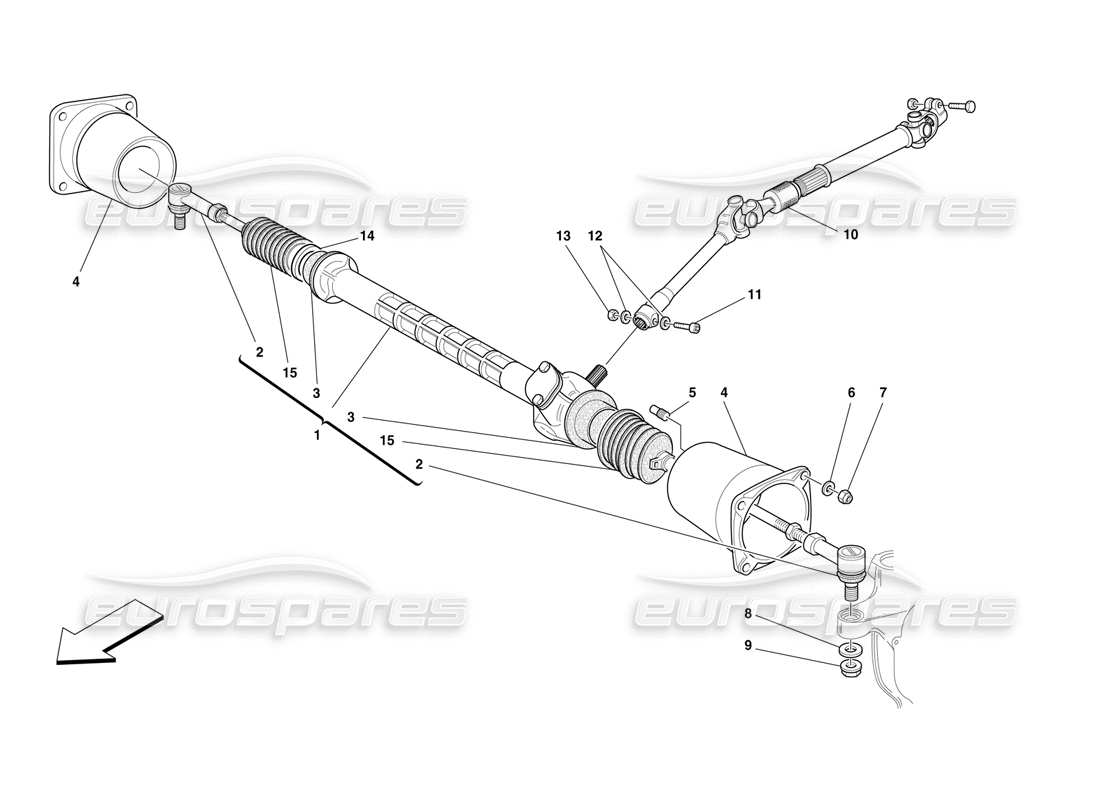

Ferrari F50 Steering Box and Cardanic Transmission Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 163893
                          Steering box
                          from £1,590.38
                          from £1,590.38
                          # 003
                          MPN: 151215
                          RUBBER
                          from £36.28
                          from £36.28
                          # 004
                          MPN: 151143
                          STEERING BOX SUPPORT
                          from £607.48
                          from £607.48
                          # 005
                          MPN: 151145
                          THREADED PIN
                          from £4.09
                          from £4.09
                          # 006
                          MPN: 10730314
                          WASHER
                          from £1.40
                          from £1.40
                          # 007
                          MPN: 101139
                          NUT
                          from £0.47
                          from £0.47
                          This part replaces part number 16104425
                          # 007
                          MPN: 133215
                          NUT
                          - As an alternative
                          Supersession
                          Supersession
                          This part replaces part number 64342800
                          # 008
                          MPN: 155002
                          WASHER
                          from £6.75
                          from £6.75
                          # 009
                          MPN: 149807
                          NUT
                          from £0.63
                          from £0.63
                          # 010
                          MPN: 150774
                          STEERING CARDANIC TRASMISSION
                          from £1,056.17
                          from £1,056.17
                          # 011
                          MPN: 125518
                          SCREW
                          from £0.88
                          from £0.88
                          This part replaces part number 103371
                          # 012
                          MPN: 12601274
                          WASHER
                          from £0.47
                          from £0.47
                          This part replaces part number 12601221 - and 5 more. Click to view details
                          # 013
                          MPN: 102948
                          NUT
                          from £0.47
                          from £0.47
                          This part replaces part number 12574211 - and 4 more. Click to view details
                          # 014
                          MPN: 170755
                          STEERING BOX THICKNESS SP. MM. 1,5
                          - Possible fittting
                          from £14.50
                          from £14.50
                          # 014
                          MPN: 170756
                          STEERING BOX THICKNESS SP. MM. 2
                          - Possible fittting
                          from £15.02
                          from £15.02
                          # 015
                          MPN: 160674
                          RUBBER BOOT
                          from £58.60
                          from £58.60
                          This part replaces part number 160601
