ferrari f50 front suspension - wishbones parts diagram

042 - Front Suspension - Wishbones

Ferrari F50 Front Suspension - Wishbones Parts Diagram

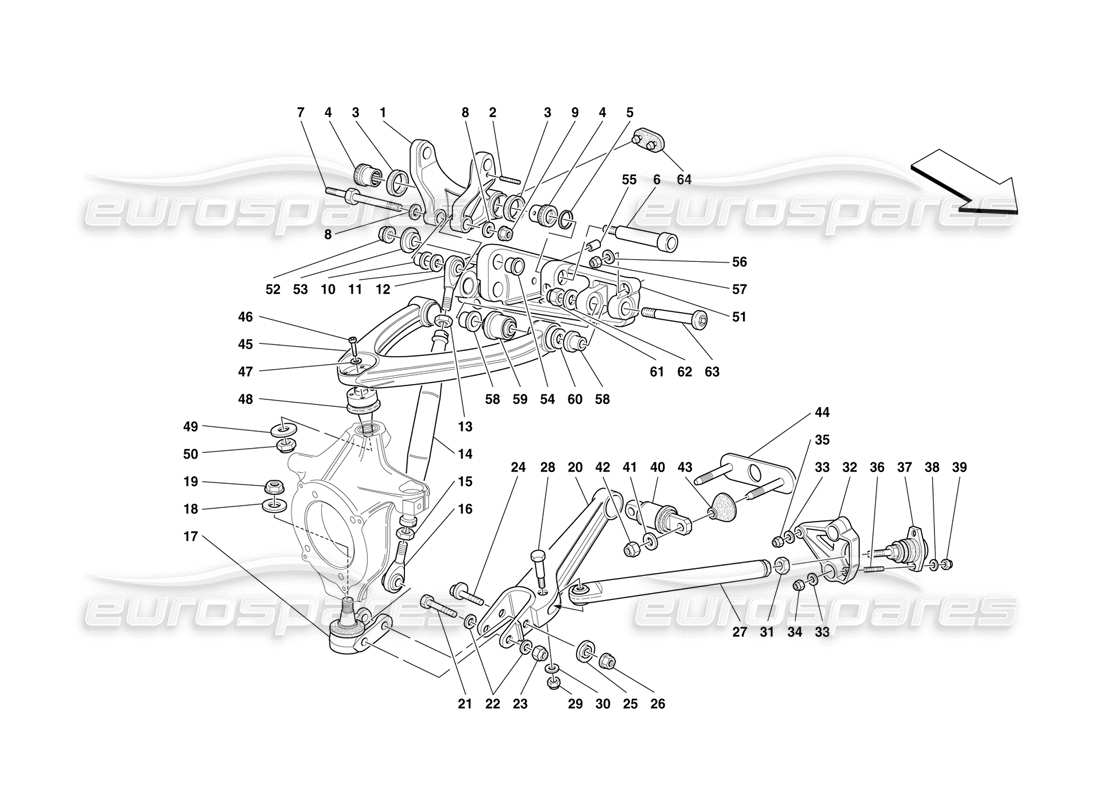

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Price
                                                                                                            # 001
                                                                                                            MPN: 150932
                                                                                                            SHOCK ABSORBER CONTROL ROCKER ARM
                                                                                                            from £692.76
                                                                                                            from £692.76
                                                                                                            # 002
                                                                                                            MPN: 13539124
                                                                                                            STUD
                                                                                                            from £3.95
                                                                                                            from £3.95
                                                                                                            # 003
                                                                                                            MPN: 150153
                                                                                                            SEAL RING
                                                                                                            from £2.31
                                                                                                            from £2.31
                                                                                                            # 004
                                                                                                            MPN: 150152
                                                                                                            BEARING
                                                                                                            from £81.71
                                                                                                            from £81.71
                                                                                                            # 005
                                                                                                            MPN: 152022
                                                                                                            SPACER
                                                                                                            from £15.08
                                                                                                            from £15.08
                                                                                                            # 006
                                                                                                            MPN: 151983
                                                                                                            FULCRUM PIN
                                                                                                            from £192.26
                                                                                                            from £192.26
                                                                                                            # 007
                                                                                                            MPN: 153322
                                                                                                            PIN
                                                                                                            from £31.70
                                                                                                            from £31.70
                                                                                                            # 008
                                                                                                            MPN: 10732531
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 009
                                                                                                            MPN: 12575725
                                                                                                            NUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 009
                                                                                                            MPN: 132876
                                                                                                            NUT
                                                                                                            - As an alternative
                                                                                                            from £16.63
                                                                                                            from £16.63
                                                                                                            This part replaces part number 169183
                                                                                                            # 010
                                                                                                            MPN: 150082
                                                                                                            BUSHING
                                                                                                            from £325.21
                                                                                                            from £325.21
                                                                                                            # 011
                                                                                                            MPN: 156260
                                                                                                            WASHER TH. MM. 0,2
                                                                                                            from £0.64
                                                                                                            from £0.64
                                                                                                            This part replaces part number 108918
                                                                                                            # 011
                                                                                                            MPN: 156261
                                                                                                            WASHER TH. MM. 0,3
                                                                                                            - As an alternative
                                                                                                            from £2.97
                                                                                                            from £2.97
                                                                                                            This part replaces part number 108919
                                                                                                            # 011
                                                                                                            MPN: 156262
                                                                                                            WASHER TH. MM. 0,5
                                                                                                            - As an alternative
                                                                                                            from £0.64
                                                                                                            from £0.64
                                                                                                            This part replaces part number 108920
                                                                                                            # 011
                                                                                                            MPN: 156263
                                                                                                            WASHER TH. MM. 0,6
                                                                                                            - As an alternative
                                                                                                            from £0.65
                                                                                                            from £0.65
                                                                                                            This part replaces part number 108921
                                                                                                            # 011
                                                                                                            MPN: 156264
                                                                                                            WASHER TH. MM. 0,7
                                                                                                            - As an alternative
                                                                                                            from £0.67
                                                                                                            from £0.67
                                                                                                            This part replaces part number 108922
                                                                                                            # 011
                                                                                                            MPN: 156265
                                                                                                            WASHER TH. MM. 0,8
                                                                                                            - As an alternative
                                                                                                            from £1.56
                                                                                                            from £1.56
                                                                                                            This part replaces part number 108923
                                                                                                            # 011
                                                                                                            MPN: 156266
                                                                                                            WASHER TH. MM. 1,0
                                                                                                            - As an alternative
                                                                                                            from £0.64
                                                                                                            from £0.64
                                                                                                            This part replaces part number 108924
                                                                                                            # 012
                                                                                                            MPN: 149125
                                                                                                            BALL JOINT
                                                                                                            from £315.14
                                                                                                            from £315.14
                                                                                                            # 013
                                                                                                            MPN: 10717477
                                                                                                            NUT
                                                                                                            from £2.17
                                                                                                            from £2.17
                                                                                                            This part replaces part number 10717478
                                                                                                            # 013
                                                                                                            MPN: 10717478
                                                                                                            NUT
                                                                                                            - Not as spare part now - Replaced by 10717477
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 014
                                                                                                            MPN: 165656
                                                                                                            SHOCK ABSORBER CONTROL ROD
                                                                                                            from £247.40
                                                                                                            from £247.40
                                                                                                            # 015
                                                                                                            MPN: 149124
                                                                                                            LH THREADED NUT
                                                                                                            from £2.19
                                                                                                            from £2.19
                                                                                                            # 016
                                                                                                            MPN: 149126
                                                                                                            BALL JOINT
                                                                                                            from £315.14
                                                                                                            from £315.14
                                                                                                            # 018
                                                                                                            MPN: 155002
                                                                                                            WASHER
                                                                                                            from £6.73
                                                                                                            from £6.73
                                                                                                            # 019
                                                                                                            MPN: 149807
                                                                                                            NUT
                                                                                                            from £0.63
                                                                                                            from £0.63
                                                                                                            # 020
                                                                                                            MPN: 152678
                                                                                                            LOWER LEVER
                                                                                                            from £2,439.48
                                                                                                            from £2,439.48
                                                                                                            # 021
                                                                                                            MPN: 152819
                                                                                                            SCREW
                                                                                                            from £13.30
                                                                                                            from £13.30
                                                                                                            # 022
                                                                                                            MPN: 10730514
                                                                                                            WASHER
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            This part replaces part number 10730521
                                                                                                            # 022
                                                                                                            MPN: 166448
                                                                                                            WASHER
                                                                                                            - As an alternative
                                                                                                            from £3.54
                                                                                                            from £3.54
                                                                                                            # 023
                                                                                                            MPN: 102742
                                                                                                            NUT
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12557621 - and 2 more. Click to view details
                                                                                                            # 023
                                                                                                            MPN: 133216
                                                                                                            NUT
                                                                                                            - As an alternative
                                                                                                            from £4.84
                                                                                                            from £4.84
                                                                                                            # 024
                                                                                                            MPN: 152817
                                                                                                            SCREW WITH ECCENTRIC
                                                                                                            from £16.73
                                                                                                            from £16.73
                                                                                                            # 025
                                                                                                            MPN: 152818
                                                                                                            ECCENTRIC WASHER
                                                                                                            from £23.64
                                                                                                            from £23.64
                                                                                                            # 026
                                                                                                            MPN: 12575725
                                                                                                            NUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 026
                                                                                                            MPN: 132876
                                                                                                            NUT
                                                                                                            - As an alternative
                                                                                                            from £16.63
                                                                                                            from £16.63
                                                                                                            This part replaces part number 169183
                                                                                                            # 027
                                                                                                            MPN: 152623
                                                                                                            LOWER LEVER TIE ROD
                                                                                                            from £288.10
                                                                                                            from £288.10
                                                                                                            # 028
                                                                                                            MPN: 152693
                                                                                                            PIN
                                                                                                            from £13.19
                                                                                                            from £13.19
                                                                                                            # 029
                                                                                                            MPN: 12575725
                                                                                                            NUT
                                                                                                            - As an alternative - Not as spare part now - Replaced by 169183
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 029
                                                                                                            MPN: 132876
                                                                                                            NUT
                                                                                                            from £16.63
                                                                                                            from £16.63
                                                                                                            This part replaces part number 169183
                                                                                                            # 029
                                                                                                            MPN: 169183
                                                                                                            NUT
                                                                                                            - As an alternative
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 12575725 - and 1 more. Click to view details
                                                                                                            # 030
                                                                                                            MPN: 129221
                                                                                                            WASHER
                                                                                                            from £2.13
                                                                                                            from £2.13
                                                                                                            # 031
                                                                                                            MPN: 10717477
                                                                                                            NUT
                                                                                                            from £2.17
                                                                                                            from £2.17
                                                                                                            This part replaces part number 10717478
                                                                                                            # 031
                                                                                                            MPN: 10717478
                                                                                                            NUT
                                                                                                            - Not as spare part now - Replaced by 10717477
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 032
                                                                                                            MPN: 152660
                                                                                                            BRACKET FOR LOWER LEVER FIXING
                                                                                                            from £316.21
                                                                                                            from £316.21
                                                                                                            # 033
                                                                                                            MPN: 10730514
                                                                                                            WASHER
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            This part replaces part number 10730521
                                                                                                            # 034
                                                                                                            MPN: 133216
                                                                                                            NUT
                                                                                                            from £4.84
                                                                                                            from £4.84
                                                                                                            # 035
                                                                                                            MPN: 133215
                                                                                                            NUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 64342800
                                                                                                            # 036
                                                                                                            MPN: 12429324
                                                                                                            STUD
                                                                                                            from £7.83
                                                                                                            from £7.83
                                                                                                            # 037
                                                                                                            MPN: 152626
                                                                                                            BALL JOINT
                                                                                                            from £1,002.83
                                                                                                            from £1,002.83
                                                                                                            # 038
                                                                                                            MPN: 10730314
                                                                                                            WASHER
                                                                                                            from £1.39
                                                                                                            from £1.39
                                                                                                            # 039
                                                                                                            MPN: 101139
                                                                                                            NUT
                                                                                                            - As an alternative
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 16104425
                                                                                                            # 039
                                                                                                            MPN: 133215
                                                                                                            NUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 64342800
                                                                                                            # 040
                                                                                                            MPN: 153746
                                                                                                            BALL JOINT
                                                                                                            from £314.47
                                                                                                            from £314.47
                                                                                                            # 041
                                                                                                            MPN: 102901
                                                                                                            WASHER
                                                                                                            from £0.71
                                                                                                            from £0.71
                                                                                                            This part replaces part number 4146930
                                                                                                            # 042
                                                                                                            MPN: 102742
                                                                                                            NUT AS AN ALTERNATIVE
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12557621 - and 2 more. Click to view details
                                                                                                            # 042
                                                                                                            MPN: 133216
                                                                                                            NUT
                                                                                                            from £4.84
                                                                                                            from £4.84
                                                                                                            # 043
                                                                                                            MPN: 150786
                                                                                                            SPACER
                                                                                                            from £52.88
                                                                                                            from £52.88
                                                                                                            # 044
                                                                                                            MPN: 151229
                                                                                                            BRACKET FOR LOWER LEVER
                                                                                                            from £51.44
                                                                                                            from £51.44
                                                                                                            # 045
                                                                                                            MPN: 151290
                                                                                                            RH UPPER LEVER
                                                                                                            from £728.76
                                                                                                            from £728.76
                                                                                                            # 045
                                                                                                            MPN: 171114
                                                                                                            LH UPPER LEVER
                                                                                                            from £1,794.81
                                                                                                            from £1,794.81
                                                                                                            # 046
                                                                                                            MPN: 14305124
                                                                                                            SCREW
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 14305121
                                                                                                            # 047
                                                                                                            MPN: 10569279
                                                                                                            WASHER
                                                                                                            from £0.71
                                                                                                            from £0.71

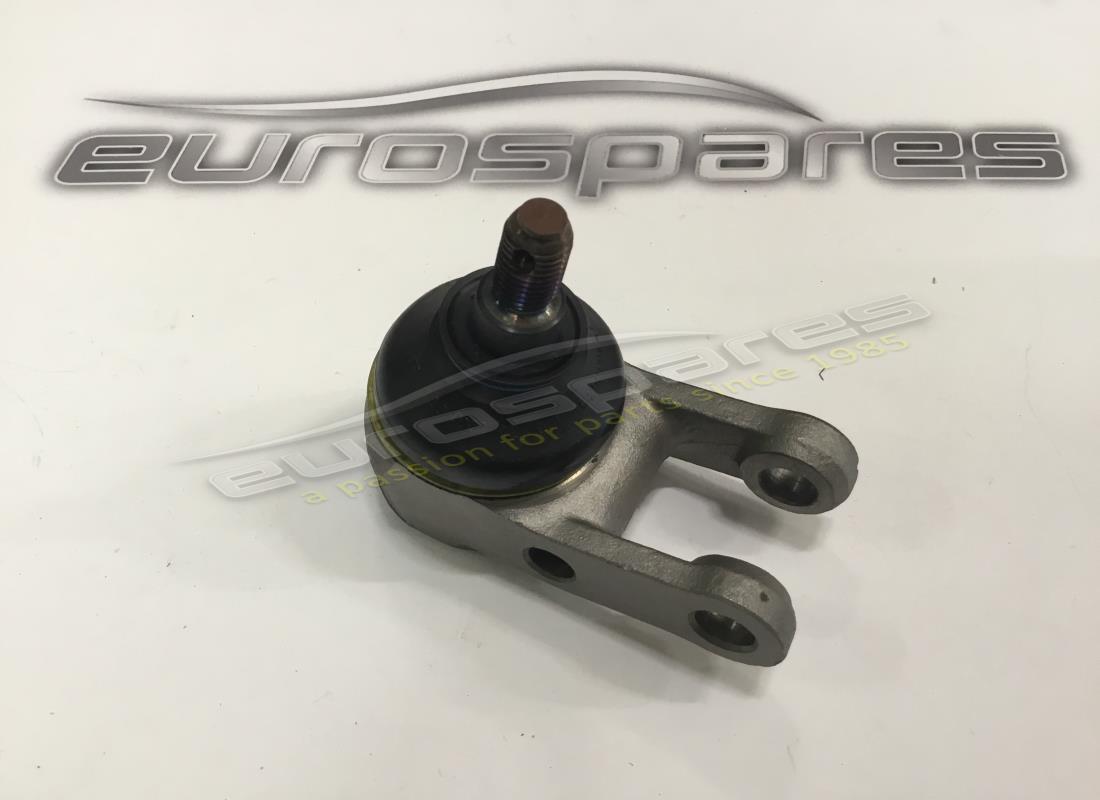

                                                                                                            # 048
                                                                                                            MPN: 130202
                                                                                                            BALL JOINT FOR UPPER LEVER
                                                                                                            from £516.52
                                                                                                            from £516.52
                                                                                                            # 049
                                                                                                            MPN: 150143
                                                                                                            WASHER
                                                                                                            from £10.18
                                                                                                            from £10.18
                                                                                                            # 050
                                                                                                            MPN: 169193
                                                                                                            NUT
                                                                                                            from £0.86
                                                                                                            from £0.86
                                                                                                            # 051
                                                                                                            MPN: 151811
                                                                                                            LH UPPER LEVER SUPPORT
                                                                                                            from £3,749.99
                                                                                                            from £3,749.99
                                                                                                            # 051
                                                                                                            MPN: 151812
                                                                                                            RH UPPER LEVER SUPPORT
                                                                                                            from £760.05
                                                                                                            from £760.05
                                                                                                            # 052
                                                                                                            MPN: 102742
                                                                                                            NUT
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12557621 - and 2 more. Click to view details
                                                                                                            # 052
                                                                                                            MPN: 133216
                                                                                                            NUT
                                                                                                            - As an alternative
                                                                                                            from £4.84
                                                                                                            from £4.84
                                                                                                            # 053
                                                                                                            MPN: 152021
                                                                                                            WASHER
                                                                                                            from £5.53
                                                                                                            from £5.53
                                                                                                            # 054
                                                                                                            MPN: 151982
                                                                                                            BUSHING
                                                                                                            from £15.38
                                                                                                            from £15.38
                                                                                                            # 055
                                                                                                            MPN: 150961
                                                                                                            CENTERING DOWEL
                                                                                                            from £22.77
                                                                                                            from £22.77
                                                                                                            # 056
                                                                                                            MPN: 12638524
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12638501 - and 2 more. Click to view details
                                                                                                            # 057
                                                                                                            MPN: 133215
                                                                                                            NUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 64342800
                                                                                                            # 058
                                                                                                            MPN: 152020
                                                                                                            BUSHING
                                                                                                            from £202.98
                                                                                                            from £202.98
                                                                                                            # 059
                                                                                                            MPN: 163918
                                                                                                            LOWER SHOCK ABSORBER BUSH
                                                                                                            from £75.40
                                                                                                            from £75.40
                                                                                                            # 060
                                                                                                            MPN: 152032
                                                                                                            WASHER TH. MM. 0,2
                                                                                                            from £3.36
                                                                                                            from £3.36
                                                                                                            # 060
                                                                                                            MPN: 152033
                                                                                                            WASHER TH. MM. 0,3
                                                                                                            - As an alternative
                                                                                                            from £3.36
                                                                                                            from £3.36
                                                                                                            # 060
                                                                                                            MPN: 152034
                                                                                                            WASHER TH. MM. 0,5
                                                                                                            - As an alternative
                                                                                                            from £3.36
                                                                                                            from £3.36
                                                                                                            # 060
                                                                                                            MPN: 152035
                                                                                                            WASHER TH. MM. 0,6
                                                                                                            - As an alternative
                                                                                                            from £3.24
                                                                                                            from £3.24
                                                                                                            # 060
                                                                                                            MPN: 152036
                                                                                                            WASHER TH. MM. 0,7
                                                                                                            - As an alternative
                                                                                                            from £3.24
                                                                                                            from £3.24
                                                                                                            # 060
                                                                                                            MPN: 152037
                                                                                                            WASHER TH. MM. 0,8
                                                                                                            - As an alternative
                                                                                                            from £3.24
                                                                                                            from £3.24
                                                                                                            # 060
                                                                                                            MPN: 152038
                                                                                                            WASHER TH. MM. 1,0
                                                                                                            - As an alternative
                                                                                                            from £3.24
                                                                                                            from £3.24
                                                                                                            # 061
                                                                                                            MPN: 132876
                                                                                                            NUT
                                                                                                            from £16.63
                                                                                                            from £16.63
                                                                                                            This part replaces part number 169183
                                                                                                            # 062
                                                                                                            MPN: 152031
                                                                                                            WASHER
                                                                                                            from £31.07
                                                                                                            from £31.07
                                                                                                            # 063
                                                                                                            MPN: 152023
                                                                                                            UPPER LEVER PIN
                                                                                                            from £61.26
                                                                                                            from £61.26
                                                                                                            # 064
                                                                                                            MPN: 152615
                                                                                                            END OF STROKE PAD
                                                                                                            from £6.34
                                                                                                            from £6.34
