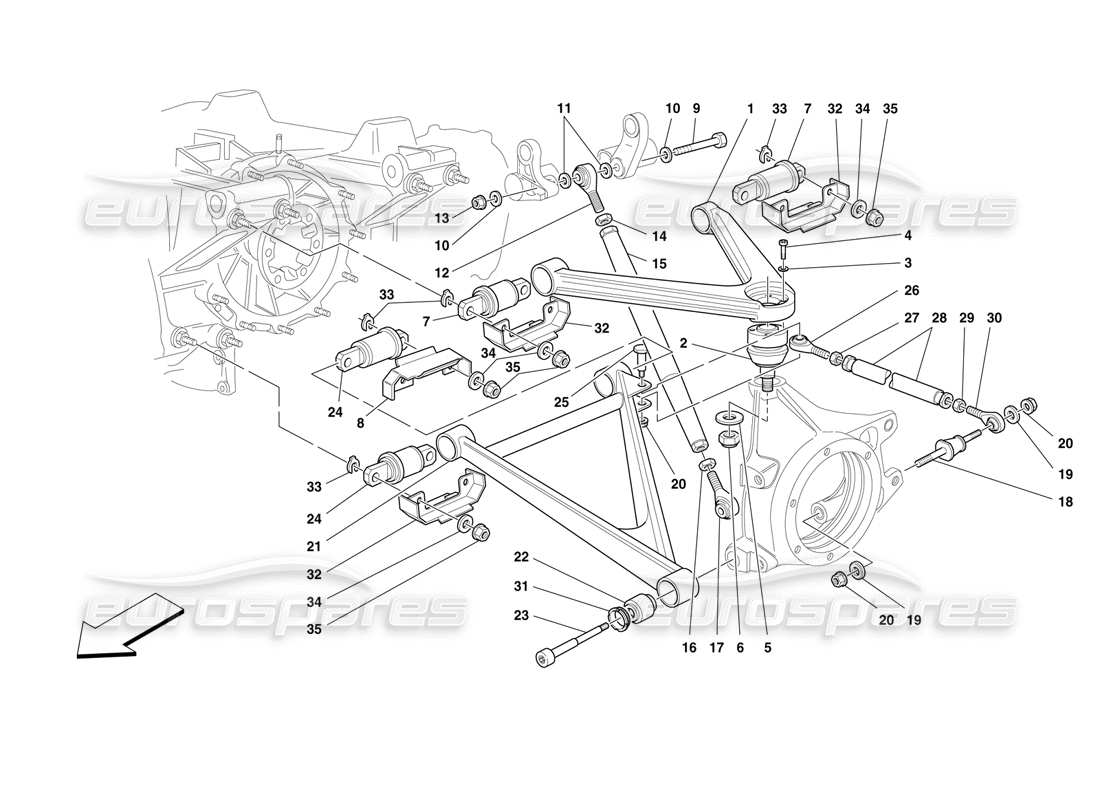

Ferrari F50 Rear Suspension - Wishbones Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 161959
                                                        LH REAR UPPER LEVER
                                                        from £1,585.81
                                                        from £1,585.81
                                                        # 001
                                                        MPN: 171105
                                                        RH REAR UPPER LEVER
                                                        from £2,181.91
                                                        from £2,181.91
                                                        # 002
                                                        MPN: 130202
                                                        BALL JOINT
                                                        from £516.52
                                                        from £516.52
                                                        # 003
                                                        MPN: 10569279
                                                        WASHER
                                                        from £0.71
                                                        from £0.71
                                                        # 004
                                                        MPN: 14305124
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 14305121
                                                        # 005
                                                        MPN: 150143
                                                        WASHER
                                                        from £10.18
                                                        from £10.18
                                                        # 006
                                                        MPN: 12575915
                                                        NUT
                                                        from £0.71
                                                        from £0.71
                                                        This part replaces part number 12575911
                                                        # 007
                                                        MPN: 153746
                                                        BALL JOINT
                                                        from £314.47
                                                        from £314.47
                                                        # 008
                                                        MPN: 166502
                                                        LH BALL JOINT PROTECTION
                                                        from £85.93
                                                        from £85.93
                                                        # 008
                                                        MPN: 166504
                                                        RH BALL JOINT PROTECTION
                                                        from £60.40
                                                        from £60.40
                                                        # 009
                                                        MPN: 150083
                                                        PIN
                                                        from £28.11
                                                        from £28.11
                                                        # 010
                                                        MPN: 10732531
                                                        WASHER
                                                        - Th. mm. 0,2
                                                        from £0.47
                                                        from £0.47
                                                        # 011
                                                        MPN: 156260
                                                        WASHER
                                                        - Th. mm. 0,3
                                                        from £0.64
                                                        from £0.64
                                                        This part replaces part number 108918
                                                        # 011
                                                        MPN: 156261
                                                        WASHER
                                                        - As an alternative - Th. mm. 0,5
                                                        from £2.97
                                                        from £2.97
                                                        This part replaces part number 108919
                                                        # 011
                                                        MPN: 156262
                                                        WASHER
                                                        - As an alternative - Th. mm. 0,6
                                                        from £0.64
                                                        from £0.64
                                                        This part replaces part number 108920
                                                        # 011
                                                        MPN: 156263
                                                        WASHER
                                                        - As an alternative - Th. mm. 0,7
                                                        from £0.65
                                                        from £0.65
                                                        This part replaces part number 108921
                                                        # 011
                                                        MPN: 156264
                                                        WASHER
                                                        - As an alternative - Th. mm. 0,8
                                                        from £0.67
                                                        from £0.67
                                                        This part replaces part number 108922
                                                        # 011
                                                        MPN: 156265
                                                        WASHER
                                                        - As an alternative - Th. mm. 1,0
                                                        from £1.56
                                                        from £1.56
                                                        This part replaces part number 108923
                                                        # 011
                                                        MPN: 156266
                                                        WASHER
                                                        - As an alternative
                                                        from £0.64
                                                        from £0.64
                                                        This part replaces part number 108924
                                                        # 012
                                                        MPN: 149125
                                                        BALL JOINT
                                                        from £315.14
                                                        from £315.14
                                                        # 013
                                                        MPN: 132876
                                                        NUT
                                                        from £16.63
                                                        from £16.63
                                                        This part replaces part number 169183
                                                        # 013
                                                        MPN: 169183
                                                        NUT
                                                        - As an alternative
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 12575725 - and 1 more. Click to view details
                                                        # 014
                                                        MPN: 10717477
                                                        NUT
                                                        from £2.17
                                                        from £2.17
                                                        This part replaces part number 10717478
                                                        # 014
                                                        MPN: 10717478
                                                        NUT
                                                        - Not as spare part now - Replaced by 10717477
                                                        Supersession
                                                        Supersession
                                                        # 015
                                                        MPN: 165660
                                                        REAR SHOCK ABSORBER CONTROL ROD
                                                        from £285.31
                                                        from £285.31
                                                        # 016
                                                        MPN: 149124
                                                        NUT
                                                        from £2.19
                                                        from £2.19
                                                        # 017
                                                        MPN: 149126
                                                        BALL JOINT
                                                        from £315.14
                                                        from £315.14
                                                        # 018
                                                        MPN: 161958
                                                        PIN
                                                        from £96.55
                                                        from £96.55
                                                        # 019
                                                        MPN: 101016
                                                        WASHER
                                                        from £8.28
                                                        from £8.28
                                                        This part replaces part number 10730721 - and 1 more. Click to view details
                                                        # 019
                                                        MPN: 10730721
                                                        WASHER
                                                        - Not as spare part
                                                        Supersession
                                                        Supersession
                                                        # 020
                                                        MPN: 12575725
                                                        NUT
                                                        - As an alternative
                                                        Supersession
                                                        Supersession
                                                        # 020
                                                        MPN: 132876
                                                        NUT
                                                        from £16.63
                                                        from £16.63
                                                        This part replaces part number 169183
                                                        # 021
                                                        MPN: 161962
                                                        REAR LOWER LEVER
                                                        from £2,130.79
                                                        from £2,130.79
                                                        # 022
                                                        MPN: 163918
                                                        LOWER SHOCK ABSORBER BUSH
                                                        from £75.40
                                                        from £75.40
                                                        # 023
                                                        MPN: 150141
                                                        PIN
                                                        from £45.28
                                                        from £45.28
                                                        # 024
                                                        MPN: 163703
                                                        BALL JOINT
                                                        from £608.01
                                                        from £608.01
                                                        # 025
                                                        MPN: 150151
                                                        PIN
                                                        from £28.35
                                                        from £28.35
                                                        # 026
                                                        MPN: 160470
                                                        BALL JOINT
                                                        from £543.60
                                                        from £543.60
                                                        # 027
                                                        MPN: 10717477
                                                        NUT
                                                        from £2.17
                                                        from £2.17
                                                        This part replaces part number 10717478
                                                        # 027
                                                        MPN: 10717478
                                                        NUT
                                                        - Not as spare part now - Replaced by 10717477
                                                        Supersession
                                                        Supersession
                                                        # 028
                                                        MPN: 149182
                                                        SPRAG
                                                        from £260.37
                                                        from £260.37
                                                        # 029
                                                        MPN: 149124
                                                        LH THREADED NUT
                                                        from £2.19
                                                        from £2.19
                                                        # 030
                                                        MPN: 160471
                                                        BALL JOINT
                                                        from £507.40
                                                        from £507.40
                                                        # 031
                                                        MPN: 150150
                                                        RING NUT
                                                        from £35.47
                                                        from £35.47
                                                        # 032
                                                        MPN: 166500
                                                        PROTECTION
                                                        from £62.19
                                                        from £62.19
                                                        # 033
                                                        MPN: 150144
                                                        WASHER
                                                        - Thickness mm. 1,0
                                                        from £1.71
                                                        from £1.71
                                                        # 033
                                                        MPN: 150145
                                                        WASHER
                                                        - Thickness mm. 1,5
                                                        from £1.86
                                                        from £1.86
                                                        # 033
                                                        MPN: 150146
                                                        WASHER
                                                        - Thickness mm. 2,0
                                                        from £2.02
                                                        from £2.02
                                                        # 034
                                                        MPN: 102901
                                                        WASHER
                                                        from £0.71
                                                        from £0.71
                                                        This part replaces part number 4146930
                                                        # 035
                                                        MPN: 133216
                                                        NUT
                                                        from £4.84
                                                        from £4.84
                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
