048 - Battery and Cables

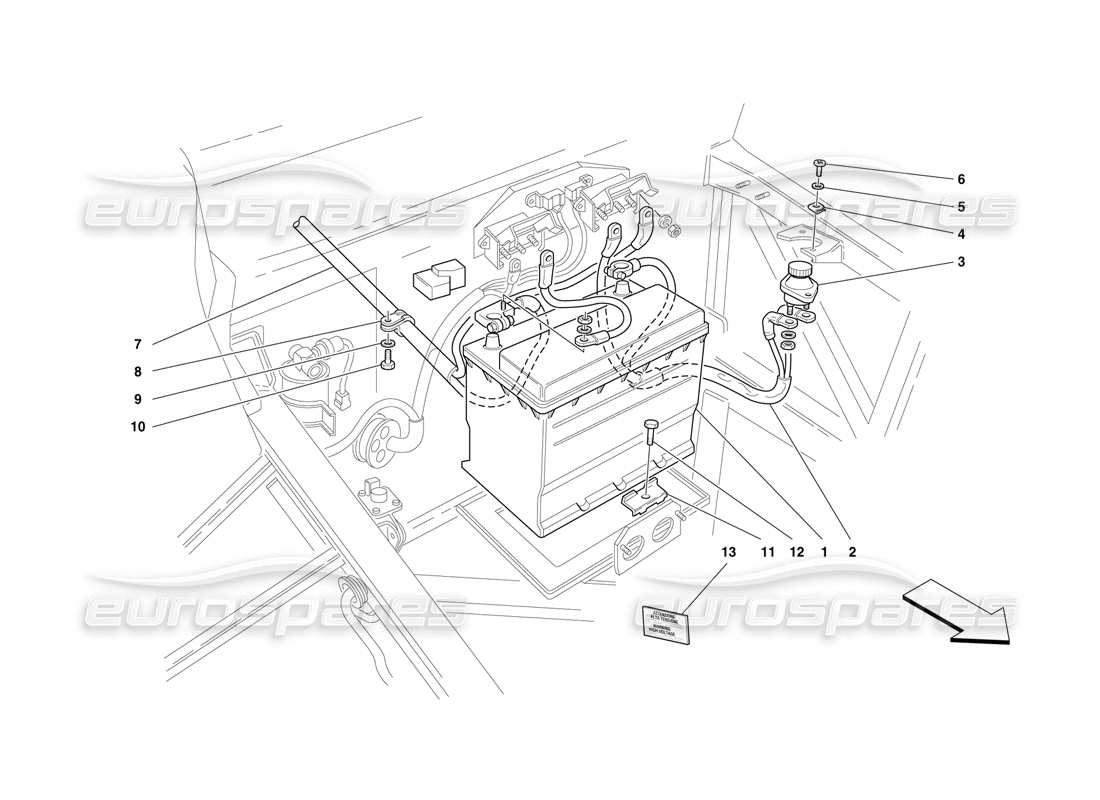

Ferrari F50 Battery and Cables Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 190252
                            Battery
                            from £245.41
                            from £245.41
                            This part replaces part number 134469
                            # 002
                            MPN: 164434
                            CUT OUT SWITCH CONNECTING COPPER PLAIT
                            Supersession
                            Supersession
                            # 003
                            MPN: 139607
                            CUT OUT SWITCH
                            Supersession
                            Supersession
                            # 004
                            MPN: 61067800
                            FIXING BRACKET
                            from £1.08
                            from £1.08
                            # 005
                            MPN: 12637806
                            WASHER
                            Supersession
                            Supersession
                            # 006
                            MPN: 15688278
                            SCREW
                            Supersession
                            Supersession
                            # 007
                            MPN: 161435
                            ALTERNATOR STARTER MOTOR TERMINAL BOX CONNECTING CABLE
                            from £155.50
                            from £155.50
                            # 008
                            MPN: 10441890
                            BRACKET
                            from £0.47
                            from £0.47
                            # 009
                            MPN: 11181574
                            WASHER
                            from £0.54
                            from £0.54
                            # 010
                            MPN: 10977624
                            SCREW
                            from £0.47
                            from £0.47
                            This part replaces part number 10977611 - and 1 more. Click to view details
                            # 011
                            MPN: 62573400
                            BRACKET FOR BATTERY FIXING
                            from £22.50
                            from £22.50
                            # 012
                            MPN: 13837411
                            SCREW
                            from £0.47
                            from £0.47
                            # 013
                            MPN: 113404
                            HIGH VOLTAGE ADHESIVE PLATE
                            from £6.83
                            from £6.83
