Ferrari F50 Tools Equipment Parts Diagram

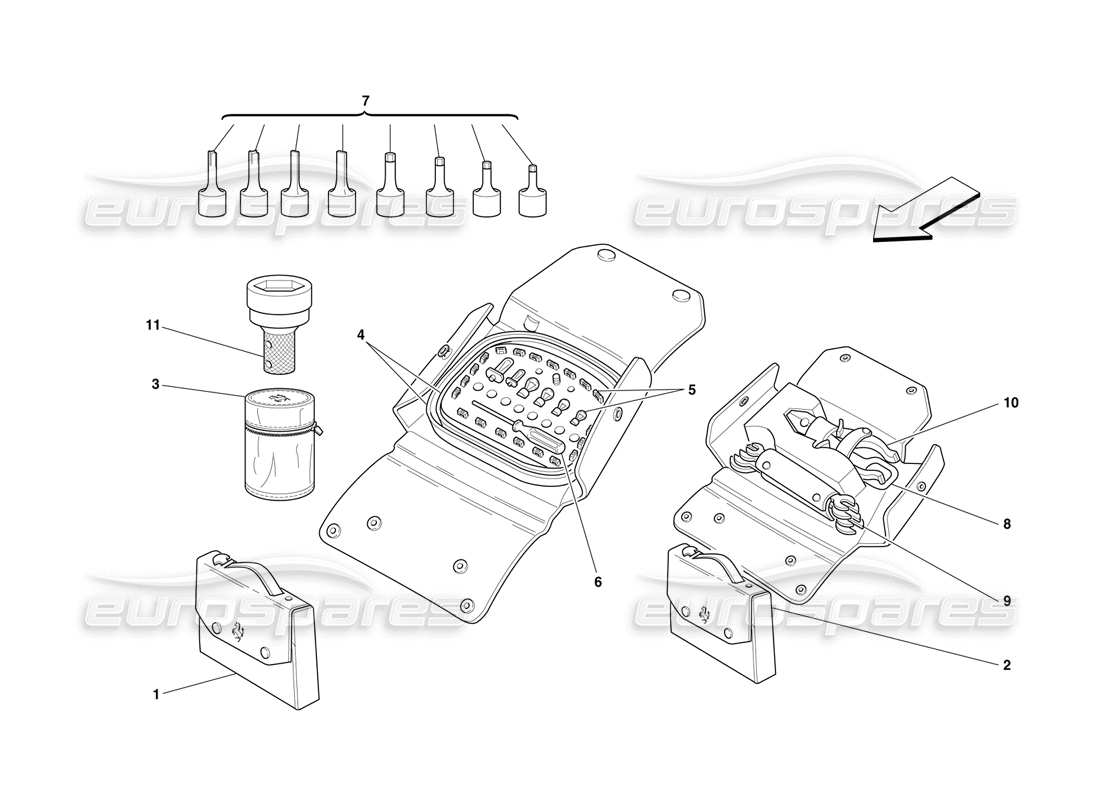

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 000
              MPN: 168774
              RH COMPLETE TOOL KIT BAG
              from £4,993.68
              from £4,993.68
              # 000
              MPN: 169499
              LH COMPLETE TOOL KIT BAG
              - Not as spare part now - Replaced by 171713
              Supersession
              Supersession
              # 000
              MPN: 171713
              LH COMPLETE TOOL KIT BAG
              from £4,100.64
              from £4,100.64
              This part replaces part number 169499
              # 001
              MPN: 169419
              RH EMPTY TOOL KIT BAG
              from £3,642.75
              from £3,642.75
              # 002
              MPN: 169508
              LH EMPTY TOOL KIT BAG
              # 003
              MPN: 169511
              COMPLETE SOCKET WRENCH BAG
              # 003
              MPN: 169512
              EMPTY SOCKET WRENCH BAG
              from £284.13
              from £284.13
              # 004
              MPN: 175952
              GENERATOR CONTROL BELT
              from £13.85
              from £13.85
              This part replaces part number 160950
              # 004
              MPN: 175956
              COMPRESSOR CONTROL BELT
              from £81.97
              from £81.97
              This part replaces part number 163693
              # 004
              MPN: 175956
              COMPRESSOR CONTROL BELT
              from £81.97
              from £81.97
              This part replaces part number 163693
              # 005
              MPN: 10857790
              12V 5W BULB
              from £1.14
              from £1.14
              This part replaces part number 101524
              # 005
              MPN: 125240
              7,5 AMP. FUSE
              from £0.47
              from £0.47
              This part replaces part number 11054890 - and 1 more. Click to view details
              # 005
              MPN: 125241
              10 AMP. FUSE
              from £0.47
              from £0.47
              This part replaces part number 11054990 - and 1 more. Click to view details
              # 005
              MPN: 125242
              15 AMP. FUSE
              from £0.47
              from £0.47
              This part replaces part number 11055090 - and 1 more. Click to view details
              # 005
              MPN: 125243
              20 AMP. FUSE
              from £0.47
              from £0.47
              This part replaces part number 11055190 - and 1 more. Click to view details
              # 005
              MPN: 126031
              25 AMP. FUSE
              from £0.47
              from £0.47
              This part replaces part number MC3742/5
              # 005
              MPN: 131941
              30 AMP. FUSE
              from £0.47
              from £0.47
              This part replaces part number MC3742/6
              # 005
              MPN: 14142390
              12V 4W BULB
              from £1.05
              from £1.05
              # 005
              MPN: 14144690
              12V 21/5W BULB
              from £2.41
              from £2.41
              # 005
              MPN: 14148190
              12V 21W BULB
              from £2.03
              from £2.03
              # 005
              MPN: 14151095
              H1 12V 55W BULB
              from £8.03
              from £8.03
              # 005
              MPN: 152567
              12V 21W BULB
              - Orange glass
              from £2.04
              from £2.04
              # 005
              MPN: 166835
              40 AMP. FUSE
              from £5.93
              from £5.93
              # 005
              MPN: 169374
              H7 12V 55W BULB
              from £11.60
              from £11.60
              This part replaces part number 169407
              # 005
              MPN: 169407
              H7 12V 55W BULB
              - Not as spare part now - Replaced by 169374
              Supersession
              Supersession
              # 006
              MPN: 169424
              SOCKET WRENCH KNOB
              - Not as spare part - With the assembly 168774
              from £10.43
              from £10.43
              # 007
              -
              SOCKET WRENCHS SET
              # 008
              MPN: 128705
              TOW HOOK
              from £43.94
              from £43.94
              # 009
              MPN: 169515
              WRENCHS SET 8/22
              - Not as spare part - With the assembly 169499
              from £138.67
              from £138.67
              # 009
              MPN: 171714
              WRENCHS SET 8/22
              - Not as spare part - With the assembly 171713
              # 010
              MPN: 169159
              190 MM. CUTTING PLIERS
              - Not as spare part - With the assembly 169499
              # 011
              MPN: 169370
              WHEEL NUT WRENCH
              from £419.53
              from £419.53
              This part replaces part number 95972774
