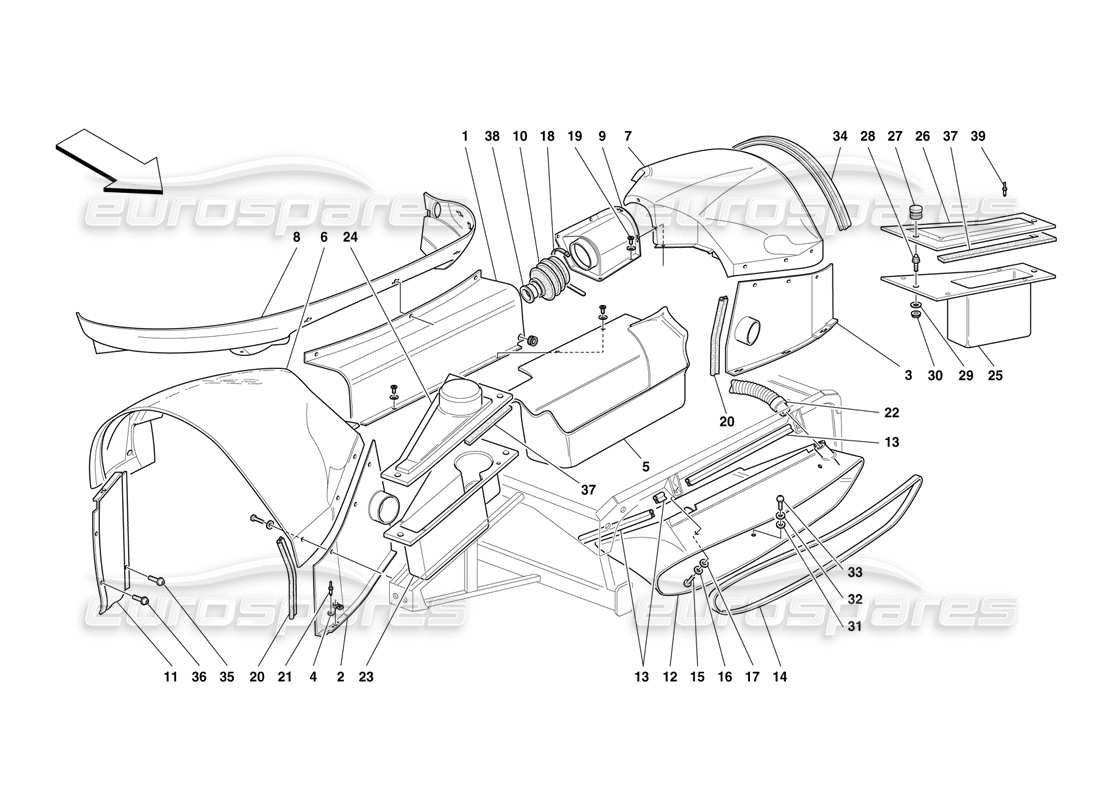

104 - Body - Outer Elements - Front Part

Ferrari F50 Body - Outer Elements - Front Part Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Price
                                                                          # 001
                                                                          MPN: 64762500
                                                                          CENTRAL FRONT SHIELD
                                                                          from £672.70
                                                                          from £672.70
                                                                          # 002
                                                                          MPN: 64130500
                                                                          RH SIDE LOWER GRAVEL GUARD COVER
                                                                          from £1,241.75
                                                                          from £1,241.75
                                                                          # 003
                                                                          MPN: 64130600
                                                                          LH SIDE LOWER GRAVEL GUARD COVER
                                                                          from £1,294.58
                                                                          from £1,294.58
                                                                          # 004
                                                                          MPN: 62471100
                                                                          BRACKET
                                                                          from £16.25
                                                                          from £16.25
                                                                          # 005
                                                                          MPN: 64975800
                                                                          BAG CASE
                                                                          from £1,638.36
                                                                          from £1,638.36
                                                                          # 006
                                                                          MPN: 63535000
                                                                          RH FRONT GRAVEL GUARD
                                                                          from £3,773.73
                                                                          from £3,773.73
                                                                          # 007
                                                                          MPN: 63535100
                                                                          LH FRONT GRAVEL GUARD
                                                                          from £2,638.44
                                                                          from £2,638.44
                                                                          # 008
                                                                          MPN: 64762600
                                                                          SEAL BETWEEN GRAVEL GUARD AND CURVED ELEMENT
                                                                          from £917.45
                                                                          from £917.45
                                                                          # 009
                                                                          MPN: 156339
                                                                          LH PROTECTION CUP
                                                                          from £269.95
                                                                          from £269.95
                                                                          # 009
                                                                          MPN: 156340
                                                                          RH PROTECTION CUP
                                                                          from £312.24
                                                                          from £312.24
                                                                          # 010
                                                                          MPN: 156416
                                                                          PROTECTION RUBBER BOOT
                                                                          from £21.38
                                                                          from £21.38
                                                                          # 011
                                                                          MPN: 63673000
                                                                          RH FRONT SEAL
                                                                          from £477.20
                                                                          from £477.20
                                                                          This part replaces part number 64168800
                                                                          # 011
                                                                          MPN: 63673100
                                                                          LH FRONT SEAL
                                                                          from £582.75
                                                                          from £582.75
                                                                          This part replaces part number 64168900
                                                                          # 011
                                                                          MPN: 64168800
                                                                          RH FRONT SEAL
                                                                          - Not as spare part now - Replaced by 63673000
                                                                          Supersession
                                                                          Supersession
                                                                          # 011
                                                                          MPN: 64168900
                                                                          LH FRONT SEAL
                                                                          - Not as spare part now - Replaced by 63673100
                                                                          Supersession
                                                                          Supersession
                                                                          # 012
                                                                          MPN: 63654200
                                                                          AIR CONVEYOR
                                                                          from £2,148.71
                                                                          from £2,148.71
                                                                          # 013
                                                                          MPN: 64131300
                                                                          GASKET
                                                                          from £23.72
                                                                          from £23.72
                                                                          # 014
                                                                          MPN: 64131200
                                                                          GASKET
                                                                          from £6.54
                                                                          from £6.54
                                                                          # 015
                                                                          MPN: 10977524
                                                                          SCREW
                                                                          from £0.53
                                                                          from £0.53
                                                                          # 016
                                                                          MPN: 11181874
                                                                          WASHER
                                                                          from £0.51
                                                                          from £0.51
                                                                          # 017
                                                                          MPN: 12643724
                                                                          WASHER
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 109684 - and 4 more. Click to view details
                                                                          # 018
                                                                          MPN: 157409
                                                                          CLAMP
                                                                          from £0.75
                                                                          from £0.75
                                                                          # 019
                                                                          MPN: 169611
                                                                          SCREW
                                                                          from £0.65
                                                                          from £0.65
                                                                          This part replaces part number 64047400
                                                                          # 019
                                                                          MPN: 64047400
                                                                          SCREW
                                                                          - Not as spare part now - Replaced by 169611
                                                                          Supersession
                                                                          Supersession
                                                                          # 020
                                                                          MPN: 64130900
                                                                          GASKET
                                                                          from £42.53
                                                                          from £42.53
                                                                          # 021
                                                                          MPN: 64722000
                                                                          RIVET
                                                                          from £1.11
                                                                          from £1.11
                                                                          # 022
                                                                          MPN: 64991700
                                                                          TUNNEL REFRIGERATING PIPE
                                                                          from £375.92
                                                                          from £375.92
                                                                          # 023
                                                                          MPN: 64991600
                                                                          RH CONTAINER
                                                                          from £1,649.09
                                                                          from £1,649.09
                                                                          # 024
                                                                          MPN: 65020500
                                                                          RH CONTAINER COVER
                                                                          from £3,325.07
                                                                          from £3,325.07
                                                                          # 025
                                                                          MPN: 64995100
                                                                          LH CONTAINER
                                                                          from £4,186.03
                                                                          from £4,186.03
                                                                          # 026
                                                                          MPN: 65020600
                                                                          LH CONTAINER COVER
                                                                          from £3,117.25
                                                                          from £3,117.25
                                                                          # 027
                                                                          MPN: 60727200
                                                                          button
                                                                          from £17.78
                                                                          from £17.78
                                                                          This part replaces part number 60084506
                                                                          # 028
                                                                          MPN: 63992200
                                                                          SCREW TAP
                                                                          from £11.94
                                                                          from £11.94
                                                                          # 029
                                                                          MPN: 14496377
                                                                          WASHER
                                                                          from £1.07
                                                                          from £1.07
                                                                          This part replaces part number 14496309
                                                                          # 030
                                                                          MPN: 113647
                                                                          NUT
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 031
                                                                          MPN: 12643777
                                                                          WASHER
                                                                          Supersession
                                                                          Supersession
                                                                          This part replaces part number 12643706 which we have in stock - and 1 more. Click to view details
                                                                          # 032
                                                                          MPN: 166467
                                                                          WASHER
                                                                          from £0.54
                                                                          from £0.54
                                                                          # 033
                                                                          MPN: 13274277
                                                                          SCREW
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 034
                                                                          MPN: 64131000
                                                                          GASKET
                                                                          from £47.87
                                                                          from £47.87
                                                                          # 035
                                                                          MPN: 169814
                                                                          SCREW
                                                                          from £0.71
                                                                          from £0.71
                                                                          This part replaces part number 13288119 - and 1 more. Click to view details
                                                                          # 036
                                                                          MPN: 168133
                                                                          SCREW
                                                                          from £0.51
                                                                          from £0.51
                                                                          # 037
                                                                          MPN: 65020900
                                                                          GASKET
                                                                          - Not as spare part now - Replaced by 65193700 and 65193800
                                                                          # 037
                                                                          MPN: 65193700
                                                                          RH GASKET
                                                                          from £9.86
                                                                          from £9.86
                                                                          # 037
                                                                          MPN: 65193800
                                                                          LH GASKET
                                                                          from £9.86
                                                                          from £9.86
                                                                          # 038
                                                                          MPN: 156417
                                                                          RING NUT
                                                                          from £22.80
                                                                          from £22.80
                                                                          # 039
                                                                          MPN: 60888500
                                                                          RIVET
                                                                          from £0.47
                                                                          from £0.47
