110 - Windscreen Pillar and Sporting Roll-Bar

Ferrari F50 Windscreen Pillar and Sporting Roll-Bar Parts Diagram

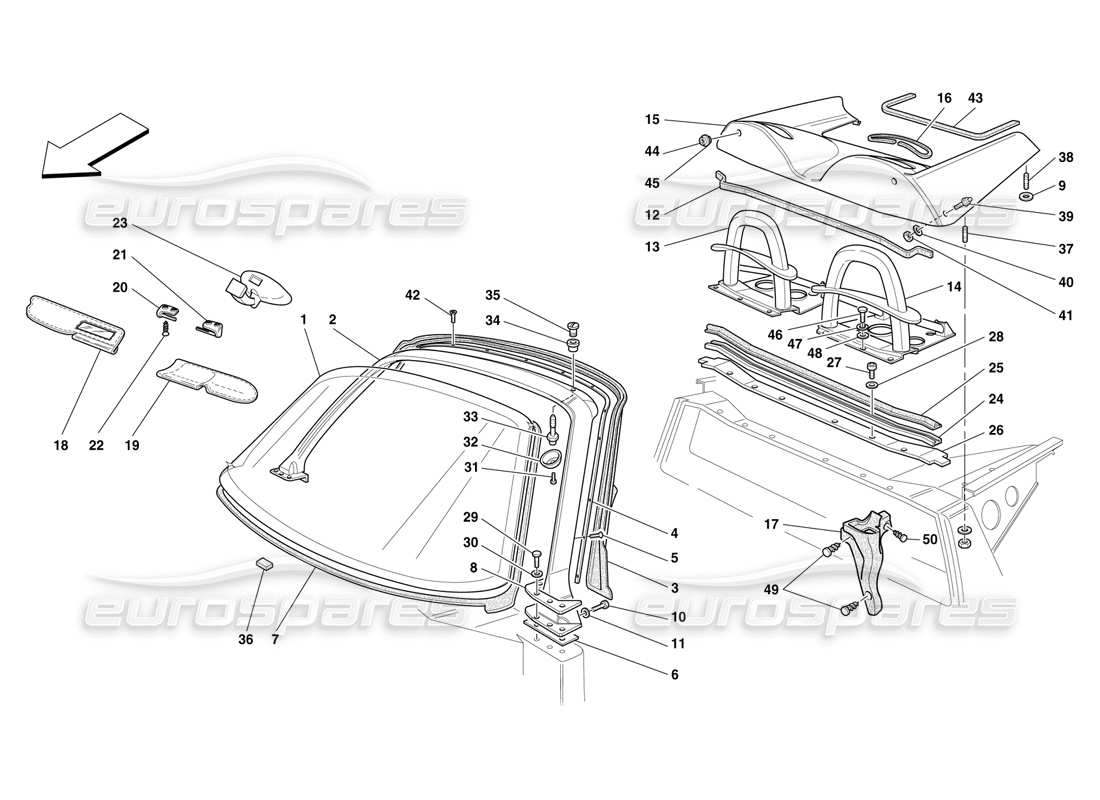

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                #
                                                                                                Part number
                                                                                                Description
                                                                                                Price
                                                                                                # 001
                                                                                                MPN: 63529700

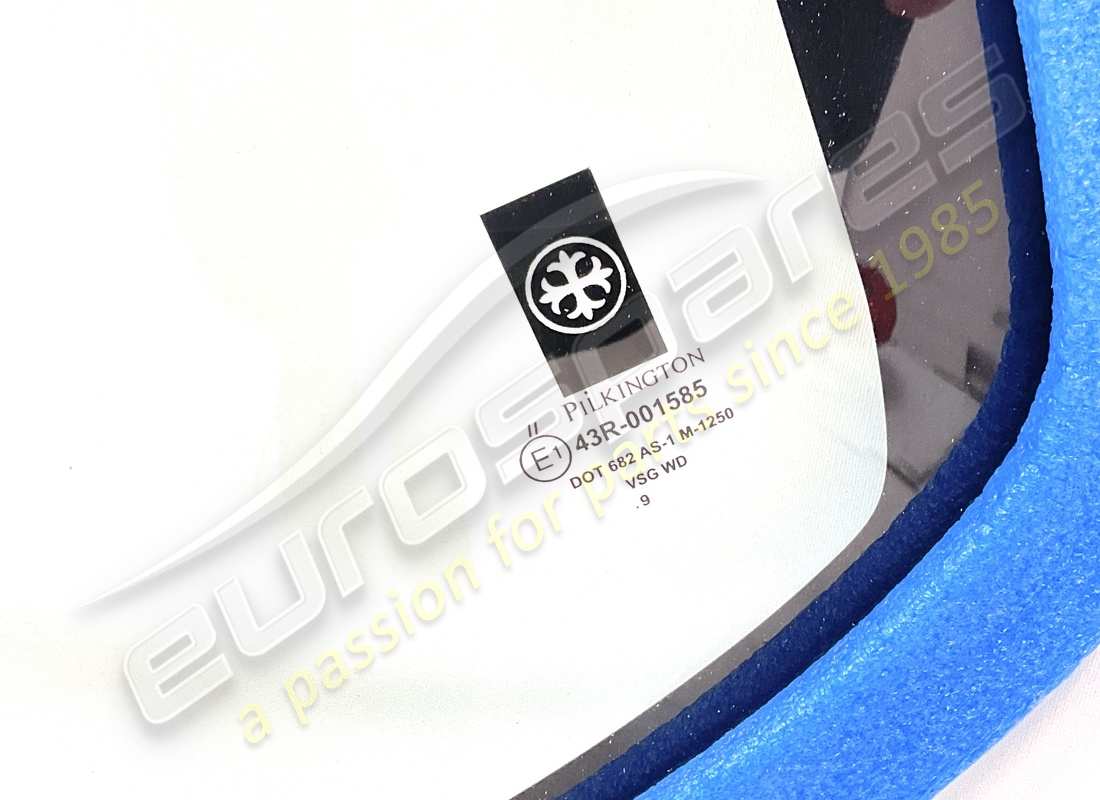

                                                                                                WINDSCREEN GLASS
                                                                                                from £2,231.76
                                                                                                from £2,231.76
                                                                                                This part replaces part number 949947
                                                                                                # 002
                                                                                                MPN: 64142500
                                                                                                WINDSCREEN PILLAR
                                                                                                from £6,750.74
                                                                                                from £6,750.74
                                                                                                # 003
                                                                                                MPN: 64481000

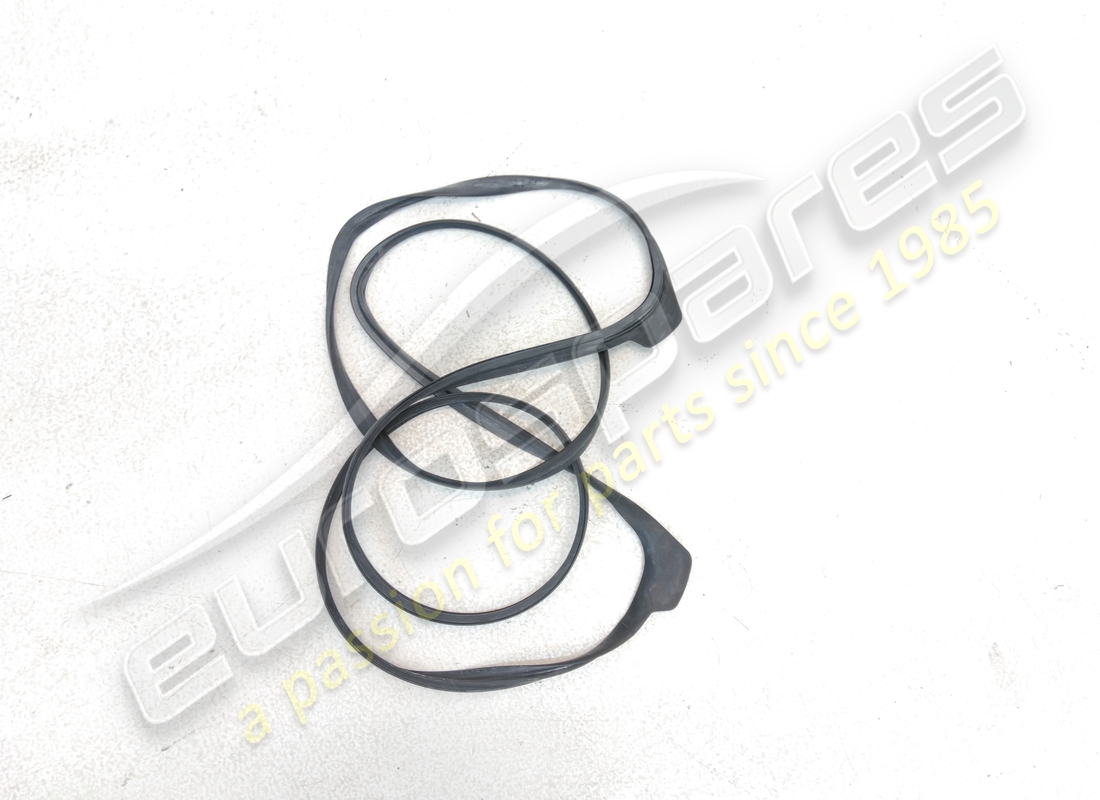

                                                                                                GASKET
                                                                                                from £2,094.75
                                                                                                from £2,094.75
                                                                                                # 004
                                                                                                MPN: 64196300
                                                                                                PLATE
                                                                                                from £475.22
                                                                                                from £475.22
                                                                                                # 005
                                                                                                MPN: 15688075
                                                                                                SCREW
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 15688007 which we have in stock - and 1 more. Click to view details
                                                                                                # 006
                                                                                                MPN: 64143000
                                                                                                ADJUSTING PLATE
                                                                                                from £49.84
                                                                                                from £49.84
                                                                                                # 007
                                                                                                MPN: 64199200

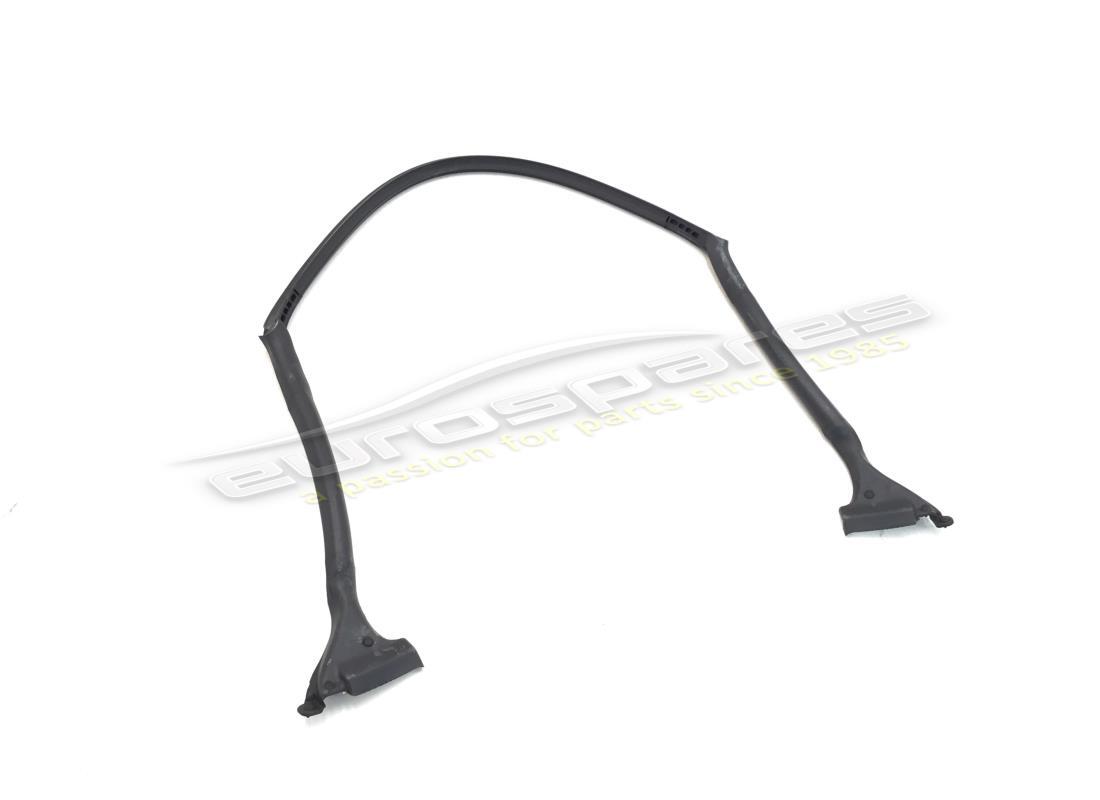

                                                                                                WINDSCREEN GASKET
                                                                                                from £937.34
                                                                                                from £937.34
                                                                                                # 008
                                                                                                MPN: 64695800
                                                                                                RH PLATE
                                                                                                from £39.28
                                                                                                from £39.28
                                                                                                # 008
                                                                                                MPN: 64695900
                                                                                                LH PLATE
                                                                                                from £39.28
                                                                                                from £39.28
                                                                                                # 009
                                                                                                MPN: 65081900
                                                                                                WASHER
                                                                                                from £3.38
                                                                                                from £3.38
                                                                                                # 010
                                                                                                MPN: 16043674
                                                                                                SCREW
                                                                                                - Not as spare part now - Replaced by 16043834
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 010
                                                                                                MPN: 16043834
                                                                                                SCREW
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 16043824
                                                                                                # 010
                                                                                                MPN: 16043974
                                                                                                SCREW
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 011
                                                                                                MPN: 12601374
                                                                                                WASHER
                                                                                                - Not as spare part now - Replaced by 127496
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                # 011
                                                                                                MPN: 127496
                                                                                                WASHER
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                # 012
                                                                                                MPN: 64986200
                                                                                                GASKET
                                                                                                from £6.45
                                                                                                from £6.45
                                                                                                # 013
                                                                                                MPN: 64631000
                                                                                                RH COMPLETE ROLL BAR
                                                                                                from £2,815.96
                                                                                                from £2,815.96
                                                                                                # 014
                                                                                                MPN: 64631100
                                                                                                LH COMPLETE ROLL BAR
                                                                                                from £2,815.96
                                                                                                from £2,815.96
                                                                                                # 015
                                                                                                MPN: 63532310
                                                                                                REAR COVER
                                                                                                from £6,201.84
                                                                                                from £6,201.84
                                                                                                # 016
                                                                                                MPN: 64879300
                                                                                                GASKET
                                                                                                from £4.37
                                                                                                from £4.37
                                                                                                This part replaces part number 64762700
                                                                                                # 017
                                                                                                MPN: 64721300
                                                                                                RH GASKET
                                                                                                from £36.56
                                                                                                from £36.56
                                                                                                # 017
                                                                                                MPN: 64721400
                                                                                                LH GASKET
                                                                                                from £29.83
                                                                                                from £29.83
                                                                                                # 018
                                                                                                MPN: 64163000
                                                                                                PASSENGER SUN VISOR
                                                                                                from £371.43
                                                                                                from £371.43
                                                                                                # 019
                                                                                                MPN: 64163400
                                                                                                DRIVER SUN VISOR
                                                                                                from £347.94
                                                                                                from £347.94
                                                                                                # 020
                                                                                                MPN: 61003200
                                                                                                RH BRACKET FOR SCREEN FASTENING
                                                                                                from £46.73
                                                                                                from £46.73
                                                                                                # 021
                                                                                                MPN: 61003300
                                                                                                LH BRACKET FOR SCREEN FASTENING
                                                                                                from £46.73
                                                                                                from £46.73
                                                                                                # 022
                                                                                                MPN: 13309017
                                                                                                SCREW
                                                                                                from £0.71
                                                                                                from £0.71
                                                                                                # 023
                                                                                                MPN: 64675810
                                                                                                INNER REAR VIEW MIRROR
                                                                                                from £1,174.46
                                                                                                from £1,174.46
                                                                                                This part replaces part number 64675800
                                                                                                # 024
                                                                                                MPN: 64172600
                                                                                                GASKET RETAINING STRUCTURAL SHAPE
                                                                                                from £76.98
                                                                                                from £76.98
                                                                                                # 025
                                                                                                MPN: 64172800
                                                                                                GASKET
                                                                                                from £30.83
                                                                                                from £30.83
                                                                                                # 026
                                                                                                MPN: 64975900
                                                                                                FRAME COVER PLATE
                                                                                                from £848.80
                                                                                                from £848.80
                                                                                                # 027
                                                                                                MPN: 13272070
                                                                                                SCREW
                                                                                                # 028
                                                                                                MPN: 10519224
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 10519201
                                                                                                # 029
                                                                                                MPN: 16043674
                                                                                                SCREW
                                                                                                - Not as spare part now - Replaced by 16043934
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 029
                                                                                                MPN: 16043934
                                                                                                SCREW
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 16043921 - and 1 more. Click to view details
                                                                                                # 030
                                                                                                MPN: 127496
                                                                                                WASHER
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                # 031
                                                                                                MPN: 13295777
                                                                                                SCREW
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 032
                                                                                                MPN: 64871600
                                                                                                RH PLUG
                                                                                                from £34.76
                                                                                                from £34.76
                                                                                                # 032
                                                                                                MPN: 64871700
                                                                                                LH PLUG
                                                                                                from £34.76
                                                                                                from £34.76
                                                                                                # 033
                                                                                                MPN: 64877700
                                                                                                PIN
                                                                                                from £6.01
                                                                                                from £6.01
                                                                                                # 034
                                                                                                MPN: 64871300
                                                                                                BUSHING
                                                                                                from £8.69
                                                                                                from £8.69
                                                                                                # 035
                                                                                                MPN: 64976600
                                                                                                SCREW
                                                                                                from £3.75
                                                                                                from £3.75
                                                                                                # 036
                                                                                                MPN: 60743800
                                                                                                RUBBER THICKNESS
                                                                                                from £1.07
                                                                                                from £1.07
                                                                                                # 037
                                                                                                MPN: 65006800
                                                                                                STUD
                                                                                                from £98.98
                                                                                                from £98.98
                                                                                                # 038
                                                                                                MPN: 65006900
                                                                                                STUD
                                                                                                from £3.03
                                                                                                from £3.03
                                                                                                # 039
                                                                                                MPN: 60084407
                                                                                                SCREW TAP
                                                                                                from £3.23
                                                                                                from £3.23
                                                                                                # 040
                                                                                                MPN: 10519301
                                                                                                WASHER
                                                                                                from £12.73
                                                                                                from £12.73
                                                                                                This part replaces part number 10517377 - and 2 more. Click to view details
                                                                                                # 041
                                                                                                MPN: 113647
                                                                                                NUT
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 042
                                                                                                MPN: 16043974
                                                                                                SCREW
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 043
                                                                                                MPN: 65052200
                                                                                                GASKET
                                                                                                from £10.89
                                                                                                from £10.89
                                                                                                # 044
                                                                                                MPN: 65052900
                                                                                                BUSHING
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 045
                                                                                                MPN: 65053000
                                                                                                COUTER BUSHING
                                                                                                from £0.86
                                                                                                from £0.86
                                                                                                # 046
                                                                                                MPN: 64674300
                                                                                                SCREW
                                                                                                from £1.98
                                                                                                from £1.98
                                                                                                # 047
                                                                                                MPN: 14496578
                                                                                                WASHER
                                                                                                from £0.52
                                                                                                from £0.52
                                                                                                This part replaces part number 14496506 - and 1 more. Click to view details
                                                                                                # 048
                                                                                                MPN: 127496
                                                                                                WASHER
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                # 049
                                                                                                MPN: 178949
                                                                                                CLIP
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 050
                                                                                                MPN: 178950
                                                                                                CLIP
                                                                                                from £0.71
                                                                                                from £0.71
