113 - Doors - Glass Lifting Device

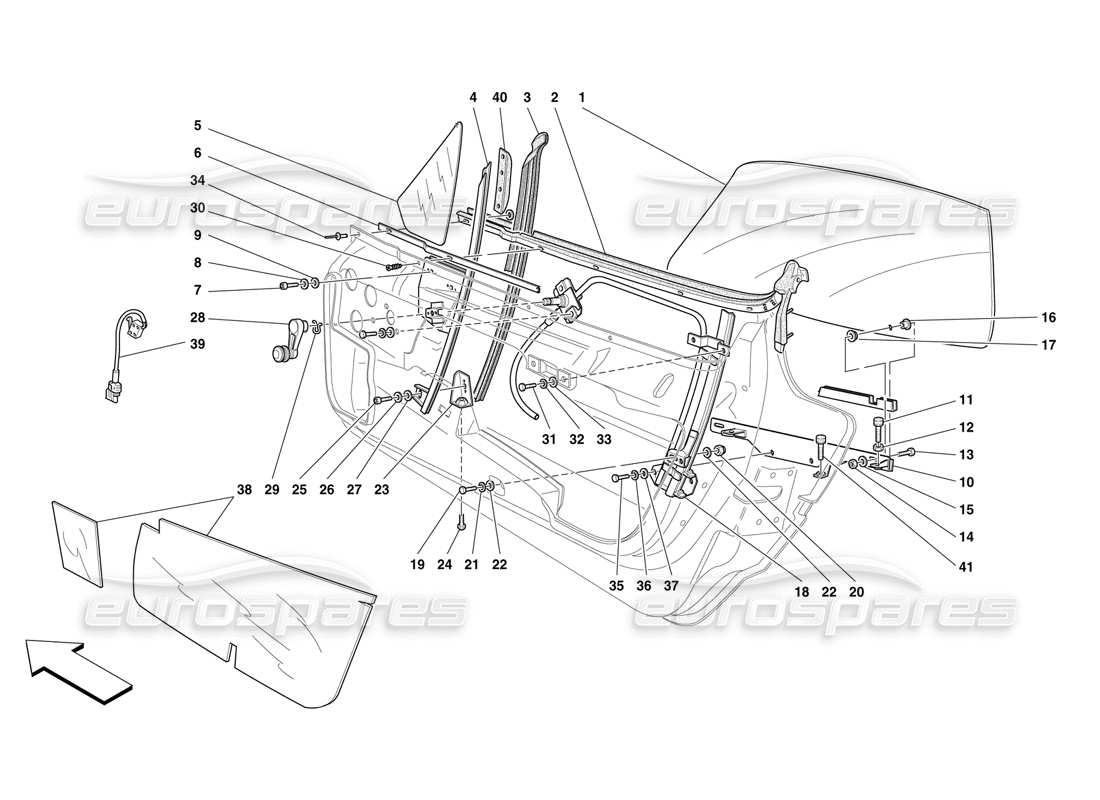

Ferrari F50 Doors - Glass Lifting Device Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 64697500
RH DOOR GLASS
from £156.62
from £156.62
# 001
MPN: 64697600
LH DOOR GLASS
from £156.62
from £156.62
# 002
MPN: 64721100
RH GASKET
- Not as spare part now - Replaced by 65080600
Supersession
Supersession
# 002
MPN: 64721200
LH GASKET
- Not as spare part now - Replaced by 65080700
Supersession
Supersession
# 002
MPN: 65080600
RH GASKET
from £968.46
from £968.46
This part replaces part number 64481300 - and 1 more. Click to view details
# 002
MPN: 65080700
LH GASKET
from £1,270.98
from £1,270.98
This part replaces part number 64481400 - and 1 more. Click to view details
# 003
MPN: 64155400
RH GASKET
from £134.70
from £134.70
# 003
MPN: 64480900
LH GASKET
from £134.70
from £134.70
# 004
MPN: 64198500
RH BUTTERFLY WINDOW FRAME
from £440.21
from £440.21
# 004
MPN: 64198600
LH BUTTERFLY WINDOW FRAME
from £440.21
from £440.21
# 005
MPN: 64147300
RH BUTTERFLY WINDOW
from £62.67
from £62.67
# 005
MPN: 64147400
LH BUTTERFLY WINDOW
from £62.67
from £62.67
# 006
MPN: 64144800
RH PLATE
from £222.46
from £222.46
# 006
MPN: 64144900
LH PLATE
from £222.46
from £222.46
# 007
MPN: 13026187
SCREW
from £2.18
from £2.18
# 008
MPN: 166467
WASHER
from £0.52
from £0.52
# 009
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
# 010
MPN: 64148300
RH LOWER BRACKET
from £80.27
from £80.27
# 010
MPN: 64148400
LH LOWER BRACKET
from £80.27
from £80.27
# 011
MPN: 62008400
STOP BUFFER
from £5.72
from £5.72
# 012
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 013
MPN: 10902324
SCREW
from £0.53
from £0.53
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 014
MPN: 102741
NUT
from £0.51
from £0.51
This part replaces part number 12575411 - and 1 more. Click to view details
# 015
MPN: 12643724
WASHER
from £0.51
from £0.51
This part replaces part number 109684 - and 4 more. Click to view details
# 016
MPN: 62106600
OUTER BUSHING
from £0.47
from £0.47
# 017
MPN: 62106700
INNER BUSHING
from £0.47
from £0.47
# 018
MPN: 64191200
RH GLASS LIFT ASSEMBLY
from £169.38
from £169.38
# 018
MPN: 64191300
LH GLASS LIFT ASSEMBLY
from £169.38
from £169.38
# 019
MPN: 10902324
SCREW
from £0.53
from £0.53
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 020
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 021
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.51
from £0.51
This part replaces part number 10516470 - and 4 more. Click to view details
# 022
MPN: 12643724
WASHER
from £0.50
from £0.50
This part replaces part number 109684 - and 4 more. Click to view details
# 023
MPN: 64145500
RH LOWER BRACKET
from £39.85
from £39.85
# 023
MPN: 64145600
LH LOWER BRACKET
from £60.32
from £60.32
# 024
MPN: 147365
SCREW
from £2.05
from £2.05
# 025
MPN: 14304224
SCREW
from £0.53
from £0.53
# 026
MPN: 166467
WASHER
from £0.53
from £0.53
# 027
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
# 028
MPN: 63537700
WINDOW REGULATOR HANDLE
from £261.04
from £261.04
# 029
MPN: 62584600
CLIP
from £0.71
from £0.71
# 030
MPN: 15901470
SCREW
from £0.48
from £0.48
This part replaces part number 15901401
# 031
MPN: 10902124
SCREW
from £0.48
from £0.48
This part replaces part number 10902111 - and 1 more. Click to view details
# 032
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.51
from £0.51
This part replaces part number 10516470 - and 4 more. Click to view details
# 033
MPN: 12643724
WASHER
from £0.48
from £0.48
This part replaces part number 109684 - and 4 more. Click to view details
# 034
MPN: 64488900
RIVET
from £0.53
from £0.53
# 035
MPN: 10902124
SCREW
from £0.51
from £0.51
This part replaces part number 10902111 - and 1 more. Click to view details
# 036
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 037
MPN: 14496401
WASHER
Supersession
Supersession
# 038
MPN: 63000900
WATER PROTECTION CLOTH
from £66.66
from £66.66
# 039
MPN: 154762
MICRO SWITCH
from £24.90
from £24.90
# 040
MPN: 64869900
RH AIR DEFLECTOR
from £120.68
from £120.68
# 040
MPN: 64870000
LH AIR DEFLECTOR
from £120.68
from £120.68
# 041
MPN: 50087709
STOP BUFFER
from £9.37
from £9.37
This part replaces part number 62783000
