121 - electrical system

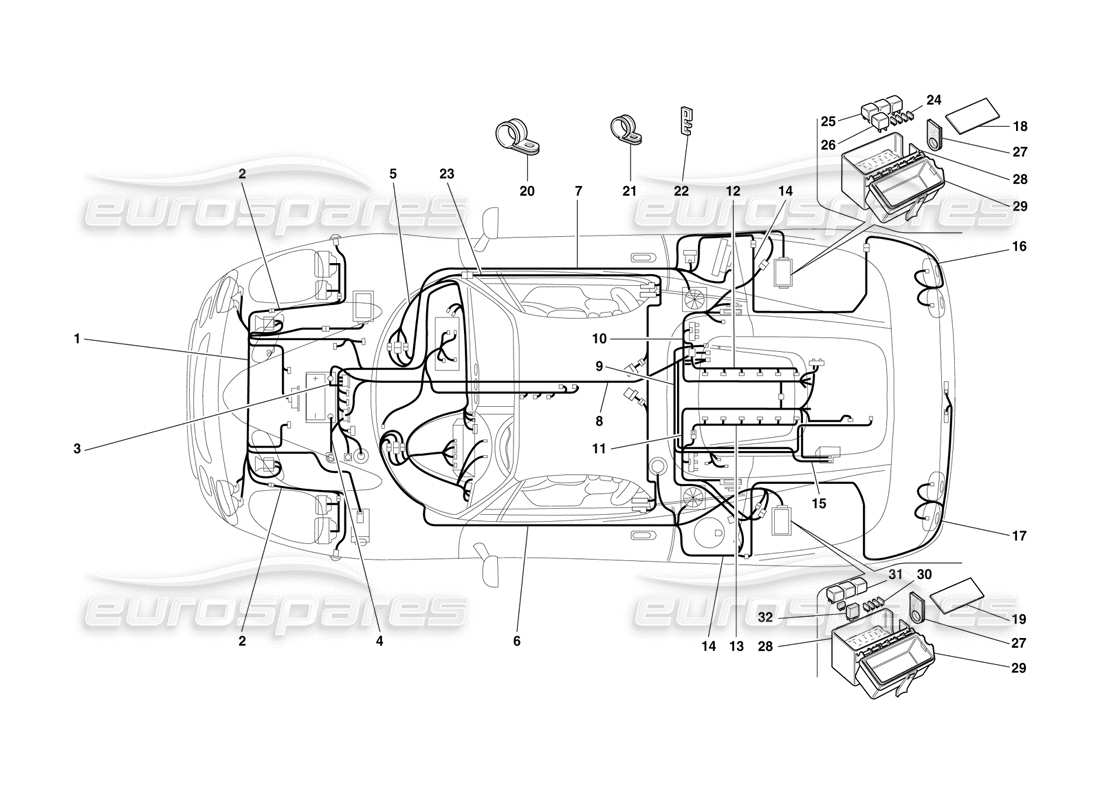

Ferrari F50 Electrical System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 161423
FRONT PART CONNECTING CABLES
- Not for USA
from £679.99
from £679.99
# 001
MPN: 168447
FRONT PART CONNECTING CABLES
- Valid for USA
from £836.91
from £836.91
# 002
MPN: 161433
HIGH BEAM/LOW BEAM AND DIRECTION LIGHT CONNECTING LIGHT
from £116.70
from £116.70
# 003
MPN: 161438
COPPER CABLE
from £77.90
from £77.90
# 004
MPN: 164434
CUT OUT SWITCH CONNECTING COPPER PLAIT
Supersession
Supersession
# 005
MPN: 161424
DASHBOARD CONNECTION CABLES
- Not for USA
from £1,446.47
from £1,446.47
# 005
MPN: 163638
DASHBOARD CONNECTION CABLES
- Valid for USA
from £3,075.98
from £3,075.98
# 006
MPN: 161426
LH REAR CONNECTING CABLES
from £680.64
from £680.64
# 007
MPN: 161425
RH REAR CONNECTING CABLES
from £624.98
from £624.98
# 008
MPN: 161435
BATTERY STARTING MOTOR ALTERNATOR CONNECTING CABLE
from £154.18
from £154.18
# 009
MPN: 161432
CONNECTION CABLES FOR MOTOR UTILITIES
from £122.05
from £122.05
# 010
MPN: 161430
RH SIDE INJECTION CONNECTING CABLES (CYL. 1-6)
- Not for USA
from £926.19
from £926.19
# 010
MPN: 168479
RH SIDE INJECTION CONNECTING CABLES (CYL. 1-6)
- Valid for USA
from £1,822.50
from £1,822.50
# 011
MPN: 161431
LH SIDE INJECTION CONNECTING CABLES (CYL. 7-12)
- Not for USA
from £573.76
from £573.76
# 011
MPN: 168480
LH SIDE INJECTION CONNECTING CABLES (CYL. 7-12)
- Valid for USA
from £1,822.50
from £1,822.50
# 012
MPN: 164428
INJECTORS CONNECTING CABLES (CYL. 1-6)
from £139.99
from £139.99
# 013
MPN: 164537
INJECTORS CONNECTING CABLES (CYL. 7-12)
from £139.99
from £139.99
# 014
MPN: 161427
REAR CONNECTING CABLES WITH LIGHTS CABLES
from £810.74
from £810.74
# 015
MPN: 166832
CABLE FROM STARTING MOTOR TO ALTERNATOR
from £77.79
from £77.79
# 016
MPN: 161428
RH REAR LIGHTS CONNECTING CABLES
- Not for USA
from £143.45
from £143.45
# 016
MPN: 163639
RH REAR LIGHTS CONNECTING CABLES
- Valid for USA
from £87.00
from £87.00
# 017
MPN: 161429
LH REAR LIGHTS CONNECTING CABLES
- Not for USA, AUS and FAR EAST
from £143.45
from £143.45
# 017
MPN: 163640
LH REAR LIGHTS CONNECTING CABLES
- Valid for USA, AUS and FAR EAST
from £106.11
from £106.11
# 018
MPN: 167897
RH RELAYS AND FUSES NAMEPLATE
from £30.31
from £30.31
# 019
MPN: 167896
LH RELAYS AND FUSES NAMEPLATE
from £5.99
from £5.99
# 020
MPN: 10442190
BRACKET
from £0.48
from £0.48
# 021
MPN: 10441290
BRACKET
from £0.51
from £0.51
# 022
MPN: 162606
CLIP
from £0.84
from £0.84
# 023
MPN: 168448
PASSIVE BELTS CONNECTING CABLES
- Valid for USA
from £301.37
from £301.37
# 024
MPN: 125241
10 A. FUSE
from £0.53
from £0.53
This part replaces part number 11054990 - and 1 more. Click to view details
# 024
MPN: 125242
15 A. FUSE
from £0.53
from £0.53
This part replaces part number 11055090 - and 1 more. Click to view details
# 025
MPN: 157802

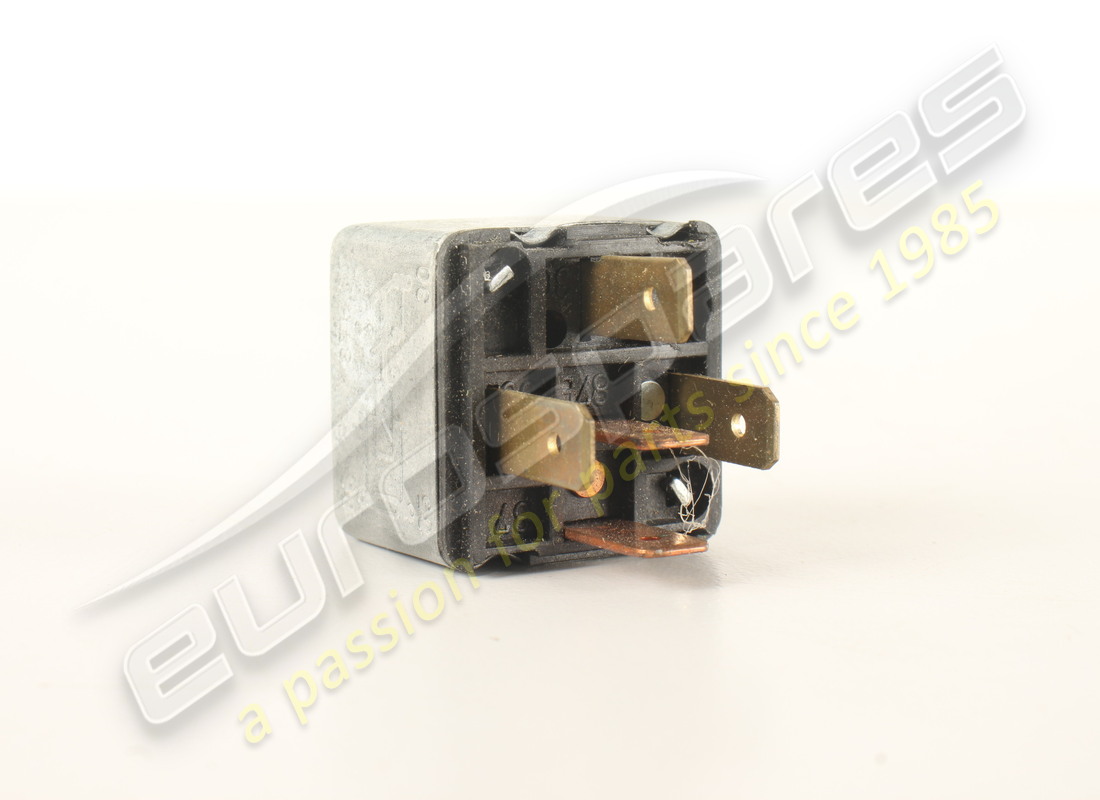

AIR PUMP CONTROL RELAY
from £28.62
from £28.62
# 025
MPN: 175318
RH FUEL PUMP CONTROL RELAY
from £19.26
from £19.26
This part replaces part number 139361
# 025
MPN: 175318
R. H. INJECTOR CONTROL RELAY
from £19.26
from £19.26
This part replaces part number 139361
# 026
MPN: 123509
TIMER FOR ENGIN BONNET ELECTRO FAN
from £85.23
from £85.23
# 027
MPN: 162652
RUBBER BOOT
from £3.61
from £3.61
# 028
MPN: 162649
RELE' AND FUSE CONTAINER
from £32.90
from £32.90
# 029
MPN: 162651
COVER
from £66.81
from £66.81
# 030
MPN: 125241
10 A. FUSE
from £0.53
from £0.53
This part replaces part number 11054990 - and 1 more. Click to view details
# 030
MPN: 125242
15 A. FUSE
from £0.54
from £0.54
This part replaces part number 11055090 - and 1 more. Click to view details
# 030
MPN: 126031
25 A. FUSE
from £0.47
from £0.47
This part replaces part number MC3742/5
# 030
MPN: 131941
30 A. FUSE
from £0.54
from £0.54
This part replaces part number MC3742/6
# 031
MPN: 157991
STARTER MOTOR CONTROL RELAY
from £22.25
from £22.25
# 031
MPN: 175318
L. H. INJECTOR CONTROL RELAY
from £19.26
from £19.26
This part replaces part number 139361
# 031
MPN: 175318
LH FUEL PUMP CONTROL RELAY
from £19.26
from £19.26
This part replaces part number 139361
# 032
MPN: 161590
OIL RADIATOR FAN CONTROL MICRORELAY
from £13.02
from £13.02
