122 - Electrical Devices - Front Part-Passengers Compartment Electrical Boards

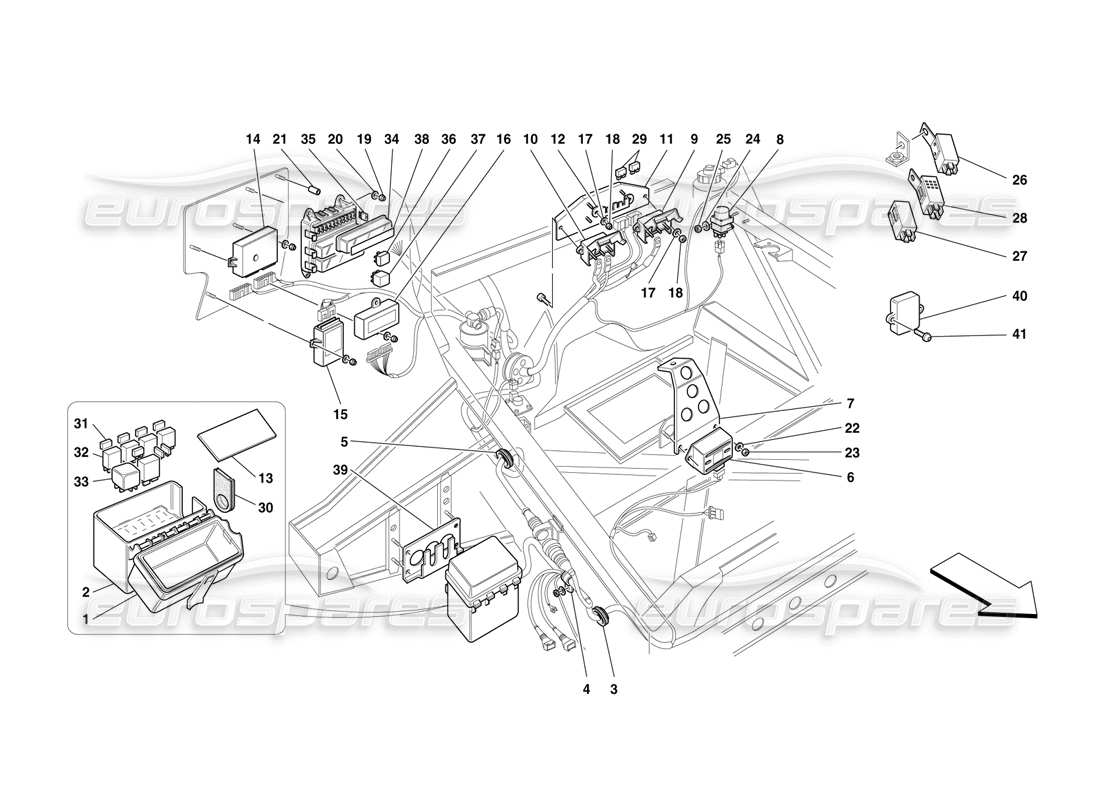

Ferrari F50 Electrical Devices - Front Part-Passengers Compartment Electrical Boards Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 162651
COVER FOR RELAYS AND FUSES CASE
from £66.81
from £66.81
# 002
MPN: 162649
RELAYS AND FUSES CASE
from £32.90
from £32.90
# 003
MPN: 10397780
CABLE GROMMET
from £0.76
from £0.76
# 004
MPN: 64686900
BRACKET WITH SHEATH
from £0.54
from £0.54
This part replaces part number 14778818
# 005
MPN: 10398980
CABLE GROMMET
from £1.06
from £1.06
# 006
MPN: 154310
FILTRATE ACCELEROMETER
from £299.34
from £299.34
# 007
MPN: 64975700
BRACKET
from £83.38
from £83.38
# 008
MPN: 179087
INERTIAL SWITCH
from £34.33
from £34.33
This part replaces part number 163675 which we have in stock - and 8 more. Click to view details
# 009
MPN: 166981
NEGATIVE CABLES TERMINAL BOX
from £14.02
from £14.02
# 010
MPN: 170114
POSITIVE CABLES TERMINAL BOX
from £7.62
from £7.62
This part replaces part number 153357 - and 4 more. Click to view details
# 011
MPN: 164267
PLATE
from £47.77
from £47.77
# 012
MPN: 164273
BRACKET
from £5.67
from £5.67
# 013
MPN: 167892
RELAYS AND FUSES NAMEPLATE
- Not for USA
# 013
MPN: 168454
RELAYS AND FUSES NAMEPLATE
- Valid for USA
from £9.33
from £9.33
# 014
MPN: 161587
SHOCK ABSORBERS ELECTRONIC CONTROL STATION
from £5,500.00
from £5,500.00
# 015
MPN: 61079400
A.C. CONTROL STATION
from £5,487.83
from £5,487.83
# 016
MPN: 162673
A.C. SPEED CONTROL STATION
from £490.26
from £490.26
# 017
MPN: 10519301
WASHER
from £13.61
from £13.61
This part replaces part number 10517377 - and 2 more. Click to view details
# 018
MPN: 113647
NUT
from £0.53
from £0.53
# 019
MPN: 62790300
NUT
from £0.51
from £0.51
This part replaces part number 12574011 - and 1 more. Click to view details
# 020
MPN: 12642877
WASHER
from £0.52
from £0.52
# 021
MPN: 64673500
BUSHING
from £5.82
from £5.82
# 022
MPN: 14496324
WASHER
from £1.44
from £1.44
This part replaces part number 14496301 which we have in stock
# 023
MPN: 12574115
NUT
from £1.13
from £1.13
# 024
MPN: 10519301
WASHER
from £14.40
from £14.40
This part replaces part number 10517377 - and 2 more. Click to view details
# 025
MPN: 12577811
NUT
Supersession
Supersession
# 026
MPN: 158019
DIRECTION EMERGENCY LIGHTS RELAY
- Not for USA
Supersession
Supersession
# 027
MPN: 164369
DIRECTION EMERGENCY LIGHTS RELAY
- Valid for USA
from £107.09
from £107.09
# 028
MPN: 137667
ACOUSTIC SIGNAL FOR OPEN DOOR CONTROL
- Valid for USA
from £38.02
from £38.02
This part replaces part number 136133 which we have in stock - and 1 more. Click to view details
# 029
MPN: 166835
40 A. FUSE
from £5.76
from £5.76
# 030
MPN: 162652
RUBBER BOOT
from £3.41
from £3.41
# 031
MPN: 125241
10 A. FUSE
- Q.ty 4 for USA
from £0.53
from £0.53
This part replaces part number 11054990 - and 1 more. Click to view details
# 031
MPN: 125242
15 A. FUSE
- Not for USA
from £0.54
from £0.54
This part replaces part number 11055090 - and 1 more. Click to view details
# 031
MPN: 125243
20 A. FUSE
from £0.47
from £0.47
This part replaces part number 11055190 - and 1 more. Click to view details
# 031
MPN: 131941
30 A. FUSE
from £0.53
from £0.53
This part replaces part number MC3742/6
# 032
MPN: 161590
DIPPED BEAM CONTROL MICRORELAY
from £12.96
from £12.96
# 032
MPN: 161590
HORNES CONTROL MICRORELAY
from £12.96
from £12.96
# 032
MPN: 161590
LH RADIATOR FAN CONTROL MICRORELAY
from £12.96
from £12.96
# 032
MPN: 161590
RH RADIATOR FAN CONTROL MICRORELAY
from £12.96
from £12.96
# 032
MPN: 161590
MICRORELAY FOR DIPPED BEAM CONTROL RELAY
- For USA: MAIN BEAM CONTROL RELAY
from £12.96
from £12.96
# 033
MPN: 157802
MAIN BEAM CONTROL RELAY
- Not for USA
from £28.62
from £28.62
# 034
MPN: 170574
COVER
from £16.69
from £16.69
# 035
MPN: 125240
7,5 A. FUSE
from £0.47
from £0.47
This part replaces part number 11054890 - and 1 more. Click to view details
# 035
MPN: 125241
10 A. FUSE
from £0.53
from £0.53
This part replaces part number 11054990 - and 1 more. Click to view details
# 035
MPN: 125242
15 A. FUSE
from £0.52
from £0.52
This part replaces part number 11055090 - and 1 more. Click to view details
# 035
MPN: 126031
25 A. FUSE
from £0.47
from £0.47
This part replaces part number MC3742/5
# 036
MPN: 161590
A.C. COMPRESSOR CONTROL MICRORELAY
from £12.96
from £12.96
# 036
MPN: 161590
LH FUEL PUMP CONSENT CONTROL MICRORELAY
from £12.96
from £12.96
# 036
MPN: 161590
RH FUEL PUMP CONSENT CONTROL MICRORELAY
from £12.96
from £12.96
# 036
MPN: 161590
A.C. ELECTRO FAN CONTROL MICRORELAY
from £12.96
from £12.96
# 036
MPN: 227285
MICRO - RELAY 20/10 A.
from £13.52
from £13.52
This part replaces part number 161591 which we have in stock
# 036
MPN: 227285
MICRO - RELAY 20/10 A.
from £13.52
from £13.52
This part replaces part number 161591 which we have in stock
# 036
MPN: 227285
MICRO - RELAY 20/10 A.
from £13.52
from £13.52
This part replaces part number 161591 which we have in stock
# 037
MPN: 157802
PARKING LIGHTS CONTROL RELAY
from £28.62
from £28.62
# 037
MPN: 157991
A.C. ELECTRO FAN CONDENSER (POSITIVE CABLE) CONTROL RELAY
from £22.28
from £22.28
# 037
MPN: 157991
A.C. ELECTRO FAN CONDENSER (NEGATIVE CABLE) CONTROL RELAY
from £22.28
from £22.28
# 037
MPN: 157991
LOCKED KEY SERVICES CONTROL RELAY
from £22.28
from £22.28
# 038
MPN: 167893
FUSES NAMEPLATE
from £2.25
from £2.25
# 038
MPN: 167894
MICRORELAY NAMEPLATE
from £2.25
from £2.25
# 038
MPN: 167895
RELAY NAMEPLATE
from £2.25
from £2.25
# 039
MPN: 163021
BRACKET
from £85.55
from £85.55
# 040
MPN: 161589
LIFTING SYSTEM CONTROL STATION
from £202.07
from £202.07
# 041
MPN: 64727900
SCREW
Supersession
Supersession
