ferrari f50 air conditioning system parts diagram

124 - air conditioning system

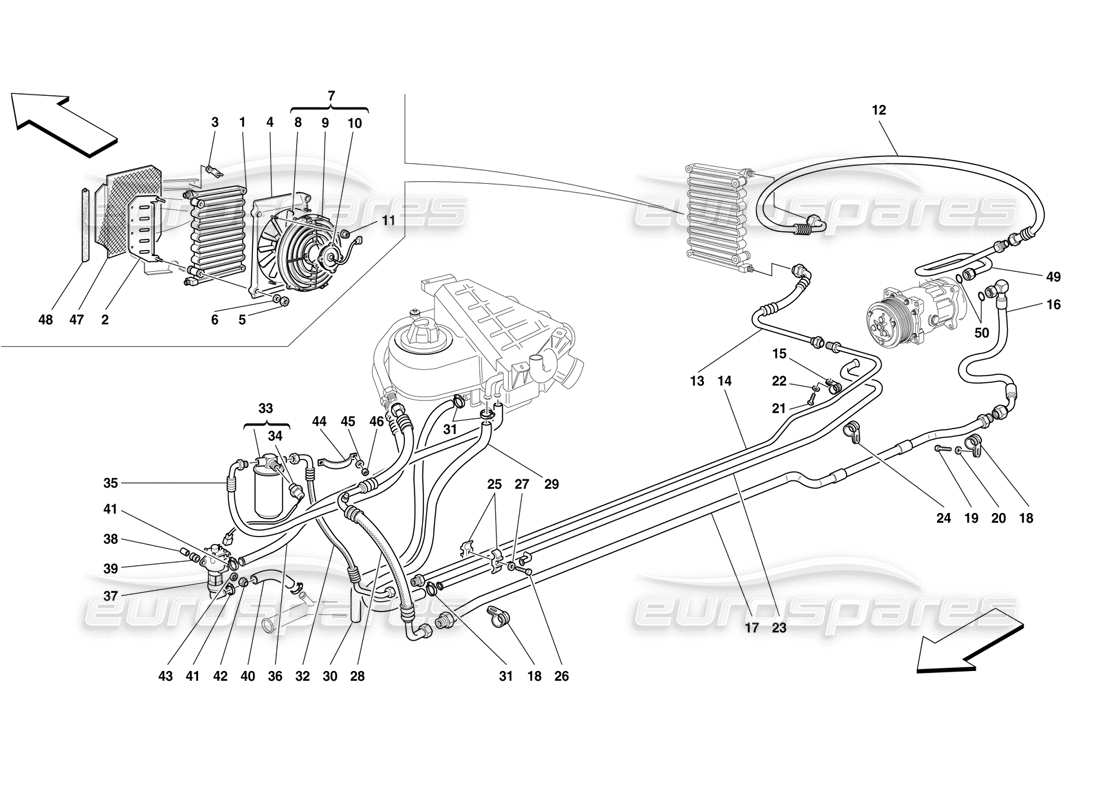

Ferrari F50 Air Conditioning System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                    #
                                                                                                    Part number
                                                                                                    Description
                                                                                                    Price
                                                                                                    # 001
                                                                                                    MPN: 63665600
                                                                                                    A.C. CONDENSER
                                                                                                    from £575.20
                                                                                                    from £575.20
                                                                                                    # 002
                                                                                                    MPN: 64161100
                                                                                                    SHIELD
                                                                                                    from £34.53
                                                                                                    from £34.53
                                                                                                    # 003
                                                                                                    MPN: 64161700
                                                                                                    BRACKET
                                                                                                    from £20.15
                                                                                                    from £20.15
                                                                                                    # 004
                                                                                                    MPN: 64644500
                                                                                                    AIR CONVEYOR
                                                                                                    from £93.95
                                                                                                    from £93.95
                                                                                                    # 005
                                                                                                    MPN: 102741
                                                                                                    NUT
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                    # 006
                                                                                                    MPN: 12643724
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                    # 007
                                                                                                    MPN: 153431

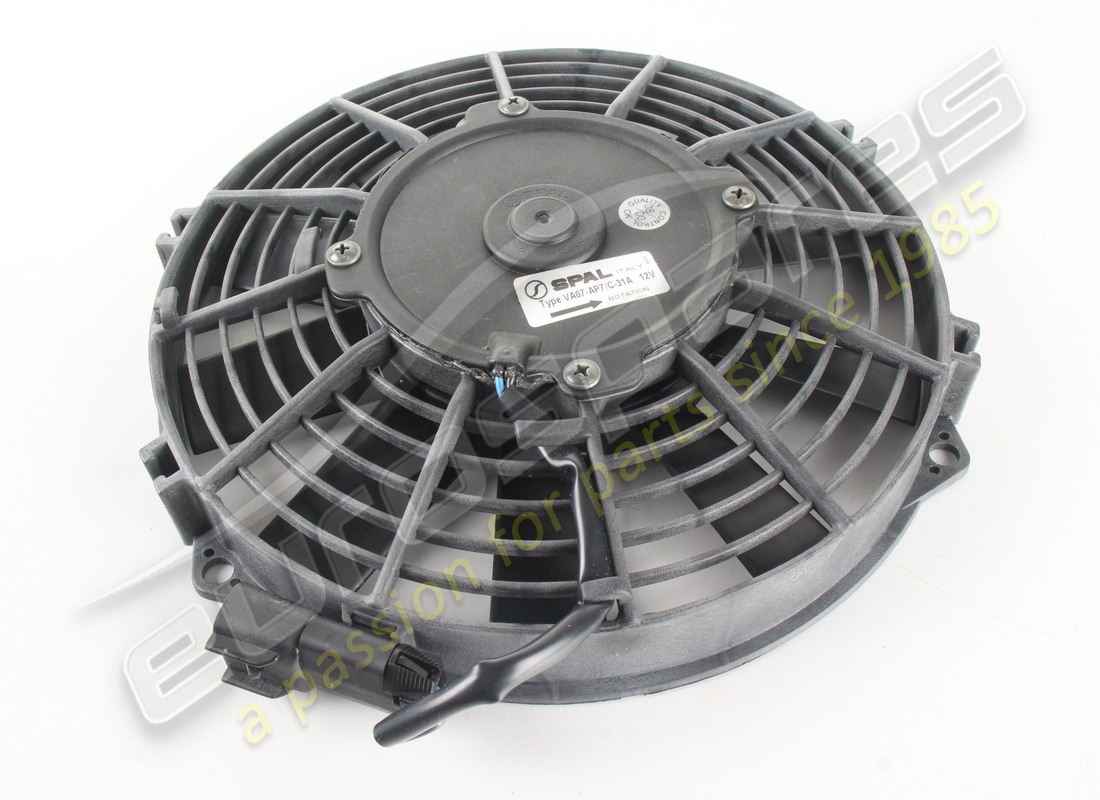

                                                                                                    COMPLETE ELECTROFAN
                                                                                                    from £55.17
                                                                                                    from £55.17
                                                                                                    # 008
                                                                                                    MPN: 154223
                                                                                                    BLOWER
                                                                                                    from £138.99
                                                                                                    from £138.99
                                                                                                    # 009
                                                                                                    MPN: 154224
                                                                                                    CONVEYOR
                                                                                                    from £102.72
                                                                                                    from £102.72
                                                                                                    # 010
                                                                                                    MPN: 154225
                                                                                                    MOTOR
                                                                                                    from £103.26
                                                                                                    from £103.26
                                                                                                    # 011
                                                                                                    MPN: 102741
                                                                                                    NUT
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                    # 012
                                                                                                    MPN: 64761900
                                                                                                    PIPE FROM COMPRESSOR TO CONDENSER
                                                                                                    from £117.44
                                                                                                    from £117.44
                                                                                                    # 013
                                                                                                    MPN: 63665800
                                                                                                    PIPE FROM CONDENSER TO TUNNEL PIPE
                                                                                                    from £57.72
                                                                                                    from £57.72
                                                                                                    # 014
                                                                                                    MPN: 63665900
                                                                                                    PIPE FROM CONDENSER TO FILTER
                                                                                                    from £376.04
                                                                                                    from £376.04
                                                                                                    # 015
                                                                                                    MPN: 10441390
                                                                                                    BRACKET WITH SHEATH
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 016
                                                                                                    MPN: 63666400
                                                                                                    PIPE FROM TUNNEL TO COMPRESSOR
                                                                                                    from £88.29
                                                                                                    from £88.29
                                                                                                    # 017
                                                                                                    MPN: 63666300
                                                                                                    PIPE FROM EVAPORATOR TO COMPRESSOR
                                                                                                    from £568.14
                                                                                                    from £568.14
                                                                                                    # 018
                                                                                                    MPN: 10441690
                                                                                                    BRACKET WITH SHEATH
                                                                                                    from £1.08
                                                                                                    from £1.08
                                                                                                    This part replaces part number 1044690
                                                                                                    # 019
                                                                                                    MPN: 10977624
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 10977611 - and 1 more. Click to view details
                                                                                                    # 020
                                                                                                    MPN: 11181574
                                                                                                    WASHER
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    # 021
                                                                                                    MPN: 10977624
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 10977611 - and 1 more. Click to view details
                                                                                                    # 022
                                                                                                    MPN: 11181574
                                                                                                    WASHER
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    # 023
                                                                                                    MPN: 64774400
                                                                                                    UNDERTUNNEL HEATING PIPE
                                                                                                    from £90.63
                                                                                                    from £90.63
                                                                                                    # 024
                                                                                                    MPN: 10441490
                                                                                                    BRACKET WITH SHEATH
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 025
                                                                                                    MPN: 64290100
                                                                                                    CLIP
                                                                                                    from £1.97
                                                                                                    from £1.97
                                                                                                    # 026
                                                                                                    MPN: 10903024
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 10903021
                                                                                                    # 027
                                                                                                    MPN: 11181874
                                                                                                    WASHER
                                                                                                    from £0.51
                                                                                                    from £0.51
                                                                                                    # 028
                                                                                                    MPN: 63666200
                                                                                                    PIPE FROM EVAPORATOR TO TUNNEL PIPE
                                                                                                    from £92.29
                                                                                                    from £92.29
                                                                                                    # 029
                                                                                                    MPN: 63666500
                                                                                                    HEATING PIPE FROM UNDER TUNNEL TO HEATER
                                                                                                    from £258.21
                                                                                                    from £258.21
                                                                                                    # 030
                                                                                                    MPN: 64628400
                                                                                                    PIPE FOR CONDENSATE VENT
                                                                                                    from £25.79
                                                                                                    from £25.79
                                                                                                    # 031
                                                                                                    MPN: 13000490
                                                                                                    SCREW COLLAR
                                                                                                    from £0.51
                                                                                                    from £0.51
                                                                                                    This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                                    # 032
                                                                                                    MPN: 63666000
                                                                                                    PIPE FROM TUNNEL PIPE TO DEHYDRATOR
                                                                                                    from £44.93
                                                                                                    from £44.93
                                                                                                    # 033
                                                                                                    MPN: 63934300
                                                                                                    DEHYDRATOR FILTER WITH PRESSURE SWITCH
                                                                                                    from £111.35
                                                                                                    from £111.35
                                                                                                    # 034
                                                                                                    MPN: 64278900
                                                                                                    PRESSOSTAT
                                                                                                    from £47.09
                                                                                                    from £47.09
                                                                                                    # 035
                                                                                                    MPN: 63666100
                                                                                                    PIPE FROM DEHYDRATOR TO EVAPORATOR
                                                                                                    from £66.72
                                                                                                    from £66.72
                                                                                                    # 036
                                                                                                    MPN: 63666600
                                                                                                    PIPE FROM HEATER TO TAP
                                                                                                    from £535.49
                                                                                                    from £535.49
                                                                                                    # 037
                                                                                                    MPN: 61079000
                                                                                                    ELECTRO MAGNETIC VALVE
                                                                                                    from £906.02
                                                                                                    from £906.02
                                                                                                    This part replaces part number 63241600
                                                                                                    # 038
                                                                                                    MPN: 103550
                                                                                                    SPACER
                                                                                                    from £1.94
                                                                                                    from £1.94
                                                                                                    This part replaces part number 4130913
                                                                                                    # 039
                                                                                                    MPN: 103549
                                                                                                    CABLE GROMMET
                                                                                                    from £0.70
                                                                                                    from £0.70
                                                                                                    # 040
                                                                                                    MPN: 63666700
                                                                                                    PIPE FROM VALVE TO RETURN
                                                                                                    - Not as spare part now - Replaced by 64892900
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 040
                                                                                                    MPN: 64892900
                                                                                                    PIPE FROM VALVE TO RETURN
                                                                                                    from £110.16
                                                                                                    from £110.16
                                                                                                    This part replaces part number 63666700
                                                                                                    # 041
                                                                                                    MPN: 13000490
                                                                                                    SCREW COLLAR
                                                                                                    from £0.50
                                                                                                    from £0.50
                                                                                                    This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                                    # 042
                                                                                                    MPN: 15896211
                                                                                                    NUT
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 15896210
                                                                                                    # 043
                                                                                                    MPN: 12643724
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                    # 044
                                                                                                    MPN: 62165800
                                                                                                    BRACKET
                                                                                                    from £1.36
                                                                                                    from £1.36
                                                                                                    # 045
                                                                                                    MPN: 12643777
                                                                                                    WASHER
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 12643706 which we have in stock - and 1 more. Click to view details
                                                                                                    # 046
                                                                                                    MPN: 102948
                                                                                                    NUT
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                                    # 047
                                                                                                    MPN: 64690200
                                                                                                    PROTECTION NET A.C. CONDENSER
                                                                                                    from £119.12
                                                                                                    from £119.12
                                                                                                    # 048
                                                                                                    MPN: 64990400
                                                                                                    GASKET
                                                                                                    from £126.59
                                                                                                    from £126.59
                                                                                                    # 049
                                                                                                    MPN: 63665500
                                                                                                    PIPE FROM COMPRESSOR TO A.C. CONDENSER PIPE
                                                                                                    from £42.11
                                                                                                    from £42.11
                                                                                                    # 050
                                                                                                    MPN: 172702
                                                                                                    O.R. GASKET
                                                                                                    from £4.04
                                                                                                    from £4.04
