0013 - AIR INTAKE

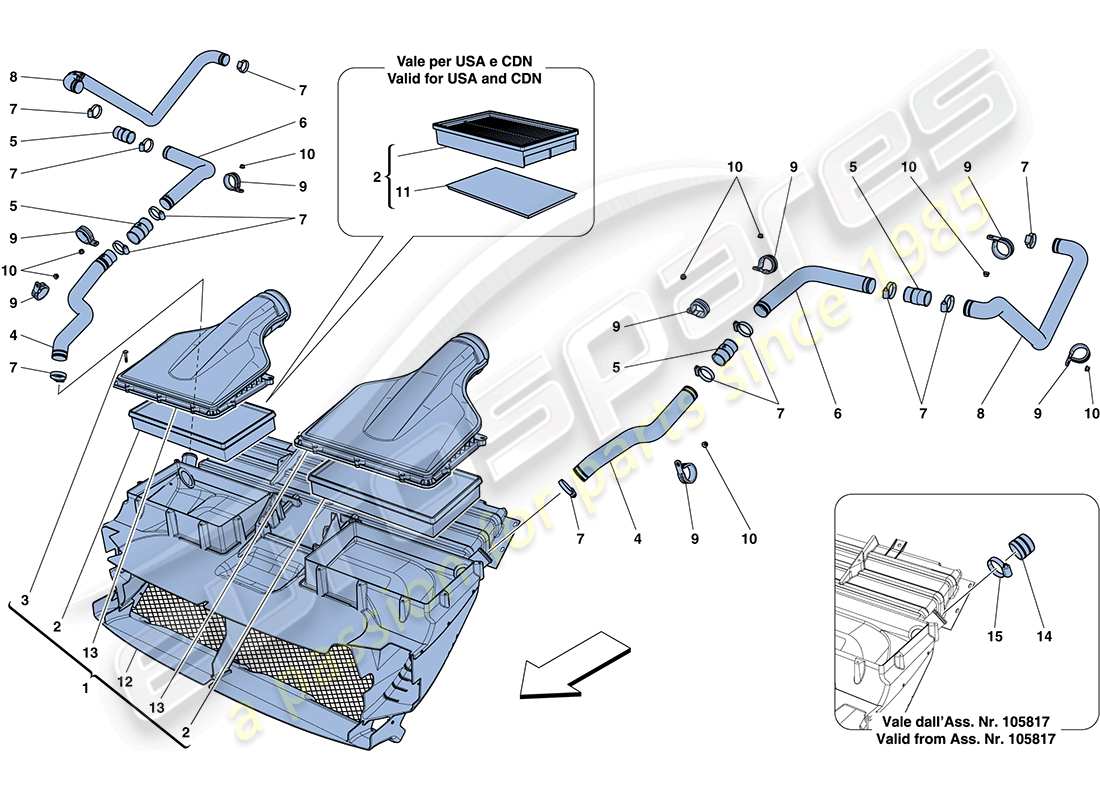

Ferrari FF (Europe) AIR INTAKE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 265703
      COMPL. AIR DUCT
      -Not for USA, CDN, USA LIGHT- -No longer supplied-
      from £527.00
      from £527.00
      AIR DUCT COMPLETE Genuine Ferrari Part - New (to order)
      # 001
      MPN: 271139
      COMPL. AIR DUCT
      -Applicable for USA, CDN, USA LIGHT- -No longer supplied-
      from £858.00
      from £858.00
      AIR DUCT COMPLETE Genuine Ferrari Part - New (to order)
      # 002
      MPN: 223039
      AIR FILTER
      -Not for USA, CDN, USA LIGHT-
      from £56.49
      from £56.49
      AIR FILTER Genuine Ferrari Part - New In stock
      # 002
      MPN: 271145
      COMPL. AIR FILTER
      -Applicable for USA, CDN, USA LIGHT-
      from £105.21
      from £105.21
      AIR FILTER Genuine Ferrari Part - New In stock
      # 003
      MPN: 169815
      SCREW
      -M5 X 20- -No longer supplied- -Replaced by 85692300-
      from £1.03
      from £1.03
      This part replaces part number 270024
      SCREW Genuine Ferrari Part - New In stock
      # 003
      MPN: 270024
      SCREW
      -No longer supplied- -Replaced by 169815-
      Supersession
      Supersession
      Genuine Ferrari Part (no longer available to order)
      # 003
      MPN: 85692300
      SCREW
      -M5 X 20-
      from £0.47
      from £0.47
      This part replaces part number 83914200
      SCREW Genuine Ferrari Part - New In stock
      # 004
      MPN: 275476
      COILED PIPE
      -D. 38- -L. 450 mm- -Applicable up to Ass. No. 105816-
      from £33.75
      from £33.75
      COILED PIPE Genuine Ferrari Part - New (to order)
      COILED PIPE Genuine Ferrari Part - Used In stock
      # 005
      MPN: 270296
      MEMBRANE HOLDER PIPE
      -D. 38- -Applicable up to Ass. No. 105816-
      from £13.01
      from £13.01
      MEMBRANE HOLDER PIPE Genuine Ferrari Part - New (to order)
      MEMBRANE HOLDER PIPE Genuine Ferrari Part - Used In stock
      # 006
      MPN: 275474
      COILED PIPE
      -D. 38- -L. 370 mm- -Applicable up to Ass. No. 105816-
      from £31.31
      from £31.31
      This part replaces part number 288527 - and 1 more. Click to view details
      COILED PIPE Genuine Ferrari Part - New (to order)
      COILED PIPE Genuine Ferrari Part - Used In stock
      # 007
      MPN: 13000690
      SCREW COLLAR
      -Applicable up to Ass. No. 105816-
      from £0.47
      from £0.47
      This part replaces part number 12177090 - and 1 more. Click to view details
      SCREW COLLAR Genuine Ferrari Part - New In stock
      SCREW COLLAR D. 32- 50X9 (13000690) Genuine Maserati Part - New In stock
      # 008
      MPN: 275478
      COILED PIPE
      -D. 38- -L. 1070 mm- -Applicable up to Ass. No. 105816-
      from £102.73
      from £102.73
      COILED PIPE Genuine Ferrari Part - New (to order)
      # 009
      MPN: 107002
      BRACKET WITH SHEATH
      from £7.32
      from £7.32
      BRACKET WITH SHEATH Genuine Ferrari Part - New (to order)
      BRACKET WITH SHEATH Genuine Ferrari Part - Used In stock
      # 010
      MPN: 14040611
      NUT
      -Applicable up to Ass. No. 105816-
      from £0.51
      from £0.51
      NUT Genuine Ferrari Part - New In stock
      NUT (14040611) Genuine Maserati Part - New In stock
      # 011
      MPN: 249164
      AIR FILTER
      -After depletion, order compl. 271145 pos. 2- -Applicable for USA, CDN, USA LIGHT- -Applicable until depletion-
      from £257.96
      from £257.96
      AIR FILTER ELEMENT Genuine Ferrari Part - New (to order)
      # 012
      MPN: 265704
      AIR DUCT
      -Applicable up to Ass. No. 110520-
      from £827.89
      from £827.89
      AIR DUCT Genuine Ferrari Part - New (to order)
      # 012
      MPN: 290083
      AIR DUCT
      -Applicable from Ass. No. 110521-
      from £941.72
      from £941.72
      AIR DUCT Genuine Ferrari Part - New (to order)
      # 013
      MPN: 265497
      FILTER BOX COVER
      from £162.61
      from £162.61
      AIR DUCT COVER Genuine Ferrari Part - New (to order)
      # 014
      MPN: 288354
      HOLE BLANKING PLUG
      -Applicable from Ass. No. 105817 up to Ass. No. 110520-
      from £19.17
      from £19.17
      HOLE BLANKING PLUG Genuine Ferrari Part - New In stock
      # 015
      MPN: 13000690
      SCREW COLLAR
      -Applicable from Ass. No. 105817 up to Ass. No. 110520-
      from £0.47
      from £0.47
      This part replaces part number 12177090 - and 1 more. Click to view details
      SCREW COLLAR Genuine Ferrari Part - New In stock
      SCREW COLLAR D. 32- 50X9 (13000690) Genuine Maserati Part - New In stock
