ferrari ff (europe) screens, windows and seals parts diagram

0119 - SCREENS, WINDOWS AND SEALS

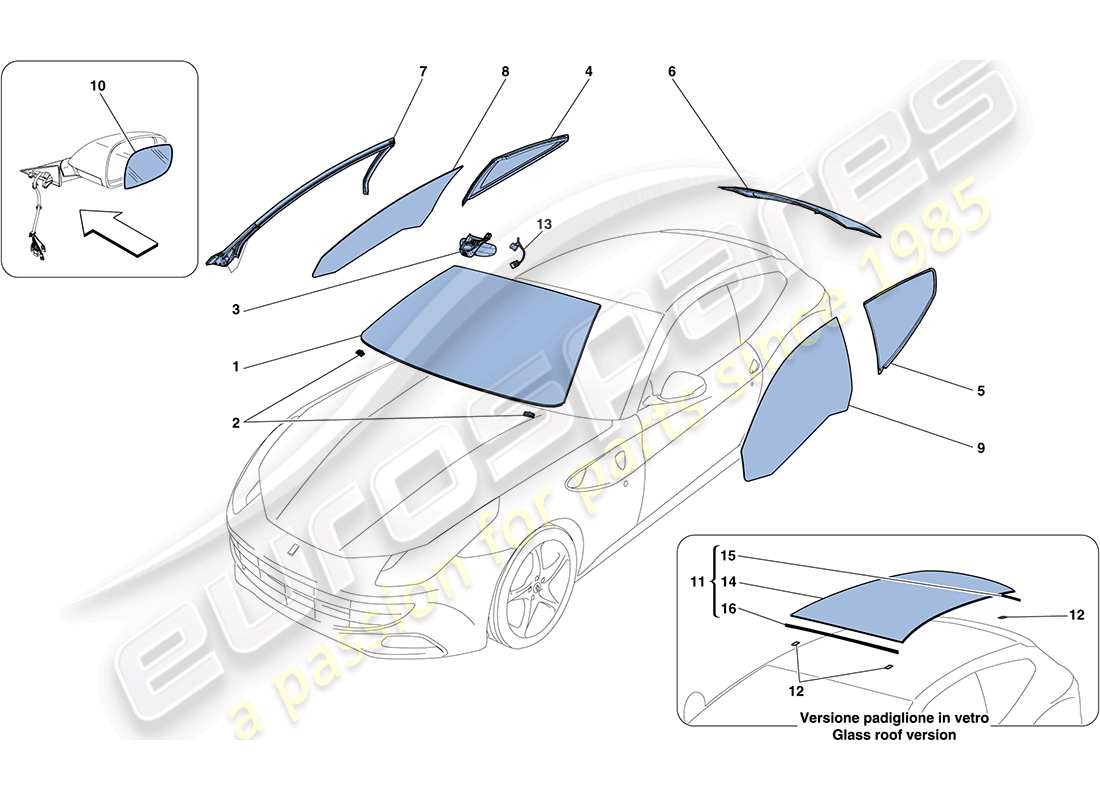

Ferrari FF (Europe) SCREENS, WINDOWS AND SEALS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 81849900
        WINDSCREEN
        -Not for Geneva version-
        from £1,995.77
        from £1,995.77
        This part replaces part number 84644600
        WINDSCREEN Genuine Ferrari Part - New In stock
        # 001
        MPN: 84644600
        WINDSCREEN
        -Version with glass roof panel- -After depletion order window 81849900- -Not for Geneva version- -Applicable until depletion-
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 001
        MPN: 86446800
        WINDSCREEN
        -Applicable for Geneva version-
        from £2,143.30
        from £2,143.30
        WINDSCREEN Genuine Ferrari Part - New In stock
        # 002
        MPN: 67163300
        BLOCK
        -No longer supplied-
        from £0.70
        from £0.70
        BLOCK Genuine Ferrari Part - New In stock
        PLASTIC BLOCK FOR WINDSHI (67163300) Genuine Maserati Part - New (to order)
        # 003
        MPN: 81436600
        COMPL. REAR VIEW MIRROR
        -Electrochromic- -Applicable until depletion-
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 003
        MPN: 82598700
        COMPL. REAR VIEW MIRROR
        -Home link- -Applicable for USA, CDN, USA LIGHT- -Applicable until depletion-
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 003
        MPN: 82908500
        COMPL. REAR VIEW MIRROR
        -Not electrochromic-
        from £98.94
        from £98.94
        INTERNAL REAR VIEW MIRROR Genuine Ferrari Part - New (to order)
        # 003
        MPN: 84475000
        COMPL. REAR VIEW MIRROR
        -Electrochromic- -Applicable after depletion of 81436600-
        from £256.36
        from £256.36
        This part replaces part number 81436600
        INTERNAL REAR VIEW MIRROR Genuine Ferrari Part - New (to order)
        # 003
        MPN: 86042600
        INTERNAL REAR VIEW MIRROR
        -Home link- -Applicable for USA, CDN, USA LIGHT- -Applicable after depletion of 82598700-
        from £1,815.71
        from £1,815.71
        This part replaces part number 82598700
        INT. REAR VIEW MIRROR Genuine Ferrari Part - New (to order)
        # 004
        MPN: 81908600
        RH REAR WINDOW
        from £423.44
        from £423.44
        RH REAR WINDOW Genuine Ferrari Part - New In stock
        # 004
        MPN: 84342400
        RH REAR WINDOW
        -Privacy-
        from £315.37
        from £315.37
        RH REAR WINDOW Genuine Ferrari Part - New In stock
        RH REAR WINDOW Genuine Ferrari Part - Used In stock
        # 005
        MPN: 81908700
        LH REAR WINDOW
        from £232.89
        from £232.89
        LH REAR WINDOW Genuine Ferrari Part - New (to order)
        LH REAR WINDOW Genuine Ferrari Part - Used In stock
        # 005
        MPN: 84342500
        LH REAR WINDOW
        -Privacy-
        from £573.40
        from £573.40
        LH REAR WINDOW Genuine Ferrari Part - New In stock
        # 006
        MPN: 84151500

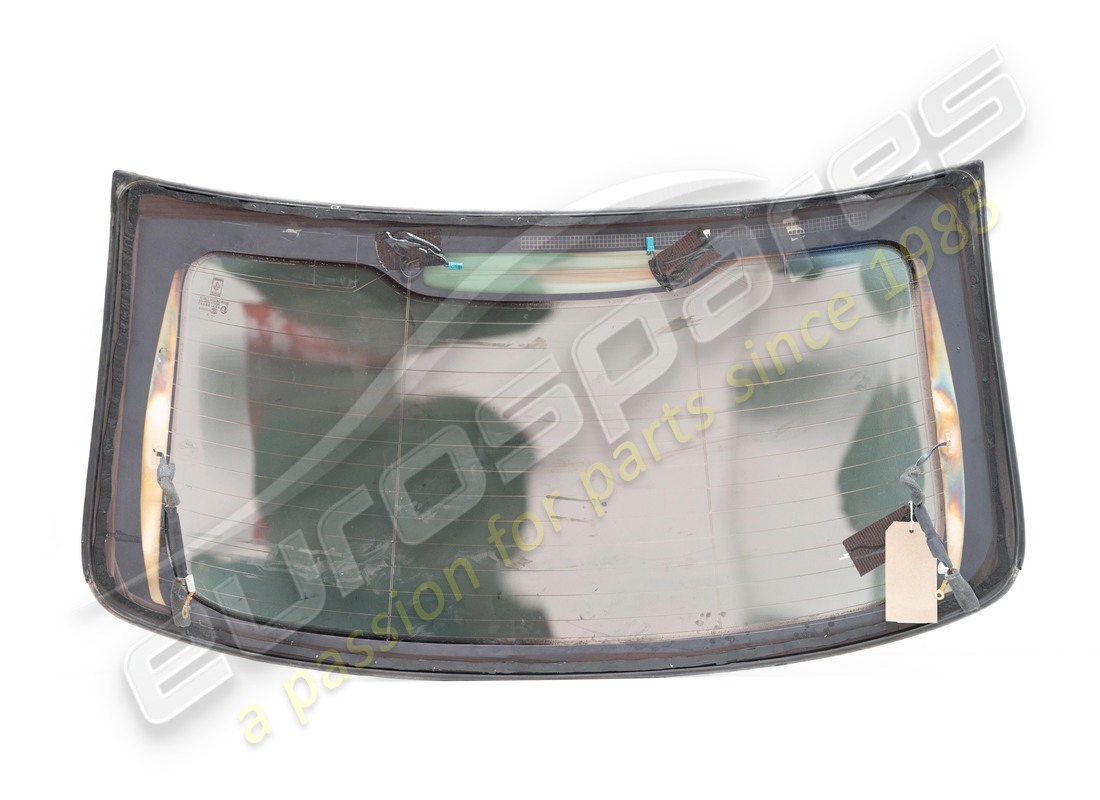

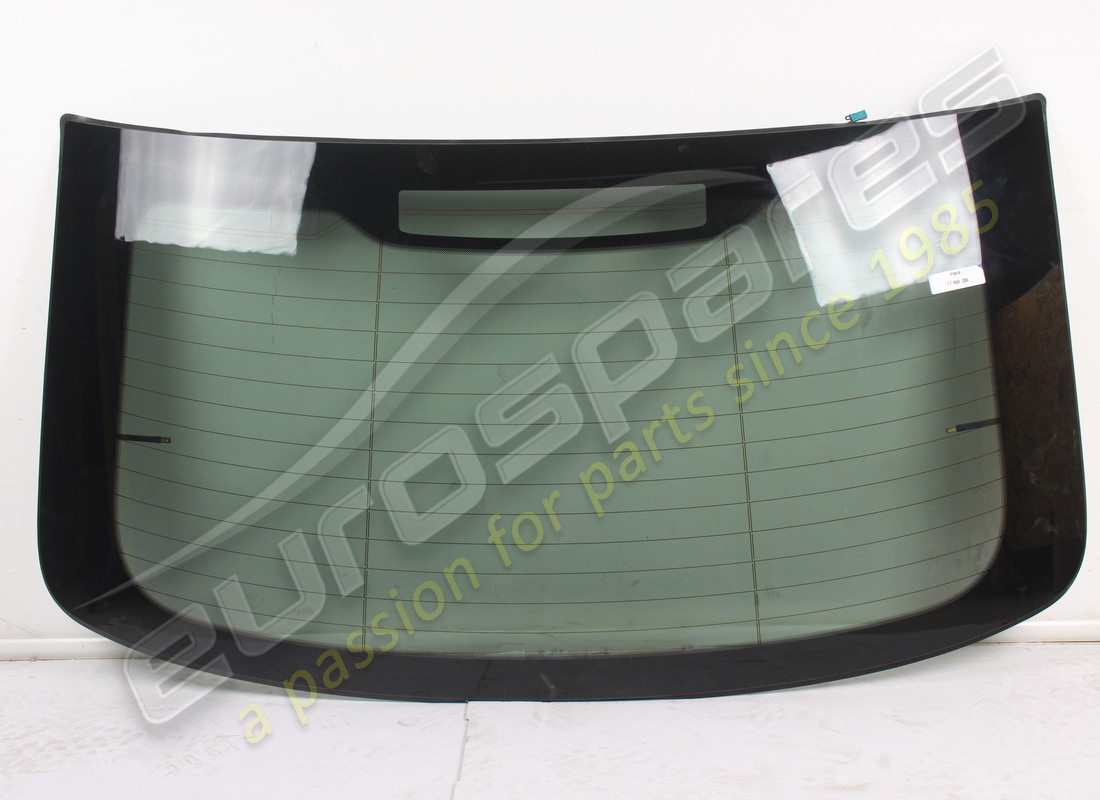

        REAR SCREEN
        -Version without windscreen wiper-
        from £1,068.87
        from £1,068.87
        REAR SCREEN Genuine Ferrari Part - New (to order)
        # 006
        MPN: 84151600
        REAR SCREEN
        -Version with windscreen wiper-
        from £796.32
        from £796.32
        REAR SCREEN Genuine Ferrari Part - New In stock
        # 006
        MPN: 84342600
        REAR SCREEN
        -Version with windscreen wiper- -Privacy-
        from £2,750.10
        from £2,750.10
        REAR SCREEN Genuine Ferrari Part - New (to order)
        # 006
        MPN: 84342700
        REAR SCREEN
        -Version without windscreen wiper- -Privacy-
        from £1,319.94
        from £1,319.94
        REAR SCREEN Genuine Ferrari Part - New In stock
        # 007
        MPN: 82212900
        RH DOOR PERIMETER SEAL
        -Applicable until depletion-
        from £370.82
        from £370.82
        RH DOOR PERIMETER SEAL Genuine Ferrari Part - New In stock
        # 007
        MPN: 82213000
        LH DOOR PERIMETER SEAL
        -Applicable until depletion-
        from £370.82
        from £370.82
        LH DOOR PERIMETER SEAL Genuine Ferrari Part - New In stock
        # 007
        MPN: 84593300
        RH DOOR PERIMETER SEAL WITH STUFFER
        -Applicable after depletion of 82212900- -Applicable until depletion-
        from £296.43
        from £296.43
        This part replaces part number 82212900 which we have in stock - and 1 more. Click to view details
        RH DOOR PERIMETER SEAL AND STUFFER Genuine Ferrari Part - New In stock
        RH DOOR PERIMETER SEAL AND STUFFER Genuine Ferrari Part - Used In stock
        # 007
        MPN: 84593400
        LH DOOR PERIMETER SEAL WITH STUFFER
        -Applicable after depletion of 82213000- -Applicable until depletion-
        from £296.43
        from £296.43
        This part replaces part number 82213000 which we have in stock - and 1 more. Click to view details
        LH DOOR PERIMETER SEAL AND STUFFER Genuine Ferrari Part - New In stock
        LH DOOR PERIMETER SEAL AND STUFFER Genuine Ferrari Part - Used In stock
        # 007
        MPN: 86872000
        LH DOOR PERIMETER SEAL WITH STUFFER
        -Applicable after depletion of 84593400-
        from £338.19
        from £338.19
        This part replaces part number 84593400 which we have in stock
        COMPLETE LH DOOR PERIMETER SEA Genuine Ferrari Part - New (to order)
        # 007
        MPN: 86872100
        RH DOOR PERIMETER SEAL WITH STUFFER
        -Applicable after depletion of 84593300-
        from £338.19
        from £338.19
        This part replaces part number 84593300 which we have in stock
        COMPLETE RH DOOR PERIMETER SEA Genuine Ferrari Part - New In stock
        # 008
        MPN: 83614600
        RH DOOR WINDOW
        from £443.43
        from £443.43
        RH DOOR WINDOW Genuine Ferrari Part - New (to order)
        # 009
        MPN: 83614500
        LH DOOR WINDOW
        from £443.43
        from £443.43
        LH DOOR WINDOW Genuine Ferrari Part - New (to order)
        # 010
        MPN: 83914600
        RH CURVED WINDOW
        -Not electrochromic- -Not for USA, CDN, GOLFO, USA LIGHT-
        from £62.30
        from £62.30
        RH CURVED WINDOW Genuine Ferrari Part - New In stock
        # 010
        MPN: 83914700
        LH CURVED WINDOW
        -Not electrochromic- -Not for USA, CDN, GOLFO, USA LIGHT-
        from £62.30
        from £62.30
        LH CURVED WINDOW Genuine Ferrari Part - New In stock
        # 010
        MPN: 83914800
        RH CURVED WINDOW
        -Electrochromic- -Not for USA, CDN, GOLFO, USA LIGHT-
        from £460.11
        from £460.11
        RH CURVED WINDOW Genuine Ferrari Part - New (to order)
        # 010
        MPN: 83914900
        LH CURVED WINDOW
        -Electrochromic- -Not for USA, CDN, GOLFO, USA LIGHT-
        from £460.11
        from £460.11
        LH CURVED WINDOW Genuine Ferrari Part - New (to order)
        # 010
        MPN: 83915000
        LH CURVED WINDOW
        -Not electrochromic- -Applicable for USA, CDN, GOLFO, USA LIGHT-
        from £11.25
        from £11.25
        LH CURVED WINDOW Genuine Ferrari Part - New (to order)
        # 010
        MPN: 83915100
        LH CURVED WINDOW
        -Electrochromic- -Applicable for USA, CDN, GOLFO, USA LIGHT-
        from £329.51
        from £329.51
        LH CURVED WINDOW Genuine Ferrari Part - New (to order)
        # 010
        MPN: 83915200
        RH CURVED WINDOW
        -Not electrochromic- -Applicable for USA, CDN, USA LIGHT-
        from £71.71
        from £71.71
        RH CURVED WINDOW Genuine Ferrari Part - New (to order)
        # 010
        MPN: 83915300
        RH CURVED WINDOW
        -Not electrochromic- -Applicable for GOLFO-
        from £70.97
        from £70.97
        RH CURVED WINDOW Genuine Ferrari Part - New (to order)
        # 010
        MPN: 83915400
        RH CURVED WINDOW
        -Electrochromic- -Applicable for USA, CDN, USA LIGHT-
        from £607.02
        from £607.02
        RH CURVED WINDOW Genuine Ferrari Part - New (to order)
        # 010
        MPN: 83915500
        RH CURVED WINDOW
        -Electrochromic- -Applicable for GOLFO-
        from £656.92
        from £656.92
        RH CURVED WINDOW Genuine Ferrari Part - New (to order)
        # 011
        MPN: 84943000
        ROOF GLASS PANEL
        -Version with glass roof panel- -No longer supplied-
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 012
        MPN: 84832400
        ADHESIVE PLUG
        -Version with glass roof panel-
        from £0.65
        from £0.65
        This part replaces part number 84841400 which we have in stock
        ADHESIVE PLUG Genuine Ferrari Part - New In stock
        # 012
        MPN: 84841400
        ADHESIVE PLUG
        -Version with glass roof panel- -No longer supplied- -Replaced by 84832400-
        from £0.53
        from £0.53
        ADHESIVE PLUG Genuine Ferrari Part - New In stock
        # 013
        MPN: 60684944
        RAIN AND TWILIGHT SENSOR ECU
        from £130.29
        from £130.29
        This part replaces part number 190935
        CONTROL STATION FOR RAIN AND Genuine Ferrari Part - New (to order)
        CENTRALINA SENSORE PIOGGIA/C (60684944) Genuine Maserati Part - New (to order)
        # 014
        MPN: 83639400
        ROOF GLASS PANEL
        -Version with glass roof panel- -Applicable until depletion-
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 014
        MPN: 86363900
        ROOF GLASS PANEL
        -Version with glass roof panel- -Applicable after depletion of 83639400-
        from £5,260.85
        from £5,260.85
        This part replaces part number 83639400 - and 1 more. Click to view details
        ROOF GLASS PANEL Genuine Ferrari Part - New (to order)
        # 015
        MPN: 84645800
        ROOF GLASS PANEL SEAL
        -Version with glass roof panel-
        from £388.80
        from £388.80
        GASKET Genuine Ferrari Part - New (to order)
        # 016
        MPN: 81130900
        SPACER
        -Version with glass roof panel-
        from £4.09
        from £4.09
        SPACER Genuine Ferrari Part - New (to order)
