0022 - Transmission Pipe

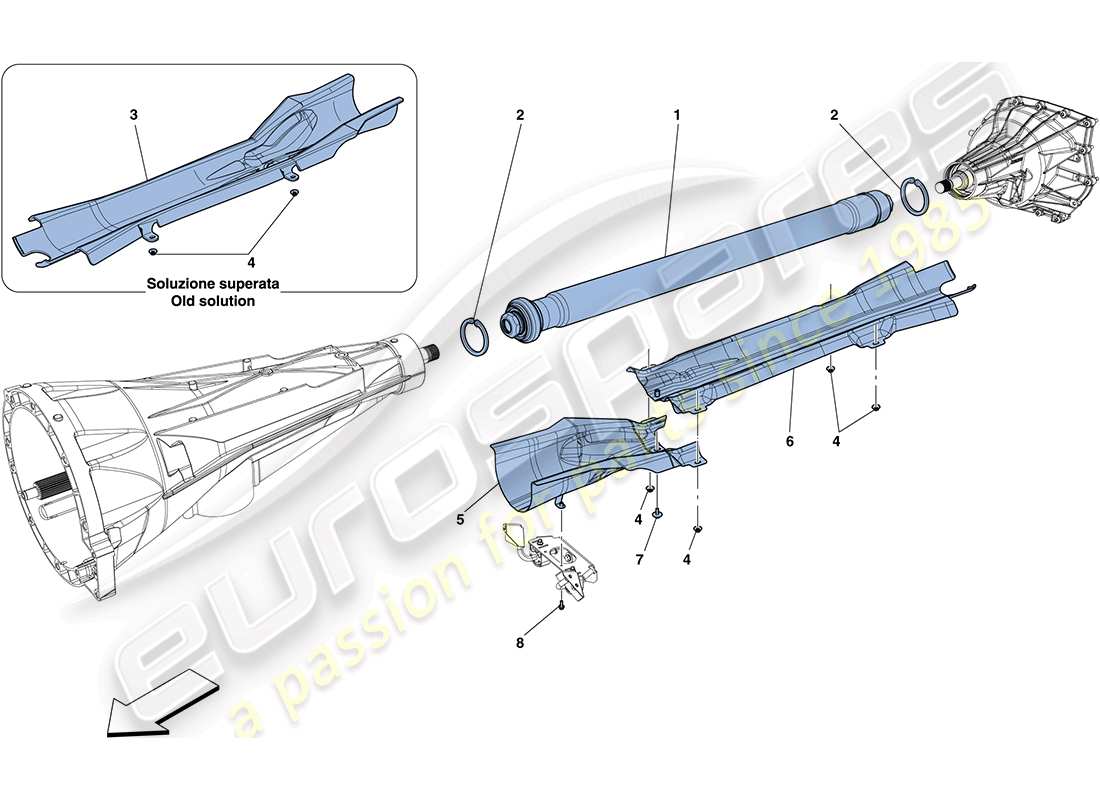

Ferrari FF (RHD) TRANSMISSION PIPE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 263817
    transmission shaft
    -Applicable until depletion-
    from £1,469.90
    from £1,469.90
    Genuine Ferrari Part (no longer available to order)
    transmission shaft Genuine Ferrari Part - Used In stock
    # 001
    MPN: 316145
    transmission shaft
    -Applicable after depletion of 263817- -Applicable until depletion-
    Supersession
    Supersession
    This part replaces part number 263817 which we have in stock
    Genuine Ferrari Part (no longer available to order)
    # 001
    MPN: 340748
    transmission shaft
    -Applicable after depletion of 316145-
    Supersession
    Supersession
    This part replaces part number 316145
    Genuine Ferrari Part (no longer available to order)
    # 002
    MPN: 13398476
    SNAP RING
    from £0.53
    from £0.53
    SNAP RING Genuine Ferrari Part - New (to order)
    # 003
    MPN: 272446
    TRANSMISSION SHAFT HEAT SHIELD
    -Applicable up to Ass. No. 110016-
    from £163.32
    from £163.32
    TRANSMISSION SHAFT HEAT SHIE Genuine Ferrari Part - New (to order)
    TRANSMISSION SHAFT HEAT SHIE Genuine Ferrari Part - Used In stock
    one broken lug
    # 004
    MPN: 14039614
    NUT
    from £0.53
    from £0.53
    NUT Genuine Ferrari Part - New In stock
    DADO E AUTOBLOC C/ROS CON IM (14039614) Genuine Maserati Part - New In stock
    # 004
    MPN: 14065921
    NUT
    -No longer supplied- -Replaced by 14039614-
    from £0.47
    from £0.47
    NUT Genuine Ferrari Part - New In stock
    DADO EAUF BASSO FLANGIATO M (14065921) Genuine Maserati Part - New (to order)
    # 005
    MPN: 293630
    SHORT HEAT SHIELD
    -Applicable from Ass. No. 110017-
    from £82.40
    from £82.40
    SHORT HEAT SHIELD Genuine Ferrari Part - New (to order)
    # 006
    MPN: 293628
    LONG HEAT SHIELD
    -Applicable from Ass. No. 110017-
    from £25.31
    from £25.31
    LONG HEAT SHIELD Genuine Ferrari Part - New (to order)
    LONG HEAT SHIELD Genuine Ferrari Part - Used In stock
    # 007
    MPN: 81290900
    SCREW
    -M6 X 20 X 22- -Applicable from Ass. No. 110017-
    from £0.47
    from £0.47
    This part replaces part number 67578600
    SCREW WITH DOUBLE WASHER Genuine Ferrari Part - New In stock
    # 008
    MPN: 256323
    SCREW
    -M5 X 16- -Applicable from Ass. No. 110017-
    from £0.47
    from £0.47
    SCREW Genuine Ferrari Part - New In stock
