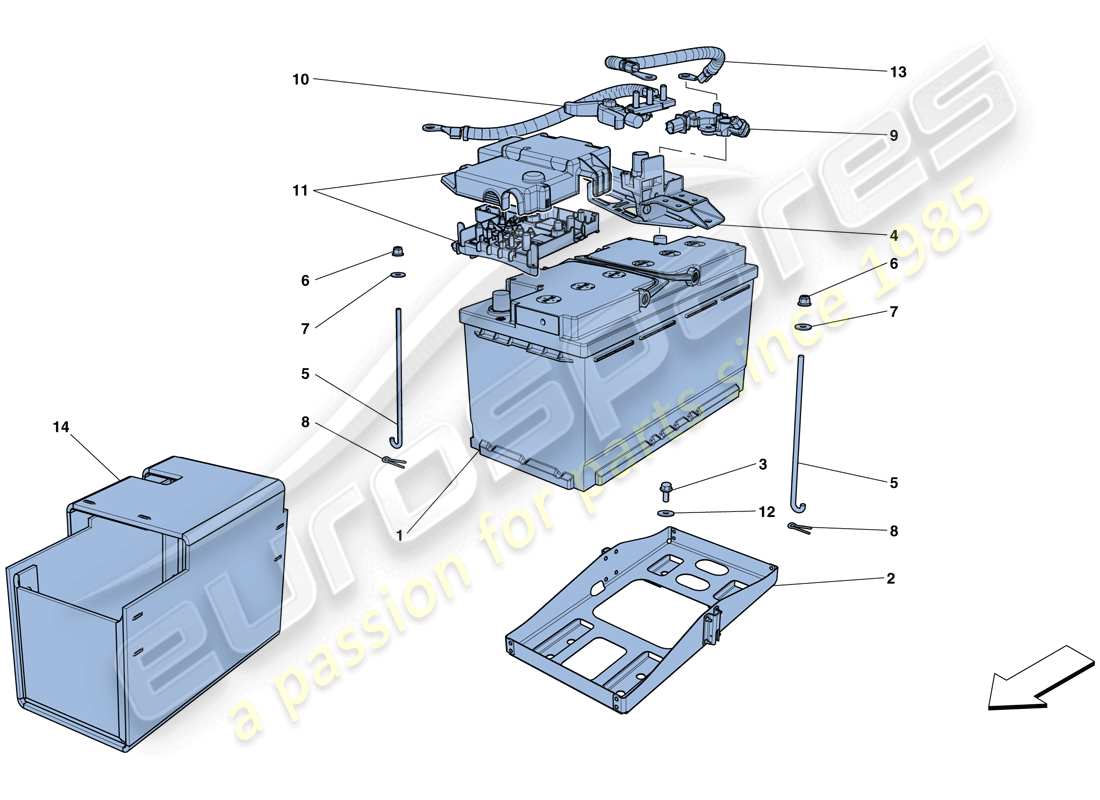

Ferrari GTC4 Lusso (USA) BATTERY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 001
                    MPN: 312187
                    Battery
                    -95 Ah-
                    Supersession
                    Supersession
                    This part replaces part number 256381
                    Genuine Ferrari Part (no longer available to order)
                    # 002
                    MPN: 334416
                    BATTERY MOUNTING
                    from £185.08
                    from £185.08
                    BATTERY MOUNTING Genuine Ferrari Part - New (to order)
                    # 003
                    MPN: 16044321
                    SCREW
                    -M8 X 55-
                    from £0.26
                    from £0.26
                    BOLT Genuine Ferrari Part - New In stock
                    BOLT Genuine Ferrari Part - Used In stock
                    VITE TE M 8X55 (16044321) Genuine Maserati Part - New (to order)
                    # 003
                    MPN: 16287024
                    SCREW
                    -M8 X 16-
                    from £0.47
                    from £0.47
                    SCREW. Genuine Ferrari Part - New In stock
                    SCREW. (16287024) Genuine Maserati Part - New (to order)
                    # 004
                    MPN: 329275
                    BATTERY RETAINER COMPLETE WITH NEGATIVE TERMINAL
                    from £50.63
                    from £50.63
                    BATTERY RETAINER COMPLETE WI Genuine Ferrari Part - New (to order)
                    BATTERY RETAINER COMPLETE WI Genuine Ferrari Part - Used In stock
                    # 005
                    MPN: 292882
                    TIE-ROD
                    from £4.90
                    from £4.90
                    TIE-ROD Genuine Ferrari Part - New (to order)
                    TIE-ROD Genuine Ferrari Part - Used In stock
                    # 006
                    MPN: 228265
                    NUT
                    from £0.47
                    from £0.47
                    NUT Genuine Ferrari Part - New In stock
                    NUT (228265) Genuine Maserati Part - New (to order)
                    # 007
                    MPN: 12643724
                    WASHER
                    from £0.47
                    from £0.47
                    This part replaces part number 109684 - and 4 more. Click to view details
                    WASHER Genuine Ferrari Part - New In stock
                    WASHER FOR BRACKET ON HEA (12643724) Genuine Maserati Part - New In stock
                    # 008
                    MPN: 10795206
                    SPLIT PIN
                    from £0.47
                    from £0.47
                    SPLIT PIN Genuine Ferrari Part - New (to order)
                    # 009
                    MPN: 274661
                    BATTERY SENSOR
                    from £75.60
                    from £75.60
                    BATTERY SENSOR Genuine Ferrari Part - New (to order)
                    # 010
                    MPN: 273569
                    COMPL. BATTERY MASTER SWITCH
                    - CHASSIS GROUND CABLE -Applicable for GD-
                    from £25.03
                    from £25.03
                    COMPLETE BATTERY MASTER SWITCH Genuine Ferrari Part - New (to order)
                    COMPLETE BATTERY MASTER SWITCH Genuine Ferrari Part - Used In stock
                    # 010
                    MPN: 273942
                    COMPL. BATTERY MASTER SWITCH
                    - CHASSIS GROUND CABLE -Not for GD-
                    from £42.83
                    from £42.83
                    COMPLETE BATTERY MASTER SWITCH Genuine Ferrari Part - New (to order)
                    # 011
                    MPN: 329276
                    COMPL. BATTERY ECU
                    -Applicable until depletion-
                    Supersession
                    Supersession
                    Genuine Ferrari Part (no longer available to order)
                    # 011
                    MPN: 338949
                    COMPL. BATTERY ECU
                    -Applicable after depletion of 329276- -Applicable until depletion-
                    Supersession
                    Supersession
                    This part replaces part number 329276
                    Genuine Ferrari Part (no longer available to order)
                    # 011
                    MPN: 764669
                    COMPL. BATTERY ECU
                    -Applicable after depletion of 338949-
                    from £81.67
                    from £81.67
                    This part replaces part number 338949
                    COMPLETE BATTERY ECU Genuine Ferrari Part - New (to order)
                    # 012
                    MPN: 12646778
                    WASHER
                    from £0.53
                    from £0.53
                    This part replaces part number 156093
                    WASHER Genuine Ferrari Part - New In stock
                    WASHER (12646778) Genuine Maserati Part - New (to order)
                    # 013
                    MPN: 278419
                    GROUND CABLE FROM SENSOR TO FALSE POLE
                    from £12.09
                    from £12.09
                    GROUND CABLE FROM SENSOR TO Genuine Ferrari Part - New (to order)
                    GROUND CABLE FROM SENSOR TO Genuine Ferrari Part - Used In stock
                    # 014
                    MPN: 251793
                    HEAT SHIELD
                    -No longer supplied- -Replaced by 769500-
                    from £98.67
                    from £98.67
                    HEAT SHIELD Genuine Ferrari Part - New (to order)
                    HEAT SHIELD Genuine Ferrari Part - Used In stock
                    # 014
                    MPN: 769500
                    HEAT SHIELD
                    from £155.91
                    from £155.91
                    HEAT SHIELD Genuine Ferrari Part - New (to order)
