0018 - pre-catalytic converters and catalytic converters

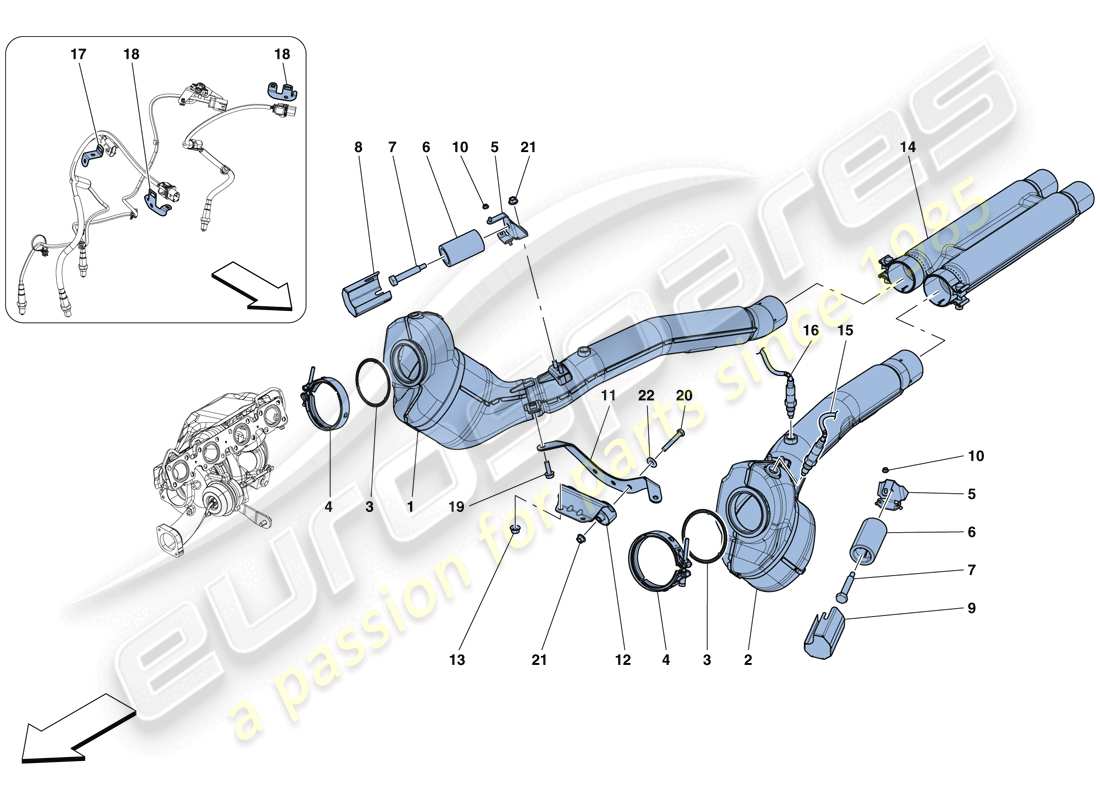

Ferrari GTC4 Lusso T (RHD) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 339843
COMPL. RH CATALYTIC CONVERTER
from £3,617.61
from £3,617.61
# 002
MPN: 339844
COMPL. LH CATALYTIC CONVERTER
from £3,617.61
from £3,617.61
# 003
MPN: 283172
GASKET BETWEEN TURBO AND PRE-CATALYTIC CONVERTER
from £9.90
from £9.90
# 004
MPN: 287210
V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO TURBO
from £15.64
from £15.64
# 005
MPN: 339847
BRACKET FOR DAMPER
from £46.97
from £46.97
# 006
MPN: 339083
120 HZ DAMPER
from £42.27
from £42.27
# 007
MPN: 302484
SCREW
-M8 X 70-
from £4.77
from £4.77
# 008
MPN: 339848
RH DAMPER HEAT SHIELD
from £24.01
from £24.01
# 009
MPN: 339849
LH DAMPER HEAT SHIELD
from £24.01
from £24.01
# 010
MPN: 14059114
NUT
from £0.47
from £0.47
# 011
MPN: 322039
CATALYTIC CONVERTER FASTENER BRACKET
from £29.83
from £29.83
# 012
MPN: 321643
COMPL. CATALYTIC CONVERTER MOUNTING BRACKET
from £118.12
from £118.12
This part replaces part number 290058 - and 1 more. Click to view details
# 013
MPN: 14040711
NUT
from £0.47
from £0.47
This part replaces part number 14040715
# 014
MPN: 342173
COMPL. CENTRAL EXTENSION
from £417.71
from £417.71
# 015
MPN: 292582
FRONT OXYGEN SENSOR
-L. 1500 mm-
from £63.78
from £63.78
# 016
MPN: 300507
REAR OXYGEN SENSOR
-L. 1030 mm-
from £23.69
from £23.69
# 017
MPN: 330420
OXYGEN SENSOR CONNECTOR FASTENER BRACKET
from £6.64
from £6.64
# 018
MPN: 337818
OXYGEN SENSOR CONNECTOR FASTENER BRACKET
from £7.08
from £7.08
# 019
MPN: 16287224
SCREW
-M8 X 25-
from £0.47
from £0.47
This part replaces part number 16287221
# 020
MPN: 16044321
SCREW
-M8 X 55-
from £0.26
from £0.26
# 021
MPN: 14059311
NUT
from £0.26
from £0.26
# 022
MPN: 11193974
WASHER
from £0.26
from £0.26
