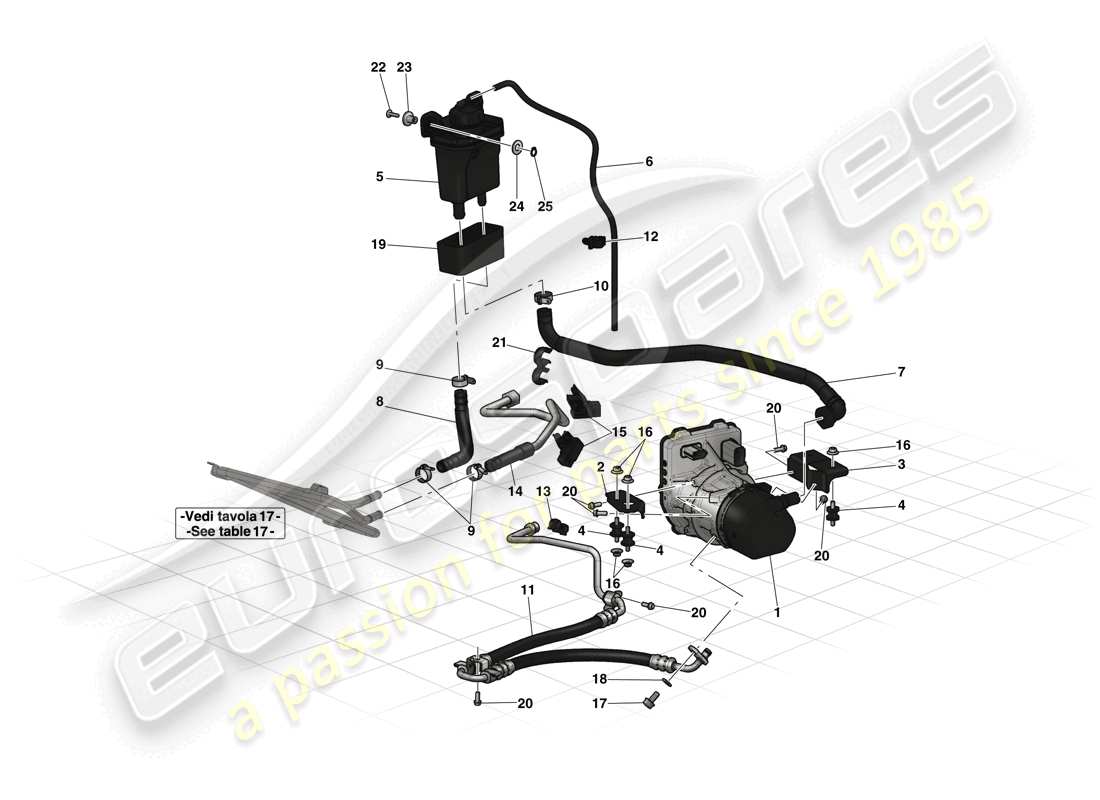

0028 - POWER STEERING PUMP AND RESERVOIR

Ferrari LaFerrari (USA) POWER STEERING PUMP AND RESERVOIR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 001
                                            MPN: 275767
                                            POWER STEERING PUMP
                                            -No longer supplied- -Replaced by 309203-
                                            Supersession
                                            Supersession
                                            Genuine Ferrari Part (no longer available to order)
                                            # 001
                                            MPN: 309203
                                            POWER STEERING PUMP
                                            from £7,669.47
                                            from £7,669.47
                                            This part replaces part number 275767
                                            POWER STEERING PUMP Genuine Ferrari Part - New (to order)
                                            # 002
                                            MPN: 288801
                                            FRONT POWER STEERING PUMP BRACKET
                                            from £30.94
                                            from £30.94
                                            FRONT POWER STEERING PUMP BR Genuine Ferrari Part - New (to order)
                                            # 003
                                            MPN: 295350
                                            REAR POWER STEERING PUMP BRACKET
                                            from £30.56
                                            from £30.56
                                            REAR POWER STEERING PUMP BRA Genuine Ferrari Part - New (to order)
                                            # 004
                                            MPN: 284347
                                            POWER STEERING PUMP FASTENER BUSH
                                            from £11.19
                                            from £11.19
                                            POWER STEERING PUMP FASTENER Genuine Ferrari Part - New (to order)
                                            # 005
                                            MPN: 292342
                                            POWER STEERING FLUID RESERVOIR
                                            from £25.42
                                            from £25.42
                                            This part replaces part number 233605 which we have in stock - and 9 more. Click to view details
                                            COMPLETE POWER STEERING FLUID Genuine Ferrari Part - New (to order)
                                            COMPLETE POWER STEERING FLUID Genuine Ferrari Part - Used In stock
                                            # 006
                                            MPN: 115148
                                            RUBBER PIPE
                                            -No longer supplied- -Replaced by 118502-
                                            from £3.78
                                            from £3.78
                                            This part replaces part number 121829
                                            Genuine Ferrari Part (no longer available to order)
                                            TUBO GOMMA D. 3,5- 8X 600 (115148) Genuine Maserati Part - New (to order)
                                            # 006
                                            MPN: 118502
                                            RUBBER PIPE
                                            -No longer supplied- -Replaced by 122126-
                                            from £18.45
                                            from £18.45
                                            This part replaces part number 115148 - and 3 more. Click to view details
                                            TUBE Genuine Ferrari Part - New (to order)
                                            TUBE Genuine Ferrari Part - Used In stock
                                            # 006
                                            MPN: 122126
                                            RUBBER PIPE
                                            from £5.08
                                            from £5.08
                                            This part replaces part number 258946
                                            TUBE Genuine Ferrari Part - New (to order)
                                            N.F. DARE SEZ. 318720329 (122126) Genuine Maserati Part - New (to order)
                                            # 007
                                            MPN: 303012
                                            PIPE FROM RESERVOIR TO POWER STEERING PUMP
                                            from £67.26
                                            from £67.26
                                            PIPE FROM RESERVOIR TO POWER Genuine Ferrari Part - New (to order)
                                            # 008
                                            MPN: 303013
                                            PIPE FROM COIL TO POWER STEERING FLUID RESERVOIR
                                            from £29.37
                                            from £29.37
                                            PIPE FROM COIL TO POWER STEE Genuine Ferrari Part - New (to order)
                                            # 009
                                            MPN: 262108
                                            SCREW COLLAR
                                            from £0.94
                                            from £0.94
                                            SCREW COLLAR Genuine Ferrari Part - New (to order)
                                            # 010
                                            MPN: 262109
                                            COLLAR CLAMP
                                            from £0.65
                                            from £0.65
                                            This part replaces part number 10860270 - and 1 more. Click to view details
                                            SCREW COLLAR Genuine Ferrari Part - New In stock
                                            CLAMP (262109) Genuine Maserati Part - New In stock
                                            # 011
                                            MPN: 303091
                                            PIPE FROM PUMP TO FIREWALL
                                            from £385.32
                                            from £385.32
                                            PIPE FROM PUMP TO FIREWALL Genuine Ferrari Part - New (to order)
                                            # 012
                                            MPN: 262559
                                            CLIP
                                            from £0.51
                                            from £0.51
                                            CLIP Genuine Ferrari Part - New In stock
                                            # 013
                                            MPN: 150695
                                            CLIP
                                            from £0.47
                                            from £0.47
                                            SPRING Genuine Ferrari Part - New (to order)
                                            # 014
                                            MPN: 303014
                                            PIPE FROM FIREWALL TO COIL
                                            from £165.53
                                            from £165.53
                                            PIPE FROM FIREWALL TO COIL Genuine Ferrari Part - New (to order)
                                            # 015
                                            MPN: 81649400
                                            CLIP
                                            from £6.60
                                            from £6.60
                                            CLIP Genuine Ferrari Part - New (to order)
                                            # 016
                                            MPN: 14039614
                                            NUT
                                            from £0.52
                                            from £0.52
                                            NUT Genuine Ferrari Part - New In stock
                                            DADO E AUTOBLOC C/ROS CON IM (14039614) Genuine Maserati Part - New In stock
                                            # 017
                                            MPN: 16297924
                                            SCREW
                                            from £0.82
                                            from £0.82
                                            SCREW Genuine Ferrari Part - New (to order)
                                            # 018
                                            MPN: 14496524
                                            WASHER
                                            from £0.47
                                            from £0.47
                                            This part replaces part number 14496525 - and 1 more. Click to view details
                                            WASHER Genuine Ferrari Part - New In stock
                                            WASHER (14496524) Genuine Maserati Part - New In stock
                                            # 019
                                            MPN: 303090
                                            FOAM
                                            from £2.29
                                            from £2.29
                                            FOAM Genuine Ferrari Part - New (to order)
                                            # 020
                                            MPN: 302574
                                            ERGAL SCREW
                                            -M6 X 15-
                                            from £3.13
                                            from £3.13
                                            ERGAL SCREW Genuine Ferrari Part - New (to order)
                                            # 021
                                            MPN: 82329900
                                            CLIP
                                            from £0.54
                                            from £0.54
                                            CLIP Genuine Ferrari Part - New (to order)
                                            # 022
                                            MPN: 169814
                                            SCREW
                                            -M5 X 14-
                                            from £0.71
                                            from £0.71
                                            This part replaces part number 13288119 - and 1 more. Click to view details
                                            SCREW Genuine Ferrari Part - New In stock
                                            # 022
                                            MPN: 85797200
                                            SCREW
                                            -M5 X 18- -No longer supplied- -Replaced by 169814-
                                            from £0.47
                                            from £0.47
                                            SCREW Genuine Ferrari Part - New (to order)
                                            # 023
                                            MPN: 303591
                                            SEEGER RING
                                            from £12.09
                                            from £12.09
                                            SEEGER RING Genuine Ferrari Part - New (to order)
                                            # 024
                                            MPN: 303594
                                            SEAL RING
                                            from £8.40
                                            from £8.40
                                            SEAL RING Genuine Ferrari Part - New (to order)
                                            # 025
                                            MPN: 11065976
                                            SEEGER RING
                                            from £0.47
                                            from £0.47
                                            This part replaces part number 11065975
                                            RING Genuine Ferrari Part - New In stock
